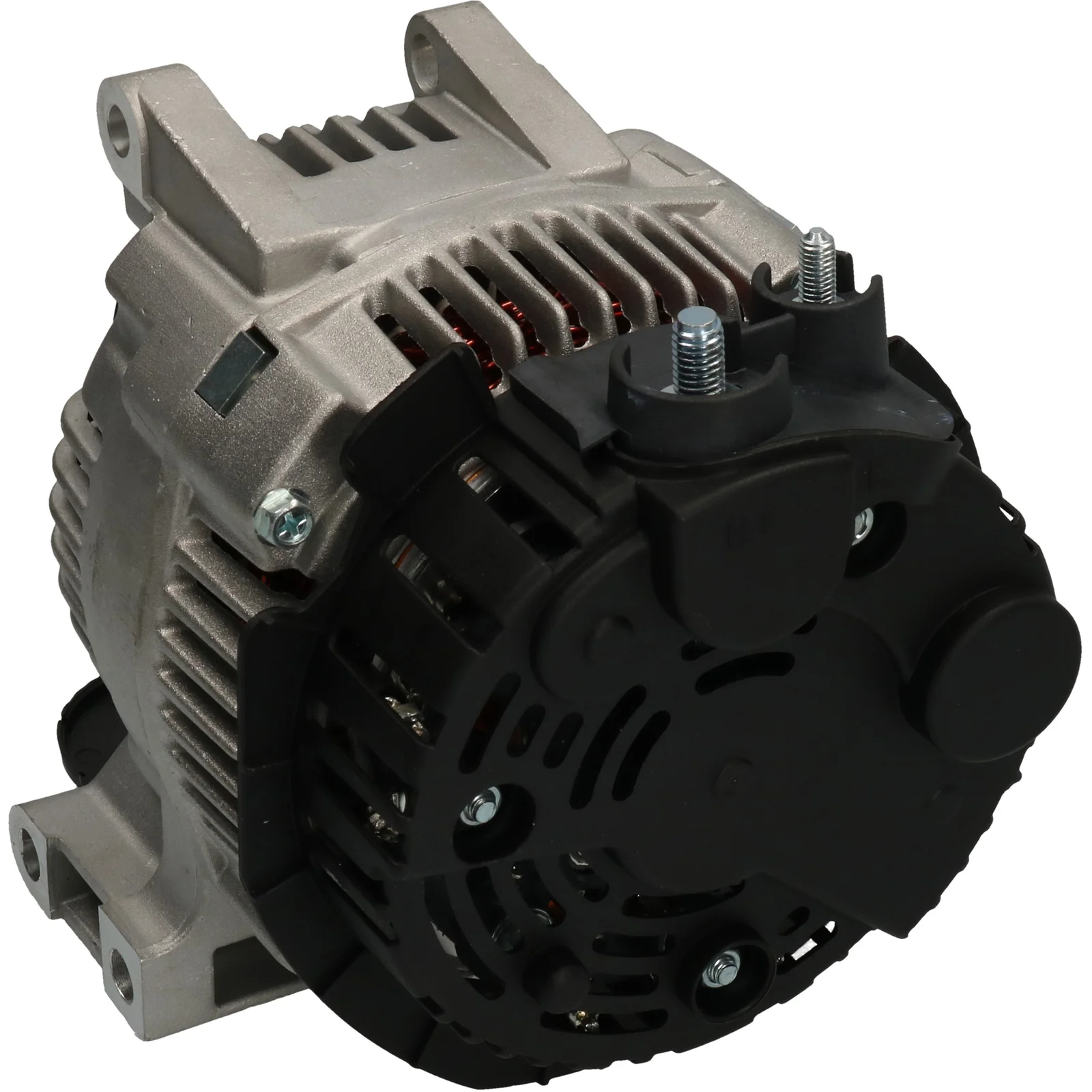

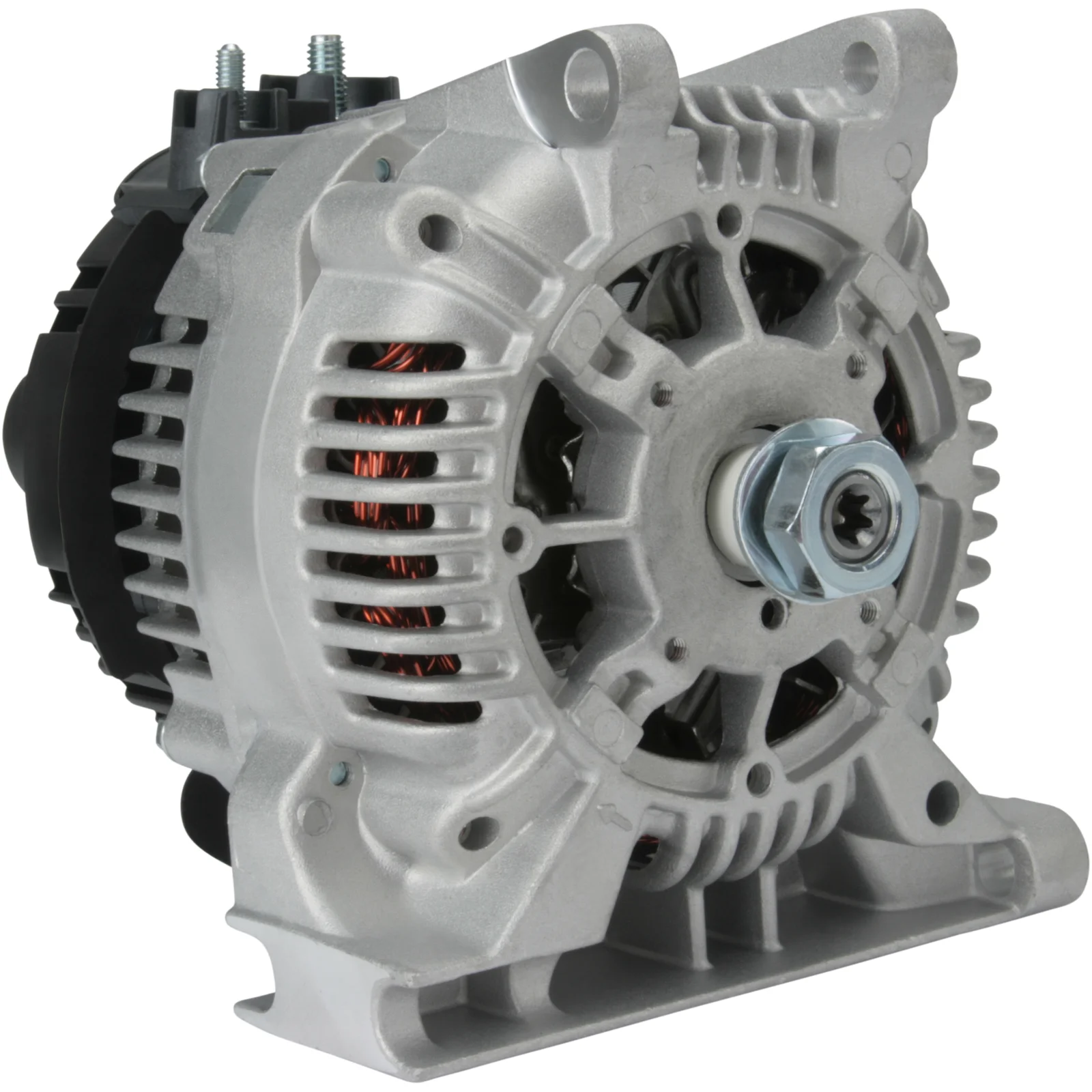

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111943

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett avstand: 42.00

Beskrivelse

Spenning: 14
Ampere: 90
Bøssing av remskive: 29.50
Bredde/holderarm: 140.20
Monteringsbrakett avstand: 42.00
Brakettgitter hull: 8.00
Brakettgitter hull 2: 9.00
Remspenningsjustering brakettgitter pos.: 60
Remspenningsjustering brakettgitter hull 1: 8.00
Remskive diameter: 52.00
Groover/remskive: 5
B+: M8
Posisjon/B+ i min.: 60
D+ Størrelse: M6
Rotasjon: med urviseren
Total lengde mm: 181.00
Remskive: SP/FW
Regulator-type: IR
Produsentinfo: BN/OE
Service: Mercedes-Benz

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 60
Bracket hole 8.00
Bracket hole 2 9.00
Position/B+ in min. 60
Prod. info BN/OE
Pulley SP/FW
Pulley dia. 52.00
Pulley dist. 29.50
D+ Size M6
Regulator type IR
Rotation CW
Servicing Mercedes-Benz
Grooves/pulley 5
Voltage 14
Total length 181.00 mm
Width/holder arm 140.20
Amp 90

  • OEM
    A0101543902, A010154390280, A0111548202, A011154820280, A0121544302, A012154430280, A0121544402, A012154440280, a13vi202, a13vi257, F032111943, sg9b038, sg9b039, 1390ir, 2541968, 2541968A, 2541968B, 2541968D, 2542347, 2542347A, 2542413, 2542413A, 2542413C, 2542414, 2542414A, 0101543902, 0111548202, 0121544302, 0121544402, 010154390280, 011154820280, 012154430280, 012154440280

  • Konkurrentreferens
    A3082, A3082(P), A3082(P-INA), A3082PR, ALT-H069, ALT20046, CAL15151, DRA3865, DRA3865X, F042A0H069, LRA01851, NA535, 8EL012426-281, 8el737577-001, 28-3704, 225.130.902, 4627, 6034, 22850R, 22851N, 22851R, 111614, 119679, 200052, 210340, 210340A, 301390RI, 437114, 437346, 439232, 439333, 746123, 746923, 747900, 839009, 12045180, 32041801, 0986045181, 944390900750

  • NormaliseratArtNr
    a0101543902, a010154390280, a0111548202, a011154820280, a0121544302, a012154430280, a0121544402, a012154440280, a13vi202, a13vi257, a3082, a3082p, a3082pina, a3082pr, alt20046, alth069, cal15151, dra3865, dra3865x, f032111943, f042a0h069, lra01851, na535, sg9b038, sg9b039, 8el012426281, 8el737577001, 1390ir, 4627, 6034, 22850r, 22851n, 22851r, 111614, 119679, 200052, 210340, 210340a, 283704, 301390ri, 437114, 437346, 439232, 439333, 746123, 746923, 747900, 839009, 2541968, 2541968a, 2541968b, 2541968d, 2542347, 2542347a, 2542413, 2542413a, 2542413c, 2542414, 2542414a, 12045180, 32041801, 0101543902, 0111548202, 0121544302, 0121544402, 225130902, 0986045181, 010154390280, 011154820280, 012154430280, 012154440280, 944390900750

  • Passar modeller
    Mercedes-Benz Model: 160 Model series: A 160 Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.941 Type description: 168 Body: Hatchback From date: 01-07-1998 To date: 01-02-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 170 Model series: A 170 Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.940 Type description: 168 Body: Hatchback From date: 01-07-1998 To date: 01-02-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 190 Model series: A 190 Size of motor: 1.9 Brand of engine: M166.990 Type description: 168 Body: Hatchback From date: 01-03-1999 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Vaneo Model series: Vaneo Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.914 Body: MPV From date: 01-02-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 90
    Bøssing av remskive: 29.50
    Bredde/holderarm: 140.20
    Monteringsbrakett avstand: 42.00
    Brakettgitter hull: 8.00
    Brakettgitter hull 2: 9.00
    Remspenningsjustering brakettgitter pos.: 60
    Remspenningsjustering brakettgitter hull 1: 8.00
    Remskive diameter: 52.00
    Groover/remskive: 5
    B+: M8
    Posisjon/B+ i min.: 60
    D+ Størrelse: M6
    Rotasjon: med urviseren
    Total lengde mm: 181.00
    Remskive: SP/FW
    Regulator-type: IR
    Produsentinfo: BN/OE
    Service: Mercedes-Benz

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 60
    Bracket hole 8.00
    Bracket hole 2 9.00
    Position/B+ in min. 60
    Prod. info BN/OE
    Pulley SP/FW
    Pulley dia. 52.00
    Pulley dist. 29.50
    D+ Size M6
    Regulator type IR
    Rotation CW
    Servicing Mercedes-Benz
    Grooves/pulley 5
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 140.20
    Amp 90
  • Kjøretøymatching

    • OEM
      A0101543902, A010154390280, A0111548202, A011154820280, A0121544302, A012154430280, A0121544402, A012154440280, a13vi202, a13vi257, F032111943, sg9b038, sg9b039, 1390ir, 2541968, 2541968A, 2541968B, 2541968D, 2542347, 2542347A, 2542413, 2542413A, 2542413C, 2542414, 2542414A, 0101543902, 0111548202, 0121544302, 0121544402, 010154390280, 011154820280, 012154430280, 012154440280

    • Konkurrentreferens
      A3082, A3082(P), A3082(P-INA), A3082PR, ALT-H069, ALT20046, CAL15151, DRA3865, DRA3865X, F042A0H069, LRA01851, NA535, 8EL012426-281, 8el737577-001, 28-3704, 225.130.902, 4627, 6034, 22850R, 22851N, 22851R, 111614, 119679, 200052, 210340, 210340A, 301390RI, 437114, 437346, 439232, 439333, 746123, 746923, 747900, 839009, 12045180, 32041801, 0986045181, 944390900750

    • NormaliseratArtNr
      a0101543902, a010154390280, a0111548202, a011154820280, a0121544302, a012154430280, a0121544402, a012154440280, a13vi202, a13vi257, a3082, a3082p, a3082pina, a3082pr, alt20046, alth069, cal15151, dra3865, dra3865x, f032111943, f042a0h069, lra01851, na535, sg9b038, sg9b039, 8el012426281, 8el737577001, 1390ir, 4627, 6034, 22850r, 22851n, 22851r, 111614, 119679, 200052, 210340, 210340a, 283704, 301390ri, 437114, 437346, 439232, 439333, 746123, 746923, 747900, 839009, 2541968, 2541968a, 2541968b, 2541968d, 2542347, 2542347a, 2542413, 2542413a, 2542413c, 2542414, 2542414a, 12045180, 32041801, 0101543902, 0111548202, 0121544302, 0121544402, 225130902, 0986045181, 010154390280, 011154820280, 012154430280, 012154440280, 944390900750

    • Passar modeller
      Mercedes-Benz Model: 160 Model series: A 160 Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.941 Type description: 168 Body: Hatchback From date: 01-07-1998 To date: 01-02-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 170 Model series: A 170 Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.940 Type description: 168 Body: Hatchback From date: 01-07-1998 To date: 01-02-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 190 Model series: A 190 Size of motor: 1.9 Brand of engine: M166.990 Type description: 168 Body: Hatchback From date: 01-03-1999 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Vaneo Model series: Vaneo Type of engine: CDi Size of motor: 1.7 Brand of engine: OM668.914 Body: MPV From date: 01-02-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
