Varenr.: F032113656

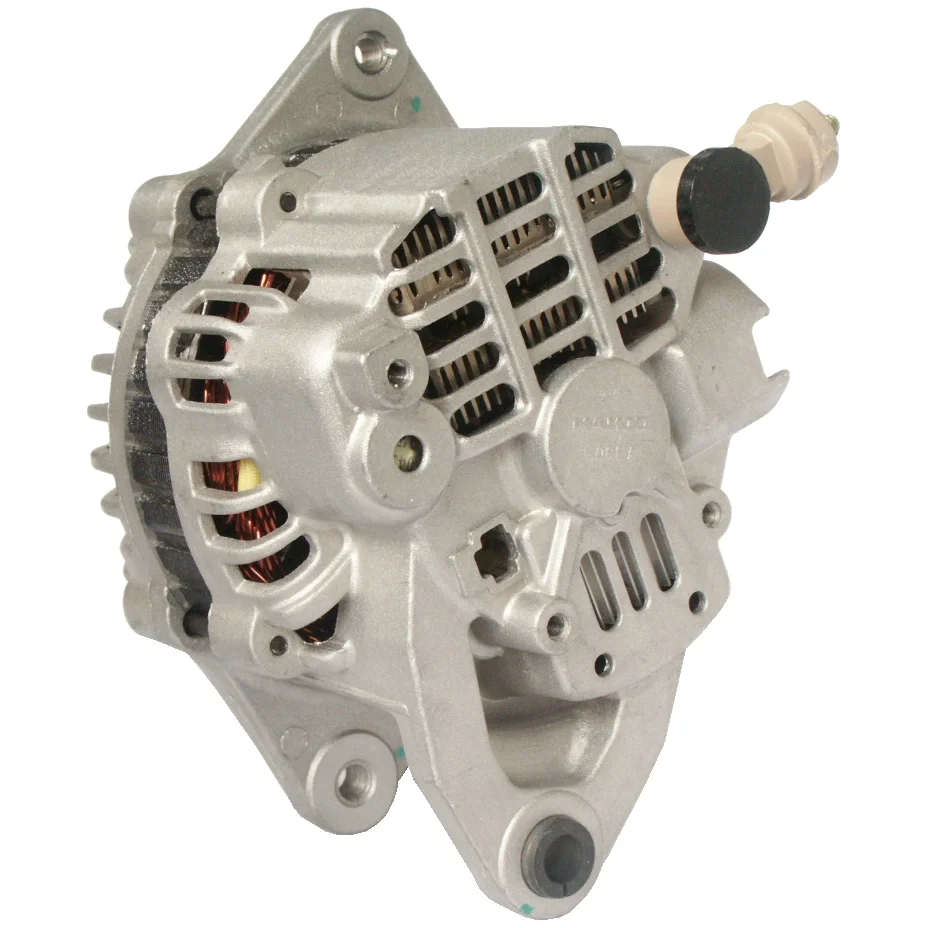

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Ampere: 80, Rotasjon: CW, Monteringsfeste avstand: 67.00

Beskrivelse

Spenning: 14
Amp: 80
Drevkugg dist.: 37,50
Bredde/holderarm: 13,20
Monteringsbrakett dist.: 67,00
Brakettbolt: M10-1,25
Bånd. justeringsbrakettbolt pos.: 60
Bånd. justeringsbrakettbolt 1: M8
Drevets dia.: 60,00
Riller/drevkugg: 4
Radius: 90,00
Radius 2: 85,00
B+: M6
Posisjon/B+ i min.: 2
D+ størrelse: Plugg
Rotasjon: med-klokken
Plugg nr.: PL07
Total lengde mm: 154,00
Terminaltype: L-S
Drevkugg: SP
Regulator type: IR
Produktinfo: BN
Service: Kia

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole M10-1.25
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 37.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Kia
Grooves/pulley 4
Terminal type L-S
Voltage 14
Total length 154.00 mm
Width/holder arm 13.20
Amp 80

  • OEM
    0K30C18300, 0K30D18300, ab180140, F032113656, ja1785ir, OK30C18300, OK30D18300, TA000A28801, 4860

  • Konkurrentreferens
    a-80026, A5099, A9106(MANDO), ALT-3013, ALT-H149, am-00106r, CAL41105, DRA0156, F042206014, F042A0H149, LEA0405, 1-2446-01md, 8EL011711-301, 8EL738176-001, 28-4939, 13948, 13948N, 112182, 210370, 210370A, 401785RI, 444356, 600020, 12060795, 063532607, 0986080520, 063532607010

  • NormaliseratArtNr
    0k30c18300, 0k30d18300, a5099, a80026, a9106mando, ab180140, alt3013, alth149, am00106r, cal41105, dra0156, f032113656, f042206014, f042a0h149, ja1785ir, lea0405, ok30c18300, ok30d18300, ta000a28801, 8el011711301, 8el738176001, 4860, 13948, 13948n, 112182, 210370, 210370a, 284939, 401785ri, 444356, 600020, 1244601md, 12060795, 063532607, 0986080520, 063532607010

  • Passar modeller
    Kia Model: Rio Model series: Rio Model type: CINCO Size of motor: 1.5 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: Cinco Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: Cinco Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.5 From date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.5 From date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.3 Brand of engine: A3E Type description: DC_ From date: 01-08-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.5 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Body: Hatchback From date: 01-03-2005 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Amp: 80
    Drevkugg dist.: 37,50
    Bredde/holderarm: 13,20
    Monteringsbrakett dist.: 67,00
    Brakettbolt: M10-1,25
    Bånd. justeringsbrakettbolt pos.: 60
    Bånd. justeringsbrakettbolt 1: M8
    Drevets dia.: 60,00
    Riller/drevkugg: 4
    Radius: 90,00
    Radius 2: 85,00
    B+: M6
    Posisjon/B+ i min.: 2
    D+ størrelse: Plugg
    Rotasjon: med-klokken
    Plugg nr.: PL07
    Total lengde mm: 154,00
    Terminaltype: L-S
    Drevkugg: SP
    Regulator type: IR
    Produktinfo: BN
    Service: Kia

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole M10-1.25
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 37.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Kia
    Grooves/pulley 4
    Terminal type L-S
    Voltage 14
    Total length 154.00 mm
    Width/holder arm 13.20
    Amp 80
  • Kjøretøymatching

    • OEM
      0K30C18300, 0K30D18300, ab180140, F032113656, ja1785ir, OK30C18300, OK30D18300, TA000A28801, 4860

    • Konkurrentreferens
      a-80026, A5099, A9106(MANDO), ALT-3013, ALT-H149, am-00106r, CAL41105, DRA0156, F042206014, F042A0H149, LEA0405, 1-2446-01md, 8EL011711-301, 8EL738176-001, 28-4939, 13948, 13948N, 112182, 210370, 210370A, 401785RI, 444356, 600020, 12060795, 063532607, 0986080520, 063532607010

    • NormaliseratArtNr
      0k30c18300, 0k30d18300, a5099, a80026, a9106mando, ab180140, alt3013, alth149, am00106r, cal41105, dra0156, f032113656, f042206014, f042a0h149, ja1785ir, lea0405, ok30c18300, ok30d18300, ta000a28801, 8el011711301, 8el738176001, 4860, 13948, 13948n, 112182, 210370, 210370a, 284939, 401785ri, 444356, 600020, 1244601md, 12060795, 063532607, 0986080520, 063532607010

    • Passar modeller
      Kia Model: Rio Model series: Rio Model type: CINCO Size of motor: 1.5 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: Cinco Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: Cinco Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.5 From date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.5 From date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Model type: RX-V Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.3 Brand of engine: A3E Type description: DC_ From date: 01-08-2002 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.5 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Body: Hatchback From date: 01-03-2005 Fuel: Diesel Approved: Yes
      1 / 3
