HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112325

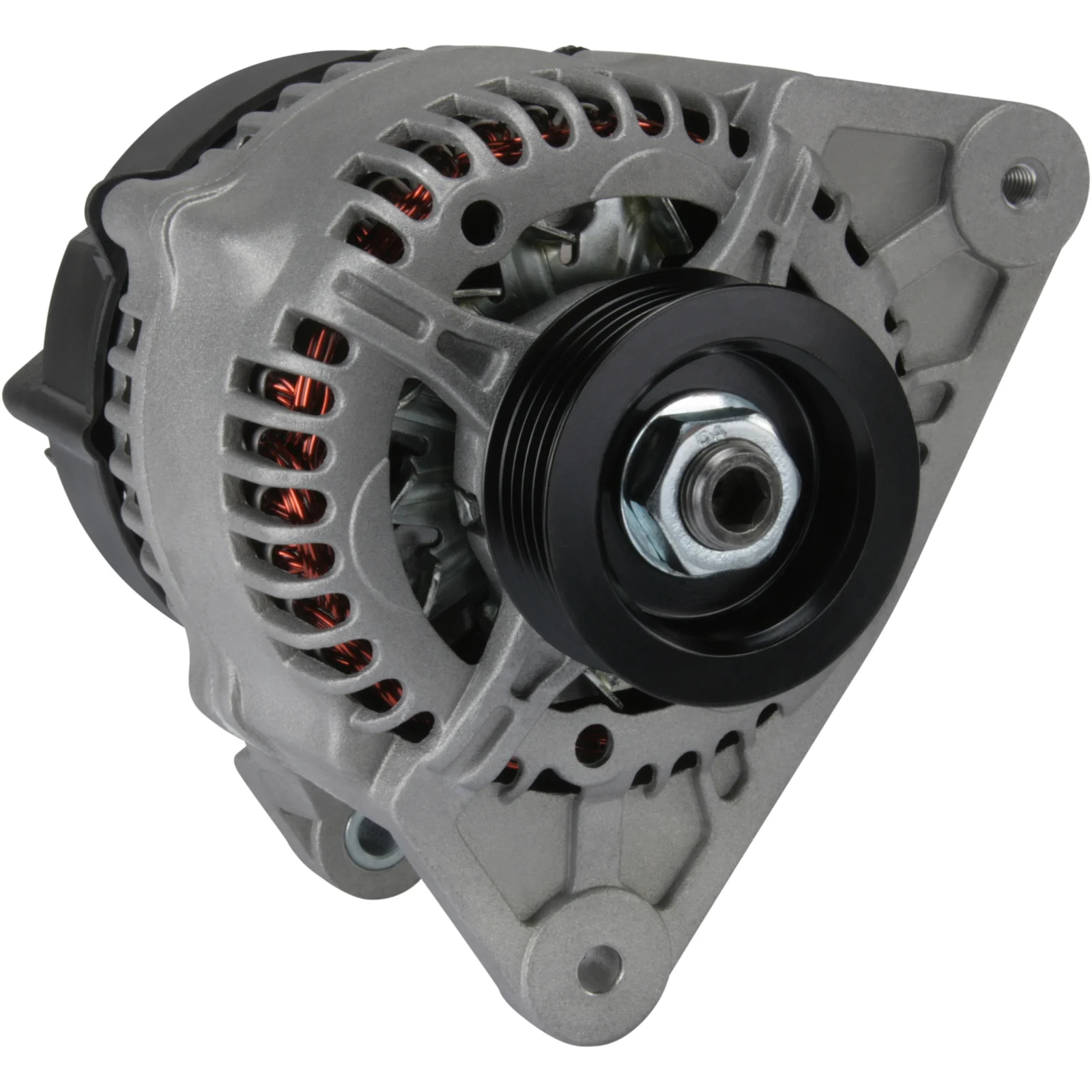

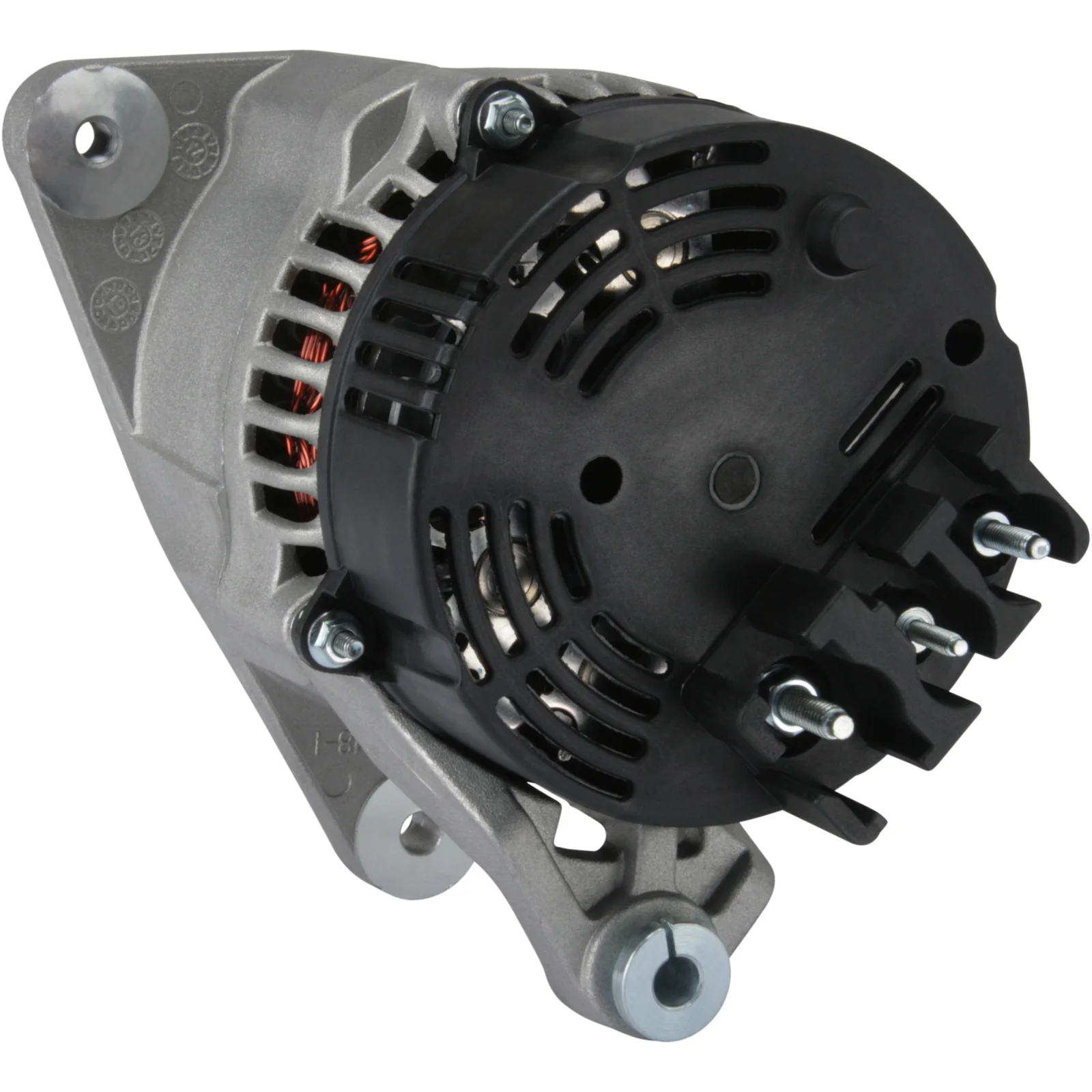

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amper: 70, Rotasjon: CW, Montasjeholder avstand: 75,50

Beskrivelse

Spenningspotensial: 14
Ampere: 70
Terminal: W
Drevkugg avstand: 33.00
Bredde/bøssingarm: 14.20
Festebrakettavstand: 75.50
Frakoblingshull i brakett: 8.50
Båndjuster-brakett hull posisjon: 10
Båndjuster-brakett hull 1: M8
Drevkugg dia.: 59.70
Grooves/drevkugg: 5
Radius: 86.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 32
D+ Størrelse: M5
Rotasjon: CW
Plugg nr.: PL70
W pluggtype: M5
Total lengde mm: 170.00
Drevkugg: SP
Regulator type: IR
Prod. info: BN
Vedlikehold: Ford
Merknader: D+ kan være med M4.

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL70
Bracket hole 8.50
Position/B+ in min. 32
Prod. info BN
Pulley SP
Pulley dia. 59.70
Pulley dist. 33.00
Radius 86.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Remarks D+ may be w/ M4.
Rotation CW
Servicing Ford
Grooves/pulley 5
Terminal W
Voltage 14
W plug type M5
Total length 170.00 mm
Width/holder arm 14.20
Amp 70

  • OEM
    A002T14592, A002TA2292, a2t14592, a2ta2292, AAK5301, EGL1243, EGL1243R, F032112325, R91FF10300JA, R91FX10300JA, R95FF10300AA, r95ff10300ac, 11.201.992, 91ff10300ja, 91ff10300jb, 93ff10300aa, 95ff10300aa, 95ff10300ab, 95ff10300ac, 95FF10300AD, 95FF10300DA, 1083ir, 1026636, 1053656, 1074633, 1107444, 1406074, 5023537, 5026722, 5030589, 6181373, 6694981, 7275998, 7352057, 63320243, 63320531, 63321257, 63321425, 63321666, 63321695, 63341666, 63341695, 943322602, 9124476048

  • Konkurrentreferens
    A4019, ALT-4222, ALT10020, ALT12012, ALT12057, ALT4222, BAO3183, CAL30105, DAN504, DENDAN504, dra3428, F042307016, F042A07016, FRA804, IA0992, lrb00198, lrb00260, MAN833, MG231, QA2334, 8EL011710-101, 8EL012430-151, 8el731717-001, 8el737032-001, 28-2704, 219.117.702, 219.125.702, 4563, 5054, 5271, 21760N, 21761R, 30856RI, 56271, 56522, 118854, 200108, 210026, 210026A, 210087, 210087A, 301083RI, 437427, 746182, 746982, 9036701, 9213715, 12036070, 12036700, 12060042, 32036701, 0986036701, 0986036702, 063341695010

  • NormaliseratArtNr
    a002t14592, a002ta2292, a2t14592, a2ta2292, a4019, aak5301, alt10020, alt12012, alt12057, alt4222, bao3183, cal30105, dan504, dendan504, dra3428, egl1243, egl1243r, f032112325, f042307016, f042a07016, fra804, ia0992, lrb00198, lrb00260, man833, mg231, qa2334, r91ff10300ja, r91fx10300ja, r95ff10300aa, r95ff10300ac, 8el011710101, 8el012430151, 8el731717001, 8el737032001, 91ff10300ja, 91ff10300jb, 93ff10300aa, 95ff10300aa, 95ff10300ab, 95ff10300ac, 95ff10300ad, 95ff10300da, 1083ir, 4563, 5054, 5271, 21760n, 21761r, 30856ri, 56271, 56522, 118854, 200108, 210026, 210026a, 210087, 210087a, 282704, 301083ri, 437427, 746182, 746982, 1026636, 1053656, 1074633, 1107444, 1406074, 5023537, 5026722, 5030589, 6181373, 6694981, 7275998, 7352057, 9036701, 9213715, 11201992, 12036070, 12036700, 12060042, 32036701, 63320243, 63320531, 63321257, 63321425, 63321666, 63321695, 63341666, 63341695, 219117702, 219125702, 943322602, 0986036701, 0986036702, 9124476048, 063341695010

  • Passar modeller
    Ford Model: Escort Model series: Escort Model type: Express Type of engine: Diesel Size of motor: 1.8 Brand of engine: RTF Body: Van From date: 01-01-1995 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Model type: Express Type of engine: Diesel Size of motor: 1.8 Brand of engine: RTH Body: Van From date: 01-01-1995 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Model type: Express Type of engine: TD Size of motor: 1.8 Brand of engine: RVA Type description: AVL Body: Van From date: 01-12-1995 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: Diesel Size of motor: 1.8 Brand of engine: RTE Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: Diesel Size of motor: 1.8 Brand of engine: RTF Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: Diesel Size of motor: 1.8 Brand of engine: RTH Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Body: Estate From date: 01-02-1999 To date: 01-07-2000 Fuel: Diesel Approved: Yes Manufacture type: classic
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Body: Hatchback From date: 01-10-1998 To date: 01-07-2000 Fuel: Diesel Approved: Yes Manufacture type: classic
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Type description: ALL Body: Convertible From date: 01-09-1995 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFD Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFK Type description: ALL Body: Convertible From date: 01-09-1995 To date: 01-08-1998 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFK Type description: GAL From date: 01-08-1993 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFK Type description: GAL,AAL,ABL Body: Hatchback From date: 01-01-1995 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFK Type description: GAL,AFL From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFK Type description: GAL,ANL Body: Estate From date: 01-01-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RFS Type description: GAL Body: Hatchback From date: 01-02-1993 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RVA Type description: ALL Body: Convertible From date: 01-10-1996 To date: 01-08-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RVA Type description: GAL,AAL,ABL Body: Hatchback From date: 01-12-1995 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RVA Type description: GAL,AFL From date: 01-12-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
    Ford Model: Escort Model series: Escort Type of engine: TD Size of motor: 1.8 Brand of engine: RVA Type description: GAL,ANL Body: Estate From date: 01-12-1995 To date: 01-02-1999 Fuel: Diesel Approved: Yes
