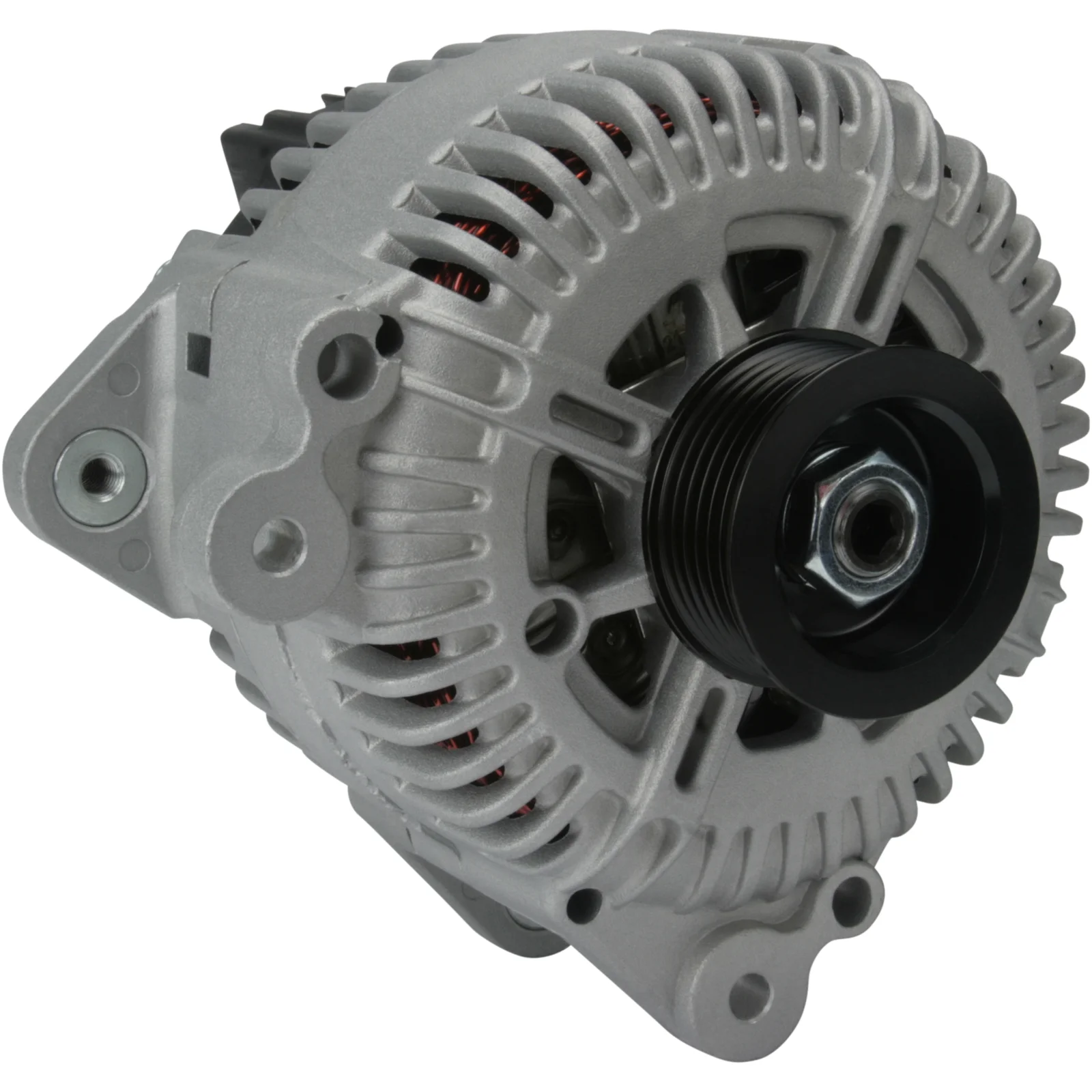

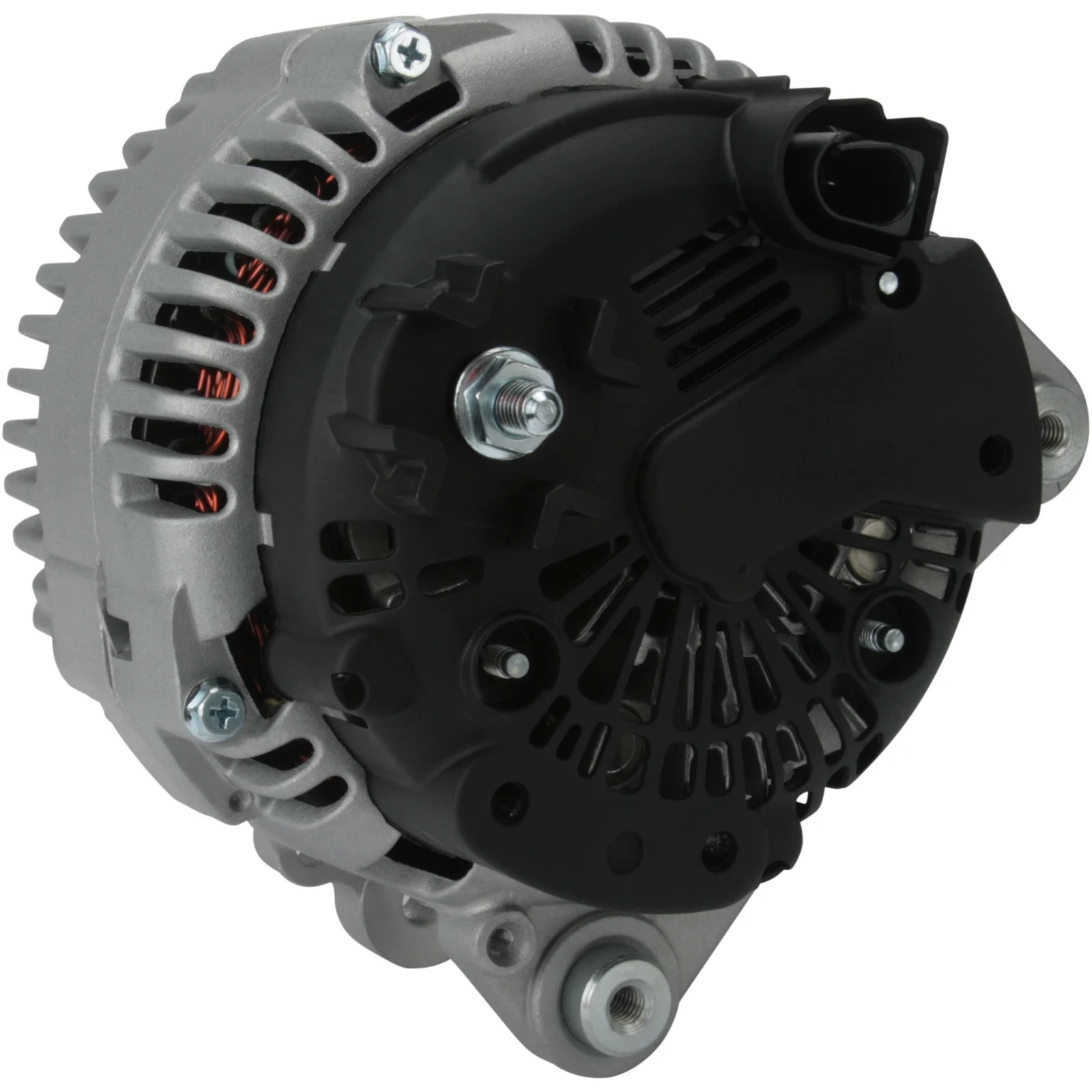

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115856

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 61,00

Beskrivelse

Spenning: 14
Amp: 150
Drevskive dist.: 30,00
Bredde/holderarm: 14,00
Monteringsfeste dist.: 61,00
Festehull: 8,50
Belting. justeringsfeste pos.: 45
Belting. justeringsfeste hull 1: 8,50
Drevskive diameter: 57,00
Bredder/spor: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 50
D+ Størrelse: plugg
Rotasjon: med urviseren
Plugg nr.: PL61
Total lengde mm: 185,00
Terminaltype: L-DFM
Drevskive: SP
Vifte: IF
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 57.00
Pulley dist. 30.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032115856, TG15C048, tg16c013, 1911ir, 2542891, 2543264, 2543264A, 2543264B, 059903016D, 059903016DX, 059903023B, 059903023BX, 0124525075, 0124525094

  • Konkurrentreferens
    A3080, CAL15351, DRA0124, 28-5781, 205.522.150, 20024R, 112514, 209277, 209277A, 301911RI, 437554, 439557, 12090324, 32000019

  • NormaliseratArtNr
    a3080, cal15351, dra0124, f032115856, tg15c048, tg16c013, 1911ir, 20024r, 112514, 209277, 209277a, 285781, 301911ri, 437554, 439557, 2542891, 2543264, 2543264a, 2543264b, 12090324, 32000019, 059903016d, 059903016dx, 059903023b, 059903023bx, 0124525075, 0124525094, 205522150

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8H7, 8HE Body: Convertible From date: 01-06-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8EC From date: 01-11-2005 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 Fuel: Diesel Approved: Yes Manufacture type: Avant
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
