Varenr.: F032112665

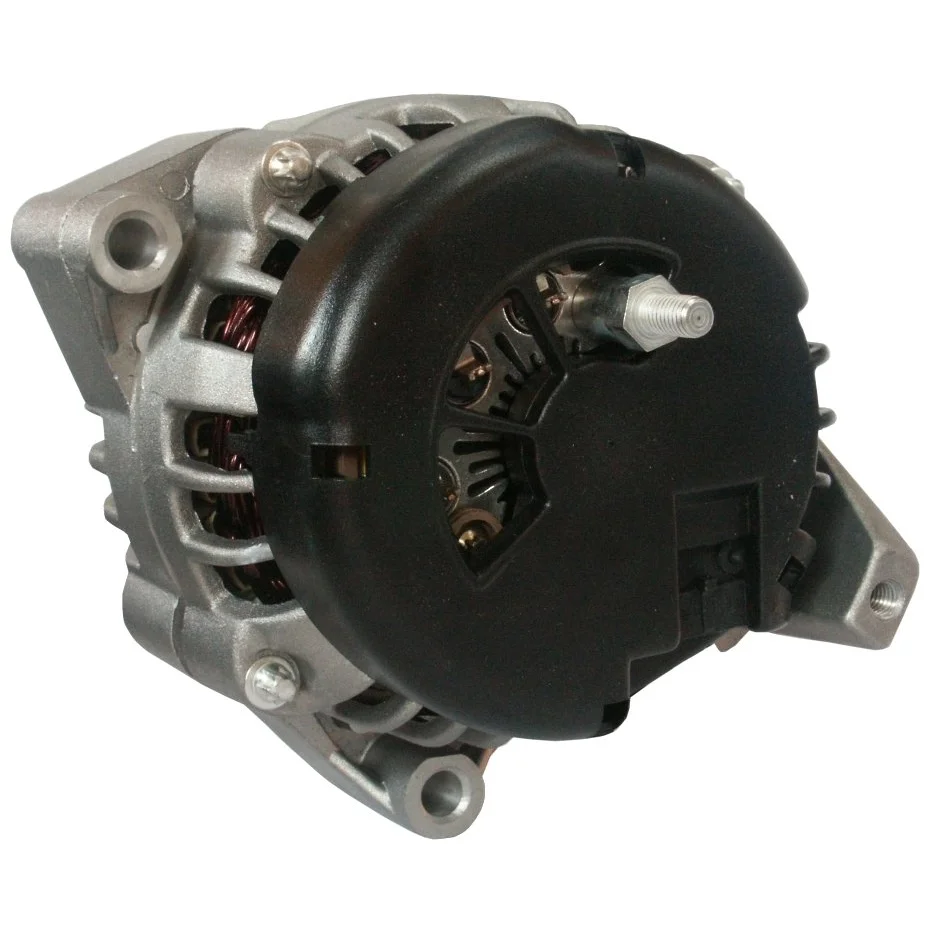

HC-Cargo Dynamo

Teknisk info:

Spenningskategori: 14, Ampere: 100, Rotasjon: med uret, Bøssing diameter: 56,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 100
Drevkugg: 72.00
Bredde/holderarm: 50.80
Bøssinghull: 10.30
Belt. justeringsbøssinghull pos.: 10
Belt. justeringsbøssinghull 1: 10.30
Drevkugg diameter: 56.50
Gavler/drevkugg: 6
Radius: 82.00
Radius 2: 82.00
B+: M8
Posisjon/B+ i min.: 60
D+ Størrelse: Innsats
Rotasjon: P ⟳
Innsatsnr.: PL187
W innsatsype: Innsats
Total lengde mm: 176.00
Drevkugg: SP
Regulator-type: IR
Prod. info: BN
Servicing: Chevrolet
Anmerkninger: Bytte ut: CS130.

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 10
Plug no. PL187
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 56.50
Pulley dist. 72.00
Radius 82.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Remarks Replacing: CS130.
Rotation CW
Servicing Chevrolet
Grooves/pulley 6
Voltage 14
W plug type Plug
Total length 176.00 mm
Width/holder arm 50.80
Amp 100

  • OEM
    F032112665, 8231, 10464084, 10480251, 10480254

  • Konkurrentreferens
    A1006, ALT-1420, F042300159, F042A00159, 1-2156-21dr, 1-2156-21DR-1, 1-2156-21DR-2, 835.947.105, 8231, 8231-5, 8231N, 8231R

  • NormaliseratArtNr
    a1006, alt1420, f032112665, f042300159, f042a00159, 8231, 8231n, 8231r, 82315, 1215621dr, 1215621dr1, 1215621dr2, 10464084, 10480251, 10480254, 835947105

  • Passar modeller
    Chevrolet Model: Astro Model series: Astre Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Model type: AWD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Model type: Trailblazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Extended Cab Pickup Model series: S10 Extended Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Model series: S10 Model type: 4x4 Size of motor: 4.3 Brand of engine: L35 Body: Pick Up From date: 01-10-1994 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Pickup Model series: S10 Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Standard Cab Pickup Model series: S10 Standard Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Safari Model series: Safari Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Isuzu Model: Hombre Model series: Hombre Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Oldsmobile Model: Bravada Model series: Bravada Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 100
    Drevkugg: 72.00
    Bredde/holderarm: 50.80
    Bøssinghull: 10.30
    Belt. justeringsbøssinghull pos.: 10
    Belt. justeringsbøssinghull 1: 10.30
    Drevkugg diameter: 56.50
    Gavler/drevkugg: 6
    Radius: 82.00
    Radius 2: 82.00
    B+: M8
    Posisjon/B+ i min.: 60
    D+ Størrelse: Innsats
    Rotasjon: P ⟳
    Innsatsnr.: PL187
    W innsatsype: Innsats
    Total lengde mm: 176.00
    Drevkugg: SP
    Regulator-type: IR
    Prod. info: BN
    Servicing: Chevrolet
    Anmerkninger: Bytte ut: CS130.

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 10
    Plug no. PL187
    Bracket hole 10.30
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 56.50
    Pulley dist. 72.00
    Radius 82.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Remarks Replacing: CS130.
    Rotation CW
    Servicing Chevrolet
    Grooves/pulley 6
    Voltage 14
    W plug type Plug
    Total length 176.00 mm
    Width/holder arm 50.80
    Amp 100
  • Kjøretøymatching

    • OEM
      F032112665, 8231, 10464084, 10480251, 10480254

    • Konkurrentreferens
      A1006, ALT-1420, F042300159, F042A00159, 1-2156-21dr, 1-2156-21DR-1, 1-2156-21DR-2, 835.947.105, 8231, 8231-5, 8231N, 8231R

    • NormaliseratArtNr
      a1006, alt1420, f032112665, f042300159, f042a00159, 8231, 8231n, 8231r, 82315, 1215621dr, 1215621dr1, 1215621dr2, 10464084, 10480251, 10480254, 835947105

    • Passar modeller
      Chevrolet Model: Astro Model series: Astre Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Astro Model series: Astro Extended Cargo Van Model type: AWD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Astro Model series: Astro Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Blazer Model series: Blazer Model type: Trailblazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Extended Cab Pickup Model series: S10 Extended Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: S10 Model series: S10 Model type: 4x4 Size of motor: 4.3 Brand of engine: L35 Body: Pick Up From date: 01-10-1994 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Pickup Model series: S10 Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: S10 Standard Cab Pickup Model series: S10 Standard Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      GMC Model: Jimmy Model series: Jimmy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      GMC Model: Safari Model series: Safari Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Isuzu Model: Hombre Model series: Hombre Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Oldsmobile Model: Bravada Model series: Bravada Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
