HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111788

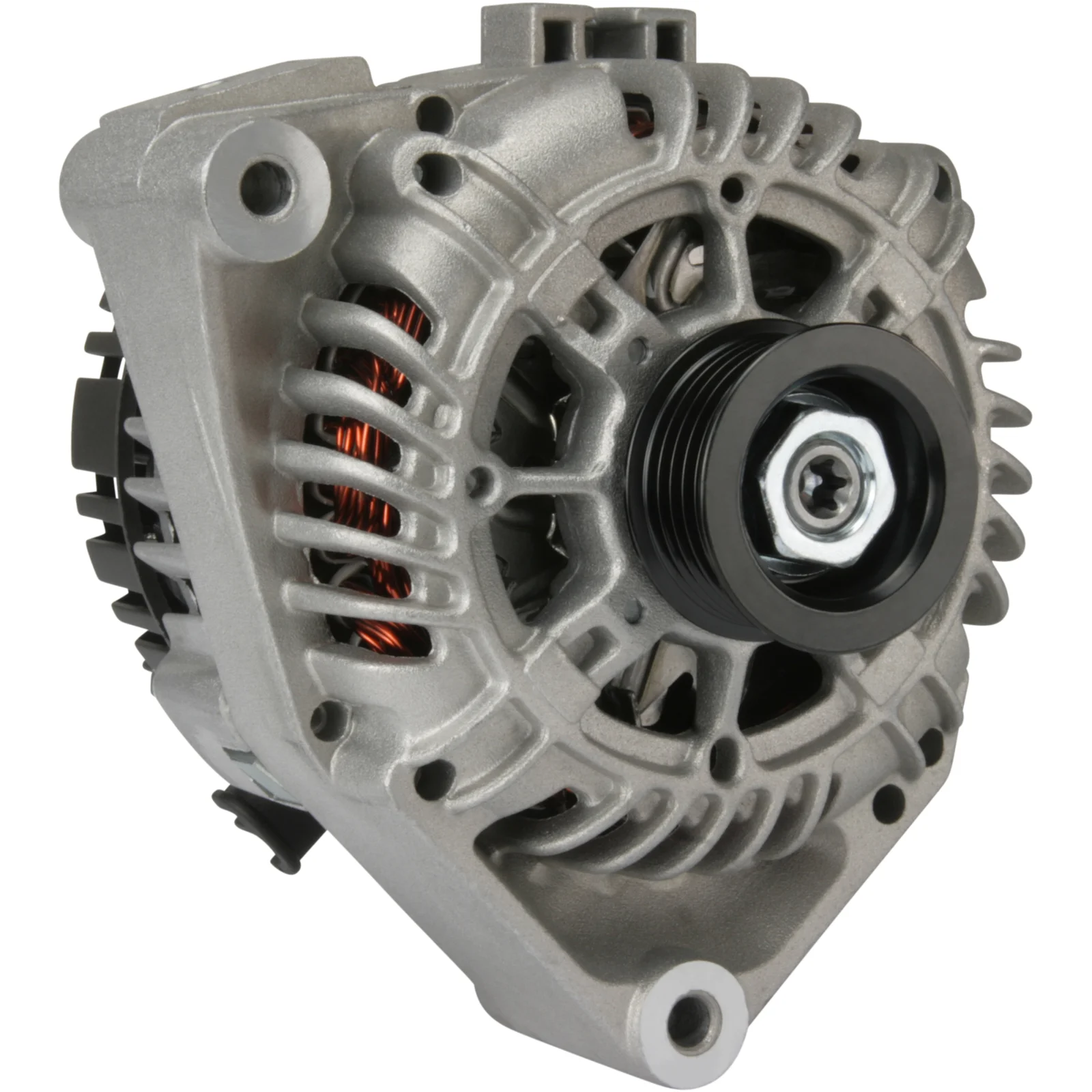

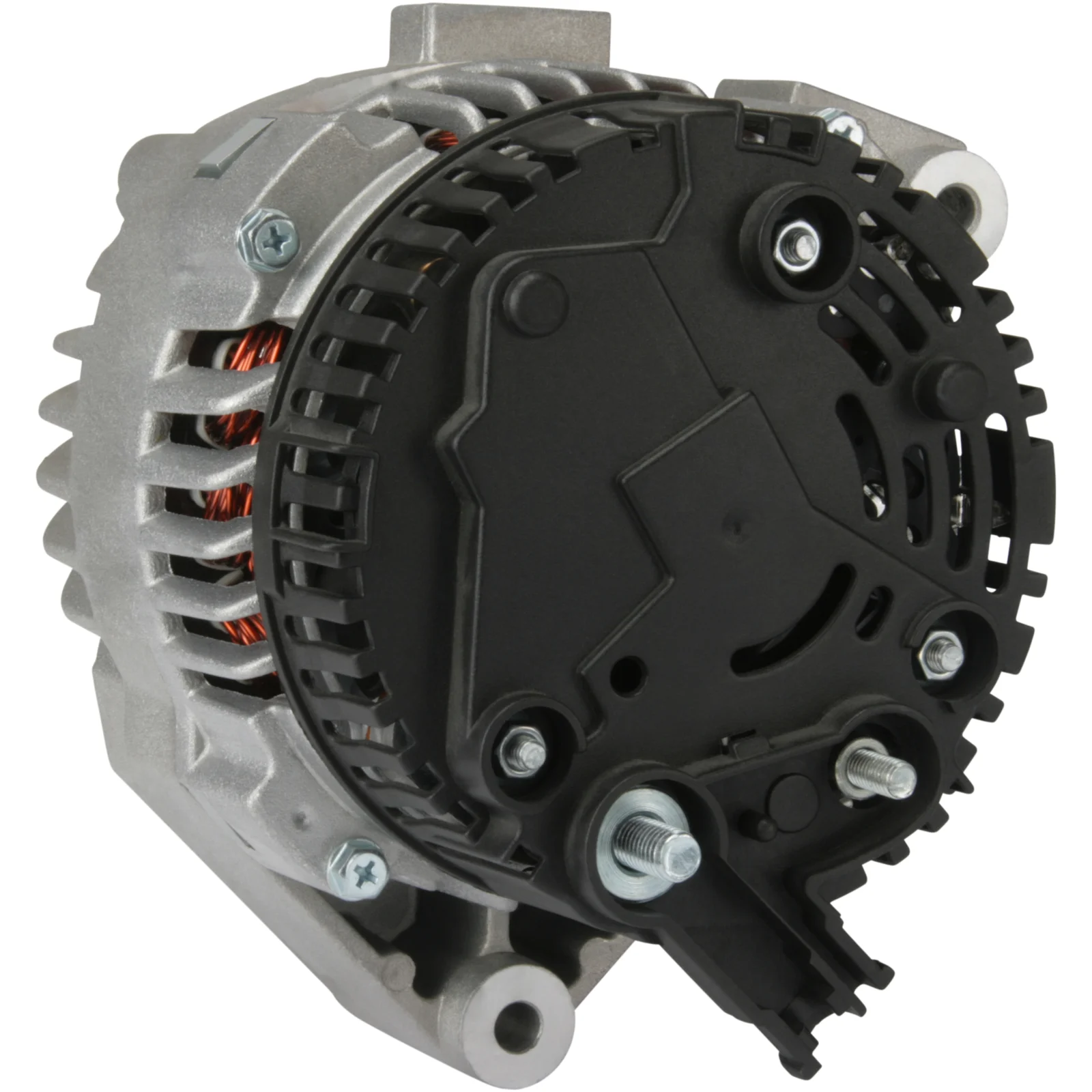

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 105, Rotasjon: med uret, Remskive diameter: 46.00

Beskrivelse

Spenningsverdi: 14
Ampere: 105
Drevskive dist.: 78.00
Bredde/holderarm: 56.00
Lagerhullsboring: 8.00
Båndjustering. bøyposisjon: 50
Båndjustering. bøyboring 1: 8.20
Drevs diameter: 46.00
Grooves/drev: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 34
D+: Størrelse: M6
Rotasjon: med urviseren
Total lengte mm: 181.00
Drev: SP
Regulator type: IR
Prod. info: BN
Service: Opel

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 50
Bracket hole 8.00
Position/B+ in min. 34
Prod. info BN
Pulley SP
Pulley dia. 46.00
Pulley dist. 78.00
Radius 90.00
D+ Size M6
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Opel
Grooves/pulley 5
Voltage 14
Total length 181.00 mm
Width/holder arm 56.00
Amp 105

  • OEM
    a13vi76, F032111788, R1030080, STC2227, 1150ir, 2541694, 2541694D, 6204014, 6204060, 9163942, 9512125, 90511442, 90542409, 12312244818

  • Konkurrentreferens
    A3076, ALT14046, ALT2031, CAL15220, dra3673, drb1451, FRA849, lrb00261, na536, QA2285, 8el737197-001, 28-3511, 215.121.1052, 5598, 21261N, 118957, 210171, 210171A, 301150RI, 436619, 439062, 12041450, 32041451, 0986041451, 0986041453, 944390414510

  • NormaliseratArtNr
    a13vi76, a3076, alt14046, alt2031, cal15220, dra3673, drb1451, f032111788, fra849, lrb00261, na536, qa2285, r1030080, stc2227, 8el737197001, 1150ir, 5598, 21261n, 118957, 210171, 210171a, 283511, 301150ri, 436619, 439062, 2541694, 2541694d, 6204014, 6204060, 9163942, 9512125, 12041450, 32041451, 90511442, 90542409, 0986041451, 0986041453, 2151211052, 12312244818, 944390414510

  • Passar modeller
    BMW Model: 3 Model series: 325 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 From date: 01-09-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 Body: Estate From date: 01-03-1995 To date: 01-04-1999 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 325 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 From date: 01-05-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 Body: Estate From date: 01-03-1993 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 From date: 01-03-1993 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 Body: Estate From date: 01-12-1991 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 From date: 01-09-1991 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT From date: 01-04-1994 To date: 01-07-2003 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT From date: 01-04-1994 To date: 01-07-2003 Fuel: Diesel Approved: Yes
    Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 105
    Drevskive dist.: 78.00
    Bredde/holderarm: 56.00
    Lagerhullsboring: 8.00
    Båndjustering. bøyposisjon: 50
    Båndjustering. bøyboring 1: 8.20
    Drevs diameter: 46.00
    Grooves/drev: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 34
    D+: Størrelse: M6
    Rotasjon: med urviseren
    Total lengte mm: 181.00
    Drev: SP
    Regulator type: IR
    Prod. info: BN
    Service: Opel

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 50
    Bracket hole 8.00
    Position/B+ in min. 34
    Prod. info BN
    Pulley SP
    Pulley dia. 46.00
    Pulley dist. 78.00
    Radius 90.00
    D+ Size M6
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Opel
    Grooves/pulley 5
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 56.00
    Amp 105
  • Kjøretøymatching

    • OEM
      a13vi76, F032111788, R1030080, STC2227, 1150ir, 2541694, 2541694D, 6204014, 6204060, 9163942, 9512125, 90511442, 90542409, 12312244818

    • Konkurrentreferens
      A3076, ALT14046, ALT2031, CAL15220, dra3673, drb1451, FRA849, lrb00261, na536, QA2285, 8el737197-001, 28-3511, 215.121.1052, 5598, 21261N, 118957, 210171, 210171A, 301150RI, 436619, 439062, 12041450, 32041451, 0986041451, 0986041453, 944390414510

    • NormaliseratArtNr
      a13vi76, a3076, alt14046, alt2031, cal15220, dra3673, drb1451, f032111788, fra849, lrb00261, na536, qa2285, r1030080, stc2227, 8el737197001, 1150ir, 5598, 21261n, 118957, 210171, 210171a, 283511, 301150ri, 436619, 439062, 2541694, 2541694d, 6204014, 6204060, 9163942, 9512125, 12041450, 32041451, 90511442, 90542409, 0986041451, 0986041453, 2151211052, 12312244818, 944390414510

    • Passar modeller
      BMW Model: 3 Model series: 325 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 From date: 01-09-1991 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 325 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 Body: Estate From date: 01-03-1995 To date: 01-04-1999 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 325 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E36 From date: 01-05-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 Body: Estate From date: 01-03-1993 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 525 Type of engine: TD Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 From date: 01-03-1993 To date: 01-08-1995 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 Body: Estate From date: 01-12-1991 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 525 Type of engine: TDS Size of motor: 2.5 Brand of engine: M51D25 Type description: E34 From date: 01-09-1991 To date: 01-08-1995 Fuel: Diesel Approved: Yes
      Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT From date: 01-04-1994 To date: 01-07-2003 Fuel: Diesel Approved: Yes
      Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Omega Model series: Omega B Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT From date: 01-04-1994 To date: 01-07-2003 Fuel: Diesel Approved: Yes
      Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: 25DT From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT Body: Estate From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Omega Model series: Omega Type of engine: TD Size of motor: 2.5 Brand of engine: X25DT From date: 01-04-1994 To date: 01-07-2001 Fuel: Diesel Approved: Yes
      1 / 3
