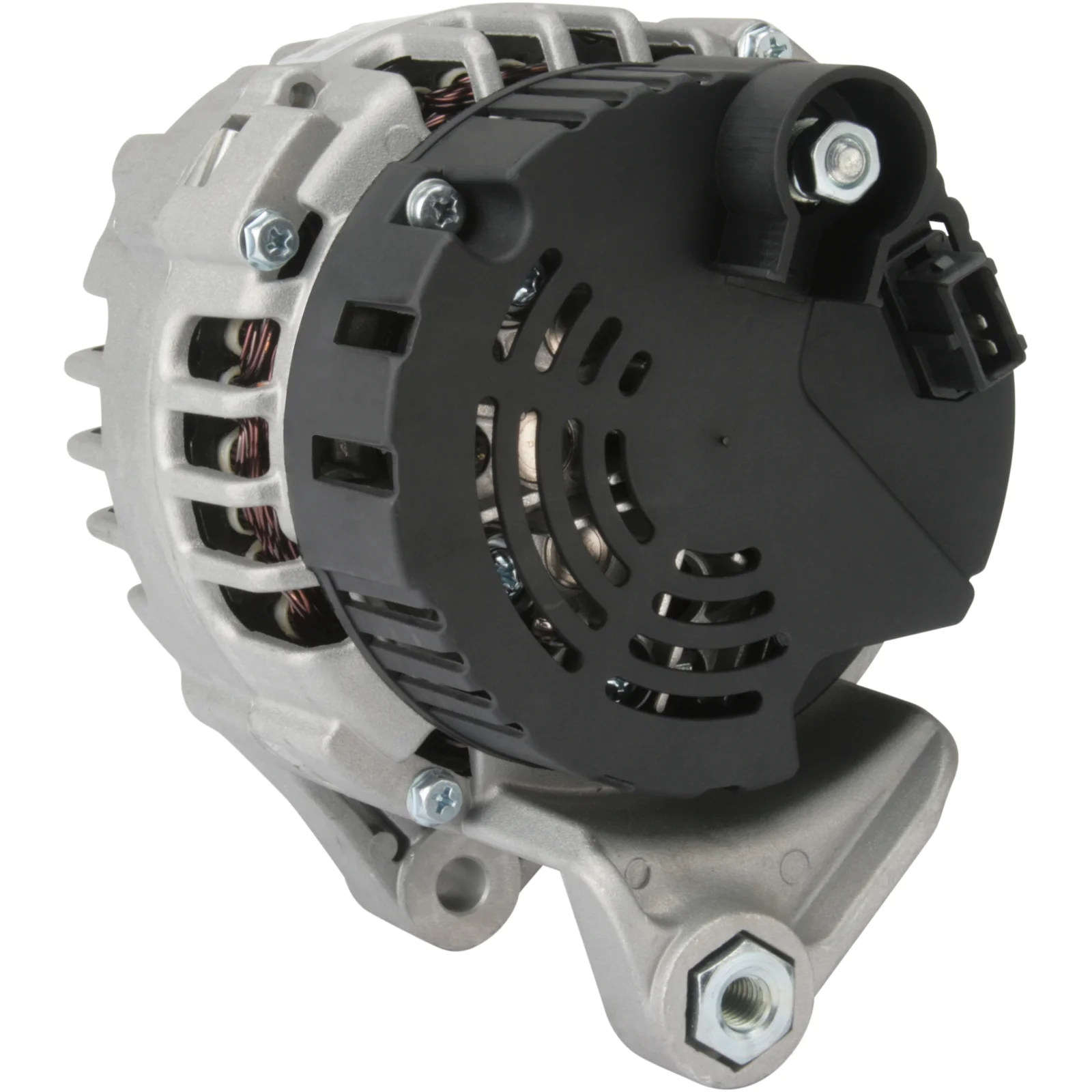

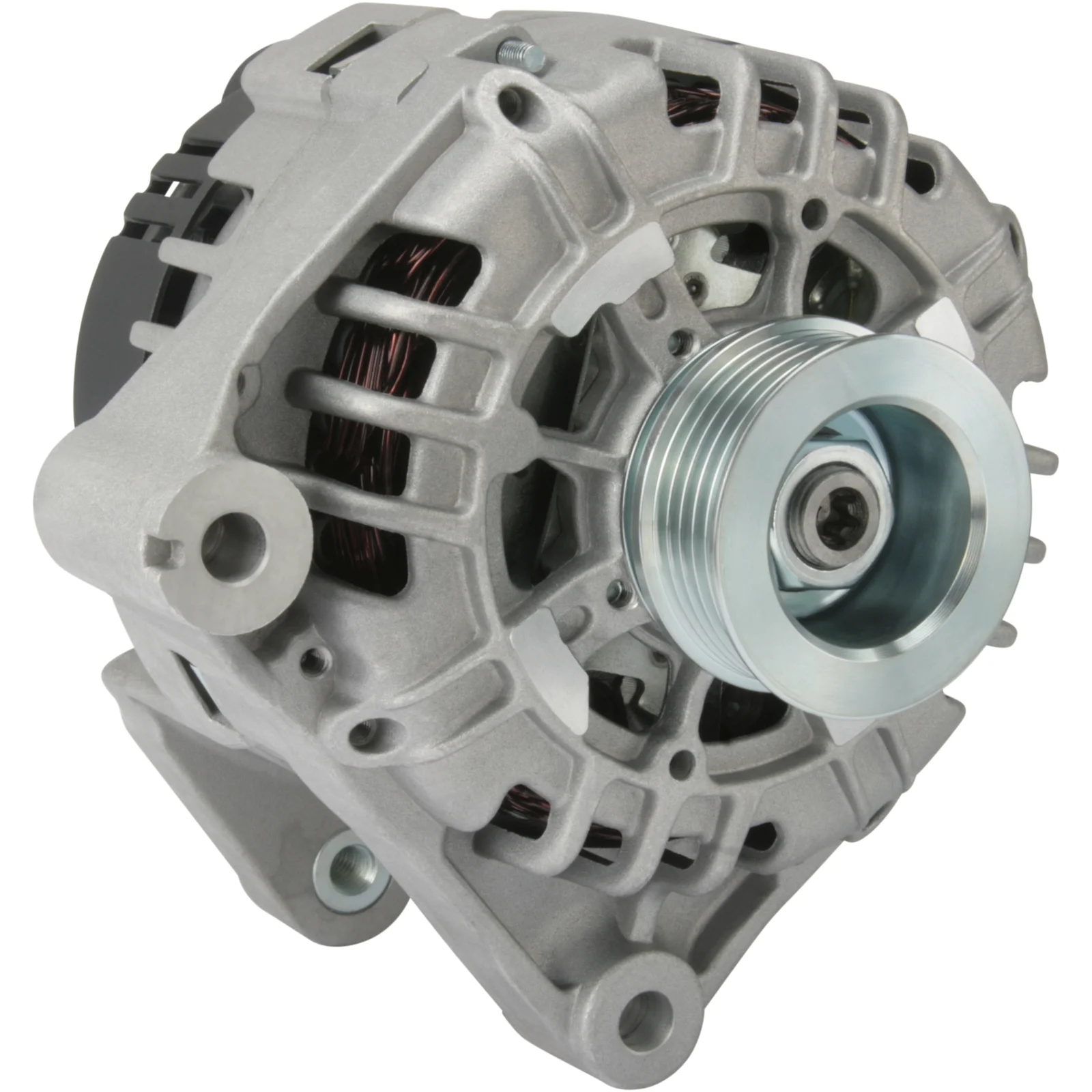

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112472

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Monteringsbrakett avstand: 75,40

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Lørenne avstand: 61.00
Bredde/holderarm: 28.00
Monteringsbøsningens avstand: 75.40
Bøsninghull: 10.60
Beltesjusteringsbøsningposisjon: 45
Beltesjusteringsbøsningshull 1: 10.40
Lørennediameter: 53.40
Innskårninger/lørenne: 5
Radius: 93.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 60
D+ størrelse: Stikk
Rotasjon: medur
Stikk nr.: PL215
Total lengde mm: 185.00
Terminaltype: IG-L
Lørenne: SP
Vifte: IF
Regulator type: IR
Prod. info: BN
Service: BMW

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 75.40
Belt. adj. bracket hole 1 10.40
Belt. adj. brackethole pos. 45
Plug no. PL215
Bracket hole 10.60
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 53.40
Pulley dist. 61.00
Radius 93.00
D+ Size Plug
Radius 2 93.00
Regulator type IR
Rotation CW
Servicing BMW
Fan IF
Grooves/pulley 5
Terminal type IG-L
Voltage 14
Total length 185.00 mm
Width/holder arm 28.00
Amp 100

  • OEM
    a13vi234, F032112472, GNU2562, SG12B080, YLE000260, yle102020, yle102500, YLE102500L, 1631ir, 2542265, 2542265A, 2542265B, 2542797, 2542797A, 2542797B

  • Konkurrentreferens
    A3272, ALT-H113, ALT14133, CAL15168, DRA4033, F042A0H113, LRB00470, 8EL011711-581, 28-4500, 214.137.1152, 4633, 21470N, 111114, 200104, 210571, 210571A, 301631RI, 437227, 439301, 839056, 12049430, 0986049430

  • NormaliseratArtNr
    a13vi234, a3272, alt14133, alth113, cal15168, dra4033, f032112472, f042a0h113, gnu2562, lrb00470, sg12b080, yle000260, yle102020, yle102500, yle102500l, 8el011711581, 1631ir, 4633, 21470n, 111114, 200104, 210571, 210571a, 284500, 301631ri, 437227, 439301, 839056, 2542265, 2542265a, 2542265b, 2542797, 2542797a, 2542797b, 12049430, 0986049430, 2141371152

  • Passar modeller
    BMW Model: M3 Model series: M3 Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E46 Body: Convertible From date: 01-03-2001 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E46 Body: Coupe From date: 01-07-2000 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-03-2001 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: M47 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 From date: 01-06-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT- T Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) Body: Estate From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT-T Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Body: Estate From date: 01-06-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R From date: 01-02-1999 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R Type description: RJ Body: Estate From date: 01-08-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: Tourer
    Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ Body: Estate From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: TOURER
    Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
