HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113331

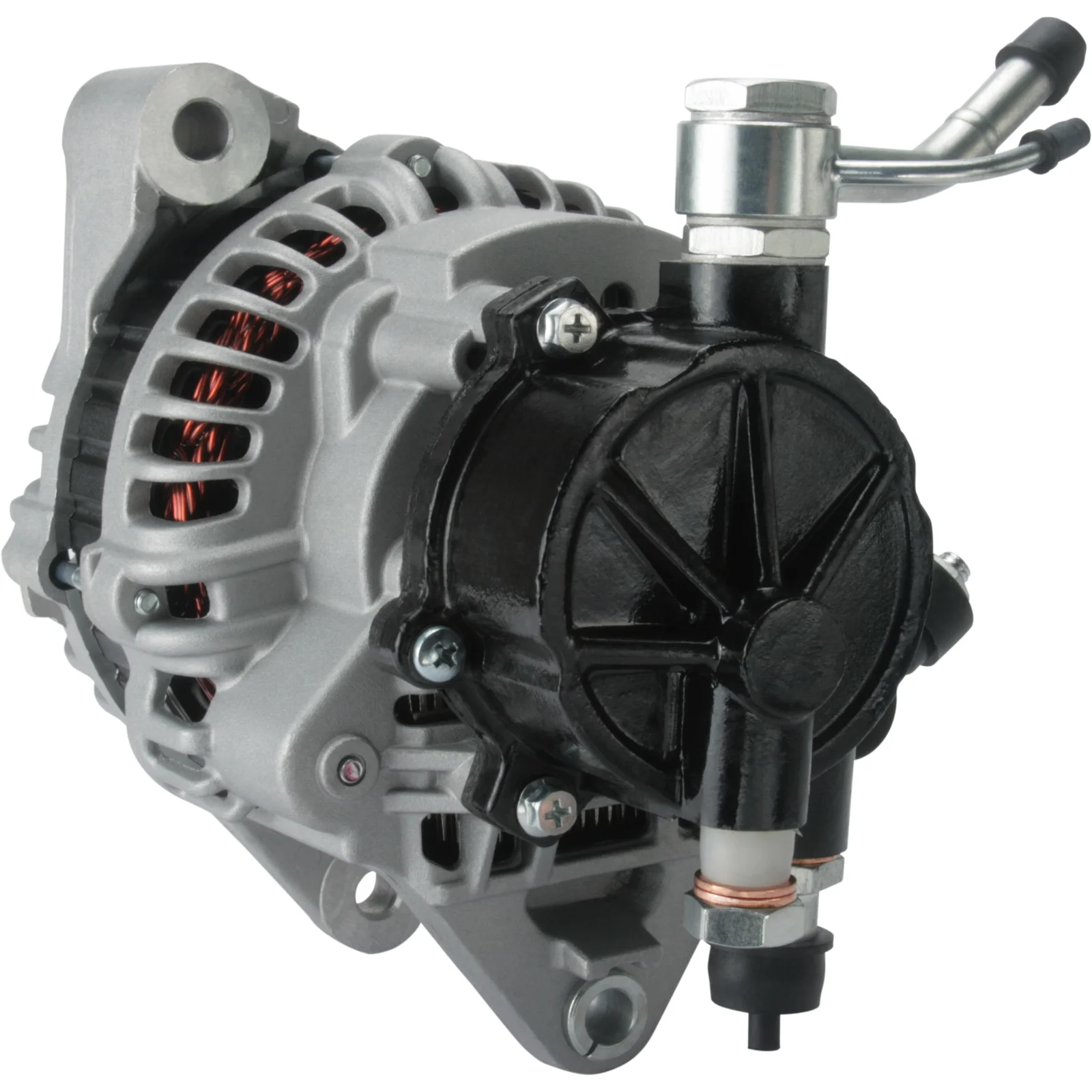

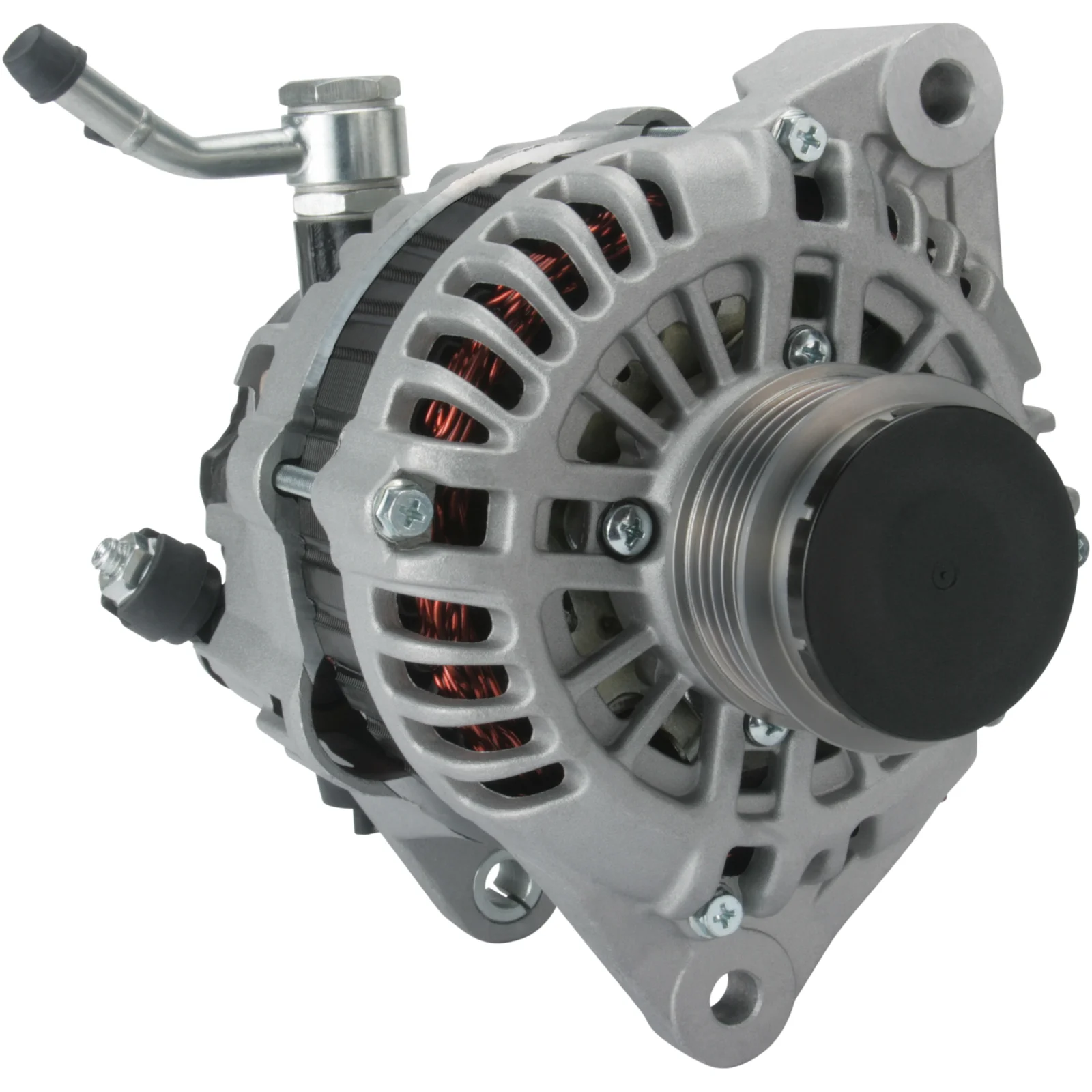

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 80,80

Beskrivelse

Spenningsnivå: 14
Ampere: 110
Drevskive dist.: 46.50
Bredde/holderarm: 13.00
Monteringsbeslag dist.: 80.80
Beslagshull: 10.30
Belt. justeringsbeslagshull pos.: 5
Belt. justeringsbeslagshull 1: 11.20
Drevskivens dia.: 59.70
Riller/drevskive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 18
D+ størrelse: Plug
Rotasjon: medur
Pluggnr.: PL07
Total lengde mm: 239.50
Drevskive: SP/FW
Regulator type: IR
Vakumpumpe: Ja
Prod. info: BN
Service: Hyundai

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 80.80
Belt. adj. bracket hole 1 11.20
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 18
Prod. info BN
Pulley SP/FW
Pulley dia. 59.70
Pulley dist. 46.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 5
Vac. pump Yes
Voltage 14
Total length 239.50 mm
Width/holder arm 13.00
Amp 110

  • OEM
    AF111225, AF111390, F032113331, ja1709ir, TA000A56901, TA000A61201, 37300-4x000, 37300-4X001, 37300-4x002, 37300-4X003, 37300-4X500, 37300-4x501, 37300-4x502, 37300-4x503, 2655721

  • Konkurrentreferens
    A3248(VALEO), A9018, ALT-7234, ALT-H130, CAL32114, DRA4203, DRA4203N, F042206036, F042A0B041, F042A0H130, J5110524, LRA02231, 8EL011711-231, 28-4706, 524.114.1102, 9413, 23203N, 23203R, 111251, 210369, 210369A, 210387, 210387A, 401709RI, 600005, 600024, 600049, 9212444, 12060809, 063532601, 063532624, 0986049500, 063532601010, 063532624010, 944390903950

  • NormaliseratArtNr
    a3248valeo, a9018, af111225, af111390, alt7234, alth130, cal32114, dra4203, dra4203n, f032113331, f042206036, f042a0b041, f042a0h130, j5110524, ja1709ir, lra02231, ta000a56901, ta000a61201, 8el011711231, 9413, 23203n, 23203r, 111251, 210369, 210369a, 210387, 210387a, 284706, 373004x000, 373004x001, 373004x002, 373004x003, 373004x500, 373004x501, 373004x502, 373004x503, 401709ri, 600005, 600024, 600049, 2655721, 9212444, 12060809, 063532601, 063532624, 0986049500, 5241141102, 063532601010, 063532624010, 944390903950

  • Passar modeller
    Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2003 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-12-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-10-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: HPDi Size of motor: 2.9 From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-08-1999 To date: 01-09-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 110
    Drevskive dist.: 46.50
    Bredde/holderarm: 13.00
    Monteringsbeslag dist.: 80.80
    Beslagshull: 10.30
    Belt. justeringsbeslagshull pos.: 5
    Belt. justeringsbeslagshull 1: 11.20
    Drevskivens dia.: 59.70
    Riller/drevskive: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 18
    D+ størrelse: Plug
    Rotasjon: medur
    Pluggnr.: PL07
    Total lengde mm: 239.50
    Drevskive: SP/FW
    Regulator type: IR
    Vakumpumpe: Ja
    Prod. info: BN
    Service: Hyundai

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 80.80
    Belt. adj. bracket hole 1 11.20
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 18
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.70
    Pulley dist. 46.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 5
    Vac. pump Yes
    Voltage 14
    Total length 239.50 mm
    Width/holder arm 13.00
    Amp 110
  • Kjøretøymatching

    • OEM
      AF111225, AF111390, F032113331, ja1709ir, TA000A56901, TA000A61201, 37300-4x000, 37300-4X001, 37300-4x002, 37300-4X003, 37300-4X500, 37300-4x501, 37300-4x502, 37300-4x503, 2655721

    • Konkurrentreferens
      A3248(VALEO), A9018, ALT-7234, ALT-H130, CAL32114, DRA4203, DRA4203N, F042206036, F042A0B041, F042A0H130, J5110524, LRA02231, 8EL011711-231, 28-4706, 524.114.1102, 9413, 23203N, 23203R, 111251, 210369, 210369A, 210387, 210387A, 401709RI, 600005, 600024, 600049, 9212444, 12060809, 063532601, 063532624, 0986049500, 063532601010, 063532624010, 944390903950

    • NormaliseratArtNr
      a3248valeo, a9018, af111225, af111390, alt7234, alth130, cal32114, dra4203, dra4203n, f032113331, f042206036, f042a0b041, f042a0h130, j5110524, ja1709ir, lra02231, ta000a56901, ta000a61201, 8el011711231, 9413, 23203n, 23203r, 111251, 210369, 210369a, 210387, 210387a, 284706, 373004x000, 373004x001, 373004x002, 373004x003, 373004x500, 373004x501, 373004x502, 373004x503, 401709ri, 600005, 600024, 600049, 2655721, 9212444, 12060809, 063532601, 063532624, 0986049500, 5241141102, 063532601010, 063532624010, 944390903950

    • Passar modeller
      Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-11-2003 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: Terracan Model series: Terracan Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Type description: HP From date: 01-12-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-10-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: HPDi Size of motor: 2.9 From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Kia Model: Carnival Model series: Carnival Type of engine: TD Size of motor: 2.9 Brand of engine: J3 Body: MPV From date: 01-08-1999 To date: 01-09-2007 Fuel: Diesel Approved: Yes
