HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114491

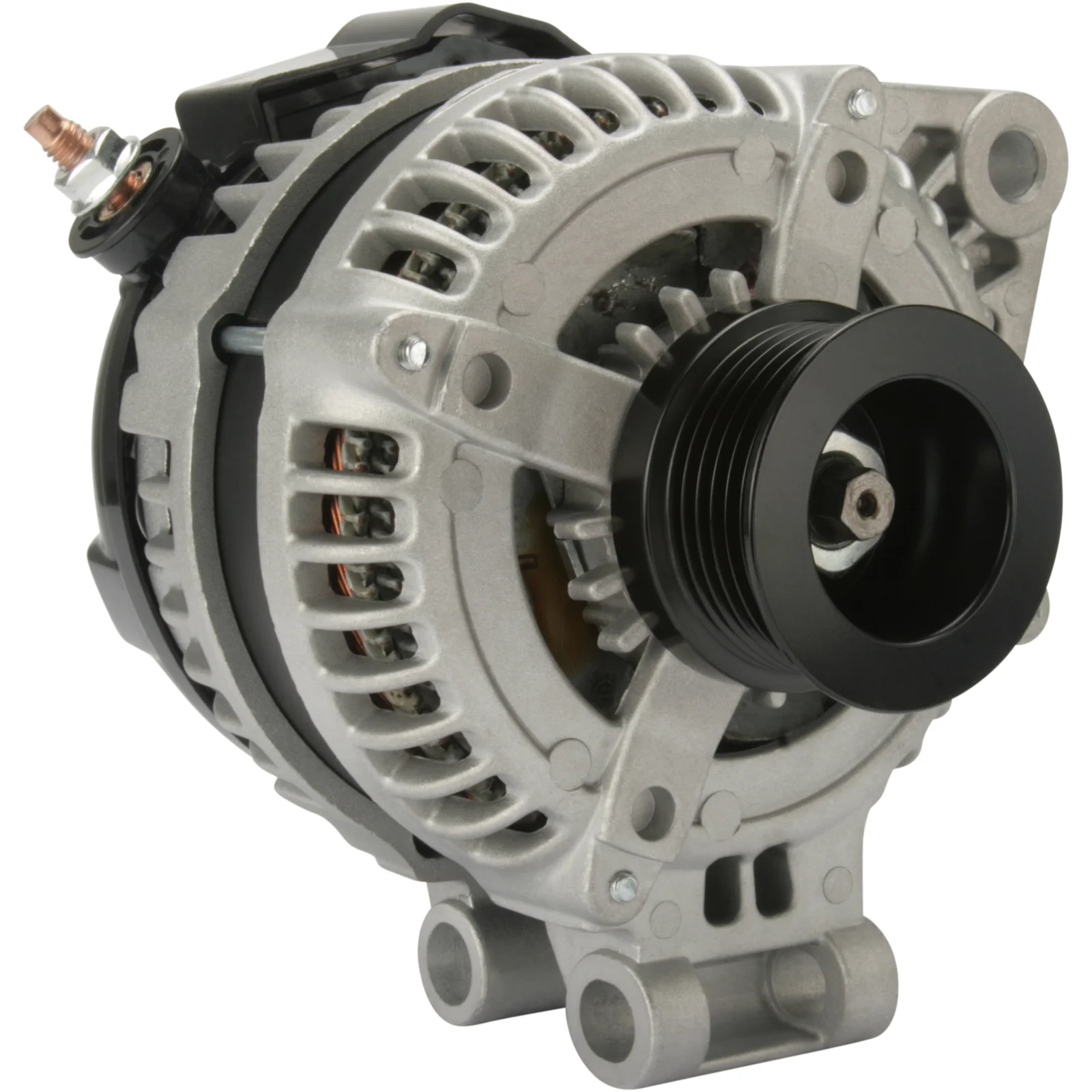

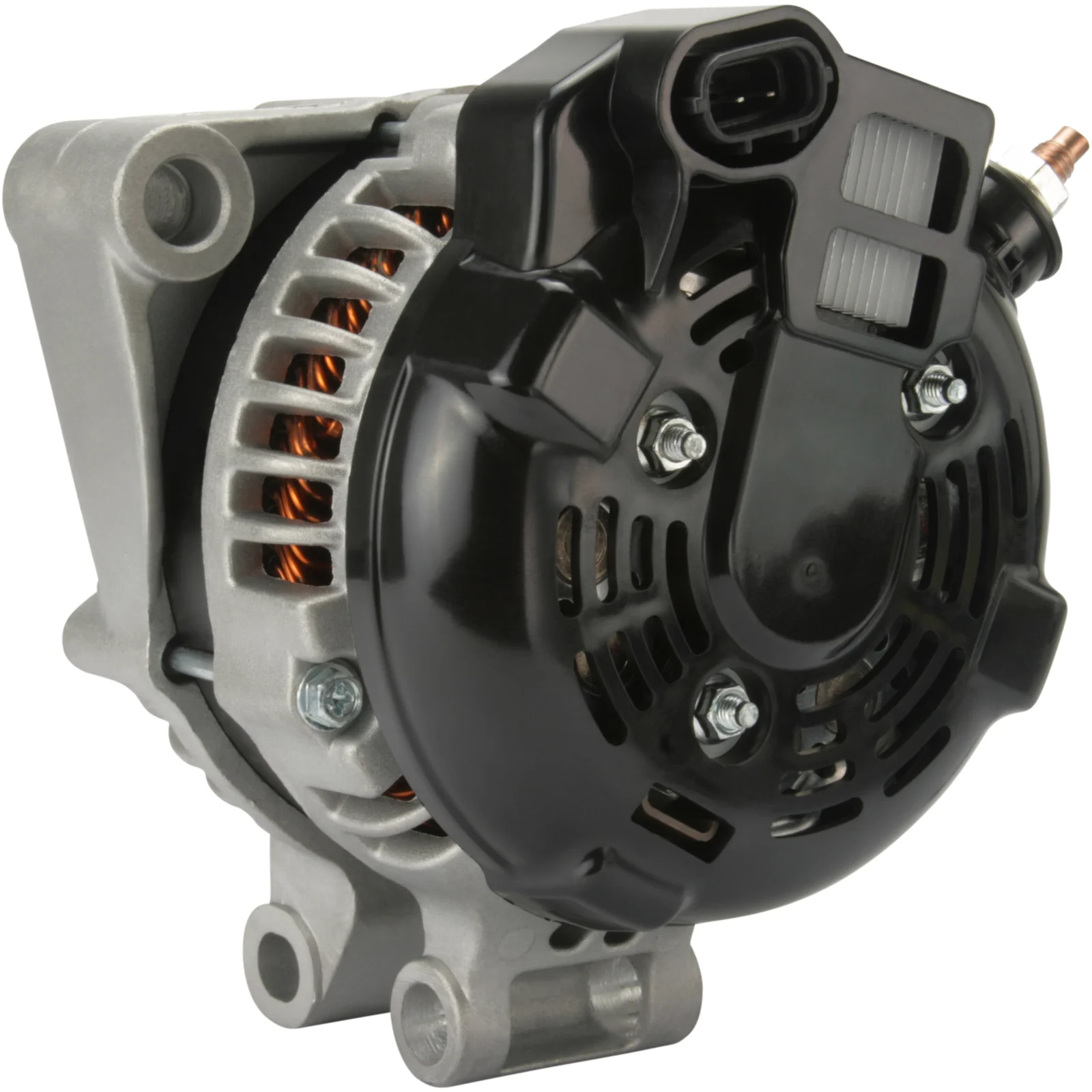

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: HØYRE, Festepl.festeavst.: 45.00

Beskrivelse

Spenningskilde: 14
Ampere: 150
Utskift: 28,50
Bredde/holderarm: 50,50
Monteringsbeslagavstand: 45,00
Beslagshull: 12,00
Beslagshull 2: 14,00
Belt. justering av beslagshull pos.: 10
Belt. justering av beslagshull 1: 11,00
Utskift diameter: 54,00
Riller/utsift: 6
Radius: 87,00
Radius 2: 84,00
B+: M8
Posisjon/B+ i min.: 8
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL136
Total lengde mm: 166,00
Utskift: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 10
Plug no. PL136
Bracket hole 12.00
Bracket hole 2 14.00
Position/B+ in min. 8
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 28.50
Radius 87.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 50.50
Amp 150

  • OEM
    F032114491, LR008860, yle500190, YLE500390, 1986A01326, 104210-3690, 104210-3691

  • Konkurrentreferens
    A6045, A6045(DENSO), CAL40220, DAN991, DRA0629, F042205236, 8EL015637-481, 28-4997, 214.146.1502, 11206, 11206R, 209291, 209291A, 439984, 440764, 12061095, 32009000

  • NormaliseratArtNr
    a6045, a6045denso, cal40220, dan991, dra0629, f032114491, f042205236, lr008860, yle500190, yle500390, 8el015637481, 1986a01326, 11206, 11206r, 209291, 209291a, 284997, 439984, 440764, 12061095, 32009000, 1042103690, 1042103691, 2141461502

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Size of motor: 4.4 Brand of engine: 448PN Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Model series: Range Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: Closed Off-Road Vehicle From date: 01-01-2006 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.2 Brand of engine: 428PS From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.4 Brand of engine: 448PN From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Supercharged 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L322 Body: Closed Off-Road Vehicle From date: 01-09-2005 To date: 01-12-2009 Fuel: Petrol Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Size of motor: 4.2 Brand of engine: 428PS Type description: LM From date: 01-05-2005 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: SUV From date: 01-09-2005 To date: 01-02-2010 Fuel: Petrol Approved: Yes
    Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS (AJV8) Type description: L320 Body: SUV Fuel: Petrol Approved: Yes
