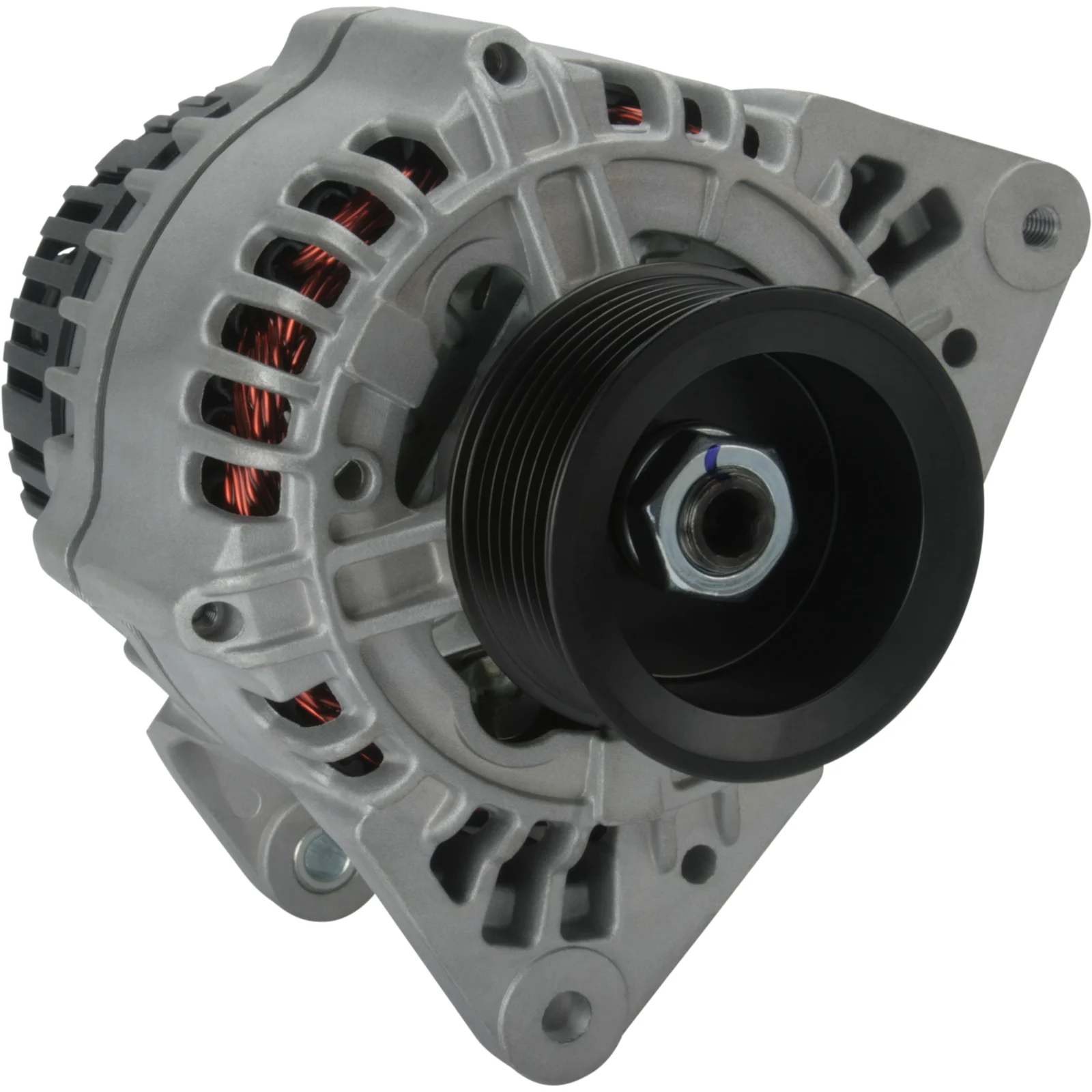

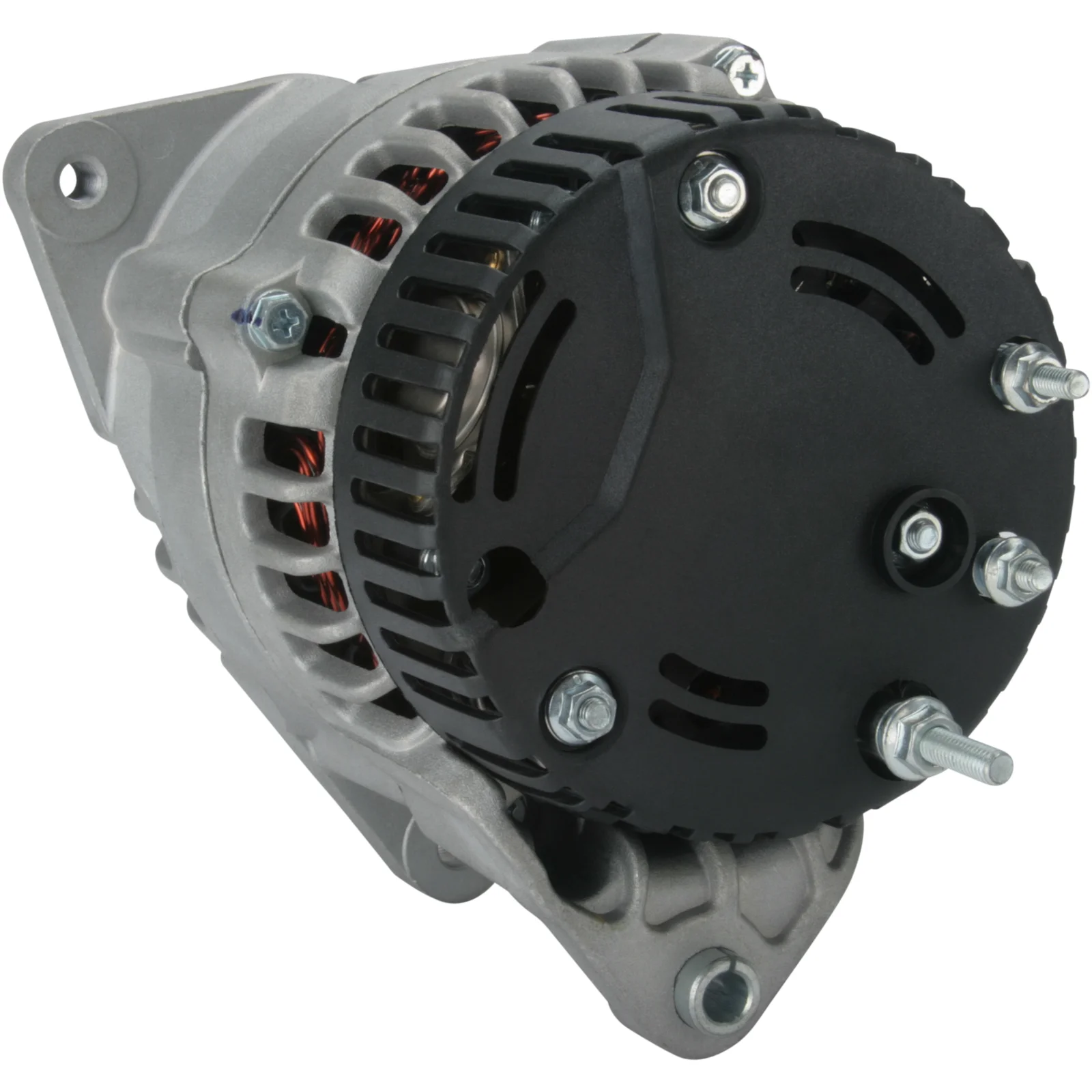

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113529

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Festebrakett avstand: 83,30

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 120
Terminal: W
Drev: 33.00
Bredde/holderarm: 14.00
Monteringsbeslag avstand: 83.30
Beslagshull: 8.20
Belt. justeringsbeslaghullposisjon: 10
Belt. justeringsbeslagshull 1: M8
Drevdiameter: 67.00
Grooves/drev: 8
Radius: 86.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 25
D+ størrelse: M5
Rotasjon: med uret
Plugg nr.: PL31
W pluggtype: M5
Total lengde mm: 204.50
Drev: SP
Regulator type: IR
Prod.informasjon: BN
Service: Ford

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 83.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL31
Bracket hole 8.20
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 67.00
Pulley dist. 33.00
Radius 86.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Ford
Grooves/pulley 8
Terminal W
Voltage 14
W plug type M5
Total length 204.50 mm
Width/holder arm 14.00
Amp 120

  • OEM
    aak5354, aak5355, AAK5592, aak5746, AAK5759, aak5763, EGL1272R, F032113529, SG10B071, SG10B074, 11.203.087, 11.203.088, 11.203.494, 11.203.730, 11.203.822, 11.203.853, 65GB10300LA, 3788017M91, 63321753, 73401608, 82010243, 82014508, 82020011, 84141452, 87310882, 87361082, 87361085, 87652087, 820157231

  • Konkurrentreferens
    A9170, A9170(LETRIKA), A9233, AIA0001, ALU0020, BAO3116, CAL15096, CAL21113, CAL21190, CAL30248, DRA0262, DRA0812, IA1019, IA1020, LEA1155, LRA02826, MG246, MG286, MG404, MG671OF, MG687OF, 8EL015643-031, 8EL015643-051, 28-5936, 685.501.120, 705.502.100, 705.502.120, 12095N, 12427N, 111238, 202007, 210762, 210762A, 439826, 444437, 553102RI, 553800RI, 9990560, 63321753010

  • NormaliseratArtNr
    a9170, a9170letrika, a9233, aak5354, aak5355, aak5592, aak5746, aak5759, aak5763, aia0001, alu0020, bao3116, cal15096, cal21113, cal21190, cal30248, dra0262, dra0812, egl1272r, f032113529, ia1019, ia1020, lea1155, lra02826, mg246, mg286, mg404, mg671of, mg687of, sg10b071, sg10b074, 8el015643031, 8el015643051, 65gb10300la, 12095n, 12427n, 111238, 202007, 210762, 210762a, 285936, 439826, 444437, 553102ri, 553800ri, 3788017m91, 9990560, 11203087, 11203088, 11203494, 11203730, 11203822, 11203853, 63321753, 73401608, 82010243, 82014508, 82020011, 84141452, 87310882, 87361082, 87361085, 87652087, 685501120, 705502100, 705502120, 820157231, 63321753010

  • Passar modeller
    Ford Model: Transit Model series: Transit Model type: CNG Size of motor: 2.0 Brand of engine: NSH Body: Bus From date: 01-06-1994 To date: 01-03-2000 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: EAL,EAS Body: Van From date: 01-06-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: EMC,EME,EML,EMS,ENE, Body: Platform / Chassis From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: E_ Body: Bus From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: EAL,EAS Body: Van From date: 01-06-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: EME,EML,EMS,ENE,ENL, Body: Platform / Chassis From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: E_ Body: Bus From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    New Holland Model: 8000 Series Model series: 8000 Series Brand of engine: Ford From date: 01-09-1995 To date: 01-12-2001 Approved: Yes
    New Holland Model: 8000 Series Model series: 8160 From date: 01-09-1995 Approved: Yes
    New Holland Model: 8000 Series Model series: 8260 From date: 01-09-1995 Approved: Yes
    New Holland Model: 8000 Series Model series: 8360 From date: 01-09-1995 Approved: Yes
    New Holland Model: 8000 Series Model series: 8560 From date: 01-09-1995 Approved: Yes
    New Holland Model: M Model series: M SERIES From date: 01-09-1995 Approved: Yes
    New Holland Model: TM Model series: TM SERIES From date: 01-11-1999 Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 120
    Terminal: W
    Drev: 33.00
    Bredde/holderarm: 14.00
    Monteringsbeslag avstand: 83.30
    Beslagshull: 8.20
    Belt. justeringsbeslaghullposisjon: 10
    Belt. justeringsbeslagshull 1: M8
    Drevdiameter: 67.00
    Grooves/drev: 8
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Posisjon/B+ i min.: 25
    D+ størrelse: M5
    Rotasjon: med uret
    Plugg nr.: PL31
    W pluggtype: M5
    Total lengde mm: 204.50
    Drev: SP
    Regulator type: IR
    Prod.informasjon: BN
    Service: Ford

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 83.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 10
    Plug no. PL31
    Bracket hole 8.20
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP
    Pulley dia. 67.00
    Pulley dist. 33.00
    Radius 86.00
    D+ Size M5
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Ford
    Grooves/pulley 8
    Terminal W
    Voltage 14
    W plug type M5
    Total length 204.50 mm
    Width/holder arm 14.00
    Amp 120
  • Kjøretøymatching

    • OEM
      aak5354, aak5355, AAK5592, aak5746, AAK5759, aak5763, EGL1272R, F032113529, SG10B071, SG10B074, 11.203.087, 11.203.088, 11.203.494, 11.203.730, 11.203.822, 11.203.853, 65GB10300LA, 3788017M91, 63321753, 73401608, 82010243, 82014508, 82020011, 84141452, 87310882, 87361082, 87361085, 87652087, 820157231

    • Konkurrentreferens
      A9170, A9170(LETRIKA), A9233, AIA0001, ALU0020, BAO3116, CAL15096, CAL21113, CAL21190, CAL30248, DRA0262, DRA0812, IA1019, IA1020, LEA1155, LRA02826, MG246, MG286, MG404, MG671OF, MG687OF, 8EL015643-031, 8EL015643-051, 28-5936, 685.501.120, 705.502.100, 705.502.120, 12095N, 12427N, 111238, 202007, 210762, 210762A, 439826, 444437, 553102RI, 553800RI, 9990560, 63321753010

    • NormaliseratArtNr
      a9170, a9170letrika, a9233, aak5354, aak5355, aak5592, aak5746, aak5759, aak5763, aia0001, alu0020, bao3116, cal15096, cal21113, cal21190, cal30248, dra0262, dra0812, egl1272r, f032113529, ia1019, ia1020, lea1155, lra02826, mg246, mg286, mg404, mg671of, mg687of, sg10b071, sg10b074, 8el015643031, 8el015643051, 65gb10300la, 12095n, 12427n, 111238, 202007, 210762, 210762a, 285936, 439826, 444437, 553102ri, 553800ri, 3788017m91, 9990560, 11203087, 11203088, 11203494, 11203730, 11203822, 11203853, 63321753, 73401608, 82010243, 82014508, 82020011, 84141452, 87310882, 87361082, 87361085, 87652087, 685501120, 705502100, 705502120, 820157231, 63321753010

    • Passar modeller
      Ford Model: Transit Model series: Transit Model type: CNG Size of motor: 2.0 Brand of engine: NSH Body: Bus From date: 01-06-1994 To date: 01-03-2000 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: EAL,EAS Body: Van From date: 01-06-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: EMC,EME,EML,EMS,ENE, Body: Platform / Chassis From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSF Type description: E_ Body: Bus From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: EAL,EAS Body: Van From date: 01-06-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: EME,EML,EMS,ENE,ENL, Body: Platform / Chassis From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Size of motor: 2.0 Brand of engine: NSG Type description: E_ Body: Bus From date: 01-08-1994 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      New Holland Model: 8000 Series Model series: 8000 Series Brand of engine: Ford From date: 01-09-1995 To date: 01-12-2001 Approved: Yes
      New Holland Model: 8000 Series Model series: 8160 From date: 01-09-1995 Approved: Yes
      New Holland Model: 8000 Series Model series: 8260 From date: 01-09-1995 Approved: Yes
      New Holland Model: 8000 Series Model series: 8360 From date: 01-09-1995 Approved: Yes
      New Holland Model: 8000 Series Model series: 8560 From date: 01-09-1995 Approved: Yes
      New Holland Model: M Model series: M SERIES From date: 01-09-1995 Approved: Yes
      New Holland Model: TM Model series: TM SERIES From date: 01-11-1999 Approved: Yes
