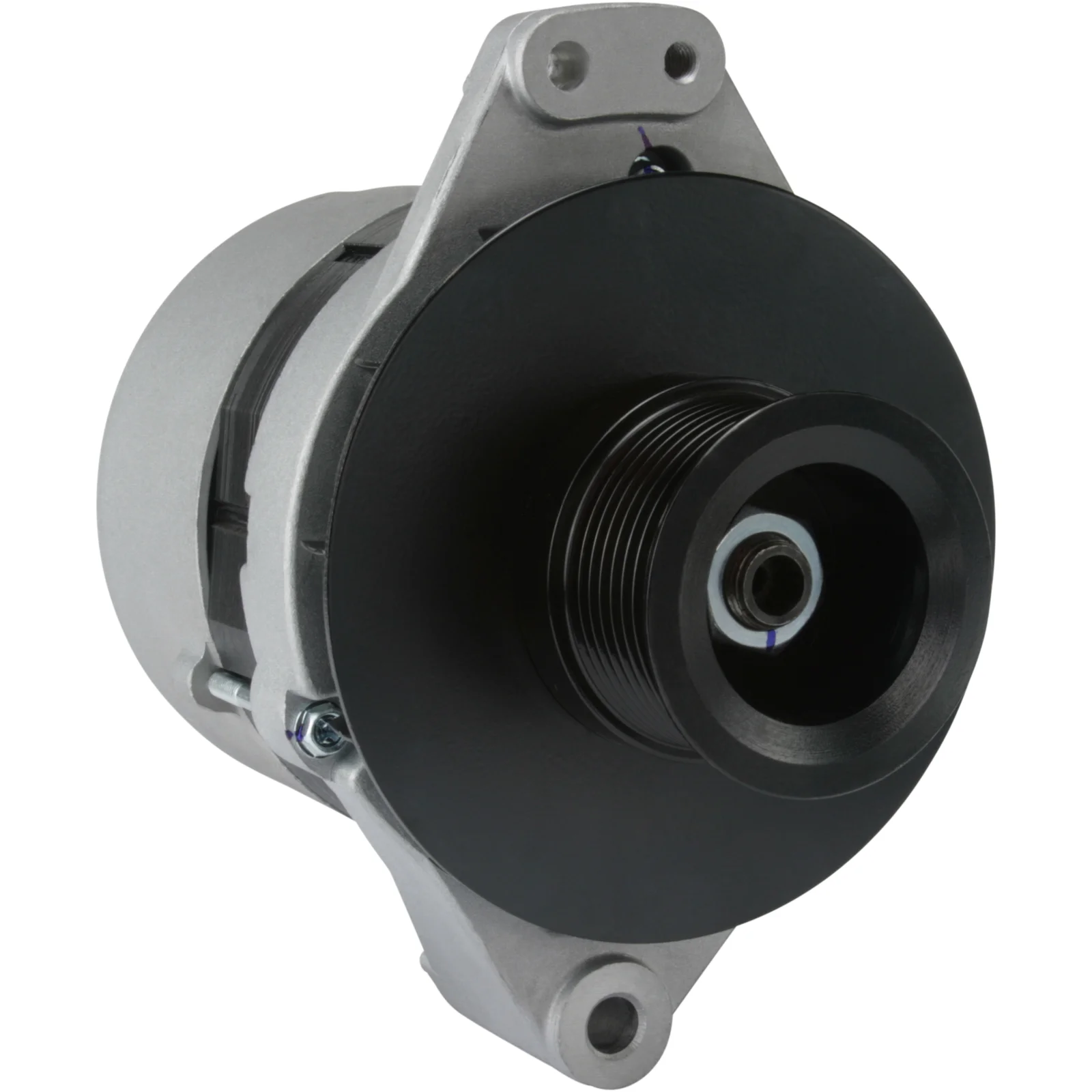

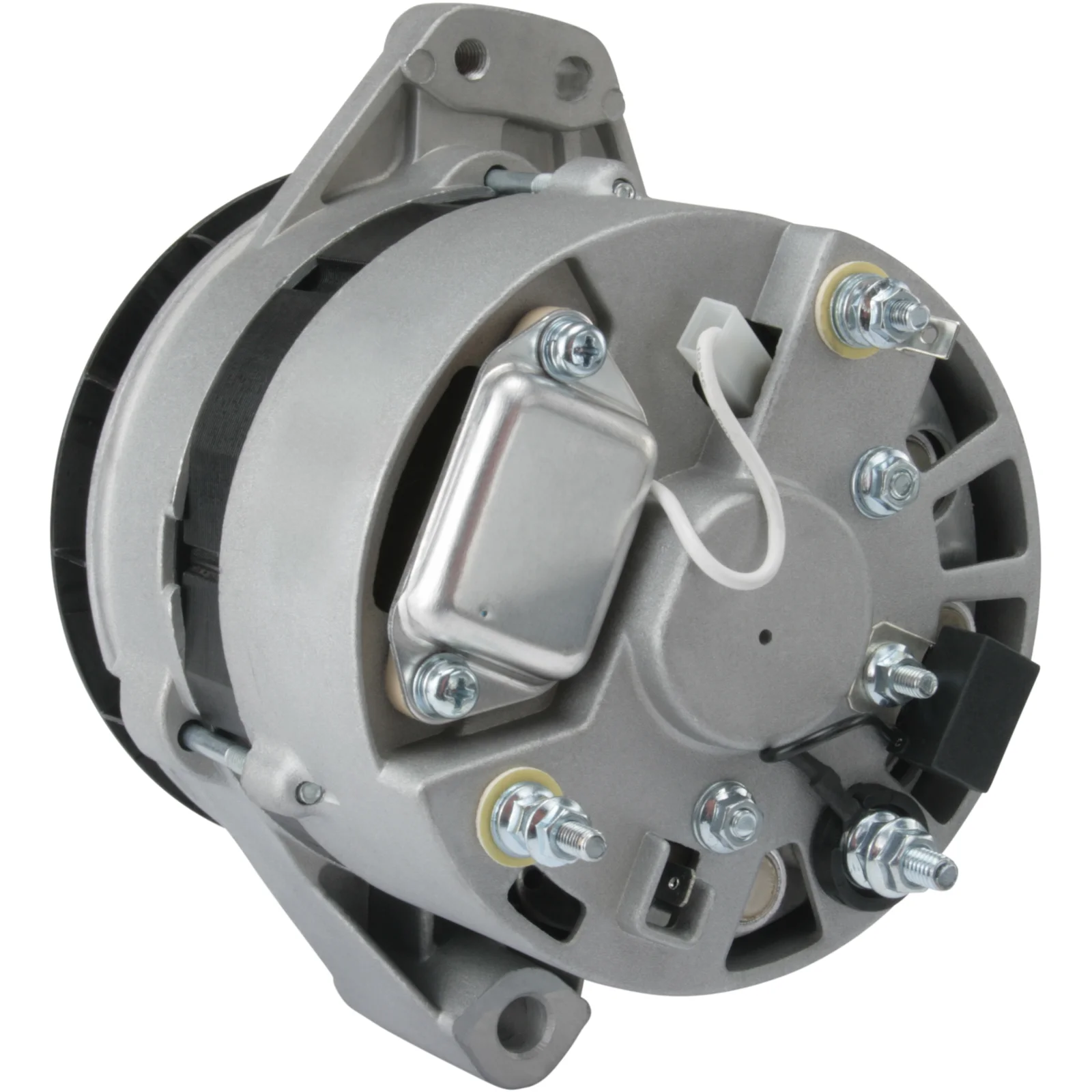

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113543

HC-Cargo Dynamo

Teknisk info:

Nøyaktighet: 14, Ampere: 55, Rotasjon: CW, Drivehjul diam.: 60,00

Beskrivelse

Spenning: 14
Amp: 55
Terminal: W
Drev: 78.40
Bredde/holderarm: 50.70
Bracket hull: 10.20
Beltes. justeringsbrackethull pos.: 57
Beltes. justeringsbrackethull pos. 2: 60
Beltes. justeringsbrackethull 1: 8.20
Beltes. justeringsbrackethull 2: M8
Drev diameter: 60.00
Grooves/drev: 8
Radius: 83.00
Radius 2: 87.00
B+: M6
Posisjon/B+ i min.: 25
D+ Størrelse: M5
Rotasjon: CW
W plugg type: M5-6.30
Total lengde mm: 190.00
Drev: SP
Regulator type: IR
Prod. info: BN
Servicing: John Deere plenutstyr med kjøle-motor

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.20
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 57
Belt. adj. brackethole pos. 2 60
Bracket hole 10.20
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 78.40
Radius 83.00
D+ Size M5
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing John Deere lawn equipment w/ cooling eng
Grooves/pulley 8
Terminal W
Voltage 14
W plug type M5-6.30
Total length 190.00 mm
Width/holder arm 50.70
Amp 55

  • OEM
    F032113543, LRA02116, RE501634, re506196, RE57960, 501823, 9515241, 9516241, 443113515241, 443113516241

  • Konkurrentreferens
    A-6330, A9038, ALT41000, AMA0001, CAL48109, DRA0019, 90-36-9504, 635.005.055, 2423, 12130, 12130N, 12140N, 553068RI, 12090322

  • NormaliseratArtNr
    a6330, a9038, alt41000, ama0001, cal48109, dra0019, f032113543, lra02116, re501634, re506196, re57960, 2423, 12130, 12130n, 12140n, 501823, 553068ri, 9515241, 9516241, 12090322, 90369504, 635005055, 443113515241, 443113516241

  • Passar modeller
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 55
    Terminal: W
    Drev: 78.40
    Bredde/holderarm: 50.70
    Bracket hull: 10.20
    Beltes. justeringsbrackethull pos.: 57
    Beltes. justeringsbrackethull pos. 2: 60
    Beltes. justeringsbrackethull 1: 8.20
    Beltes. justeringsbrackethull 2: M8
    Drev diameter: 60.00
    Grooves/drev: 8
    Radius: 83.00
    Radius 2: 87.00
    B+: M6
    Posisjon/B+ i min.: 25
    D+ Størrelse: M5
    Rotasjon: CW
    W plugg type: M5-6.30
    Total lengde mm: 190.00
    Drev: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: John Deere plenutstyr med kjøle-motor

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 8.20
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 57
    Belt. adj. brackethole pos. 2 60
    Bracket hole 10.20
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 78.40
    Radius 83.00
    D+ Size M5
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Servicing John Deere lawn equipment w/ cooling eng
    Grooves/pulley 8
    Terminal W
    Voltage 14
    W plug type M5-6.30
    Total length 190.00 mm
    Width/holder arm 50.70
    Amp 55
  • Kjøretøymatching

    • OEM
      F032113543, LRA02116, RE501634, re506196, RE57960, 501823, 9515241, 9516241, 443113515241, 443113516241

    • Konkurrentreferens
      A-6330, A9038, ALT41000, AMA0001, CAL48109, DRA0019, 90-36-9504, 635.005.055, 2423, 12130, 12130N, 12140N, 553068RI, 12090322

    • NormaliseratArtNr
      a6330, a9038, alt41000, ama0001, cal48109, dra0019, f032113543, lra02116, re501634, re506196, re57960, 2423, 12130, 12130n, 12140n, 501823, 553068ri, 9515241, 9516241, 12090322, 90369504, 635005055, 443113515241, 443113516241

    • Passar modeller
      John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
