Varenr.: F032113552

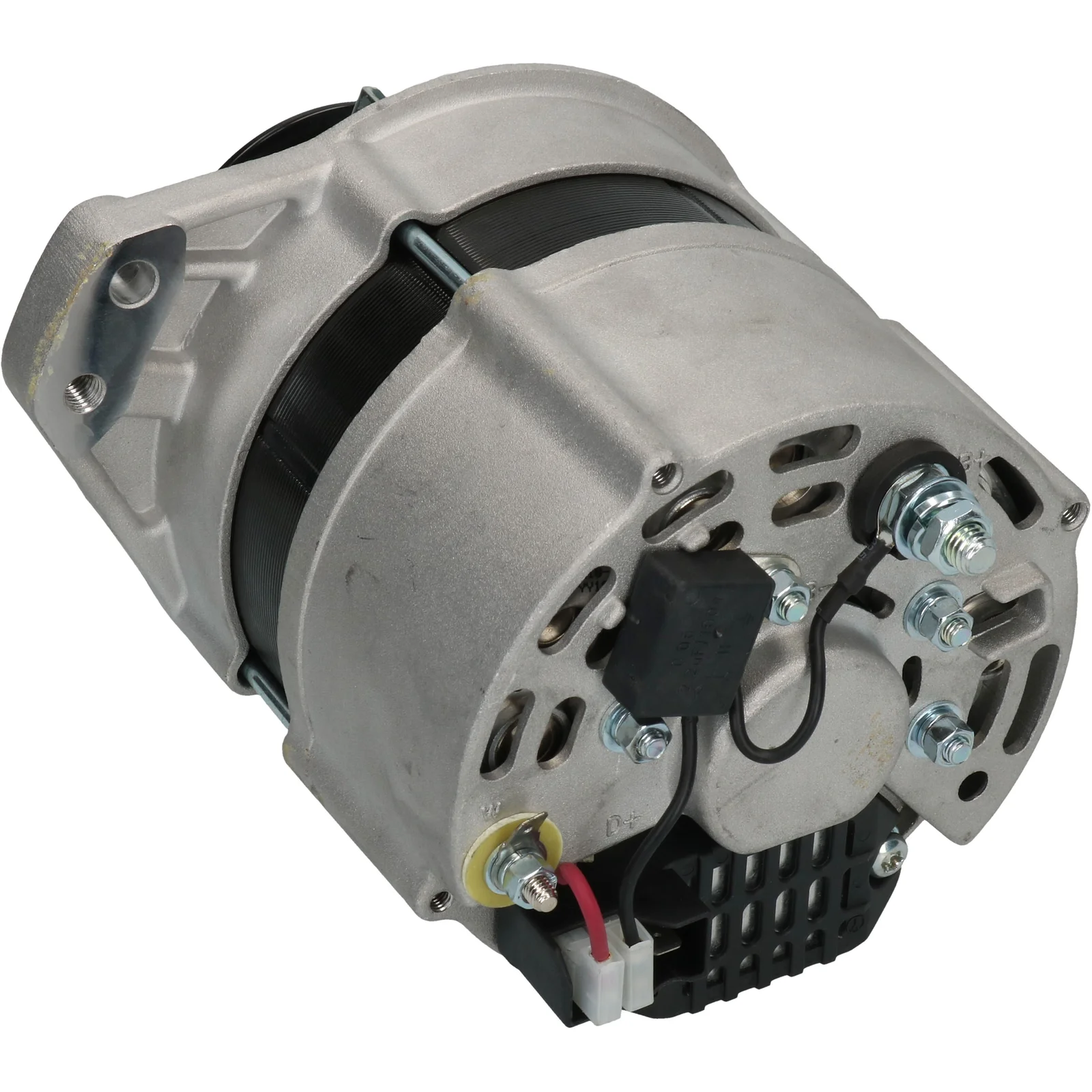

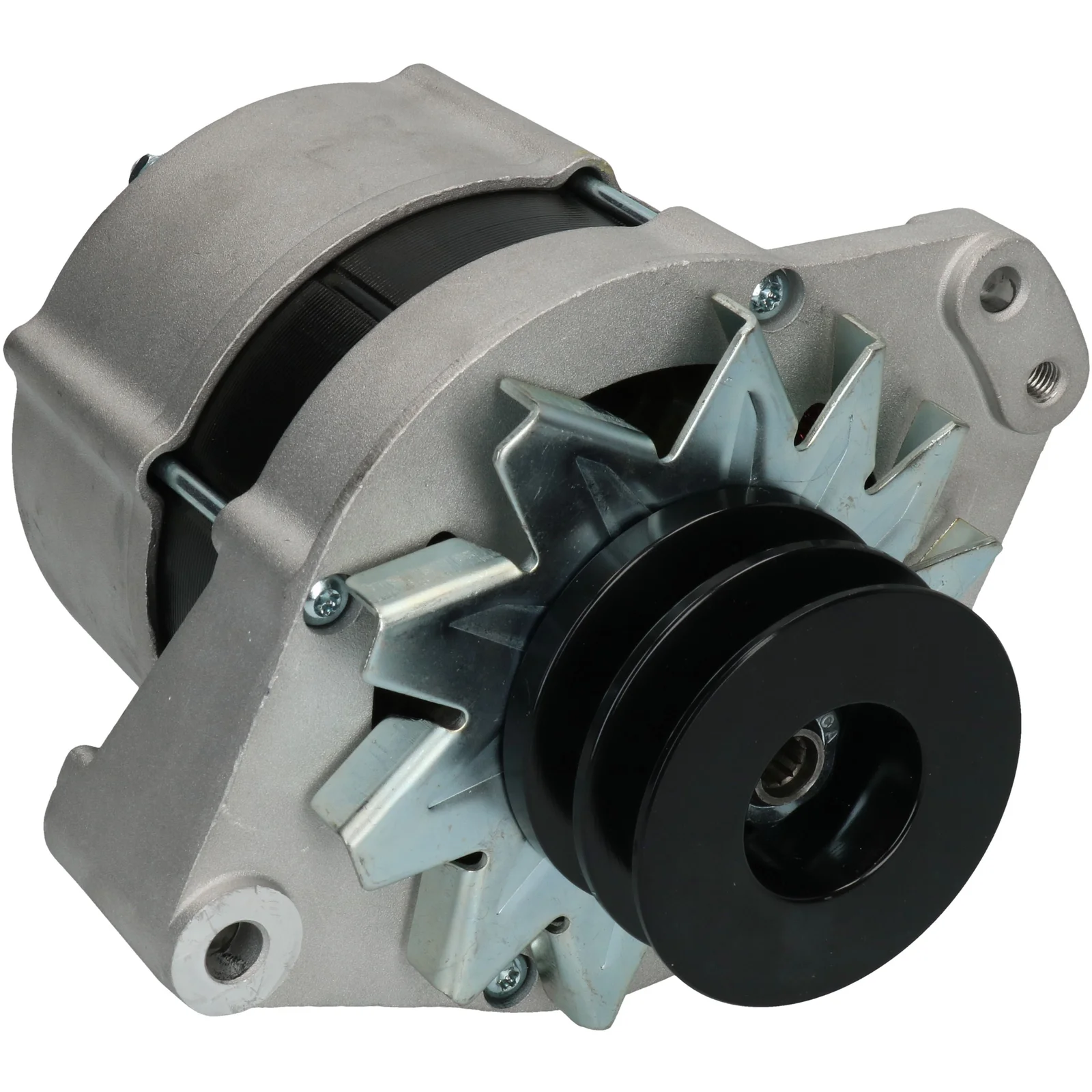

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Remskive dia.: 71.50

Beskrivelse

Spenning: 14
Amp: 120
Terminal: W
Reimavstand: 77.00
Bredde/beslagarm: 50.80
Bøsninghull: 10.20
Belt. juster. bøsninghullpos.: 58
Belt. juster. bøsninghullpos. 2: 60
Belt. juster. bøsninghull pos. 1: 8.00
Belt. juster. bøsninghull pos. 2: M8
Reimdiameter: 71.50
Riller/reimskive: 2
Radius: 86.00
Radius 2: 87.00
Radius 3: 87.00
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: 6.30
Vridning: med urviseren
W pluggtype: M5
Total lengde mm: 198.00
Reimskive: DP
Regulator type: IR
Prod. info: BN
Service: Huset

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 58
Belt. adj. brackethole pos. 2 60
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN
Pulley DP
Pulley dia. 71.50
Pulley dist. 77.00
Radius 86.00
D+ Size 6.30
Radius 2 87.00
Radius 3 87.00
Regulator type IR
Rotation CW
Servicing Case
Grooves/pulley 2
Terminal W
Voltage 14
W plug type M5
Total length 198.00 mm
Width/holder arm 50.80
Amp 120
  • OEM

    F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120
  • Konkurrentreferens

    A9031, 635.008.095, 635.008.120, 553320RI
  • NormaliseratArtNr

    a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120
  • Passar modeller

    Case Model: 100 Series Model series: 170 CBX Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp: 120
    Terminal: W
    Reimavstand: 77.00
    Bredde/beslagarm: 50.80
    Bøsninghull: 10.20
    Belt. juster. bøsninghullpos.: 58
    Belt. juster. bøsninghullpos. 2: 60
    Belt. juster. bøsninghull pos. 1: 8.00
    Belt. juster. bøsninghull pos. 2: M8
    Reimdiameter: 71.50
    Riller/reimskive: 2
    Radius: 86.00
    Radius 2: 87.00
    Radius 3: 87.00
    B+: M8
    Posisjon/B+ i min.: 15
    D+ Størrelse: 6.30
    Vridning: med urviseren
    W pluggtype: M5
    Total lengde mm: 198.00
    Reimskive: DP
    Regulator type: IR
    Prod. info: BN
    Service: Huset
  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 58
    Belt. adj. brackethole pos. 2 60
    Bracket hole 10.20
    Position/B+ in min. 15
    Prod. info BN
    Pulley DP
    Pulley dia. 71.50
    Pulley dist. 77.00
    Radius 86.00
    D+ Size 6.30
    Radius 2 87.00
    Radius 3 87.00
    Regulator type IR
    Rotation CW
    Servicing Case
    Grooves/pulley 2
    Terminal W
    Voltage 14
    W plug type M5
    Total length 198.00 mm
    Width/holder arm 50.80
    Amp 120
  • Kjøretøymatching
    • OEM

      F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120
    • Konkurrentreferens

      A9031, 635.008.095, 635.008.120, 553320RI
    • NormaliseratArtNr

      a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120
    • Passar modeller

      Case Model: 100 Series Model series: 170 CBX Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
