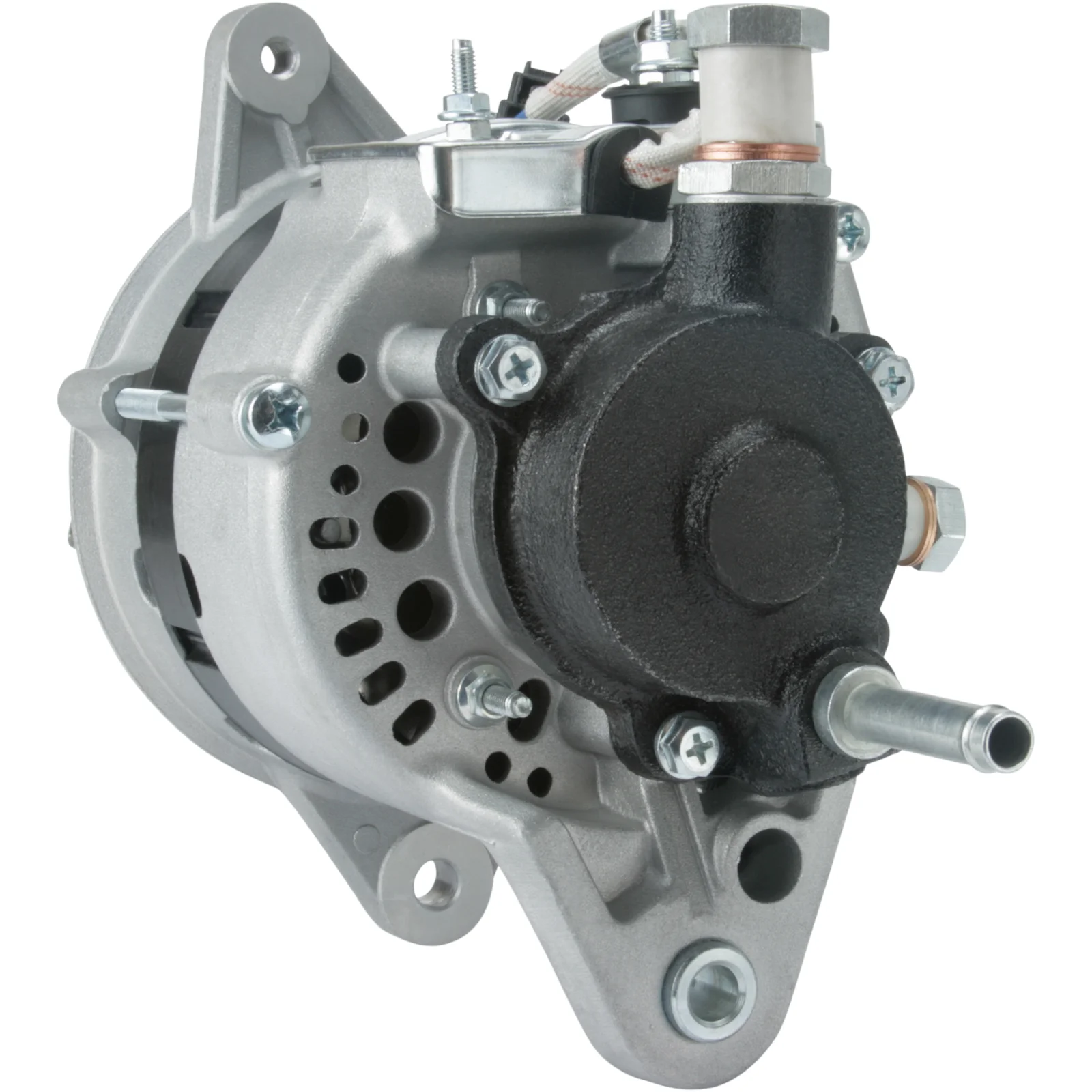

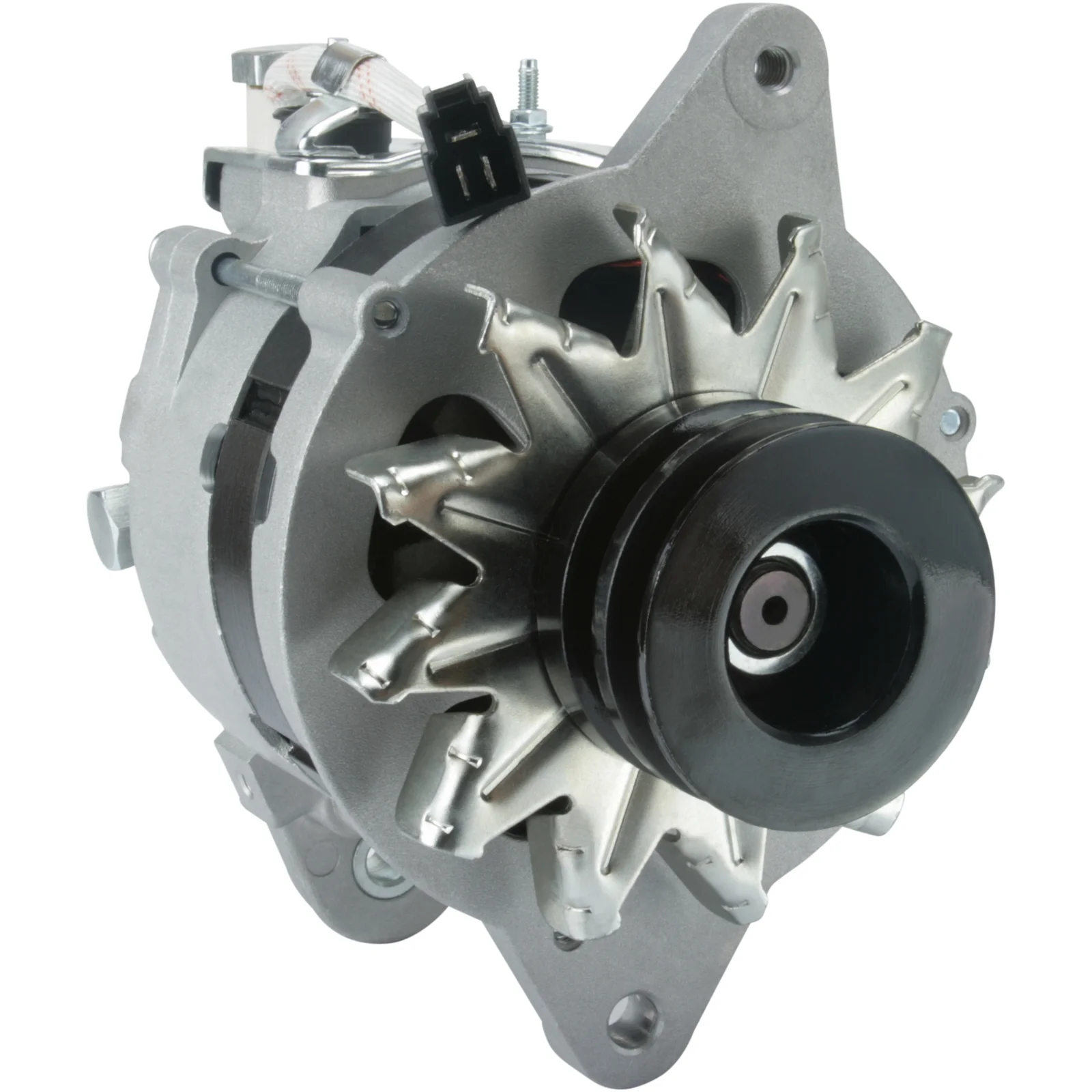

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114288

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 50, Rotasjon: CW, Monteringsbrakett avstand: 97.00

Beskrivelse

Spenning: 14
Amp: 50
Skrueavstand: 49,50
Bredde / holder arm: 14,50
Festebrakett avstand: 97,00
Bukkebor: 10,50
Belt. justeringsbrakettposisjon: 3
Belt. justeringsbrakettbor: M8
Skrue diameter: 68,00
Gjengriper / skive: 2
Radius: 88,00
Radius 2: 90,00
B+: M6
Posisjon / B+ i min.: 2
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL15
Total lengde mm: 263,00
Skrive: DP
Vac. pumpe: Ja
Anmerkninger: Regulator: HC-CARGO 132111.

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 97.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL15
Bracket hole 10.50
Position/B+ in min. 2
Pulley DP
Pulley dia. 68.00
Pulley dist. 49.50
Radius 88.00
D+ Size Plug
Radius 2 90.00
Remarks Regulator: HC-CARGO 132111.
Rotation CW
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 263.00 mm
Width/holder arm 14.50
Amp 50

  • OEM
    F032114288, ja193, 27020-54160, 27020-54210, 27030-54130, 27030-54140, 27030-54150, 27030-54160, 27030-54210, 100210-2600, 100210-2660, 100210-2700, 100210-2750, 100210-3080, 121000-0820, 121000-0830, 121000-0930

  • Konkurrentreferens
    A6349, CAL44103, dra3064, F042205170, 8EL012427-691, 8el726338-001, 27-0842, 27-1941, 39-51.247, 235.014.402, 235.014.552, 5331, 22070N, 22070R, 40193, 56062, 210797, 210797A, 12060342, 12060343, 20130103, 0986035561, 0986036311

  • NormaliseratArtNr
    a6349, cal44103, dra3064, f032114288, f042205170, ja193, 8el012427691, 8el726338001, 5331, 22070n, 22070r, 40193, 56062, 210797, 210797a, 270842, 271941, 3951247, 12060342, 12060343, 20130103, 235014402, 235014552, 0986035561, 0986036311, 1002102600, 1002102660, 1002102700, 1002102750, 1002103080, 1210000820, 1210000830, 1210000930, 2702054160, 2702054210, 2703054130, 2703054140, 2703054150, 2703054160, 2703054210

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH80 From date: 01-01-1984 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: LY61 From date: 01-08-1985 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5F Body: Bus From date: 01-01-1987 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-01-1979 To date: 01-03-1983 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Type description: H5G Body: Bus From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5G Body: Bus From date: 01-04-1984 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LJ70 From date: 01-11-1984 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70,73 From date: 01-10-1985 To date: 01-05-1990 Fuel: Diesel Approved: Yes
