Dynamo

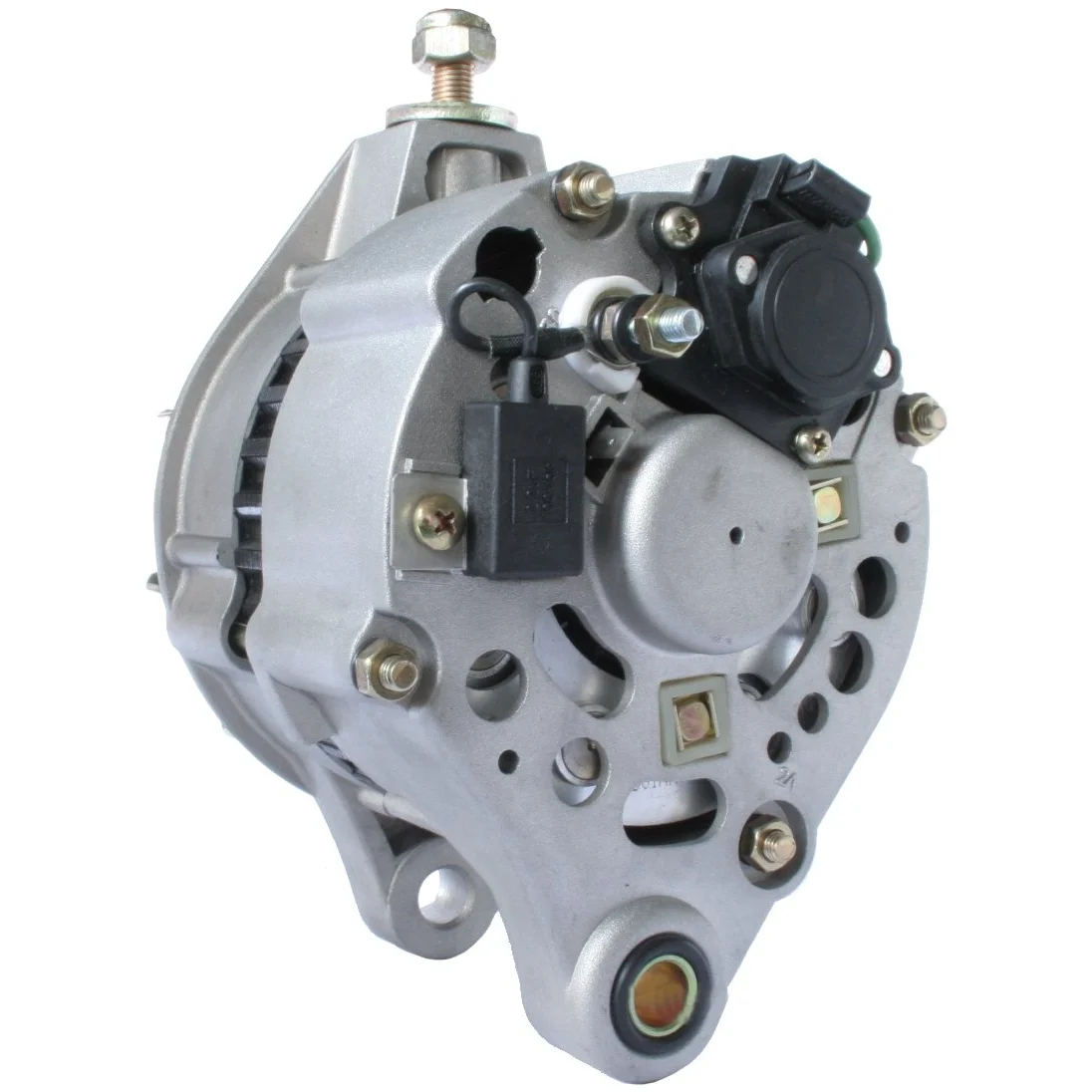

HC-Cargo Dynamo

Dynamo
HC-Cargo Dynamo

Varenr.: F032110348

HC-Cargo Dynamo

Name: HC-Cargo Dynamo
SKU: F032110348
Price: 1695.92 NOK
Availability: OutOfStock

Teknisk info:

Spenningsregulator: 14, Amp: 55, Rotasjon: CW, Monteringsfeste avstand: 63.00

Beskrivelse

Samara Lada Dynamo 12V - 55A For Yourex produkt bestilling 90-298-3439

Spenningsfaktor: 14
Ampere: 55
Drivreimsskjæringsmål: 45.00
Bredde/bærerarm: 19.60
Monteringsbeslag avstand: 63.00
Beslagshull: 12.00
Reimjusteringsbeslagshull posisjon: 60
Reimjusteringsbeslagshull 1: M10
Drevets diameter: 80.00
Riller/drev: 1
Radius: 85.50
B+: M6
Posisjon/B+ i min.: 55
D+ størrelse: 6.30
Rotasjon: CW
Total lengde mm: 162.00
Drev: P
Regulator type: IR
Produktinfo: BN
Service: Lada

Filer

Last ned produktblad

Spesifikasjon

B+	M6
Mount. bracket dist.	63.00
Belt. adj. bracket hole 1	M10
Belt. adj. brackethole pos.	60
Bracket hole	12.00
Position/B+ in min.	55
Prod. info	BN
Pulley	P
Pulley dia.	80.00
Pulley dist.	45.00
Radius	85.50
D+ Size	6.30
Regulator type	IR
Rotation	CW
Servicing	Lada
Grooves/pulley	1
Voltage	14
Total length	162.00 mm
Width/holder arm	19.60
Amp	55

OEM

a125-09, a125-55s, aak4127, als12n-82, F032110348, LRA 533, T222-3701010, t2223701010, 11-0348, 11.201.293, 11.201.385, 37.3701, 0120 488 280, 224-370701, 224-373701, 0293, 295ir, 0986 034 390, 2108-3701010, 9120 331 882, 0120488280, 9120331882, 21083701010, 2108370101004, 2108370101005, 2108370101010
Konkurrentreferens

A9072, ALT-L032, ALTL032, BAO3027, CAL21139, dra4391, F04230C002, F042A0C002, ia0293, LEA0171, lra00533, MG280, QA1422, va236, 8el725696-001, 22-34.391, 28-0971, 223.102.552, 855.003.055, 3433, 20533R, 30295RI, 118223, 210257, 210257A, 433483, 12032120, 12034390, 32201294, 32510467, 943356903, 0986034390, 0986034391, 0986086720, 943356903010
Bilmärken

Lada
NormaliseratArtNr

a12509, a12555s, a9072, aak4127, als12n82, altl032, bao3027, cal21139, dra4391, f032110348, f04230c002, f042a0c002, ia0293, lea0171, lra00533, lra533, mg280, qa1422, t2223701010, va236, 8el725696001, 0293, 295ir, 3433, 20533r, 30295ri, 110348, 118223, 210257, 210257a, 280971, 373701, 433483, 2234391, 11201293, 11201385, 12032120, 12034390, 32201294, 32510467, 0120488280, 223102552, 224370701, 224373701, 855003055, 943356903, 0986034390, 0986034391, 0986086720, 9120331882, 21083701010, 943356903010, 2108370101004, 2108370101005, 2108370101010

Passar modeller

Lada Model: 1300 Model series: 1300 Size of motor: 1.3 Brand of engine: BA321011 Type description: 2101 From date: 01-05-1978 To date: 01-01-1987 Fuel: Gasoline Approved: Yes

Lada Model: 1500 Model series: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2103 From date: 01-11-1975 To date: 01-10-1986 Fuel: Gasoline Approved: Yes

Lada Model: 1600 Model series: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2103 From date: 01-03-1979 To date: 01-12-2005 Fuel: Gasoline Approved: Yes

Lada Model: 1600 Model series: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2106 From date: 01-09-1972 To date: 01-08-1984 Fuel: Gasoline Approved: Yes

Lada Model: Natasha Model series: Natasha Size of motor: 1.5 Brand of engine: BA321083 Type description: 2108_ Body: Convertible From date: 01-01-1992 To date: 01-05-2004 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1200 Junior Size of motor: 1.2 Brand of engine: BA32101 Type description: 2105 From date: 01-09-1981 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1300 Size of motor: 1.3 Brand of engine: BA32105 Body: Estate From date: 01-09-1985 To date: 01-12-1994 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1300 Spezial Size of motor: 1.3 Brand of engine: BA32105 Type description: 2105 From date: 01-05-1981 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Body: Estate From date: 01-09-1985 To date: 01-02-1993 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2104 Body: Estate From date: 01-08-1994 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2105 From date: 01-03-1985 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA321083 Type description: WAS 21093 From date: 01-06-1989 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2105,2108,1209 From date: 01-01-1988 To date: 01-10-2001 Fuel: Gasoline Approved: Yes

Lada Model: Nova Model series: Nova Model type: 1700 Size of motor: 1.7 Brand of engine: ECE Type description: 2104 Body: Estate From date: 01-08-1994 To date: 01-04-2012 Fuel: Gasoline Approved: Yes

Lada Model: Samara Forma Model series: Samara Forma Saloon Model type: 1300 Size of motor: 1.3 Brand of engine: BA32108 Type description: 21099, 2115 Body: Saloon From date: 01-05-1990 To date: 01-08-1999 Fuel: Petrol Approved: Yes

Lada Model: Samara Model series: Samara Forma Size of motor: 1.5 Brand of engine: VAZ-2111 Type description: 21099 From date: 01-08-2003 To date: 01-12-2006 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Hatch Size of motor: 1.5 Brand of engine: 2111 Body: Hatchback From date: 01-08-2003 To date: 01-12-2006 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1100 Forma Size of motor: 1.1 Brand of engine: BA321081 Type description: 2108 From date: 01-07-1991 To date: 01-08-1999 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1100 Size of motor: 1.1 Brand of engine: BA321081 Type description: 2108 Body: Hatchback From date: 01-02-1988 To date: 01-12-1994 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1100 Size of motor: 1.1 Brand of engine: BA321081 Type description: 2108 Body: Hatchback From date: 01-02-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Forma Size of motor: 1.3 Brand of engine: BA32108 Type description: 2108 From date: 01-05-1989 To date: 01-07-1997 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Forma Size of motor: 1.3 Brand of engine: BA32108 Type description: 2108 From date: 01-07-1991 To date: 01-08-1999 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Size of motor: 1.3 Brand of engine: BA32108 Type description: 2108 Body: Hatchback From date: 01-01-1986 To date: 01-12-1994 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Size of motor: 1.3 Brand of engine: BA32108 Type description: 2108 Body: Hatchback From date: 01-06-1987 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Size of motor: 1.3 Brand of engine: BA32108 Type description: 2108 Body: Hatchback From date: 01-09-1991 To date: 01-08-1999 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1300 Size of motor: 1.3 Brand of engine: BA321115 Type description: 2108 Body: Hatchback From date: 01-02-1996 To date: 01-12-1999 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1500 Forma Size of motor: 1.5 Brand of engine: BA321083 Type description: 2108 From date: 01-07-1991 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1500 Forma Size of motor: 1.5 Brand of engine: BA321083 Type description: 2108 From date: 01-09-1991 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1500 Size of motor: 1.5 Brand of engine: BA321083 Type description: 2108 Body: Hatchback From date: 01-09-1987 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Model type: 1500 Size of motor: 1.5 Brand of engine: BA321083 Type description: 2108 Body: Hatchback From date: 01-09-1991 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Samara Model series: Samara Size of motor: 1.5 Brand of engine: BA3 21083 Type description: 2108, 2109 Body: Hatchback From date: 01-01-1986 To date: 01-12-1996 Fuel: Gasoline Approved: Yes

Lada Model: Toscana Model series: Toscana Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2107 From date: 01-09-1983 To date: 01-02-1993 Fuel: Gasoline Approved: Yes

Lada Model: Toscana Model series: Toscana Size of motor: 1.3 Brand of engine: BA32105 Type description: 2107 From date: 01-12-1985 To date: 01-05-2012 Fuel: Gasoline Approved: Yes

Lada Series: Nova (1200-1600) Model: 1200, 1300, 1400, 1600 Year: 05.81-12.93

Lada Series: Riva Model: 1200 Engine volume: 1.3 Engine type: OHC-21012 Year: 11.85-

Lada Series: Samara Model: All Year: 01.86

Lada Series: Toscana Model: 1.4 (VAZ 2107) Engine volume: 1.4 Year: 01.86-
