Varenr.: F032112287

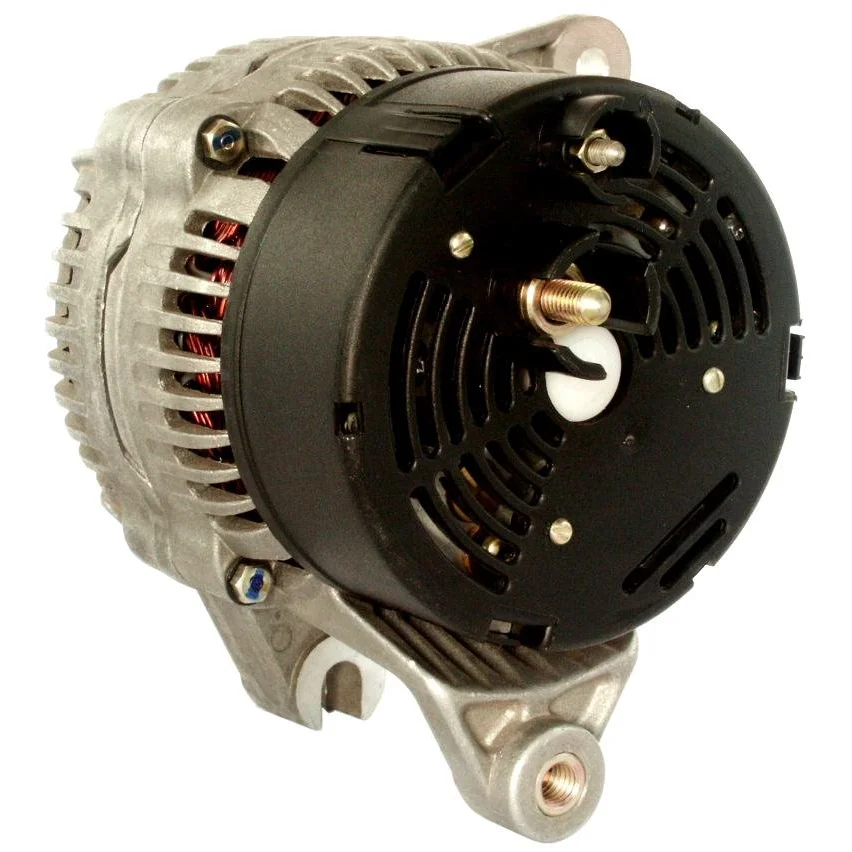

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbrakett avstand: 56.00

Beskrivelse

Spenning: 14
Ampere: 70
Drevkugg dist.: 52.00
Bredde/holderarm: 26.00
Festebrakett dist.: 56.00
Brakettåpn. hull: 10.00
Belt. justering brakkethole pos.: 50
Belt. justering brakkethull 1: 8.50
Drevkugg dia.: 56.00
Riller/drevkugg: 5
Radius: 85.00
Radius 2: 96.00
B+: M8
Posisjon/B+ i min.: 5
D+ Størrelse: M5
Rotasjon: medur
Total lengde mm: 173.00
Drevkugg: SP
Regulator-type: IR
Prod. info: BN
Service: Citroen

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 50
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 52.00
Radius 85.00
D+ Size M5
Radius 2 96.00
Regulator type IR
Rotation CW
Servicing Citroen
Grooves/pulley 5
Voltage 14
Total length 173.00 mm
Width/holder arm 26.00
Amp 70

  • OEM
    a11vi45, F032112287, 1038ir, 2541725, 2541725A, 2541725B, 2541725H, 9620332580

  • Konkurrentreferens
    A3029, ALT-7015, ALT10060, BAO3223, CAL15142, drb0201, DRB0201N, DRB0201X, F042208030, F042A0B020, lrb00186, NA469, QA1045, 8EL011360-001, 8EL011710-031, 8el732710-001, 28-2594, 229.112.702, 4390, 5012, 5701A5, 5705hv, 5705l1, 5705n0, 5705N1, 12422N, 56337, 200070, 210218, 210218A, 301038RI, 436489, 439039, 746016, 746816, 839003, 9040201, 9212890, 12040200, 0986040201, 943356946010

  • NormaliseratArtNr
    a11vi45, a3029, alt10060, alt7015, bao3223, cal15142, drb0201, drb0201n, drb0201x, f032112287, f042208030, f042a0b020, lrb00186, na469, qa1045, 8el011360001, 8el011710031, 8el732710001, 1038ir, 4390, 5012, 5701a5, 5705hv, 5705l1, 5705n0, 5705n1, 12422n, 56337, 200070, 210218, 210218a, 282594, 301038ri, 436489, 439039, 746016, 746816, 839003, 2541725, 2541725a, 2541725b, 2541725h, 9040201, 9212890, 12040200, 229112702, 0986040201, 9620332580, 943356946010

  • Passar modeller
    Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-09-2003 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S0, S1 Body: Hatchback From date: 01-07-2001 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback From date: 01-07-2001 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Van Model series: Saxo Hatchback Van Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback Van From date: 01-08-1999 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Estate From date: 01-10-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes Manufacture type: break
    Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-04-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Citroen Model: ZX Model series: ZX Model type: SX Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: N2 Body: Estate From date: 01-06-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes Manufacture type: break
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJX (TUD5) Body: Hatchback From date: 01-04-1998 To date: 01-07-2004 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJX (TUD5) Type description: 1_ Body: Van From date: 01-06-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1A,1C Body: Hatchback From date: 01-06-1994 To date: 01-04-1996 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1_ Body: Van From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Rover Model: 100 Model series: 115 Model type: Metro Type of engine: Diesel Size of motor: 1.5 Brand of engine: TUD5 Body: Hatchback From date: 01-12-1994 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Ampere: 70
    Drevkugg dist.: 52.00
    Bredde/holderarm: 26.00
    Festebrakett dist.: 56.00
    Brakettåpn. hull: 10.00
    Belt. justering brakkethole pos.: 50
    Belt. justering brakkethull 1: 8.50
    Drevkugg dia.: 56.00
    Riller/drevkugg: 5
    Radius: 85.00
    Radius 2: 96.00
    B+: M8
    Posisjon/B+ i min.: 5
    D+ Størrelse: M5
    Rotasjon: medur
    Total lengde mm: 173.00
    Drevkugg: SP
    Regulator-type: IR
    Prod. info: BN
    Service: Citroen

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 50
    Bracket hole 10.00
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 52.00
    Radius 85.00
    D+ Size M5
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Servicing Citroen
    Grooves/pulley 5
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 26.00
    Amp 70
  • Kjøretøymatching

    • OEM
      a11vi45, F032112287, 1038ir, 2541725, 2541725A, 2541725B, 2541725H, 9620332580

    • Konkurrentreferens
      A3029, ALT-7015, ALT10060, BAO3223, CAL15142, drb0201, DRB0201N, DRB0201X, F042208030, F042A0B020, lrb00186, NA469, QA1045, 8EL011360-001, 8EL011710-031, 8el732710-001, 28-2594, 229.112.702, 4390, 5012, 5701A5, 5705hv, 5705l1, 5705n0, 5705N1, 12422N, 56337, 200070, 210218, 210218A, 301038RI, 436489, 439039, 746016, 746816, 839003, 9040201, 9212890, 12040200, 0986040201, 943356946010

    • NormaliseratArtNr
      a11vi45, a3029, alt10060, alt7015, bao3223, cal15142, drb0201, drb0201n, drb0201x, f032112287, f042208030, f042a0b020, lrb00186, na469, qa1045, 8el011360001, 8el011710031, 8el732710001, 1038ir, 4390, 5012, 5701a5, 5705hv, 5705l1, 5705n0, 5705n1, 12422n, 56337, 200070, 210218, 210218a, 282594, 301038ri, 436489, 439039, 746016, 746816, 839003, 2541725, 2541725a, 2541725b, 2541725h, 9040201, 9212890, 12040200, 229112702, 0986040201, 9620332580, 943356946010

    • Passar modeller
      Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-09-2003 Fuel: Diesel Approved: Yes
      Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S0, S1 Body: Hatchback From date: 01-07-2001 To date: 01-04-2004 Fuel: Diesel Approved: Yes
      Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback From date: 01-07-2001 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      Citroen Model: Saxo Van Model series: Saxo Hatchback Van Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback Van From date: 01-08-1999 To date: 01-06-2001 Fuel: Diesel Approved: Yes
      Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Estate From date: 01-10-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes Manufacture type: break
      Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-04-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Citroen Model: ZX Model series: ZX Model type: SX Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: N2 Body: Estate From date: 01-06-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes Manufacture type: break
      Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJX (TUD5) Body: Hatchback From date: 01-04-1998 To date: 01-07-2004 Fuel: Diesel Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJX (TUD5) Type description: 1_ Body: Van From date: 01-06-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1A,1C Body: Hatchback From date: 01-06-1994 To date: 01-04-1996 Fuel: Diesel Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1_ Body: Van From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
      Rover Model: 100 Model series: 115 Model type: Metro Type of engine: Diesel Size of motor: 1.5 Brand of engine: TUD5 Body: Hatchback From date: 01-12-1994 To date: 01-12-1998 Fuel: Diesel Approved: Yes
