Varenr.: F032111747

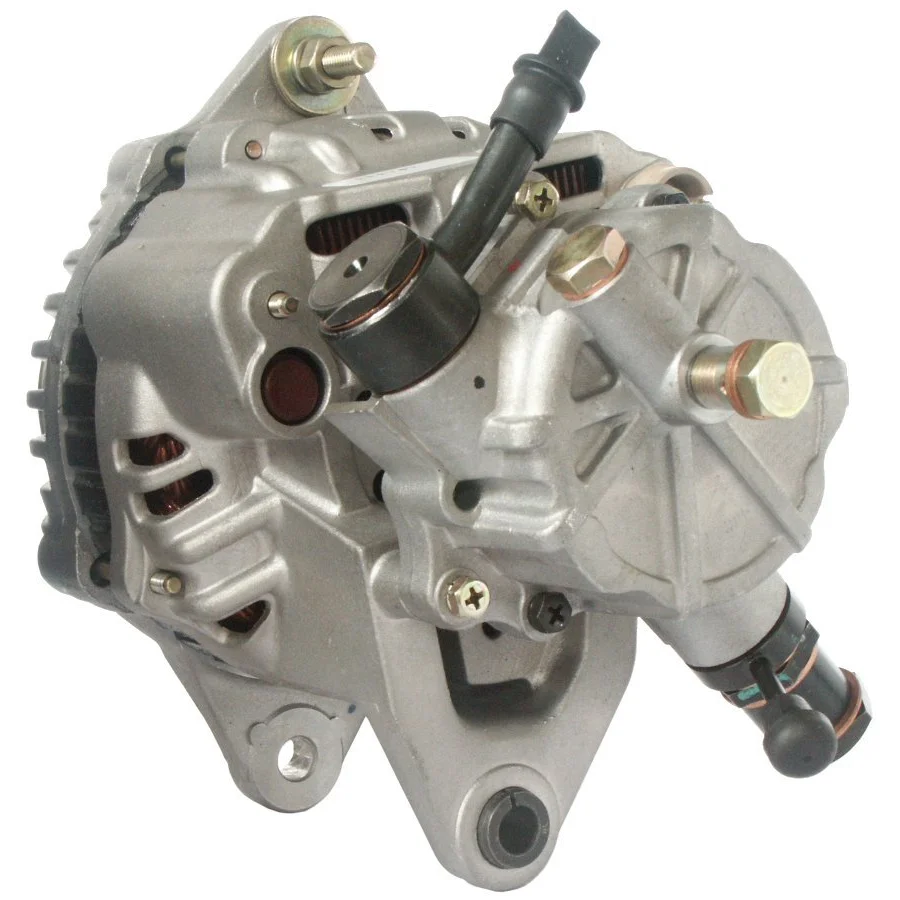

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbrakett avstand: 80.00

Beskrivelse

Spenning: 14
Ampere: 70
Rep. dist.: 41,50
Bredde/holderarm: 13,00
Monteringsbrakett dist.: 80,00
Brakett-hull: 10,50
Belt justerbrakett-hull pos.: 60
Belt justerbrakett-hull 1: 8,50
Rep. dia.: 88,50
Grooves/reim: 2
Radius: 90,00
Radius 2: 84,00
B+: M6
Posisjon/B+ i min.: 7
Rotasjon: med klokka
Kontakt nr.: PL07
Total lengde mm: 242,00
Reimskive: DP
Regulator type: IR
Vakumpumpe: Ja
Prod. info: BN
Service: Nissan

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 7
Prod. info BN
Pulley DP
Pulley dia. 88.50
Pulley dist. 41.50
Radius 90.00
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 242.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A003T03099, a3t03099, F032111747, ja677ir, 23100-22j10

  • Konkurrentreferens
    A5166, ALT-H058, ALT31059, CAL35127, dra3209, DRA3209N, F042A0H058, J5111066, LRA01359, 8EL012426-411, 8el726392-001, 28-1748, 227.135.702, 5362, 9054, 22359R, 40677RI, 56454, 119333, 210596, 210596A, 437695, 12060269, 20130146, 0986040561, 944390511900

  • NormaliseratArtNr
    a003t03099, a3t03099, a5166, alt31059, alth058, cal35127, dra3209, dra3209n, f032111747, f042a0h058, j5111066, ja677ir, lra01359, 8el012426411, 8el726392001, 5362, 9054, 22359r, 40677ri, 56454, 119333, 210596, 210596a, 281748, 437695, 2310022j10, 12060269, 20130146, 227135702, 0986040561, 944390511900

  • Passar modeller
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: Y60 From date: 01-09-1988 To date: 01-06-1997 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 70
    Rep. dist.: 41,50
    Bredde/holderarm: 13,00
    Monteringsbrakett dist.: 80,00
    Brakett-hull: 10,50
    Belt justerbrakett-hull pos.: 60
    Belt justerbrakett-hull 1: 8,50
    Rep. dia.: 88,50
    Grooves/reim: 2
    Radius: 90,00
    Radius 2: 84,00
    B+: M6
    Posisjon/B+ i min.: 7
    Rotasjon: med klokka
    Kontakt nr.: PL07
    Total lengde mm: 242,00
    Reimskive: DP
    Regulator type: IR
    Vakumpumpe: Ja
    Prod. info: BN
    Service: Nissan

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 7
    Prod. info BN
    Pulley DP
    Pulley dia. 88.50
    Pulley dist. 41.50
    Radius 90.00
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 242.00 mm
    Width/holder arm 13.00
    Amp 70
  • Kjøretøymatching

    • OEM
      A003T03099, a3t03099, F032111747, ja677ir, 23100-22j10

    • Konkurrentreferens
      A5166, ALT-H058, ALT31059, CAL35127, dra3209, DRA3209N, F042A0H058, J5111066, LRA01359, 8EL012426-411, 8el726392-001, 28-1748, 227.135.702, 5362, 9054, 22359R, 40677RI, 56454, 119333, 210596, 210596A, 437695, 12060269, 20130146, 0986040561, 944390511900

    • NormaliseratArtNr
      a003t03099, a3t03099, a5166, alt31059, alth058, cal35127, dra3209, dra3209n, f032111747, f042a0h058, j5111066, ja677ir, lra01359, 8el012426411, 8el726392001, 5362, 9054, 22359r, 40677ri, 56454, 119333, 210596, 210596a, 281748, 437695, 2310022j10, 12060269, 20130146, 227135702, 0986040561, 944390511900

    • Passar modeller
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: Y60 From date: 01-09-1988 To date: 01-06-1997 Fuel: Diesel Approved: Yes
