Varenr.: F032111803

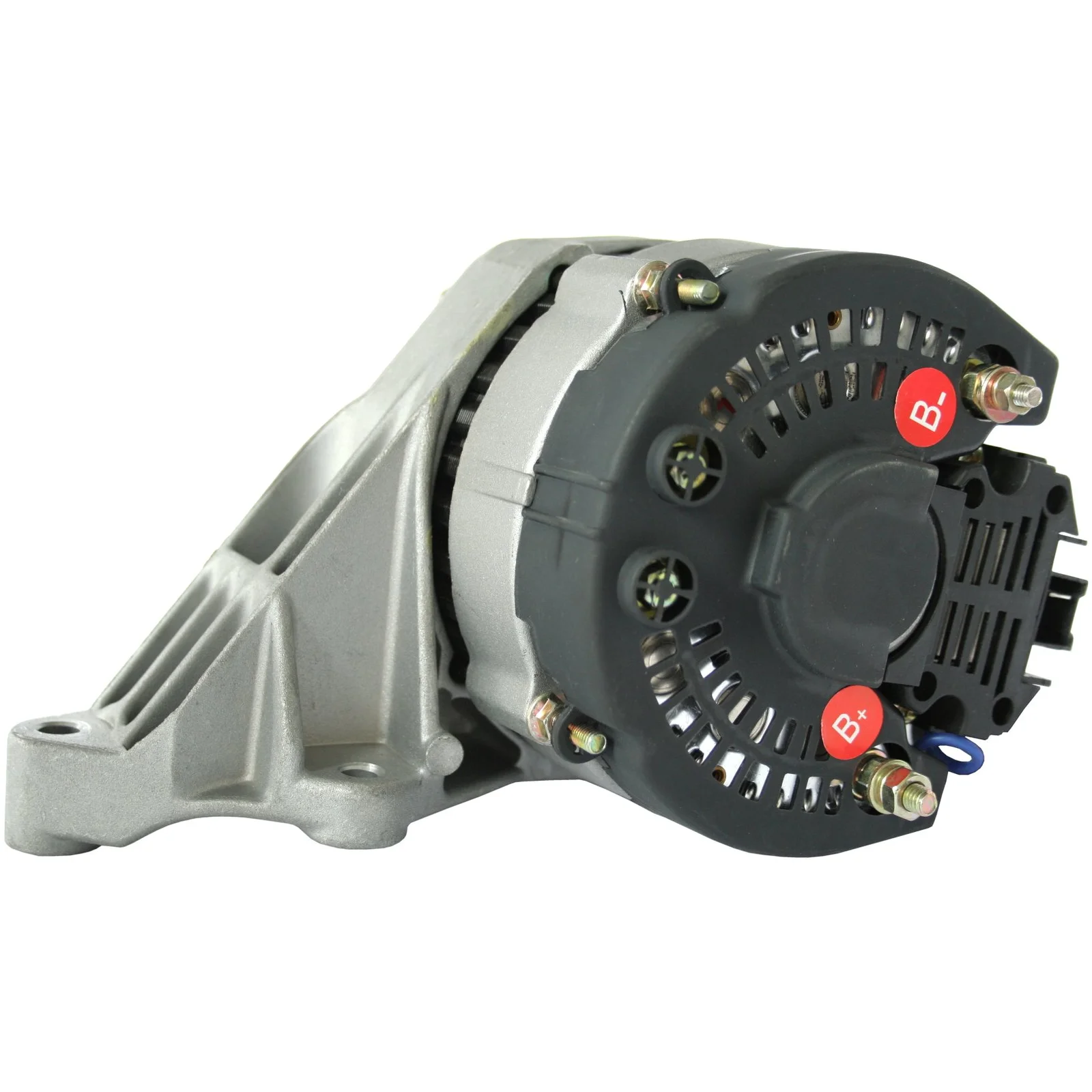

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 60, Rotasjon: medurs, Reimskive dia.: 71,00

Beskrivelse

Spenning: 14
Ampere: 60
Remskive dist.: 50,50
Bredde/holderarm: 26,00
Hjørne for brønnhull: 9,50
Bånd. justeringshjørne 1: 10,00
Remskivediameter: 71,00
Grooves/remskive: 1
B+: M6
Posisjon/B+ i min.: 40
D+ Størrelse: 6,30
Rotasjon: CW
Total lengde mm: 173,50
Remskive: P
Regulator type: IR
Prod. info: BN
Service: Renault

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 10.00
Bracket hole 9.50
Position/B+ in min. 40
Prod. info BN
Pulley P
Pulley dia. 71.00
Pulley dist. 50.50
D+ Size 6.30
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 1
Voltage 14
Total length 173.50 mm
Width/holder arm 26.00
Amp 60

  • OEM
    a13n269, F032111803, s114-806a, 889ir, 1986A01529, 2541695, 8111569, 63321170, 7700820794, 7700859724, 7701352209

  • Konkurrentreferens
    A4008, ALT-H061, ALT12051, CAL30119, dra3265, DRA3265X, dra8841, F042A0H061, lrb00187, NA436, S2011, S2038, 8EL011360-221, 8EL012428-951, 8el731723-001, 28-2509, 32-38.841, 230.133.602, 4098, 5276, 17745R, 21187N, 30889RI, 56296, 118456, 200097, 210232, 210232A, 220192, 220192A, 436446, 746013, 746813, 11040618, 12038840, 32001200, 063321170, 943321170, 0986038841, 943321170010, 944390388410

  • NormaliseratArtNr
    a13n269, a4008, alt12051, alth061, cal30119, dra3265, dra3265x, dra8841, f032111803, f042a0h061, lrb00187, na436, s114806a, s2011, s2038, 8el011360221, 8el012428951, 8el731723001, 889ir, 1986a01529, 4098, 5276, 17745r, 21187n, 30889ri, 56296, 118456, 200097, 210232, 210232a, 220192, 220192a, 282509, 436446, 746013, 746813, 2541695, 3238841, 8111569, 11040618, 12038840, 32001200, 063321170, 63321170, 230133602, 943321170, 0986038841, 7700820794, 7700859724, 7701352209, 943321170010, 944390388410

  • Passar modeller
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G700 Type description: C063,C064 Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G700 Type description: S06_ Body: Van From date: 01-03-1993 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G702 Type description: C063,C064 Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G702 Type description: S06_ Body: Van From date: 01-03-1993 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 60
    Remskive dist.: 50,50
    Bredde/holderarm: 26,00
    Hjørne for brønnhull: 9,50
    Bånd. justeringshjørne 1: 10,00
    Remskivediameter: 71,00
    Grooves/remskive: 1
    B+: M6
    Posisjon/B+ i min.: 40
    D+ Størrelse: 6,30
    Rotasjon: CW
    Total lengde mm: 173,50
    Remskive: P
    Regulator type: IR
    Prod. info: BN
    Service: Renault

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 10.00
    Bracket hole 9.50
    Position/B+ in min. 40
    Prod. info BN
    Pulley P
    Pulley dia. 71.00
    Pulley dist. 50.50
    D+ Size 6.30
    Regulator type IR
    Rotation CW
    Servicing Renault
    Grooves/pulley 1
    Voltage 14
    Total length 173.50 mm
    Width/holder arm 26.00
    Amp 60
  • Kjøretøymatching

    • OEM
      a13n269, F032111803, s114-806a, 889ir, 1986A01529, 2541695, 8111569, 63321170, 7700820794, 7700859724, 7701352209

    • Konkurrentreferens
      A4008, ALT-H061, ALT12051, CAL30119, dra3265, DRA3265X, dra8841, F042A0H061, lrb00187, NA436, S2011, S2038, 8EL011360-221, 8EL012428-951, 8el731723-001, 28-2509, 32-38.841, 230.133.602, 4098, 5276, 17745R, 21187N, 30889RI, 56296, 118456, 200097, 210232, 210232A, 220192, 220192A, 436446, 746013, 746813, 11040618, 12038840, 32001200, 063321170, 943321170, 0986038841, 943321170010, 944390388410

    • NormaliseratArtNr
      a13n269, a4008, alt12051, alth061, cal30119, dra3265, dra3265x, dra8841, f032111803, f042a0h061, lrb00187, na436, s114806a, s2011, s2038, 8el011360221, 8el012428951, 8el731723001, 889ir, 1986a01529, 4098, 5276, 17745r, 21187n, 30889ri, 56296, 118456, 200097, 210232, 210232a, 220192, 220192a, 282509, 436446, 746013, 746813, 2541695, 3238841, 8111569, 11040618, 12038840, 32001200, 063321170, 63321170, 230133602, 943321170, 0986038841, 7700820794, 7700859724, 7701352209, 943321170010, 944390388410

    • Passar modeller
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G700 Type description: C063,C064 Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G700 Type description: S06_ Body: Van From date: 01-03-1993 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G702 Type description: C063,C064 Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: C3G702 Type description: S06_ Body: Van From date: 01-03-1993 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
