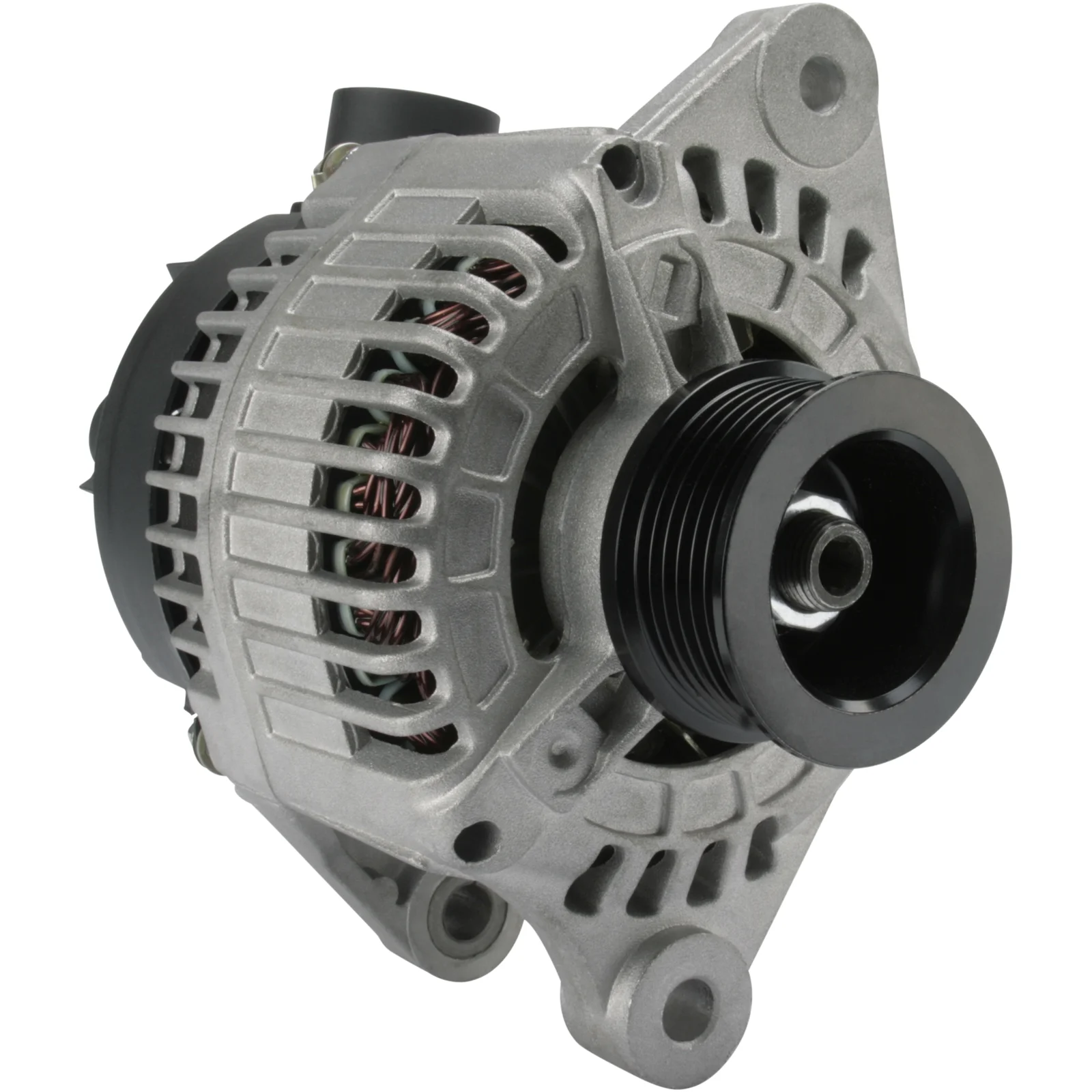

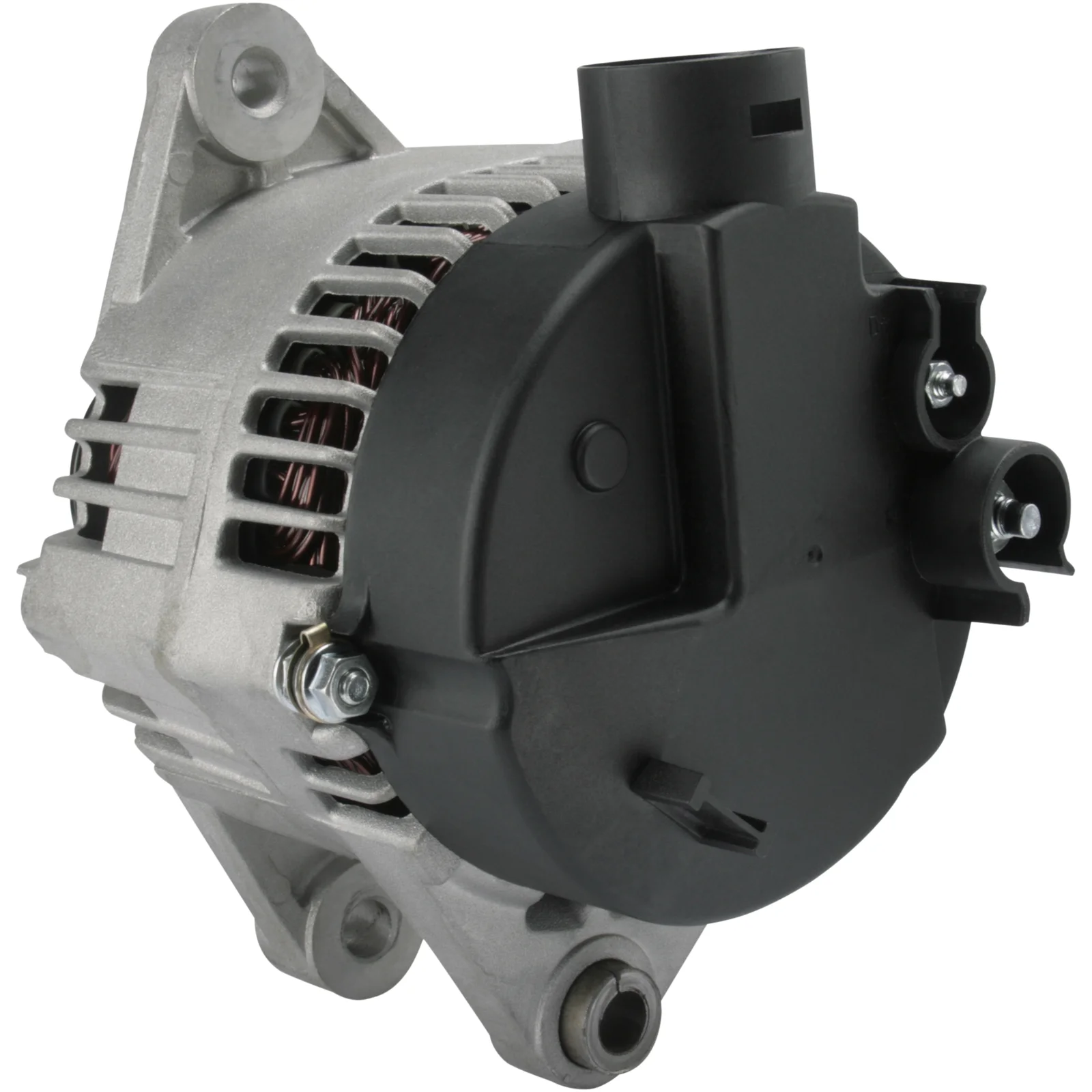

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113939

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: med uret, Monteringsbrakett avstand.: 54,00

Beskrivelse

Spenningskilde: 14
Amp: 100
Bøssing av drev: 43.40
Bredde/holderarm: 22.50
Festebrakett avstand: 54.00
Brakettbolt til hull: 12.40
Belt. juster. brakkethull pos.: 3
Belt. juster. brakethull 1: 10.20
Drevstørrelse: 61.80
Spor/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: M5
Rotasjon: CW
Total lengde mm: 203.00
Drev: SP

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 54.00
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 3
Bracket hole 12.40
Position/B+ in min. 15
Pulley SP
Pulley dia. 61.80
Pulley dist. 43.40
Radius 90.00
D+ Size M5
Radius 2 90.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 203.00 mm
Width/holder arm 22.50
Amp 100

  • OEM
    F032113939, 1189ir, 46430533, 46445660, 46457327, 46740243, 46765837, 63320226, 63320256, 63320292, 63320333, 63321355, 63321419, 63321436, 63321506, 63321803, 71739603

  • Konkurrentreferens
    A4024, A4024ER, CAL30185, DAN634, DENDAN634, DENDAN643, dra3455, DRA3639, DRA4207, LRA01586, 8EL012426-981, 8el737209-001, 28-2728, 28-4527, 218.161.1002, 4030, 5611, 22582N, 23069N, 210249, 210249A, 210631, 210631A, 210853, 210853A, 301189RI, 437652, 12040630, 12040640, 0986040631, 063321800010, 063321803010

  • NormaliseratArtNr
    a4024, a4024er, cal30185, dan634, dendan634, dendan643, dra3455, dra3639, dra4207, f032113939, lra01586, 8el012426981, 8el737209001, 1189ir, 4030, 5611, 22582n, 23069n, 210249, 210249a, 210631, 210631a, 210853, 210853a, 282728, 284527, 301189ri, 437652, 12040630, 12040640, 46430533, 46445660, 46457327, 46740243, 46765837, 63320226, 63320256, 63320292, 63320333, 63321355, 63321419, 63321436, 63321506, 63321803, 71739603, 0986040631, 2181611002, 063321800010, 063321803010

  • Passar modeller
    Fiat Model: Brava Model series: Brava Model type: GT Type of engine: 16V Size of motor: 1.8 Brand of engine: 182A2.000 Body: Hatchback From date: 01-10-1995 To date: 01-08-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Brava Model series: Brava Type of engine: TD Size of motor: 1.9 Brand of engine: 182A7.000 Type description: 182 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Brava Model series: Brava Type of engine: TD Size of motor: 1.9 Brand of engine: 182A8.000 Type description: 182 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Bravo Model series: Bravo Model type: GT Size of motor: 1.8 Brand of engine: 182A2.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Type of engine: TD Size of motor: 1.9 Brand of engine: 182A7.000 Type description: 182 Body: Hatchback From date: 01-03-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.8 Brand of engine: 182A2.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.8 Brand of engine: 182A2.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: TD Size of motor: 1.9 Brand of engine: 182A7.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-06-2003 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: TD Size of motor: 1.9 Brand of engine: 182A8.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: TD Size of motor: 1.9 Brand of engine: 182A8.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: TD Size of motor: 1.9 Brand of engine: 182B9.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-06-2003 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: TDi Size of motor: 1.9 Brand of engine: 182A7.000 Type description: 185_ From date: 01-05-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Diesel Size of motor: 1.9 Brand of engine: 188A3.000 Type description: 188.031,051,231,251 Body: Hatchback From date: 01-09-1999 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Lancia Model: Dedra Model series: Dedra Model type: GT Type of engine: 16V Size of motor: 1.8 Brand of engine: 183A1.000 Type description: 835 Body: Estate From date: 01-03-1996 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Lancia Model: Dedra Model series: Dedra Model type: GT Type of engine: 16V Size of motor: 1.8 Brand of engine: 183A1.000 Type description: 835EH From date: 01-03-1996 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Lancia Model: Dedra Model series: Dedra Model type: LE Type of engine: 16V Size of motor: 1.8 Brand of engine: 182A2.000 From date: 01-03-1996 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Lancia Model: Dedra Model series: Dedra Model type: LE Type of engine: 16V Size of motor: 1.8 Brand of engine: 182A2.000 Type description: 835 Body: Estate From date: 01-03-1996 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Lancia Model: Delta Model series: Delta Model type: i.e. 16V GT (836AR) Size of motor: 1.8 Brand of engine: 183A1.000 Type description: 836_ Body: Hatchback From date: 01-03-1996 To date: 01-08-1999 Fuel: Petrol Approved: Yes
    Lancia Model: Delta Model series: Delta Model type: LE Type of engine: i.e. Size of motor: 1.8 Brand of engine: 182A2.000 Body: Hatchback From date: 01-03-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Type of engine: JTD Size of motor: 1.9 Brand of engine: AR32302 From date: 01-07-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    1 / 4
