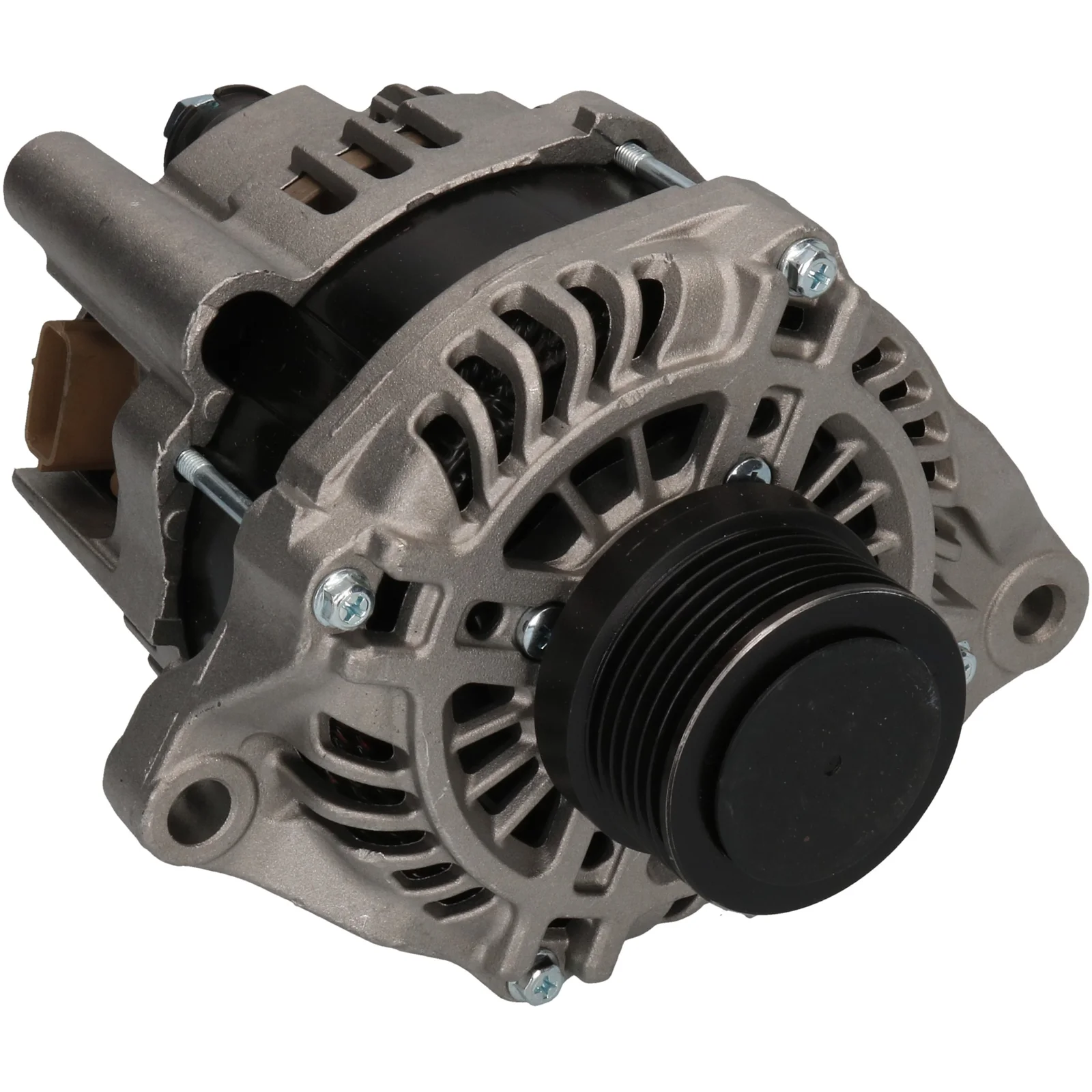

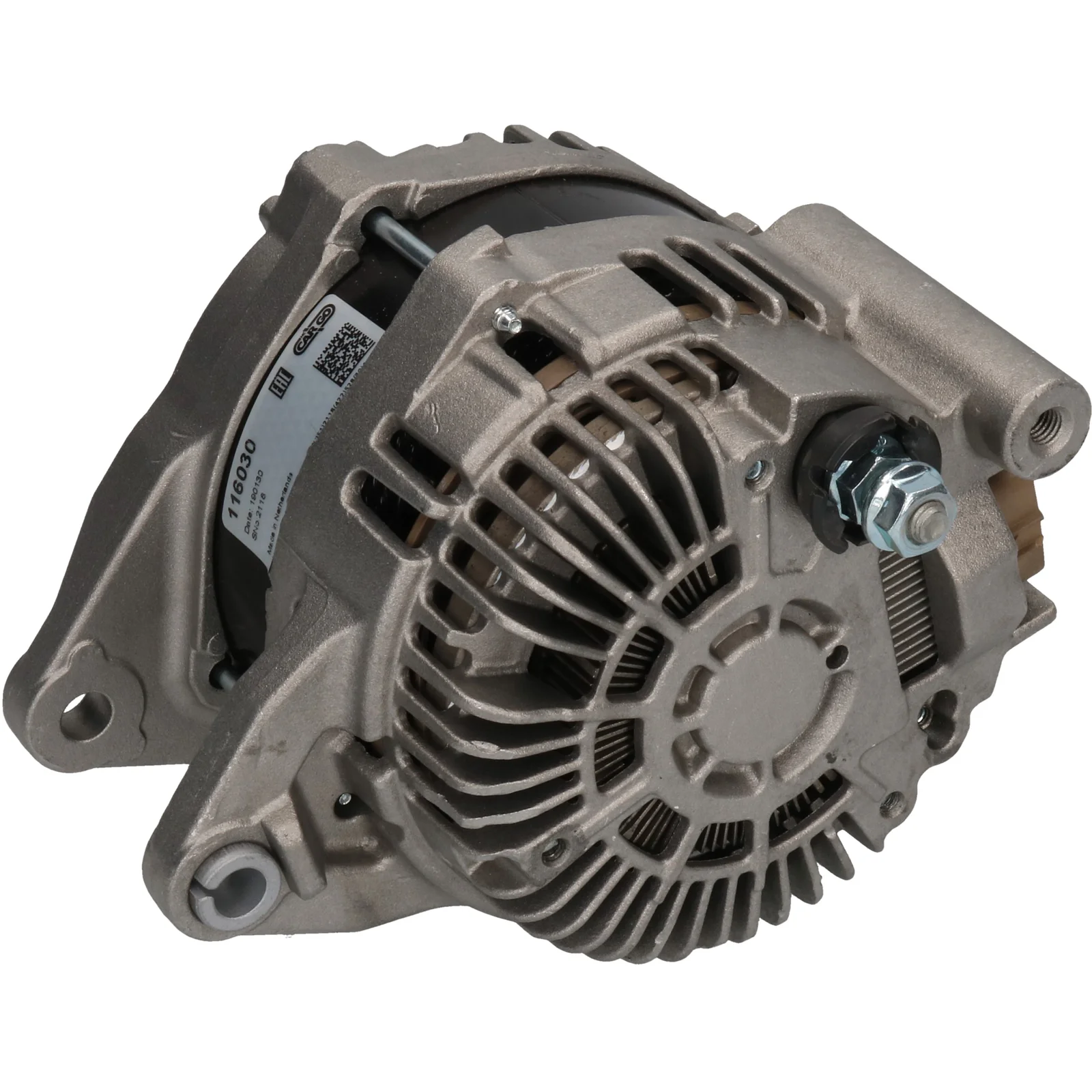

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116030

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: CW, Monteringsbrakett avstand: 49,50

Beskrivelse

Spenningsspenning: 14
Amp: 130
Bøssingsavstand: 43.00
Bredde/holderarm: 13.00
Festebrakettavstand: 49.50
Brakettåpning: 10.40
Belt. justeringsbrakettåpning pos.: 55
Belt. justeringsbrakettåpning 1: 12.00
Bøssingsdia.: 60.00
Groper/bøssing: 6
RADIUS: 95.00
Radius 2: 83.00
B+: M8
Rotasjon: CW
Stifter nummer: PL68
Bøssing: SP/FW

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 49.50
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 55
Plug no. PL68
Bracket hole 10.40
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 43.00
Radius 95.00
Radius 2 83.00
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 13.00
Amp 130

  • OEM
    A002TX1081, A002TX1081A, A002TX1081B, A002TX5781, A2TX1081, A2TX1081A, A2TX1081B, F032116030, 1800a271, 1800A334, 1800A431, 1608726580

  • Konkurrentreferens
    A5143, CAL35295, DRA0897, LRA03575, 28-6685, 155.590.130, 226.192.1302, 20883-OS, 20883N, 209382, 209382A, 553907RI, 12060943, 0986086640

  • NormaliseratArtNr
    a002tx1081, a002tx1081a, a002tx1081b, a002tx5781, a2tx1081, a2tx1081a, a2tx1081b, a5143, cal35295, dra0897, f032116030, lra03575, 1800a271, 1800a334, 1800a431, 20883n, 20883os, 209382, 209382a, 286685, 553907ri, 12060943, 155590130, 0986086640, 1608726580, 2261921302

  • Passar modeller
    Citroen Model: C4 Model series: C4 Aircross Model type: 150 4WD Type of engine: HDi Size of motor: 1.8 Brand of engine: 4N13 From date: 01-04-2012 Fuel: Diesel Approved: Yes
    Citroen Model: C4 Model series: C4 Aircross Model type: 150 Type of engine: HDi Size of motor: 1.8 Brand of engine: 4N13 From date: 01-04-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA_W_ Body: Van From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 2.3 Brand of engine: 4N14 Type description: GA_W_ From date: 01-04-2013 Fuel: Diesel Approved: Yes
    Mitsubishi Model: ASX Model series: ASX Model type: 4x4 Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W Body: SUV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: ASX Model series: ASX Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W Body: SUV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Model type: Sportsback Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CX_A Body: Hatchback From date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Model type: Sportsback Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CX_A Body: Hatchback From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CY/Z_A From date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CY/Z_A From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.3 Brand of engine: 4N14 Type description: CW_W Body: Box Body / Estate From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.3 Brand of engine: 4N14 Type description: GF_W, GG_W Body: Box Body / Estate From date: 01-04-2013 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW1W From date: 01-11-2006 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW_ From date: 01-09-2010 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: DI-D 4WD Type of engine: DI-D Size of motor: 2.2 Brand of engine: 4N14 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.2 Brand of engine: 4N14 Type description: GF_W From date: 01-08-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW1W From date: 01-11-2006 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    Peugeot Model: 4008 Model series: 4008 Model type: AWC Type of engine: HDi Size of motor: 1.8 Brand of engine: 6HZ (4N13) From date: 01-05-2012 Fuel: Diesel Approved: Yes
    Peugeot Model: 4008 Model series: 4008 Type of engine: HDi Size of motor: 1.8 Brand of engine: 6HZ (4N13) From date: 01-05-2012 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 130
    Bøssingsavstand: 43.00
    Bredde/holderarm: 13.00
    Festebrakettavstand: 49.50
    Brakettåpning: 10.40
    Belt. justeringsbrakettåpning pos.: 55
    Belt. justeringsbrakettåpning 1: 12.00
    Bøssingsdia.: 60.00
    Groper/bøssing: 6
    RADIUS: 95.00
    Radius 2: 83.00
    B+: M8
    Rotasjon: CW
    Stifter nummer: PL68
    Bøssing: SP/FW

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 49.50
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 55
    Plug no. PL68
    Bracket hole 10.40
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 43.00
    Radius 95.00
    Radius 2 83.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 13.00
    Amp 130
  • Kjøretøymatching

    • OEM
      A002TX1081, A002TX1081A, A002TX1081B, A002TX5781, A2TX1081, A2TX1081A, A2TX1081B, F032116030, 1800a271, 1800A334, 1800A431, 1608726580

    • Konkurrentreferens
      A5143, CAL35295, DRA0897, LRA03575, 28-6685, 155.590.130, 226.192.1302, 20883-OS, 20883N, 209382, 209382A, 553907RI, 12060943, 0986086640

    • NormaliseratArtNr
      a002tx1081, a002tx1081a, a002tx1081b, a002tx5781, a2tx1081, a2tx1081a, a2tx1081b, a5143, cal35295, dra0897, f032116030, lra03575, 1800a271, 1800a334, 1800a431, 20883n, 20883os, 209382, 209382a, 286685, 553907ri, 12060943, 155590130, 0986086640, 1608726580, 2261921302

    • Passar modeller
      Citroen Model: C4 Model series: C4 Aircross Model type: 150 4WD Type of engine: HDi Size of motor: 1.8 Brand of engine: 4N13 From date: 01-04-2012 Fuel: Diesel Approved: Yes
      Citroen Model: C4 Model series: C4 Aircross Model type: 150 Type of engine: HDi Size of motor: 1.8 Brand of engine: 4N13 From date: 01-04-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA_W_ Body: Van From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: ASX Model series: ASX Model type: 4WD Type of engine: Di-D Size of motor: 2.3 Brand of engine: 4N14 Type description: GA_W_ From date: 01-04-2013 Fuel: Diesel Approved: Yes
      Mitsubishi Model: ASX Model series: ASX Model type: 4x4 Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W Body: SUV From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: ASX Model series: ASX Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: GA6W Body: SUV From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Model type: Sportsback Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CX_A Body: Hatchback From date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Model type: Sportsback Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CX_A Body: Hatchback From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CY/Z_A From date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: Di-D Size of motor: 1.8 Brand of engine: 4N13 Type description: CY/Z_A From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.3 Brand of engine: 4N14 Type description: CW_W Body: Box Body / Estate From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: CRDi Size of motor: 2.3 Brand of engine: 4N14 Type description: GF_W, GG_W Body: Box Body / Estate From date: 01-04-2013 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW1W From date: 01-11-2006 To date: 01-11-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW_ From date: 01-09-2010 To date: 01-11-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: DI-D 4WD Type of engine: DI-D Size of motor: 2.2 Brand of engine: 4N14 Type description: GG_W, GF_W, ZJ, ZL, ZK Body: SUV Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Size of motor: 2.2 Brand of engine: 4N14 Type description: GF_W From date: 01-08-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Type of engine: Di-D Size of motor: 2.2 Brand of engine: 4N14 Type description: CW1W From date: 01-11-2006 To date: 01-11-2012 Fuel: Diesel Approved: Yes
      Peugeot Model: 4008 Model series: 4008 Model type: AWC Type of engine: HDi Size of motor: 1.8 Brand of engine: 6HZ (4N13) From date: 01-05-2012 Fuel: Diesel Approved: Yes
      Peugeot Model: 4008 Model series: 4008 Type of engine: HDi Size of motor: 1.8 Brand of engine: 6HZ (4N13) From date: 01-05-2012 Fuel: Diesel Approved: Yes
