HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115975

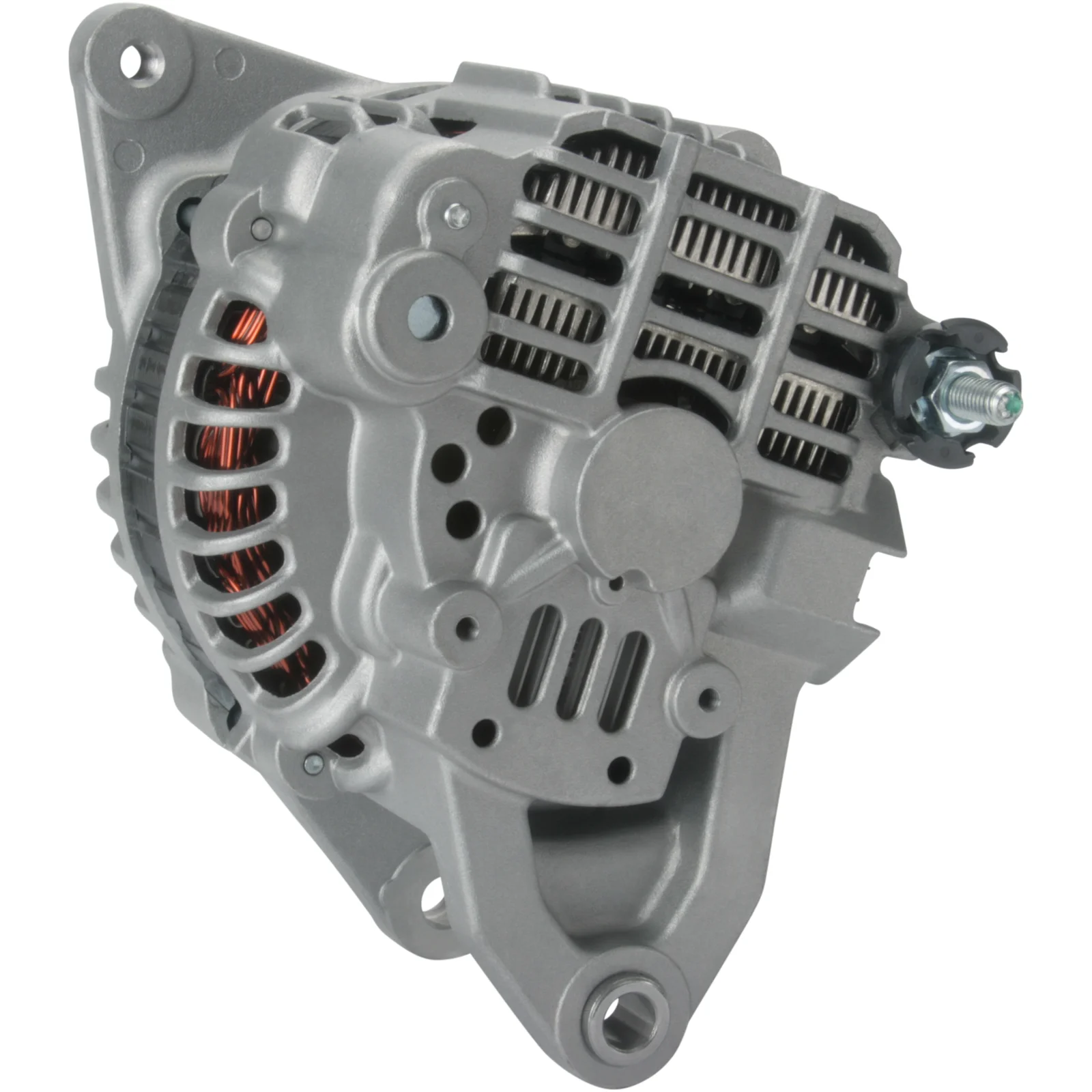

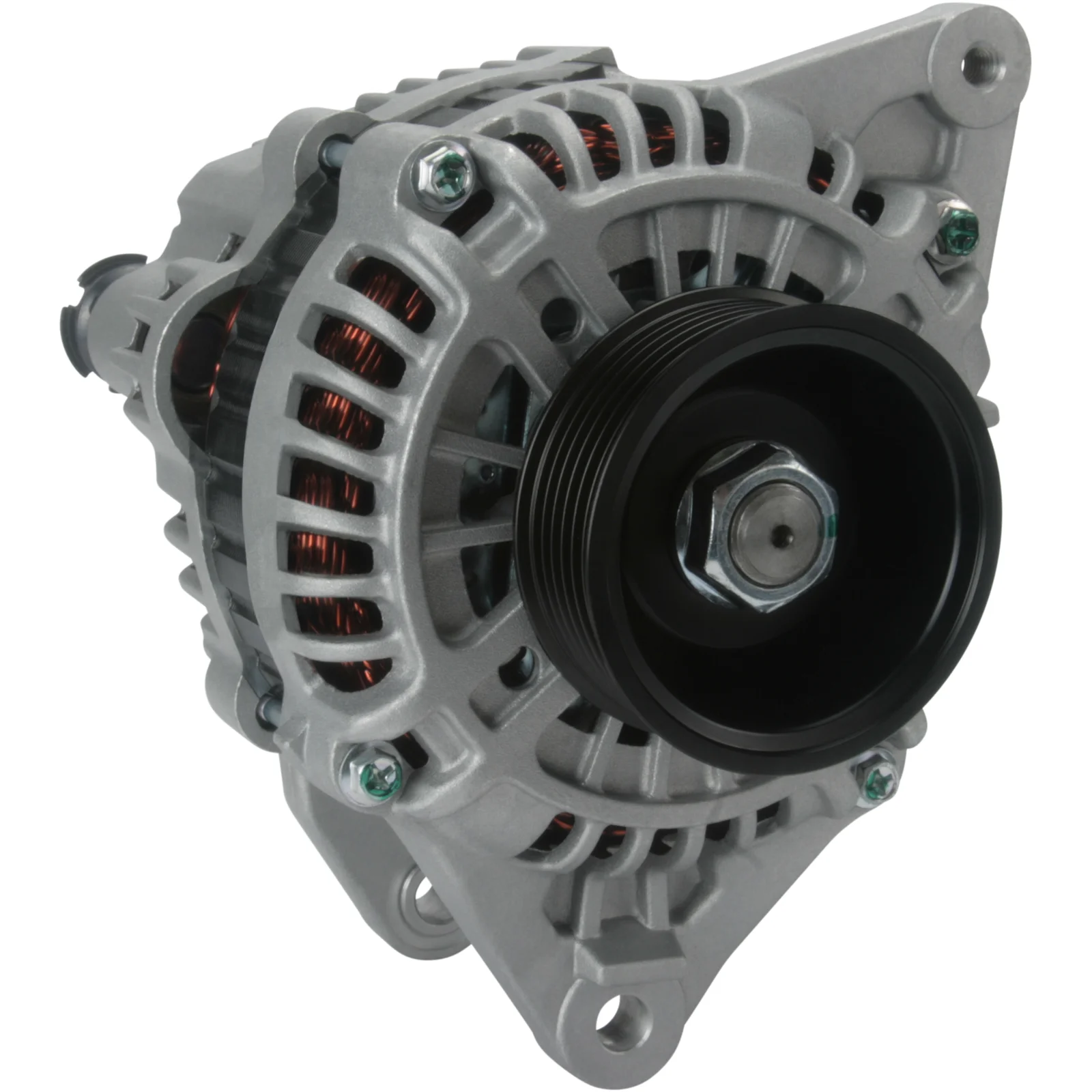

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 67.00

Beskrivelse

Spenningsvelde: 14
Ampere: 110
Reimskive avstand: 42.50
Bredde/holderarm: 13.00
Festebrakett avstand: 67.00
Brakettåpning: 10.50
Belt. justeringsbrakettåpn.: 7
Belt. justeringsbrakettåpn. 1: M8
Reimskive diameter: 72.50
Innskjønn: 6
Radius: 97.50
Radius 2: 96.50
B+: M8
Posisjon/B+ i min.: 12
D+ størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL68
Total lengde mm: 174.00
Reimskive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL68
Bracket hole 10.50
Position/B+ in min. 12
Prod. info BN
Pulley SP
Pulley dia. 72.50
Pulley dist. 42.50
Radius 97.50
D+ Size Plug
Radius 2 96.50
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 174.00 mm
Width/holder arm 13.00
Amp 110

  • OEM
    A003TG2991, a3tg2991, a3tg2991a, F032115975, MN137847, 1800a067, 2119ir

  • Konkurrentreferens
    A5224, A5266, CAL35332, CAL35397, DRA0876, F042205202, LRA03493, 28-6603, 155.598.110, 226.187.1102, 11056R, 554136RI, 12061073

  • NormaliseratArtNr
    a003tg2991, a3tg2991, a3tg2991a, a5224, a5266, cal35332, cal35397, dra0876, f032115975, f042205202, lra03493, mn137847, 1800a067, 2119ir, 11056r, 286603, 554136ri, 12061073, 155598110, 2261871102

  • Passar modeller
    Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_A From date: 01-12-2003 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_W Body: Estate From date: 01-09-2003 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-04-2004 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsvelde: 14
    Ampere: 110
    Reimskive avstand: 42.50
    Bredde/holderarm: 13.00
    Festebrakett avstand: 67.00
    Brakettåpning: 10.50
    Belt. justeringsbrakettåpn.: 7
    Belt. justeringsbrakettåpn. 1: M8
    Reimskive diameter: 72.50
    Innskjønn: 6
    Radius: 97.50
    Radius 2: 96.50
    B+: M8
    Posisjon/B+ i min.: 12
    D+ størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL68
    Total lengde mm: 174.00
    Reimskive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL68
    Bracket hole 10.50
    Position/B+ in min. 12
    Prod. info BN
    Pulley SP
    Pulley dia. 72.50
    Pulley dist. 42.50
    Radius 97.50
    D+ Size Plug
    Radius 2 96.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 13.00
    Amp 110
  • Kjøretøymatching

    • OEM
      A003TG2991, a3tg2991, a3tg2991a, F032115975, MN137847, 1800a067, 2119ir

    • Konkurrentreferens
      A5224, A5266, CAL35332, CAL35397, DRA0876, F042205202, LRA03493, 28-6603, 155.598.110, 226.187.1102, 11056R, 554136RI, 12061073

    • NormaliseratArtNr
      a003tg2991, a3tg2991, a3tg2991a, a5224, a5266, cal35332, cal35397, dra0876, f032115975, f042205202, lra03493, mn137847, 1800a067, 2119ir, 11056r, 286603, 554136ri, 12061073, 155598110, 2261871102

    • Passar modeller
      Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_A From date: 01-12-2003 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CS_W Body: Estate From date: 01-09-2003 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-04-2004 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-05-2003 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      1 / 2
