Varenr.: F032111605

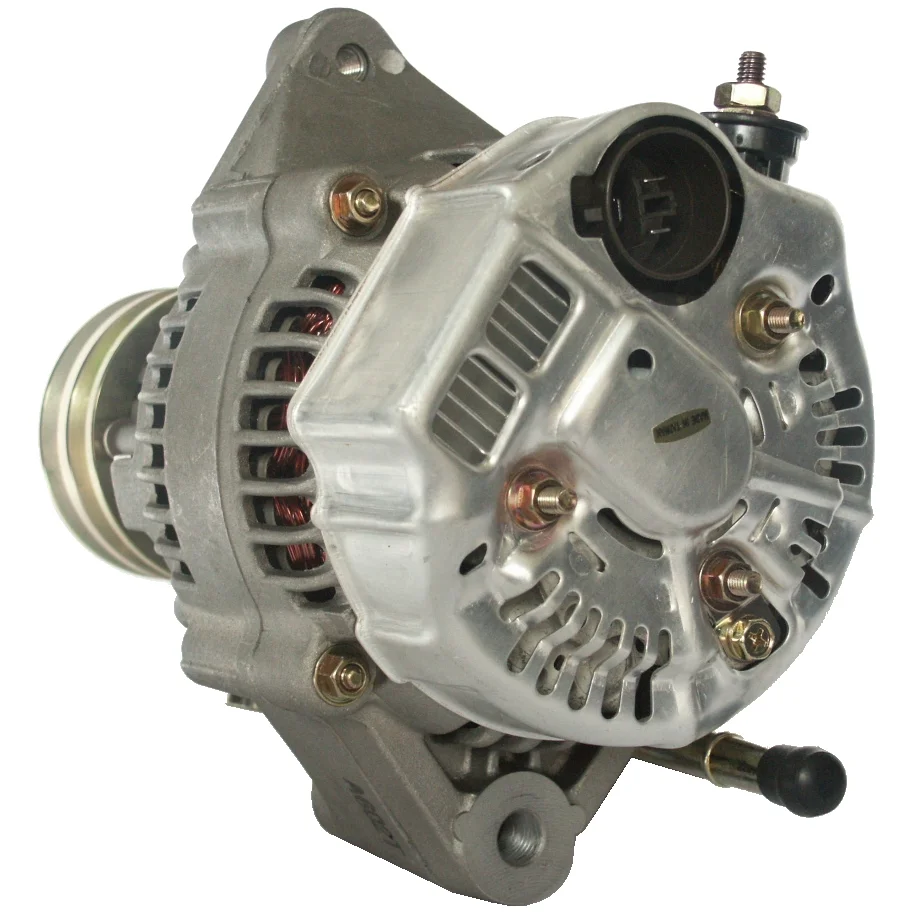

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: medurs, Reimskive diameter: 76,80

Beskrivelse

Toyota Van Diesel pumpe gen. 12V - 70A, 2V, (S, IG, L) For Yourex produkt bestilling 90-555-5407 Spenningskilde: 14 Ampere: 70 Drivreimskive dist.: 146.50 Bredde/holderarm: 69.50 Bøygehull: 10.30 Belt. justering. bøygehull pos.: 2 Belt. justering. bøygehull 1: M8 Drivreimskive dia.: 76.80 Grooves/drivreimskive: 2 Radius: 77.00 Radius 2: 84.00 B+: M6 Posisjon/B+ i min.: 5 D+: Størrelse: Plugg Rotasjon: medurs (CW) Plugg nr.: PL12 Total lengde mm: 231.00 Drivreimskive: DP Regulator type: IR Vacuum-pumpe: Ja Prod. info: BN Service: Toyota

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL12
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 76.80
Pulley dist. 146.50
Radius 77.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 231.00 mm
Width/holder arm 69.50
Amp 70

  • OEM
    F032111605, ja881ir, 27040-54130, 27040-54160, 27040-54170, 27040-54190, 27040-54191, 27040-54210, 27040-54220, 27040-54230, 27040-54231, 27040-54240, 27060-54030, 27060-54070, 27060-54080, 100211-5090, 100213-0941, 100213-1011, 100213-1030, 100213-1040, 100213-1050, 100213-1130, 100213-1140, 100213-1150, 100213-1230, 100213-1240, 100213-1250, 100213-1790, 111605

  • Konkurrentreferens
    A6524S, A6525S, ALT30024, ALT30064, ata-458, CAL40130, dra3504, LRA01436, LRA01936, QA3057, 8el732727-001, 28-1760, 28-1942, 28-3826, 39-51.285, 235.132.702, 235.132.802, 235.165.702, 235.178.702, 5455, 22435R, 40881RI, 119551, 119990, 12060390, 12060391, 12060732, 0986043001

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6524s, a6525s, alt30024, alt30064, ata458, cal40130, dra3504, f032111605, ja881ir, lra01436, lra01936, qa3057, 8el732727001, 5455, 22435r, 40881ri, 111605, 119551, 119990, 281760, 281942, 283826, 3951285, 12060390, 12060391, 12060732, 235132702, 235132802, 235165702, 235178702, 0986043001, 1002115090, 1002130941, 1002131011, 1002131030, 1002131040, 1002131050, 1002131130, 1002131140, 1002131150, 1002131230, 1002131240, 1002131250, 1002131790, 2704054130, 2704054160, 2704054170, 2704054190, 2704054191, 2704054210, 2704054220, 2704054230, 2704054231, 2704054240, 2706054030, 2706054070, 2706054080

  • Passar modeller
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Series: Cressida (_X8_) Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.88-01.93
    Toyota Series: HIACE IV Buss Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
    Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
    Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 09.89-07.93
