HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116109

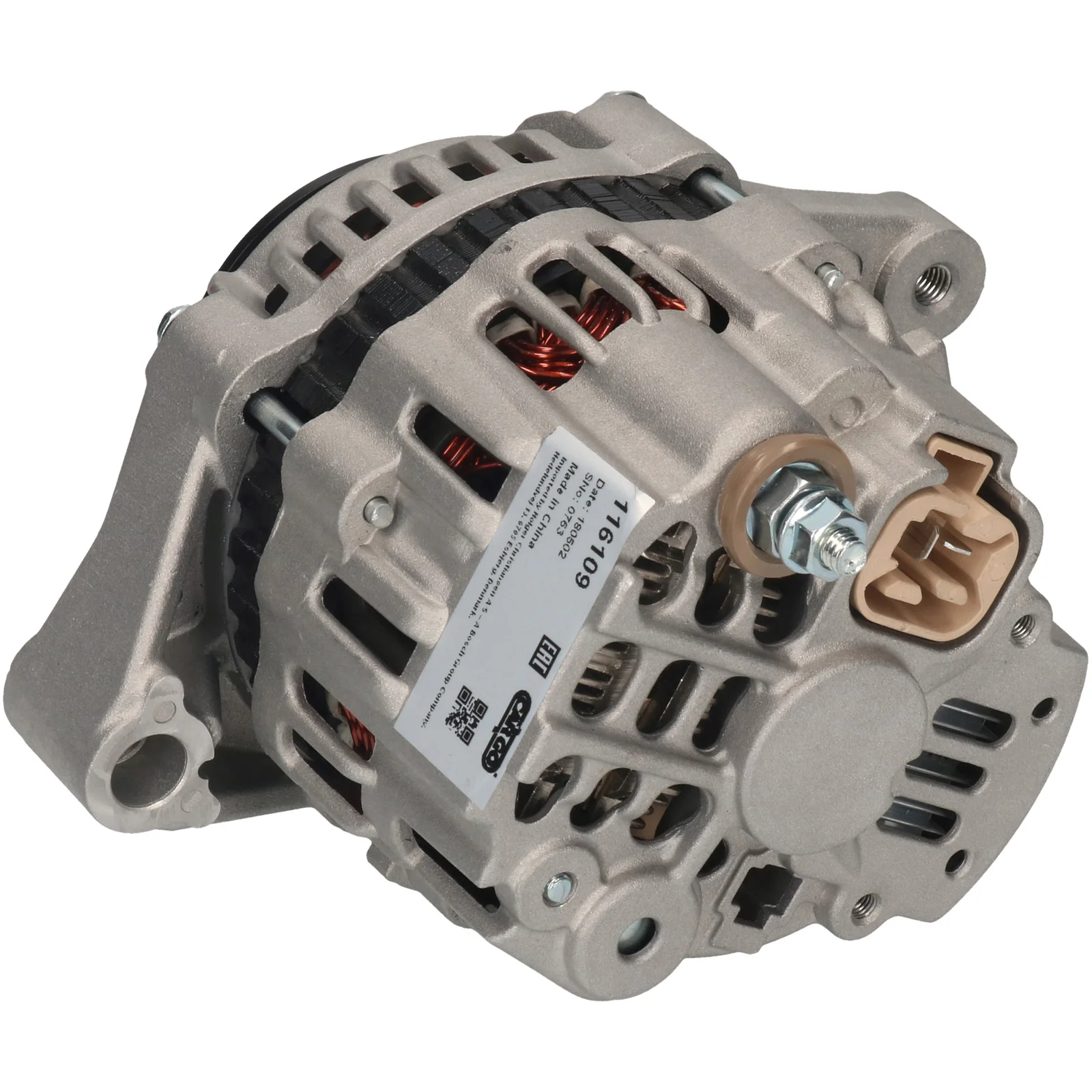

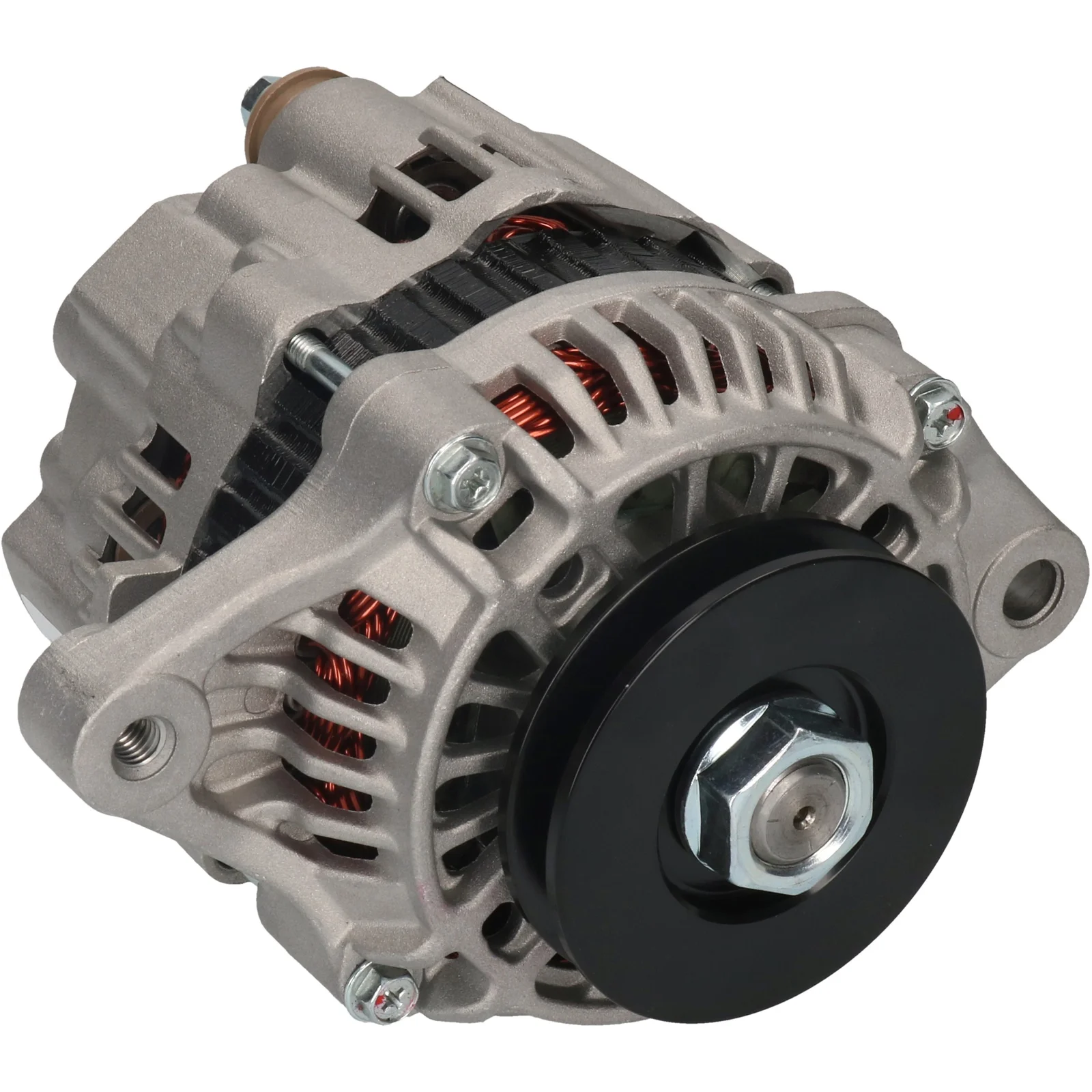

HC-Cargo Dynamo

Teknisk info:

Spenningsface: 14, Amp: 45, Rotasjon: CW, Drev diameter: 74.00

Beskrivelse

Spenningsspenning: 14
Amp: 45
Drevskive dist.: 62.00
Bredde/holderarm: 29.00
Klemmehull: 10.50
Belt. reguleringsskiveposisjon: 60
Belt. reguleringsskive hull 1: M8
Drevskivens diameter: 74.00
Riller/drevskive: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Posisjon/B+ i min.: 45
D+ størrelse: Plugg
Rotasjon: medur
Plugg nr.: PL194
Total lengde mm: 156.00
Terminaltype: R-L
Drevskive: P
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL194
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 62.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal type R-L
Voltage 14
Total length 156.00 mm
Width/holder arm 29.00
Amp 45

  • OEM
    A007TA1677, A007TA1677A, A7TA1677, A7TA1677A, A7TCA077, F032116109, 1C010-64010, 1C010-64011, 1C010-64012

  • Konkurrentreferens
    A5320, CAL35350, LRA04480, 28-8589, 695.510.045, 12363N, 600353

  • NormaliseratArtNr
    a007ta1677, a007ta1677a, a5320, a7ta1677, a7ta1677a, a7tca077, cal35350, f032116109, lra04480, 1c01064010, 1c01064011, 1c01064012, 12363n, 288589, 600353, 695510045

  • Passar modeller
    Kubota Model: Series-M Model series: 6800 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
    Kubota Model: Series-M Model series: 8200 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
    Kubota Model: Series-M Model series: 9000 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 45
    Drevskive dist.: 62.00
    Bredde/holderarm: 29.00
    Klemmehull: 10.50
    Belt. reguleringsskiveposisjon: 60
    Belt. reguleringsskive hull 1: M8
    Drevskivens diameter: 74.00
    Riller/drevskive: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Posisjon/B+ i min.: 45
    D+ størrelse: Plugg
    Rotasjon: medur
    Plugg nr.: PL194
    Total lengde mm: 156.00
    Terminaltype: R-L
    Drevskive: P
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL194
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 62.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal type R-L
    Voltage 14
    Total length 156.00 mm
    Width/holder arm 29.00
    Amp 45
  • Kjøretøymatching

    • OEM
      A007TA1677, A007TA1677A, A7TA1677, A7TA1677A, A7TCA077, F032116109, 1C010-64010, 1C010-64011, 1C010-64012

    • Konkurrentreferens
      A5320, CAL35350, LRA04480, 28-8589, 695.510.045, 12363N, 600353

    • NormaliseratArtNr
      a007ta1677, a007ta1677a, a5320, a7ta1677, a7ta1677a, a7tca077, cal35350, f032116109, lra04480, 1c01064010, 1c01064011, 1c01064012, 12363n, 288589, 600353, 695510045

    • Passar modeller
      Kubota Model: Series-M Model series: 6800 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
      Kubota Model: Series-M Model series: 8200 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
      Kubota Model: Series-M Model series: 9000 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
