HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116442

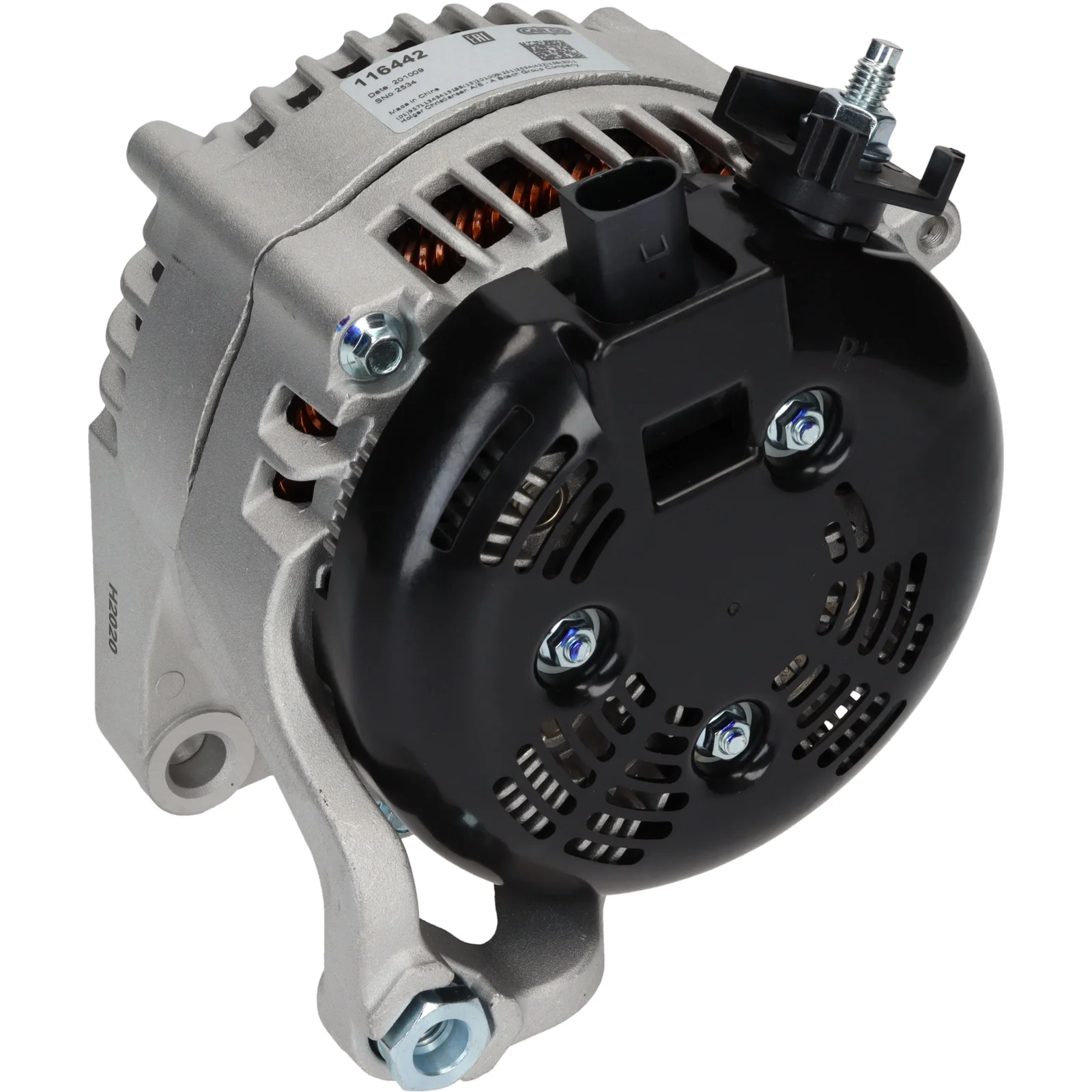

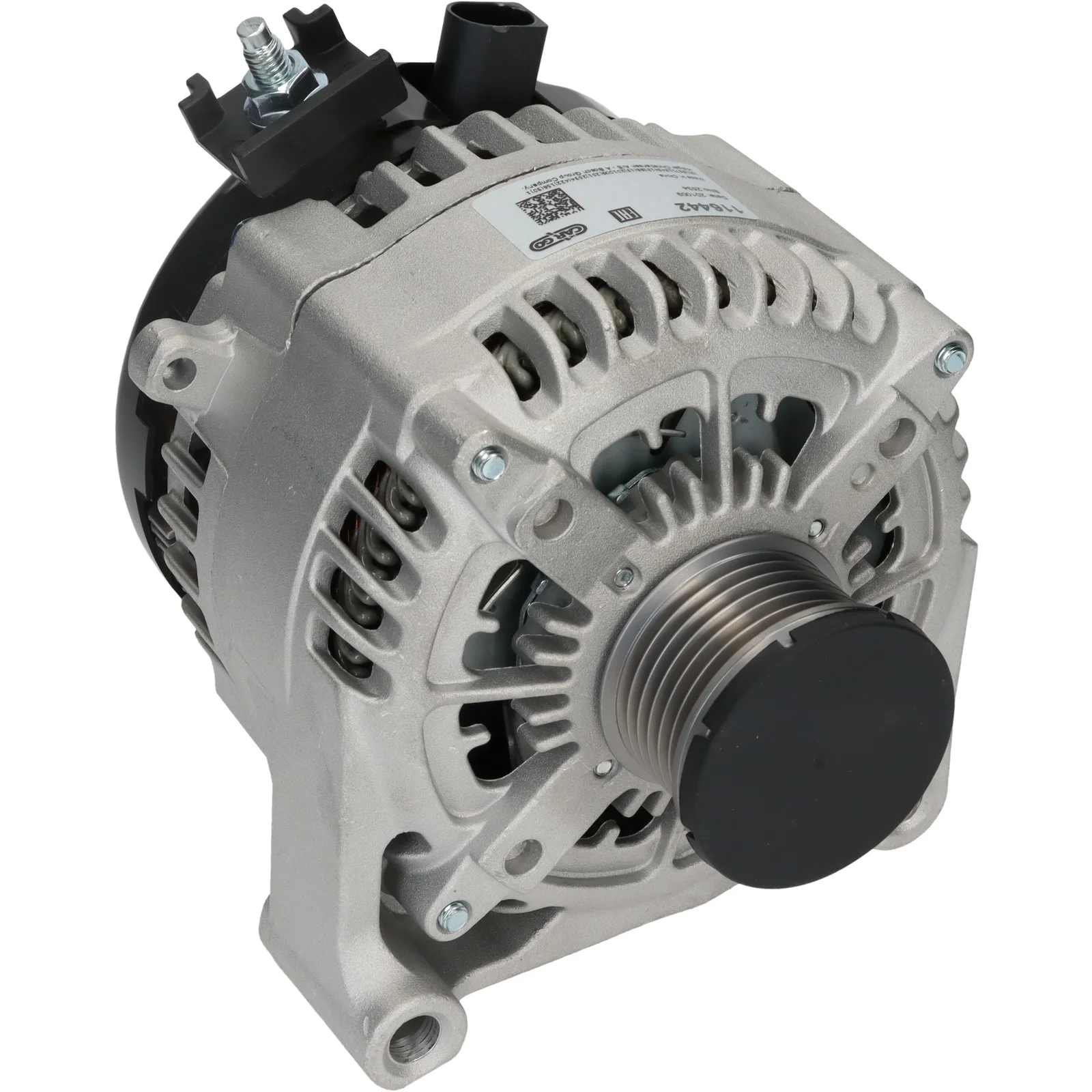

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 210, Rotasjon: CW, Montasjebrakett avstand: 75,00

Beskrivelse

Spenning: 14
Amp: 210
Drevskive avstand: 50.00
Bredde/holderarm: 27.50
Festebrakett avstand: 75.00
Brakettåpning: 10.20
Belt. justering brakettåpning pos.: 46
Belt. justering brakettåpning 1: 12.30
Drevskivediameter: 49.00
Ribber/drevskive: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 3
Rotasjon: CW
Støpselek.no.: PL125
Total lengde mm: 180.00
Terminaltype: COM
ID-kode: 50
Kommunikasjon: LIN
Drevskive: SP/FW
Regulator type: IR
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 12.30
Belt. adj. brackethole pos. 46
Plug no. PL125
Bracket hole 10.20
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 50.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 50
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 27.50
Amp 210

  • OEM
    F032116442, 104210-6400, 104210-6401, 104210-6402, 104210-6403, 104210-6404, 104210-6405, 104210-6406, 7605061, 7605479, 12317605061, 12317605479

  • Konkurrentreferens
    A6342, A6342PR, CAL40427, DAN1127, DRA1479, LRA03710, 28-6821, 215.300.2202, 215.594.210, 14204n, 210969, 210969A, 440994, 443274, 443433, 554457RI, 12090626, 32118813

  • NormaliseratArtNr
    a6342, a6342pr, cal40427, dan1127, dra1479, f032116442, lra03710, 14204n, 210969, 210969a, 286821, 440994, 443274, 443433, 554457ri, 7605061, 7605479, 12090626, 32118813, 215594210, 1042106400, 1042106401, 1042106402, 1042106403, 1042106404, 1042106405, 1042106406, 2153002202, 12317605061, 12317605479

  • Passar modeller
    BMW Model: 1 Model series: 125 i Active Flex Model type: 125 i Active Flex Size of motor: 2.0 Brand of engine: N20B20A Type description: F20 Body: Hatchback From date: 01-11-2014 To date: 01-11-2017 Fuel: Petrol/Ethanol Approved: Yes
    BMW Model: 2 Model series: 228 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20A Type description: F22 Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
    BMW Model: 2 Model series: 228 Type of engine: i Size of motor: 2.0 Brand of engine: N26B20A Type description: F22 Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 i ActiveFlex Model type: 320 i ActiveFlex Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-12-2013 To date: 01-10-2018 Fuel: Petrol/Ethanol Approved: Yes
    BMW Model: 3 Model series: 320 i Model type: 320 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-03-2012 To date: 01-10-2018 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 320 i xDrive Model type: 320 i xDrive Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-07-2012 To date: 01-10-2018 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 320 Model type: Gran Turismo Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F34 Body: Hatchback From date: 01-03-2013 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F34 Body: Hatchback From date: 01-07-2013 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 328i Model type: 328i Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-11-2011 To date: 01-06-2015 Fuel: Petrol Approved: Yes
    BMW Model: 4 Model series: 420 Model type: Gran Coupe Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F36 Body: Coupe From date: 01-03-2014 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    BMW Model: 4 Model series: 420 Model type: xDrive Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F32, F82 Body: Coupe From date: 01-11-2013 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 4 Model series: 420 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F32, F82 Body: Coupe From date: 01-11-2013 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    BMW Model: 4 Model series: 420 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F33, F83 Body: Convertible From date: 01-07-2014 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 520 Model type: Touring Size of motor: 2.0 Brand of engine: N20B20B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Approved: Yes
    BMW Model: 5 Model series: 520 Model type: Touring Type of engine: i Size of motor: 2.0 Brand of engine: N20B20A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: X1 Model series: sDrive 28 i Model type: sDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: E84 Body: SUV From date: 01-09-2012 To date: 01-06-2015 Fuel: Petrol Approved: Yes
    BMW Model: X1 Model series: X1 Model type: sDrive 18 i Size of motor: 1.6 Brand of engine: N20B16A Type description: F25 From date: 01-04-2014 To date: 01-08-2017 Fuel: Gasoline Approved: Yes
    BMW Model: X3 Model series: sDrive 28 i Model type: sDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F25 Body: SUV From date: 01-04-2014 To date: 01-08-2017 Fuel: Petrol Approved: Yes
    BMW Model: X4 Model series: Xdrive 28 I Model type: xDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F26 Body: SUV Fuel: Petrol Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Amp: 210
    Drevskive avstand: 50.00
    Bredde/holderarm: 27.50
    Festebrakett avstand: 75.00
    Brakettåpning: 10.20
    Belt. justering brakettåpning pos.: 46
    Belt. justering brakettåpning 1: 12.30
    Drevskivediameter: 49.00
    Ribber/drevskive: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Posisjon/B+ i min.: 3
    Rotasjon: CW
    Støpselek.no.: PL125
    Total lengde mm: 180.00
    Terminaltype: COM
    ID-kode: 50
    Kommunikasjon: LIN
    Drevskive: SP/FW
    Regulator type: IR
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 12.30
    Belt. adj. brackethole pos. 46
    Plug no. PL125
    Bracket hole 10.20
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 50.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 50
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 27.50
    Amp 210
  • Kjøretøymatching

    • OEM
      F032116442, 104210-6400, 104210-6401, 104210-6402, 104210-6403, 104210-6404, 104210-6405, 104210-6406, 7605061, 7605479, 12317605061, 12317605479

    • Konkurrentreferens
      A6342, A6342PR, CAL40427, DAN1127, DRA1479, LRA03710, 28-6821, 215.300.2202, 215.594.210, 14204n, 210969, 210969A, 440994, 443274, 443433, 554457RI, 12090626, 32118813

    • NormaliseratArtNr
      a6342, a6342pr, cal40427, dan1127, dra1479, f032116442, lra03710, 14204n, 210969, 210969a, 286821, 440994, 443274, 443433, 554457ri, 7605061, 7605479, 12090626, 32118813, 215594210, 1042106400, 1042106401, 1042106402, 1042106403, 1042106404, 1042106405, 1042106406, 2153002202, 12317605061, 12317605479

    • Passar modeller
      BMW Model: 1 Model series: 125 i Active Flex Model type: 125 i Active Flex Size of motor: 2.0 Brand of engine: N20B20A Type description: F20 Body: Hatchback From date: 01-11-2014 To date: 01-11-2017 Fuel: Petrol/Ethanol Approved: Yes
      BMW Model: 2 Model series: 228 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20A Type description: F22 Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
      BMW Model: 2 Model series: 228 Type of engine: i Size of motor: 2.0 Brand of engine: N26B20A Type description: F22 Body: Coupe From date: 01-07-2014 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 320 i ActiveFlex Model type: 320 i ActiveFlex Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-12-2013 To date: 01-10-2018 Fuel: Petrol/Ethanol Approved: Yes
      BMW Model: 3 Model series: 320 i Model type: 320 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-03-2012 To date: 01-10-2018 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 320 i xDrive Model type: 320 i xDrive Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-07-2012 To date: 01-10-2018 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 320 Model type: Gran Turismo Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F34 Body: Hatchback From date: 01-03-2013 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F34 Body: Hatchback From date: 01-07-2013 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 328i Model type: 328i Size of motor: 2.0 Brand of engine: N20B20A Type description: F30, F80 Body: Saloon From date: 01-11-2011 To date: 01-06-2015 Fuel: Petrol Approved: Yes
      BMW Model: 4 Model series: 420 Model type: Gran Coupe Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F36 Body: Coupe From date: 01-03-2014 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      BMW Model: 4 Model series: 420 Model type: xDrive Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F32, F82 Body: Coupe From date: 01-11-2013 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 4 Model series: 420 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F32, F82 Body: Coupe From date: 01-11-2013 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      BMW Model: 4 Model series: 420 Type of engine: i Size of motor: 2.0 Brand of engine: N20B20B Type description: F33, F83 Body: Convertible From date: 01-07-2014 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 520 Model type: Touring Size of motor: 2.0 Brand of engine: N20B20B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Approved: Yes
      BMW Model: 5 Model series: 520 Model type: Touring Type of engine: i Size of motor: 2.0 Brand of engine: N20B20A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: X1 Model series: sDrive 28 i Model type: sDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: E84 Body: SUV From date: 01-09-2012 To date: 01-06-2015 Fuel: Petrol Approved: Yes
      BMW Model: X1 Model series: X1 Model type: sDrive 18 i Size of motor: 1.6 Brand of engine: N20B16A Type description: F25 From date: 01-04-2014 To date: 01-08-2017 Fuel: Gasoline Approved: Yes
      BMW Model: X3 Model series: sDrive 28 i Model type: sDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F25 Body: SUV From date: 01-04-2014 To date: 01-08-2017 Fuel: Petrol Approved: Yes
      BMW Model: X4 Model series: Xdrive 28 I Model type: xDrive 28 i Size of motor: 2.0 Brand of engine: N20B20A Type description: F26 Body: SUV Fuel: Petrol Approved: Yes
      1 / 4
