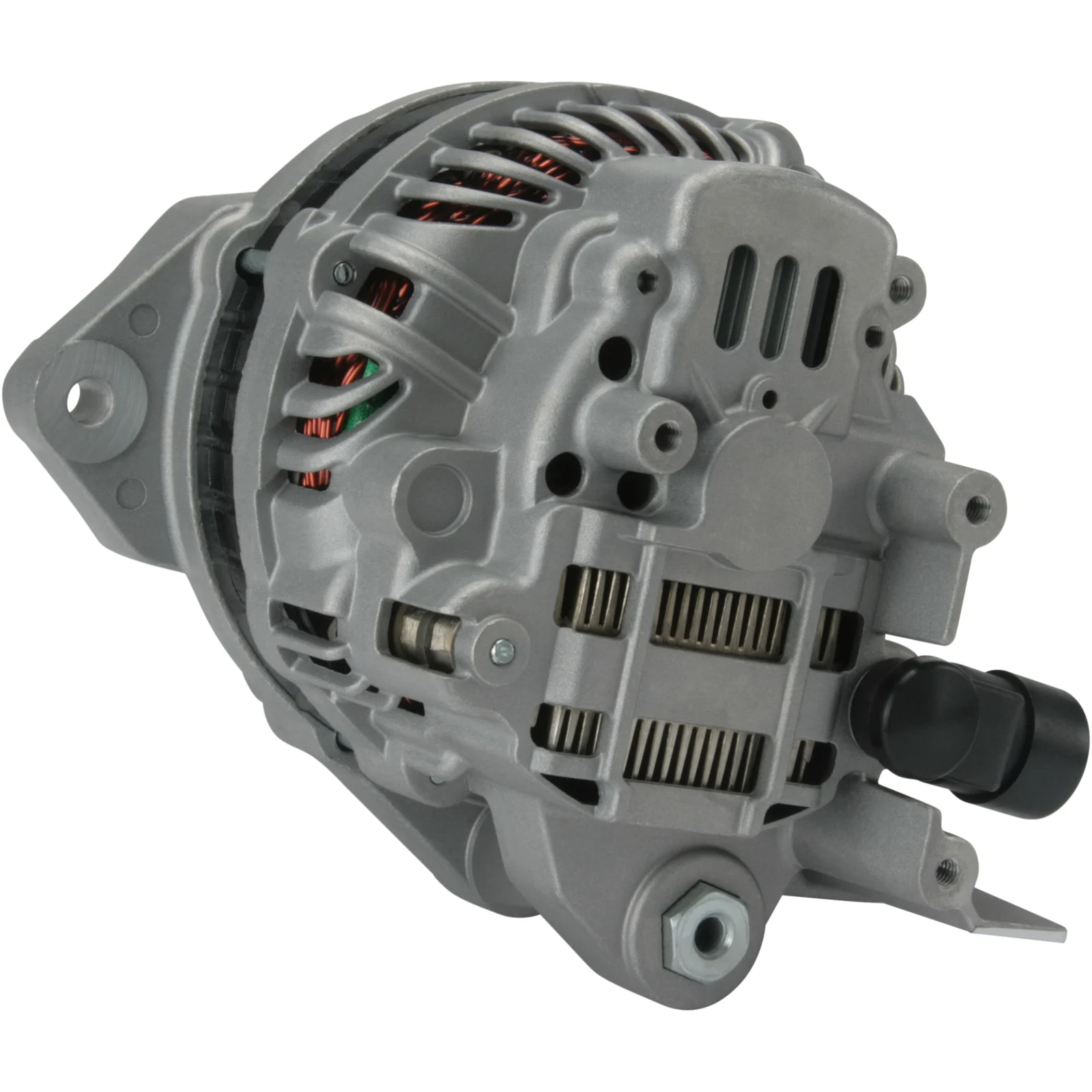

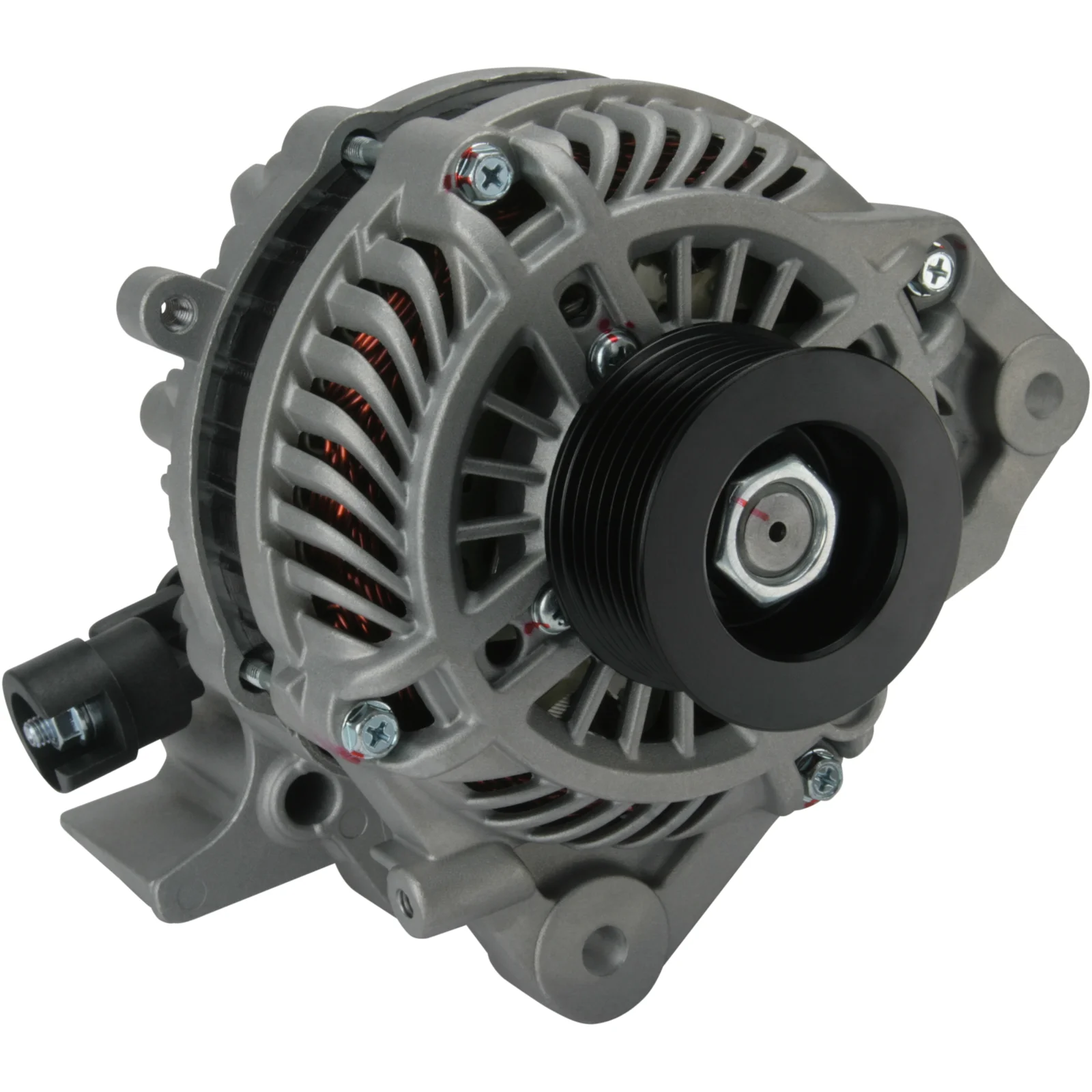

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115661

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett avstand: 40.50

Beskrivelse

Spenning: 14
Ampere: 90
Betjeningsskiveavstand: 44.50
Bredde/holderarm: 20.00
Festebrakets avstand: 40.50
Brakethull: 9.00
Belt justering brakethull pos.: 13
Belt justering brakethull 1: 8.50
Skive dia.: 60.00
Fordypninger/skive: 7
Radius: 85.00
Radie 2: 86.00
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL65
Total lengde mm: 170.00
Skive: SP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 40.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 13
Plug no. PL65
Bracket hole 9.00
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 44.50
Radius 85.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 170.00 mm
Width/holder arm 20.00
Amp 90

  • OEM
    A002TC1391, A002TC1391ZC, A002TC1391ZE, A2TC1391, a2tc1391zc, A2TC1391ZE, AHGA67, F032115661, 1981ir, 31100-rna-a01

  • Konkurrentreferens
    A5061, CAL35234, DRA0531, F042205000, F042205197, J5114050, LRA03157, 8EL011712-351, 8EL738212-111, 28-5769, 125.538.090, 222.159.902, 11176, 11176N, 11176R, 113238, 209368, 209368A, 301981RI, 440554, 9090526, 12060910, 0986080730

  • NormaliseratArtNr
    a002tc1391, a002tc1391zc, a002tc1391ze, a2tc1391, a2tc1391zc, a2tc1391ze, a5061, ahga67, cal35234, dra0531, f032115661, f042205000, f042205197, j5114050, lra03157, 8el011712351, 8el738212111, 1981ir, 11176, 11176n, 11176r, 31100rnaa01, 113238, 209368, 209368a, 285769, 301981ri, 440554, 9090526, 12060910, 125538090, 222159902, 0986080730

  • Passar modeller
    Dongfeng Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18A1 From date: 01-04-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.6 Brand of engine: R16A1 Type description: FD, FA From date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.7 Type description: ES From date: 01-01-2001 To date: 01-04-2006 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18A1 Type description: FD_ From date: 01-09-2005 To date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Type description: FD From date: 01-01-2006 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 2.0 Brand of engine: K20Z4 Type description: FD, FA From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: Flexfuel Size of motor: 1.8 Type description: FD From date: 01-11-2006 Fuel: Bi-Fuel Approved: Yes
    Honda Model: Crossroad Model series: Crossroad Model type: i-VTEC 4WD (RT2) Size of motor: 1.8 Brand of engine: R18A2 Type description: RT_ Body: SUV Fuel: Petrol Approved: Yes
    Honda Model: FR-V Model series: FR-V Size of motor: 1.8 Brand of engine: R18A1 Body: Hatchback From date: 01-01-2007 Fuel: Gasoline Approved: Yes
    Honda Model: Stream Model series: Stream Model type: Vtec AWD (RN7) Size of motor: 1.8 Brand of engine: R18A2 Type description: RN Body: MPV Fuel: Petrol Approved: Yes
