Varenr.: F032111946

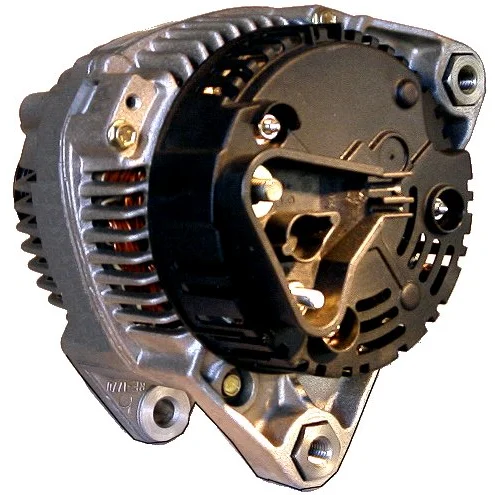

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 80, Rotasjon: CW, Feste. brakett avstand.: 73,50

Beskrivelse

Spenning: 14
Amp: 80
Drevavstand: 46,80
Bredde/holderarm: 19,60
Monteringsbeslag avstand: 73,50
Beslagshull: 10,50
Båndjusteringsbeslagets hullposisjon: 10
Båndjusteringsbeslagets hull 1: 10,50
Drevdiameter: 52,00
Riller/drev: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 45
D+ størrelse: M6
Rotasjon: med urviseren
Total lengde mm: 207,50
Drev: SP
Regulator type: IR
Produsentinformasjon: BN
Service: BMW

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 73.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 10
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 46.80
Radius 90.00
D+ Size M6
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing BMW
Grooves/pulley 6
Voltage 14
Total length 207.50 mm
Width/holder arm 19.60
Amp 80

  • OEM
    a13vi78, F032111946, 1398ir, 1247288, 2541697, 2541697B, 12311247288, 12311247310

  • Konkurrentreferens
    A0161, AL0736V, ALT14069, CAL15221, drb0380, LRB00427, QA3172, 1-2383-01VA, 8EL012426-691, 8EL012428-601, 8el737600-001, 28-2815, 28-2986, 215.122.802, 215.131.802, 4549, 5717, 13664, 13664N, 13664R, 13733R, 200044, 200179, 209162, 209162A, 210094, 210094A, 301398RI, 436675, 439007, 439206, 746911, 9040380, 12040380, 32040380

  • NormaliseratArtNr
    a0161, a13vi78, al0736v, alt14069, cal15221, drb0380, f032111946, lrb00427, qa3172, 8el012426691, 8el012428601, 8el737600001, 1398ir, 4549, 5717, 13664, 13664n, 13664r, 13733r, 200044, 200179, 209162, 209162a, 210094, 210094a, 282815, 282986, 301398ri, 436675, 439007, 439206, 746911, 1238301va, 1247288, 2541697, 2541697b, 9040380, 12040380, 32040380, 215122802, 215131802, 12311247288, 12311247310

  • Passar modeller
    BMW Model: 3 Convertible Model series: 318 I Model type: 318 i Size of motor: 1.8 Brand of engine: M42B18 (184S1) Type description: E36 Body: Convertible Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: G Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Hatchback From date: 01-02-1996 To date: 01-08-2000 Fuel: Gasoline/gas Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M40B16 Type description: E36 From date: 01-09-1993 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Coupe From date: 01-09-1993 To date: 01-11-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Estate From date: 01-03-1997 To date: 01-05-1999 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Hatchback From date: 01-01-1994 To date: 01-08-2000 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.9 Brand of engine: M43B19 (194E1) Type description: E36 Body: Hatchback From date: 01-01-1999 To date: 01-08-2000 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 i Model type: 318 i Size of motor: 1.8 Brand of engine: M42B18 (184S1) Type description: E36 Body: Saloon From date: 01-02-1992 To date: 01-12-1995 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 318 is Model type: 318 is Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Convertible From date: 01-01-1996 To date: 01-09-1999 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 318 Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 Body: Convertible From date: 01-03-1994 To date: 01-11-1999 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 Body: Estate From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 From date: 01-09-1993 To date: 01-11-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 Body: Coupe From date: 01-01-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 From date: 01-09-1993 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Coupe From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 From date: 01-01-1996 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 Body: Coupe From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 From date: 01-01-1996 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.8 Brand of engine: M42 From date: 01-01-1995 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 Body: Hatchback From date: 01-09-1994 To date: 01-12-1995 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1998 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Hatchback From date: 01-01-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 Body: Hatchback From date: 01-01-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes Manufacture type: Compact
    BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 Body: Estate From date: 01-02-1996 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 Body: Estate From date: 01-05-1994 To date: 01-07-1996 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 From date: 01-05-1994 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
    BMW Model: Z Model series: Z3 Size of motor: 1.9 Brand of engine: M44 Body: Convertible From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes Manufacture type: ROADSTER
    BMW Model: Z Model series: Z3 Size of motor: 1.9 Brand of engine: M44 Body: Convertible From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes Manufacture type: Roadster
    BMW Model: Z Model series: Z3 Type of engine: i 16V Size of motor: 1.9 Brand of engine: M44B19 (194S1) Body: Convertible From date: 01-11-1995 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    BMW Model: Z Model series: Z3 Type of engine: i 16V Size of motor: 1.9 Brand of engine: M44B19 Body: Convertible From date: 01-11-1995 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivelse
    Spenning: 14
    Amp: 80
    Drevavstand: 46,80
    Bredde/holderarm: 19,60
    Monteringsbeslag avstand: 73,50
    Beslagshull: 10,50
    Båndjusteringsbeslagets hullposisjon: 10
    Båndjusteringsbeslagets hull 1: 10,50
    Drevdiameter: 52,00
    Riller/drev: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 45
    D+ størrelse: M6
    Rotasjon: med urviseren
    Total lengde mm: 207,50
    Drev: SP
    Regulator type: IR
    Produsentinformasjon: BN
    Service: BMW

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 73.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 10
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 46.80
    Radius 90.00
    D+ Size M6
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing BMW
    Grooves/pulley 6
    Voltage 14
    Total length 207.50 mm
    Width/holder arm 19.60
    Amp 80
  • Kjøretøymatching

    • OEM
      a13vi78, F032111946, 1398ir, 1247288, 2541697, 2541697B, 12311247288, 12311247310

    • Konkurrentreferens
      A0161, AL0736V, ALT14069, CAL15221, drb0380, LRB00427, QA3172, 1-2383-01VA, 8EL012426-691, 8EL012428-601, 8el737600-001, 28-2815, 28-2986, 215.122.802, 215.131.802, 4549, 5717, 13664, 13664N, 13664R, 13733R, 200044, 200179, 209162, 209162A, 210094, 210094A, 301398RI, 436675, 439007, 439206, 746911, 9040380, 12040380, 32040380

    • NormaliseratArtNr
      a0161, a13vi78, al0736v, alt14069, cal15221, drb0380, f032111946, lrb00427, qa3172, 8el012426691, 8el012428601, 8el737600001, 1398ir, 4549, 5717, 13664, 13664n, 13664r, 13733r, 200044, 200179, 209162, 209162a, 210094, 210094a, 282815, 282986, 301398ri, 436675, 439007, 439206, 746911, 1238301va, 1247288, 2541697, 2541697b, 9040380, 12040380, 32040380, 215122802, 215131802, 12311247288, 12311247310

    • Passar modeller
      BMW Model: 3 Convertible Model series: 318 I Model type: 318 i Size of motor: 1.8 Brand of engine: M42B18 (184S1) Type description: E36 Body: Convertible Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: G Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Hatchback From date: 01-02-1996 To date: 01-08-2000 Fuel: Gasoline/gas Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M40B16 Type description: E36 From date: 01-09-1993 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Coupe From date: 01-09-1993 To date: 01-11-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Estate From date: 01-03-1997 To date: 01-05-1999 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: M43B16 Type description: E36 Body: Hatchback From date: 01-01-1994 To date: 01-08-2000 Fuel: Gasoline Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.9 Brand of engine: M43B19 (194E1) Type description: E36 Body: Hatchback From date: 01-01-1999 To date: 01-08-2000 Fuel: Gasoline Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 318 i Model type: 318 i Size of motor: 1.8 Brand of engine: M42B18 (184S1) Type description: E36 Body: Saloon From date: 01-02-1992 To date: 01-12-1995 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 318 is Model type: 318 is Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Convertible From date: 01-01-1996 To date: 01-09-1999 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 318 Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 Body: Convertible From date: 01-03-1994 To date: 01-11-1999 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 Body: Estate From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E36 From date: 01-09-1993 To date: 01-11-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: i Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 Body: Coupe From date: 01-01-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 From date: 01-09-1993 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Coupe From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 From date: 01-01-1996 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 Body: Coupe From date: 01-09-1995 To date: 01-04-1999 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: iS Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 From date: 01-01-1996 To date: 01-05-1998 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.8 Brand of engine: M42 From date: 01-01-1995 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.8 Brand of engine: M42B18 Type description: E36 Body: Hatchback From date: 01-09-1994 To date: 01-12-1995 Fuel: Gasoline Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44 From date: 01-01-1998 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44B19 (194S1) Type description: E36 Body: Hatchback From date: 01-01-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes Manufacture type: Compact
      BMW Model: 3 Model series: 318 Type of engine: Ti Size of motor: 1.9 Brand of engine: M44B19 Type description: E36 Body: Hatchback From date: 01-01-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes Manufacture type: Compact
      BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 Body: Estate From date: 01-02-1996 To date: 01-07-1996 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 Body: Estate From date: 01-05-1994 To date: 01-07-1996 Fuel: Gasoline Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 518 Type of engine: i Size of motor: 1.8 Brand of engine: M43B18 Type description: E34 From date: 01-05-1994 To date: 01-08-1995 Fuel: Gasoline Approved: Yes
      BMW Model: Z Model series: Z3 Size of motor: 1.9 Brand of engine: M44 Body: Convertible From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes Manufacture type: ROADSTER
      BMW Model: Z Model series: Z3 Size of motor: 1.9 Brand of engine: M44 Body: Convertible From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes Manufacture type: Roadster
      BMW Model: Z Model series: Z3 Type of engine: i 16V Size of motor: 1.9 Brand of engine: M44B19 (194S1) Body: Convertible From date: 01-11-1995 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
      BMW Model: Z Model series: Z3 Type of engine: i 16V Size of motor: 1.9 Brand of engine: M44B19 Body: Convertible From date: 01-11-1995 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
