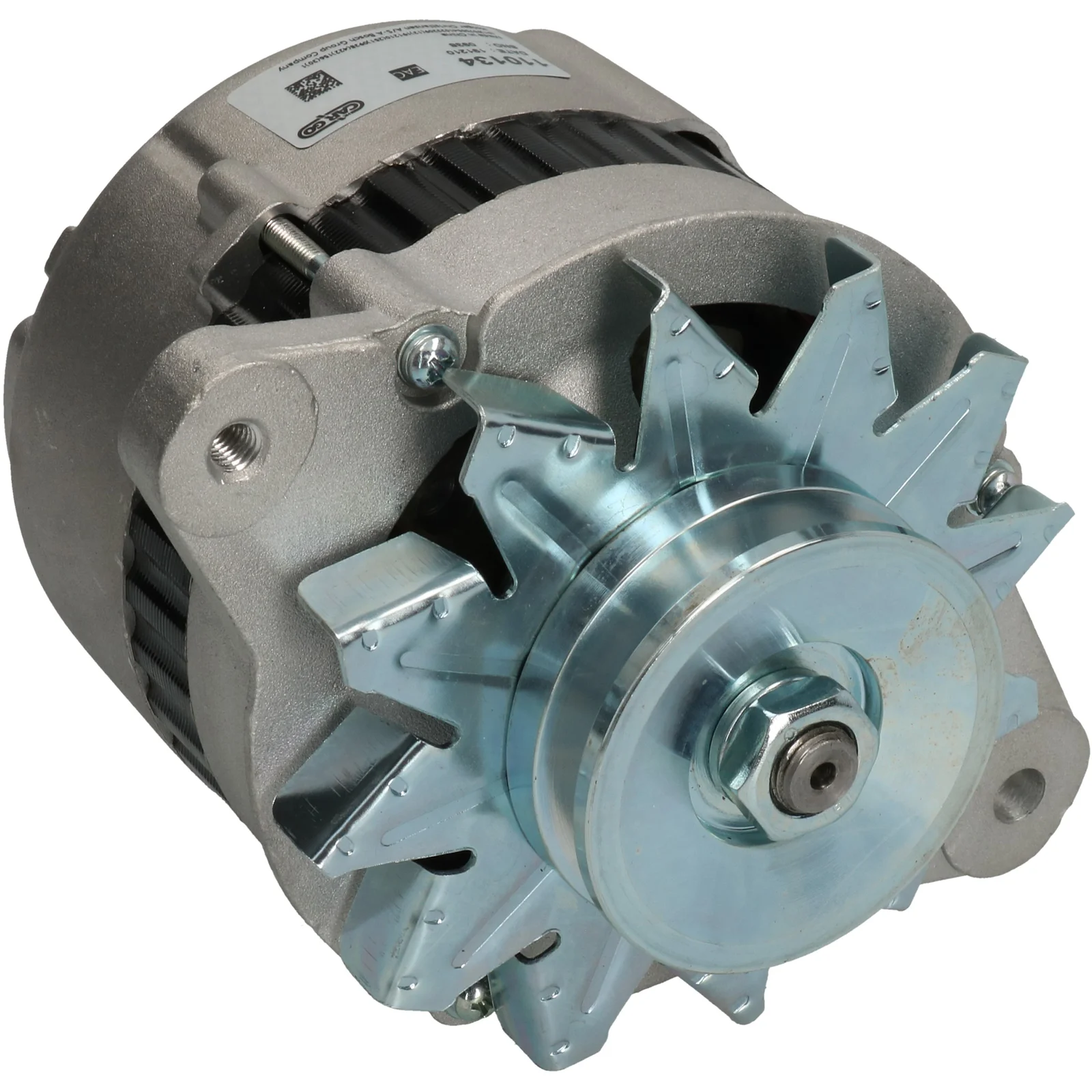

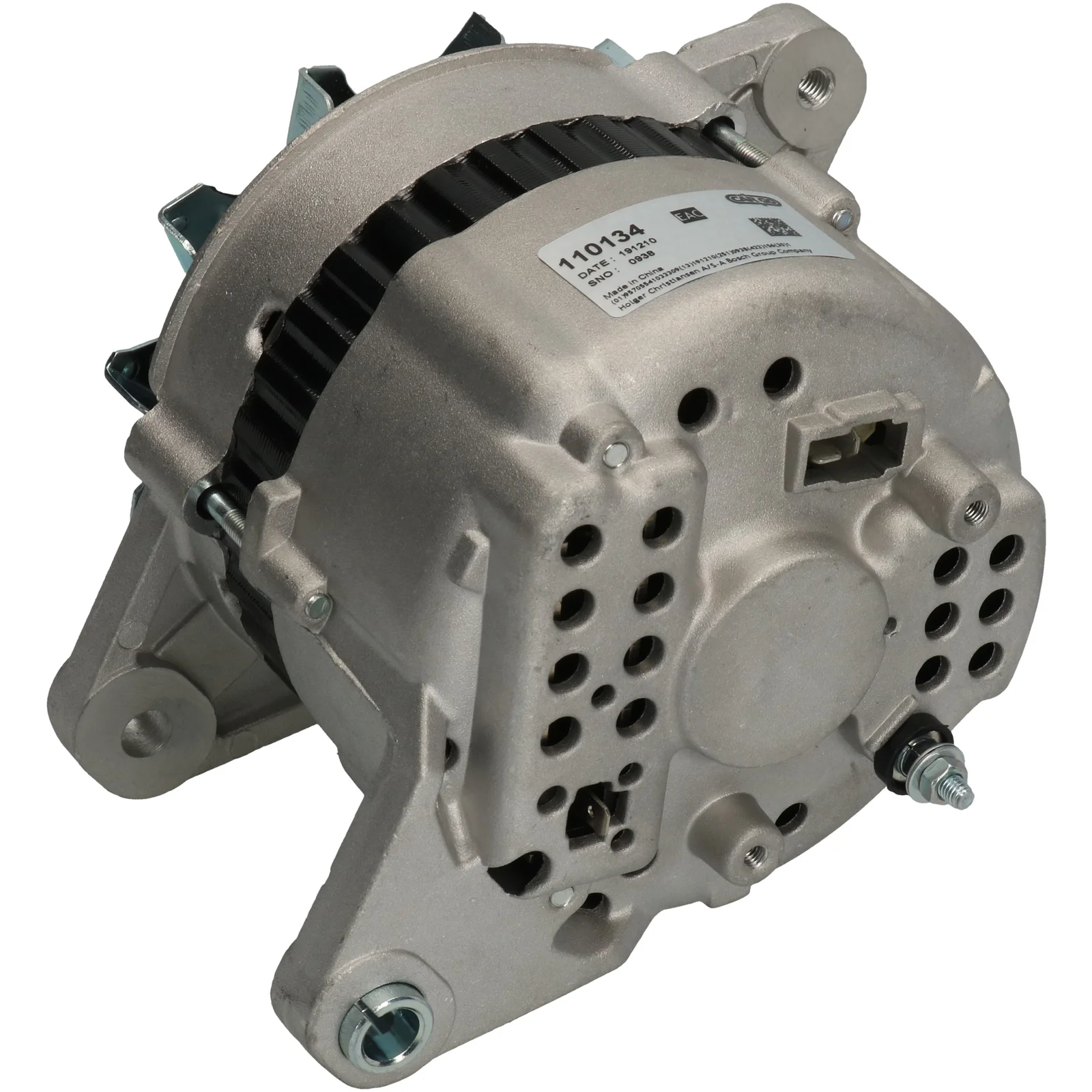

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110134

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 55, Rotasjon: CW, Monteringsbeslag avstand: 80,50

Beskrivelse

Spenningsspenning: 14
Amp: 55
Drevskiveavstand: 41.00
Bredde/holderarm: 12.50
Festebrakettavstand: 80.50
Braketthetthull: 10.50
Båndregulering. justeringshullpos.: 60
Båndregulering. justeringsbrakett hull 1: M8
Drevskivediameter: 62.50
Grooves/drevskive: 1
Radius: 90.00
Radius 2: 84.50
B+: M5
Posisjon/B+ i min.: 10
Rotasjon: med klokken
Stift nr.: PL09
Total lengde mm: 171.50
Drevskive: P
Regulator type: IR
Prod. info: BN
Vedlikehold: Mazda

Filer

Spesifikasjon

B+ M5
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 62.50
Pulley dist. 41.00
Radius 90.00
Radius 2 84.50
Regulator type IR
Rotation CW
Servicing Mazda
Grooves/pulley 1
Voltage 14
Total length 171.50 mm
Width/holder arm 12.50
Amp 55

  • OEM
    A002T21278, A002T23474, A002T23477, A005T20377, A005T20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, F032110134, HE41-18-300, HE45-18-300, HE45-18-300A, HE45-18-300XA, ja884ir, lr150-165, 1480-18-300, 1480-18-300A, 1480-18-300B, 8173-18-300, 8173-18-300B, 8173-18-300C, 8341-18-300, 5812003470, 9120060894

  • Konkurrentreferens
    ALT31093, ama-362, ama-366, DRA0425, dra2621, dra2641, dra5161, lra00399, lra00402, va227, va229, 1-1138-01MI, 24-51.302, 24-51.305, 28-0563, 28-563, 224.101.502, 3170, 12278, 14307N, 40884RI, 55759, 56027, 436549, 12060082, 0986032621, 0986035151

  • NormaliseratArtNr
    a002t21278, a002t23474, a002t23477, a005t20377, a005t20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, alt31093, ama362, ama366, dra0425, dra2621, dra2641, dra5161, f032110134, he4118300, he4518300, he4518300a, he4518300xa, ja884ir, lr150165, lra00399, lra00402, va227, va229, 3170, 12278, 14307n, 28563, 40884ri, 55759, 56027, 280563, 436549, 1113801mi, 2451302, 2451305, 12060082, 148018300, 148018300a, 148018300b, 224101502, 817318300, 817318300b, 817318300c, 834118300, 0986032621, 0986035151, 5812003470, 9120060894

  • Passar modeller
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: H6 Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: N Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: NA Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: HE3 Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: M Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: MA Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: M Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 1600 Size of motor: 1.6 Brand of engine: NA Body: Van From date: 01-08-1980 To date: 01-06-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE58 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FEV4 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Body: Coupe From date: 01-01-1981 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Type description: SA Body: Coupe From date: 01-03-1984 To date: 01-03-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1979 To date: 01-01-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1983 To date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Type of engine: Turbo Size of motor: 1.3 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 55
    Drevskiveavstand: 41.00
    Bredde/holderarm: 12.50
    Festebrakettavstand: 80.50
    Braketthetthull: 10.50
    Båndregulering. justeringshullpos.: 60
    Båndregulering. justeringsbrakett hull 1: M8
    Drevskivediameter: 62.50
    Grooves/drevskive: 1
    Radius: 90.00
    Radius 2: 84.50
    B+: M5
    Posisjon/B+ i min.: 10
    Rotasjon: med klokken
    Stift nr.: PL09
    Total lengde mm: 171.50
    Drevskive: P
    Regulator type: IR
    Prod. info: BN
    Vedlikehold: Mazda

    Filer

  • Spesifikasjon
    B+ M5
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 62.50
    Pulley dist. 41.00
    Radius 90.00
    Radius 2 84.50
    Regulator type IR
    Rotation CW
    Servicing Mazda
    Grooves/pulley 1
    Voltage 14
    Total length 171.50 mm
    Width/holder arm 12.50
    Amp 55
  • Kjøretøymatching

    • OEM
      A002T21278, A002T23474, A002T23477, A005T20377, A005T20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, F032110134, HE41-18-300, HE45-18-300, HE45-18-300A, HE45-18-300XA, ja884ir, lr150-165, 1480-18-300, 1480-18-300A, 1480-18-300B, 8173-18-300, 8173-18-300B, 8173-18-300C, 8341-18-300, 5812003470, 9120060894

    • Konkurrentreferens
      ALT31093, ama-362, ama-366, DRA0425, dra2621, dra2641, dra5161, lra00399, lra00402, va227, va229, 1-1138-01MI, 24-51.302, 24-51.305, 28-0563, 28-563, 224.101.502, 3170, 12278, 14307N, 40884RI, 55759, 56027, 436549, 12060082, 0986032621, 0986035151

    • NormaliseratArtNr
      a002t21278, a002t23474, a002t23477, a005t20377, a005t20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, alt31093, ama362, ama366, dra0425, dra2621, dra2641, dra5161, f032110134, he4118300, he4518300, he4518300a, he4518300xa, ja884ir, lr150165, lra00399, lra00402, va227, va229, 3170, 12278, 14307n, 28563, 40884ri, 55759, 56027, 280563, 436549, 1113801mi, 2451302, 2451305, 12060082, 148018300, 148018300a, 148018300b, 224101502, 817318300, 817318300b, 817318300c, 834118300, 0986032621, 0986035151, 5812003470, 9120060894

    • Passar modeller
      Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: H6 Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: N Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: NA Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: HE3 Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: M Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: MA Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: M Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
      Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
      Mazda Model: E Model series: E 1600 Size of motor: 1.6 Brand of engine: NA Body: Van From date: 01-08-1980 To date: 01-06-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
      Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
      Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE58 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
      Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FEV4 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
      Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Body: Coupe From date: 01-01-1981 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
      Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Type description: SA Body: Coupe From date: 01-03-1984 To date: 01-03-1986 Fuel: Gasoline Approved: Yes
      Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1979 To date: 01-01-1982 Fuel: Gasoline Approved: Yes
      Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1983 To date: 01-01-1985 Fuel: Gasoline Approved: Yes
      Mazda Model: RX Model series: RX-7 Type of engine: Turbo Size of motor: 1.3 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
