Varenr.: F032110700

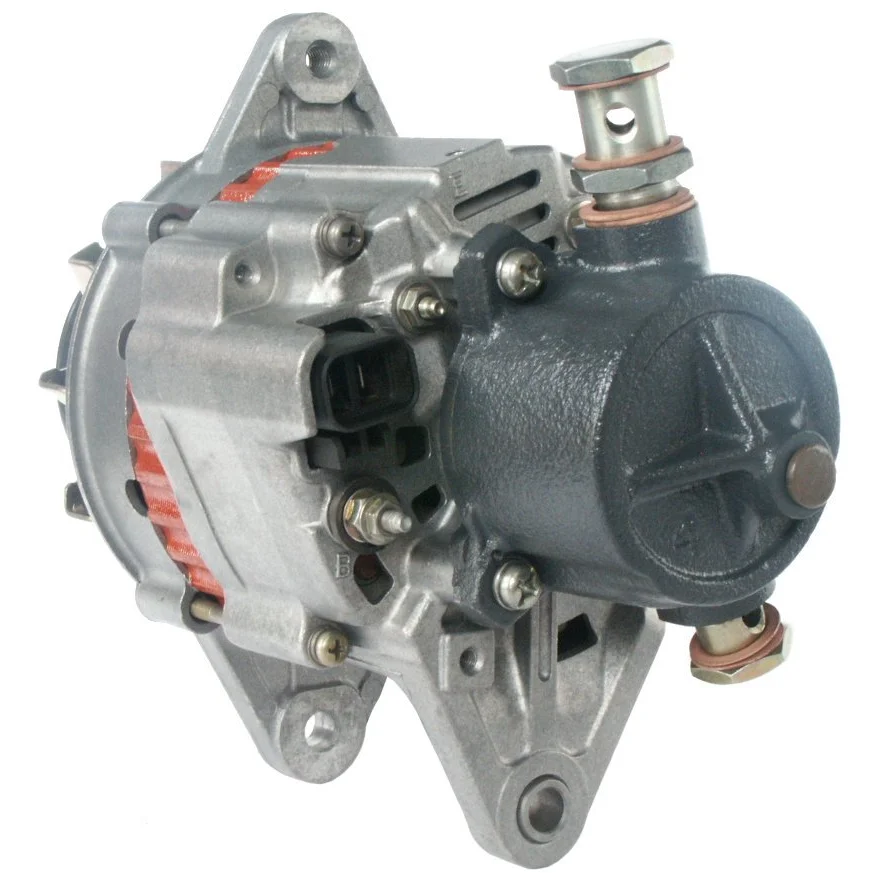

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 50, Rotasjon: CW, Montering. festebrakett avstand: 80,00

Beskrivelse

Spenningsspenning: 14
Amp: 50
Bøssing av skive: 42.50
Bredde/holderarm: 13.00
Monteringsbrakett avstand: 80.00
Brakett hull: 10.20
Båndjusteringsbrakett hull pos.: 60
Båndjusteringsbrakett hull 1: M8
Bøssings diameter: 84.00
Riller/bøssing: 2
Radius: 90.00
Radius 2: 85.50
B+: M6
Posisjon/B+ i min.: 43
D+ størrelse: Plugg
Rotasjon: medur (CW)
Plugg nr.: PL07
Total lengde mm: 248.00
Bøssing: DP
Regulator type: IR
Innløpspumpe: Ja
Produsentinfo: BN
Service: Nissan

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.20
Position/B+ in min. 43
Prod. info BN
Pulley DP
Pulley dia. 84.00
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 248.00 mm
Width/holder arm 13.00
Amp 50

  • OEM
    B310M43G06EX, F032110700, ja660ir, lr150-428, LR150-428C, lr150-428e, lr150-428s, lr150-428t, lr150-443s, lr150-443t, 23100-43g04, 23100-43g06, 23100-43g08, 23100-54G01, 23100-92g01

  • Konkurrentreferens
    A2012, A2012ER, ada-392, ALT-V036, ALTV012, CAL20103, dra3208, DRA3208N, F042305050, F042A05050, LRA01295, QA1922, 8EL012427-701, 8el726375-001, 28-1570, 28-51.146, 28-51.157, 227.112.502, 227.140.502, 227.198.502, 5351, 14024R, 40660RI, 56230, 118464, 210104, 210104A, 210342, 210342A, 0986038930

  • NormaliseratArtNr
    a2012, a2012er, ada392, altv012, altv036, b310m43g06ex, cal20103, dra3208, dra3208n, f032110700, f042305050, f042a05050, ja660ir, lr150428, lr150428c, lr150428e, lr150428s, lr150428t, lr150443s, lr150443t, lra01295, qa1922, 8el012427701, 8el726375001, 5351, 14024r, 40660ri, 56230, 118464, 210104, 210104a, 210342, 210342a, 281570, 2310043g04, 2310043g06, 2310043g08, 2310054g01, 2310092g01, 2851146, 2851157, 227112502, 227140502, 227198502, 0986038930

  • Passar modeller
    Nissan Model: King Cab Model series: King Cab Model type: 4WD Type of engine: TD Size of motor: 2.7 Brand of engine: TD27 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Gr Model series: Patrol Gr Model type: D 4x4 Type of engine: Diesel Size of motor: 4.2 Brand of engine: TD42 Type description: Y60, GR Body: Closed Off-Road Vehicle From date: 01-07-1992 To date: 01-05-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 50
    Bøssing av skive: 42.50
    Bredde/holderarm: 13.00
    Monteringsbrakett avstand: 80.00
    Brakett hull: 10.20
    Båndjusteringsbrakett hull pos.: 60
    Båndjusteringsbrakett hull 1: M8
    Bøssings diameter: 84.00
    Riller/bøssing: 2
    Radius: 90.00
    Radius 2: 85.50
    B+: M6
    Posisjon/B+ i min.: 43
    D+ størrelse: Plugg
    Rotasjon: medur (CW)
    Plugg nr.: PL07
    Total lengde mm: 248.00
    Bøssing: DP
    Regulator type: IR
    Innløpspumpe: Ja
    Produsentinfo: BN
    Service: Nissan

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.20
    Position/B+ in min. 43
    Prod. info BN
    Pulley DP
    Pulley dia. 84.00
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 248.00 mm
    Width/holder arm 13.00
    Amp 50
  • Kjøretøymatching

    • OEM
      B310M43G06EX, F032110700, ja660ir, lr150-428, LR150-428C, lr150-428e, lr150-428s, lr150-428t, lr150-443s, lr150-443t, 23100-43g04, 23100-43g06, 23100-43g08, 23100-54G01, 23100-92g01

    • Konkurrentreferens
      A2012, A2012ER, ada-392, ALT-V036, ALTV012, CAL20103, dra3208, DRA3208N, F042305050, F042A05050, LRA01295, QA1922, 8EL012427-701, 8el726375-001, 28-1570, 28-51.146, 28-51.157, 227.112.502, 227.140.502, 227.198.502, 5351, 14024R, 40660RI, 56230, 118464, 210104, 210104A, 210342, 210342A, 0986038930

    • NormaliseratArtNr
      a2012, a2012er, ada392, altv012, altv036, b310m43g06ex, cal20103, dra3208, dra3208n, f032110700, f042305050, f042a05050, ja660ir, lr150428, lr150428c, lr150428e, lr150428s, lr150428t, lr150443s, lr150443t, lra01295, qa1922, 8el012427701, 8el726375001, 5351, 14024r, 40660ri, 56230, 118464, 210104, 210104a, 210342, 210342a, 281570, 2310043g04, 2310043g06, 2310043g08, 2310054g01, 2310092g01, 2851146, 2851157, 227112502, 227140502, 227198502, 0986038930

    • Passar modeller
      Nissan Model: King Cab Model series: King Cab Model type: 4WD Type of engine: TD Size of motor: 2.7 Brand of engine: TD27 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Gr Model series: Patrol Gr Model type: D 4x4 Type of engine: Diesel Size of motor: 4.2 Brand of engine: TD42 Type description: Y60, GR Body: Closed Off-Road Vehicle From date: 01-07-1992 To date: 01-05-1994 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: D21 Body: Pick Up From date: 01-08-1987 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
