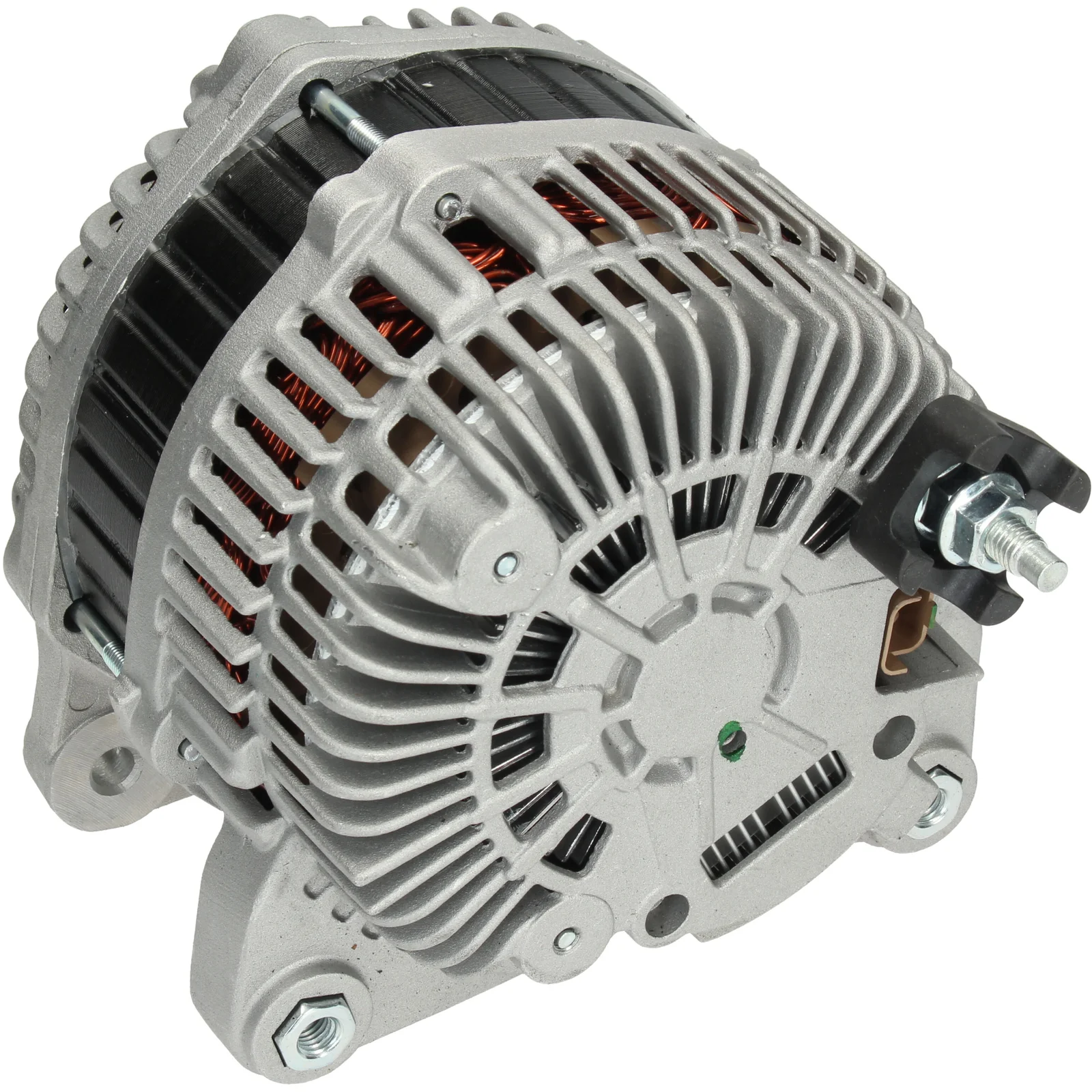

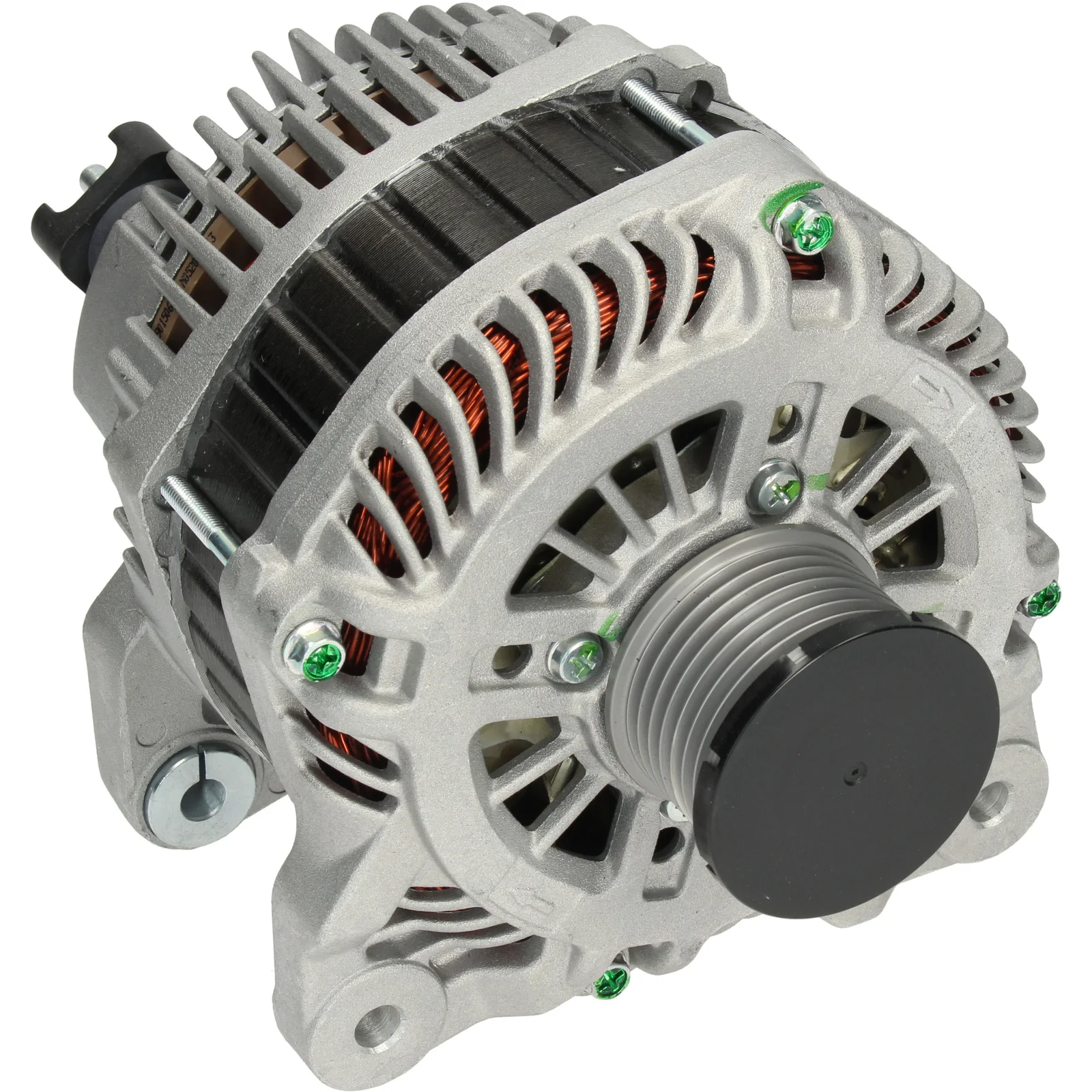

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114670

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 210, Rotasjon: CW, Pulle diameter: 49.00

Beskrivelse

Spenningsspenningsregulator: 14
Ampere: 210
Drevskive dist.: 33,00
Bredde/holderarm: 14,50
Brakettåpning: 8,70
Kjede justering brakettåpning pos.: 45
Kjede justering brakettåpning 1: 8,70
Drev dia.: 49,00
Riller/dreven: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 3
D+ størrelse: Innsats
Rotasjon: Vennsterrikt
Innsats nummer: PL72
Total lengde mm: 198,50
Terminaltype: L-DF/DFM
Dreven: SP/FW
Kjølevifte: IF
Spenningsregulator type: IR

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.70
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 33.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-DF/DFM
Voltage 14
Total length 198.50 mm
Width/holder arm 14.50
Amp 210

  • OEM
    A4TJ0381, a4tj0382, A4TJ0382ZE, F032114670, 7711368438, 8200404464, 8200654789, 8200960538

  • Konkurrentreferens
    A5410S, CAL35259, DRA1312, 28-6990, 230.336.2102, 20254R, 440898, 443373, 12090502

  • NormaliseratArtNr
    a4tj0381, a4tj0382, a4tj0382ze, a5410s, cal35259, dra1312, f032114670, 20254r, 286990, 440898, 443373, 12090502, 2303362102, 7711368438, 8200404464, 8200654789, 8200960538

  • Passar modeller
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R750 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R761 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R802 Type description: JK0/1 Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R815 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: BG0/1_ Body: Hatchback From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BG0/1_ Body: Hatchback From date: 01-01-2006 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: KG0/1_ Body: Estate From date: 01-01-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-08-2005 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsspenningsregulator: 14
    Ampere: 210
    Drevskive dist.: 33,00
    Bredde/holderarm: 14,50
    Brakettåpning: 8,70
    Kjede justering brakettåpning pos.: 45
    Kjede justering brakettåpning 1: 8,70
    Drev dia.: 49,00
    Riller/dreven: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 3
    D+ størrelse: Innsats
    Rotasjon: Vennsterrikt
    Innsats nummer: PL72
    Total lengde mm: 198,50
    Terminaltype: L-DF/DFM
    Dreven: SP/FW
    Kjølevifte: IF
    Spenningsregulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 8.70
    Belt. adj. brackethole pos. 45
    Plug no. PL72
    Bracket hole 8.70
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 33.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-DF/DFM
    Voltage 14
    Total length 198.50 mm
    Width/holder arm 14.50
    Amp 210
  • Kjøretøymatching

    • OEM
      A4TJ0381, a4tj0382, A4TJ0382ZE, F032114670, 7711368438, 8200404464, 8200654789, 8200960538

    • Konkurrentreferens
      A5410S, CAL35259, DRA1312, 28-6990, 230.336.2102, 20254R, 440898, 443373, 12090502

    • NormaliseratArtNr
      a4tj0381, a4tj0382, a4tj0382ze, a5410s, cal35259, dra1312, f032114670, 20254r, 286990, 440898, 443373, 12090502, 2303362102, 7711368438, 8200404464, 8200654789, 8200960538

    • Passar modeller
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R750 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R761 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R802 Type description: JK0/1 Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R815 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: BG0/1_ Body: Hatchback From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BG0/1_ Body: Hatchback From date: 01-01-2006 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: KG0/1_ Body: Estate From date: 01-01-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-08-2005 Fuel: Diesel Approved: Yes
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
