HC-Cargo Dynamo

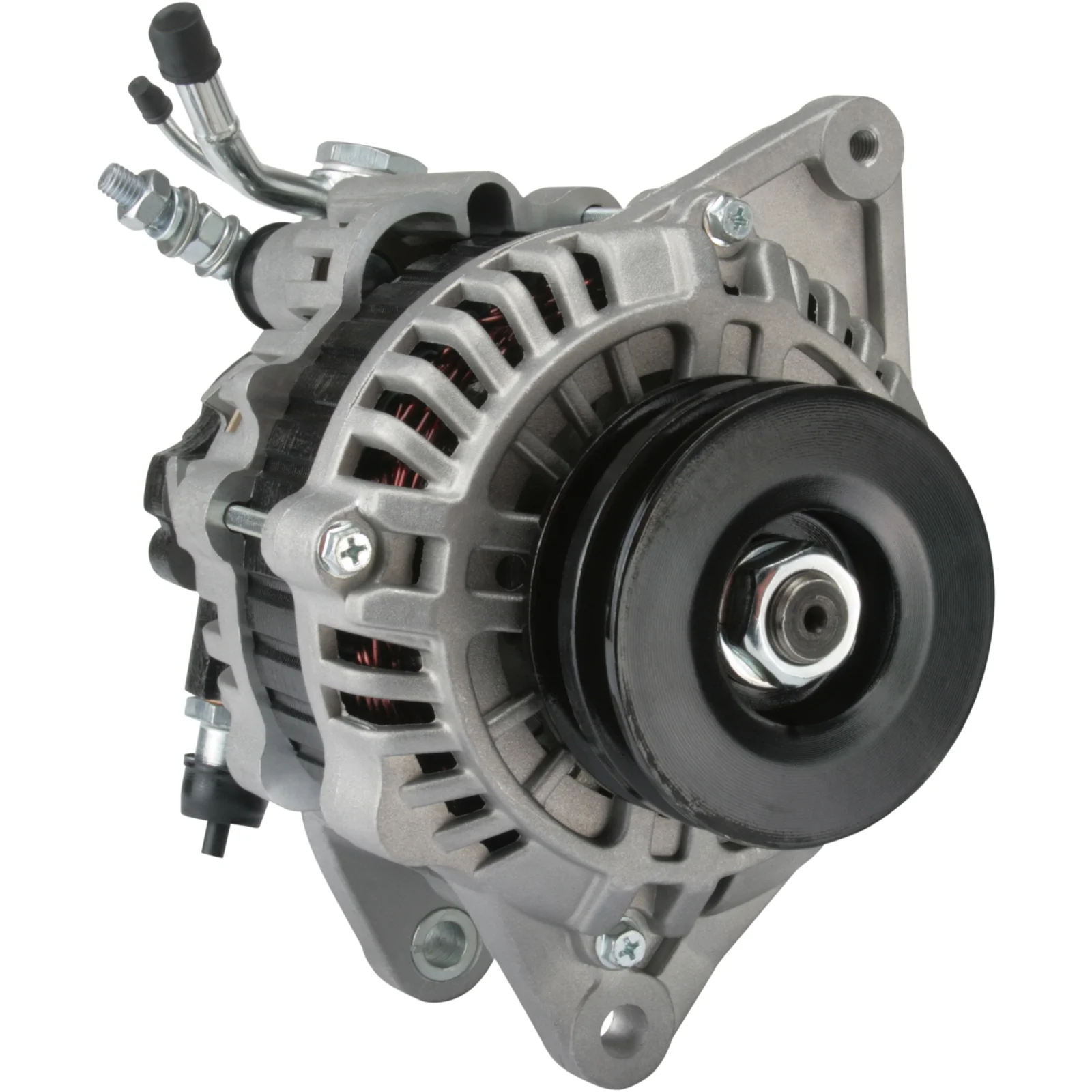

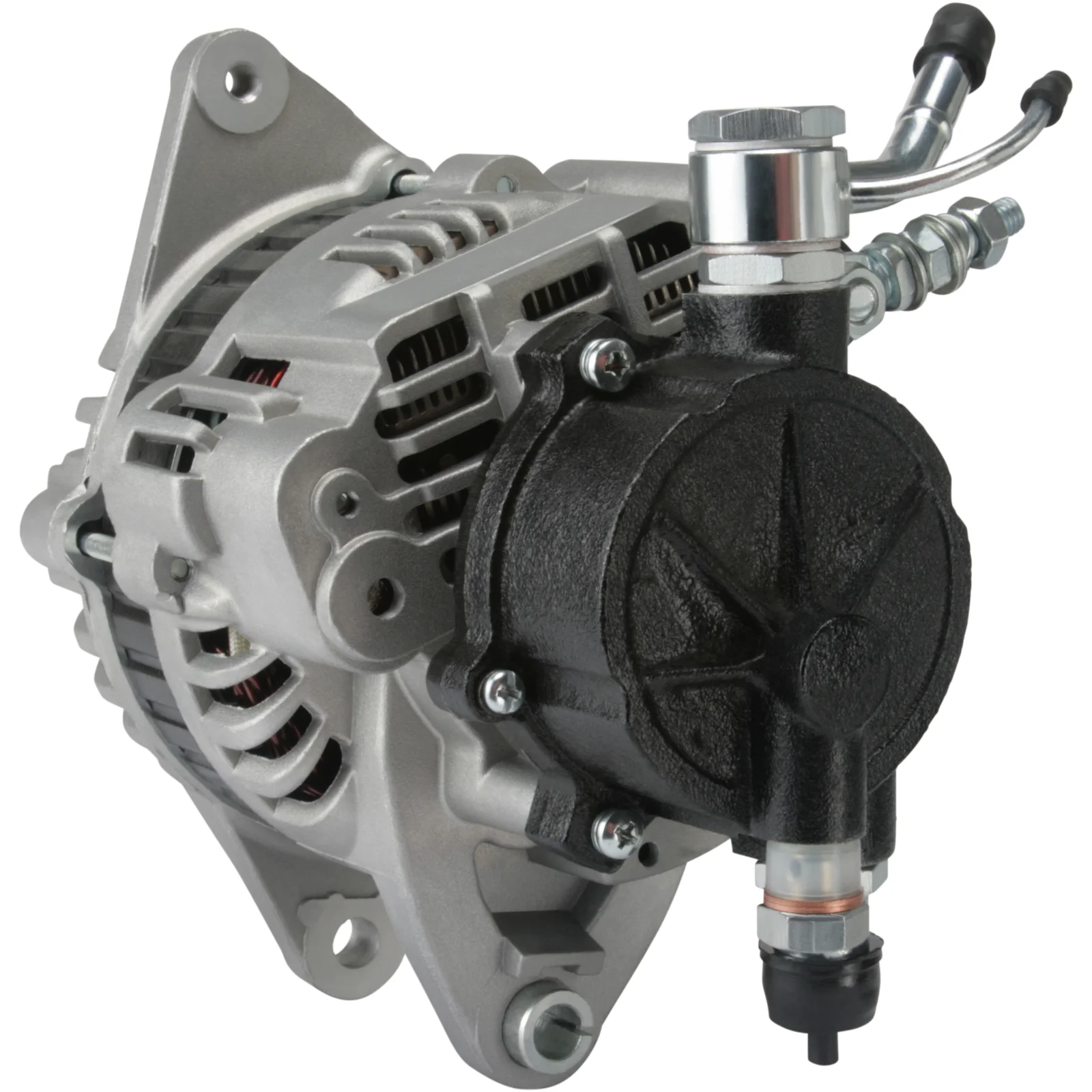

HC-Cargo Dynamo
Varenr.: F032113330

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 75, Rotasjon: CW, Festebrakett avstand: 55,00

Beskrivelse

Hyndai Diesel Gen. 12V-75A 12V - 75A, 2V skive, (S, L) UTEN A/C / Uten Klimaanlegg For Yourex produktordre 90-228-4245

Spenning: 14
Ampere: 75
Skivedist.: 42.00
Bredde/holderarm: 13.00
Festebrakett avstand: 55.00
Brakettgropet: 10.70
Bånd. justering brakettgrop pos.: 5
Bånd. justering brakettgrop 1: M8
Skivediameter: 85.60
Groover/skive: 2
Radius: 90.00
Radius 2: 97.00
B+: M8
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL07
Total lengde mm: 226.00
Skive: DP
Regulator type: IR
Vakuumpumpe: Ja
Prod. info: BN
Servicenummer: Hyundai

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.70
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 85.60
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 97.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 226.00 mm
Width/holder arm 13.00
Amp 75

  • OEM
    AF 175363, af175363, AF175476, F032113330, F032113519, ja1711ir, TA000A54701, TA000A54702, TA000A57401, TA000A64201, 37300-42451, 37300-42452, 37300-42454, 37300-42455, 37300-42456, 37300-42457, 37300-42458, 37300-42459, 37300-42470, 37300-42471, 37300-42472, 37300-42473, 37300-42474, 37300-42711, 113330, 113519, 2655734

  • Konkurrentreferens
    A3243(VALEO), A3243S, A9145, A9145(MANDO), A9166, ALT-7232, ALT-H129, ALT35012, CAL32121, CAL32147, DRA4268, DRA4268N, DRB9920, F042A0B039, F042A0H129, J5110506, J5110527, LRA01961, LRA02923, 8EL011711-241, 8EL012240-411, 8EL012240-421, 8EL738086-001, 28-3859, 28-5538, 28-7505, 526.126.752, 526.147.752, 526.154.752, 9419, 111305, 112542, 210372, 210372A, 210801, 210801A, 401711RI, 600010, 600267, 600268, 9213471, 12060825, 12060885, 063532609, 0986049920, 063532609010

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    a3243s, a3243valeo, a9145, a9145mando, a9166, af175363, af175476, alt35012, alt7232, alth129, cal32121, cal32147, dra4268, dra4268n, drb9920, f032113330, f032113519, f042a0b039, f042a0h129, j5110506, j5110527, ja1711ir, lra01961, lra02923, ta000a54701, ta000a54702, ta000a57401, ta000a64201, 8el011711241, 8el012240411, 8el012240421, 8el738086001, 9419, 111305, 112542, 113330, 113519, 210372, 210372a, 210801, 210801a, 283859, 285538, 287505, 401711ri, 600010, 600267, 600268, 2655734, 9213471, 12060825, 12060885, 063532609, 526126752, 526147752, 526154752, 0986049920, 3730042451, 3730042452, 3730042454, 3730042455, 3730042456, 3730042457, 3730042458, 3730042459, 3730042470, 3730042471, 3730042472, 3730042473, 3730042474, 3730042711, 063532609010

  • Passar modeller
    Hyundai Model: H-1 Model series: H-1 Model type: Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: KMF Body: Bus From date: 01-06-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Starex Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BF Type description: KMF Body: Bus From date: 01-10-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Body: Platform / Chassis From date: 01-06-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: Van From date: 01-03-2000 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Van Model series: H-1 Van Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: A1 Body: Van From date: 01-10-1998 To date: 01-04-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: MPV From date: 01-02-1998 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: H1 Body: MPV From date: 01-06-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Series: H-1 / STAREX Buss Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: D4BH Year: 03.01-04.04
    Hyundai Series: H-1 / STAREX Buss Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: D4BH Year: 11.01-04.04
    Hyundai Series: H-1 Model: 2.5 TD Engine volume: 2.5 Engine type: D4BH Year: 03.00-
    Hyundai Series: H-1 Model: 2.5 TD w/o AC Engine volume: 2.5 Engine type: D4BH Year: 11.01-12.06
    Hyundai Series: H-1 Skåp Model: 2.5 TD Engine volume: 2.5 Engine type: D4BF Year: 03.00-09.00
    Hyundai Series: H-1 Skåp Model: 2.5 TD Engine volume: 2.5 Engine type: D4BH Year: 10.01-04.04
    Hyundai Series: H-1 STAREX Model: 2.5 D Engine volume: 2.5 Year: 10.97-
    Hyundai Series: H-1 STAREX Model: 2.5 TCI Engine volume: 2.5 Engine type: D4BH Year: 10.97-
    Hyundai Series: H-1 STAREX Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: D4BF Year: 02.98-
    Hyundai Series: H-1 STAREX Model: 2.5 TD Engine volume: 2.5 Engine type: D4BF Year: 06.97-04.04
    Kia Model: K2500 Model series: K2500 Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: SD Body: Platform / Chassis From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Kia Model: Pregio Model series: Pregio Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-09-2002 Fuel: Diesel Approved: Yes
    Kia Series: PREGIO Skåp (TB) Model: 2.5 TCi D Engine volume: 2.5 Engine type: D4BH Year: 09.02-
