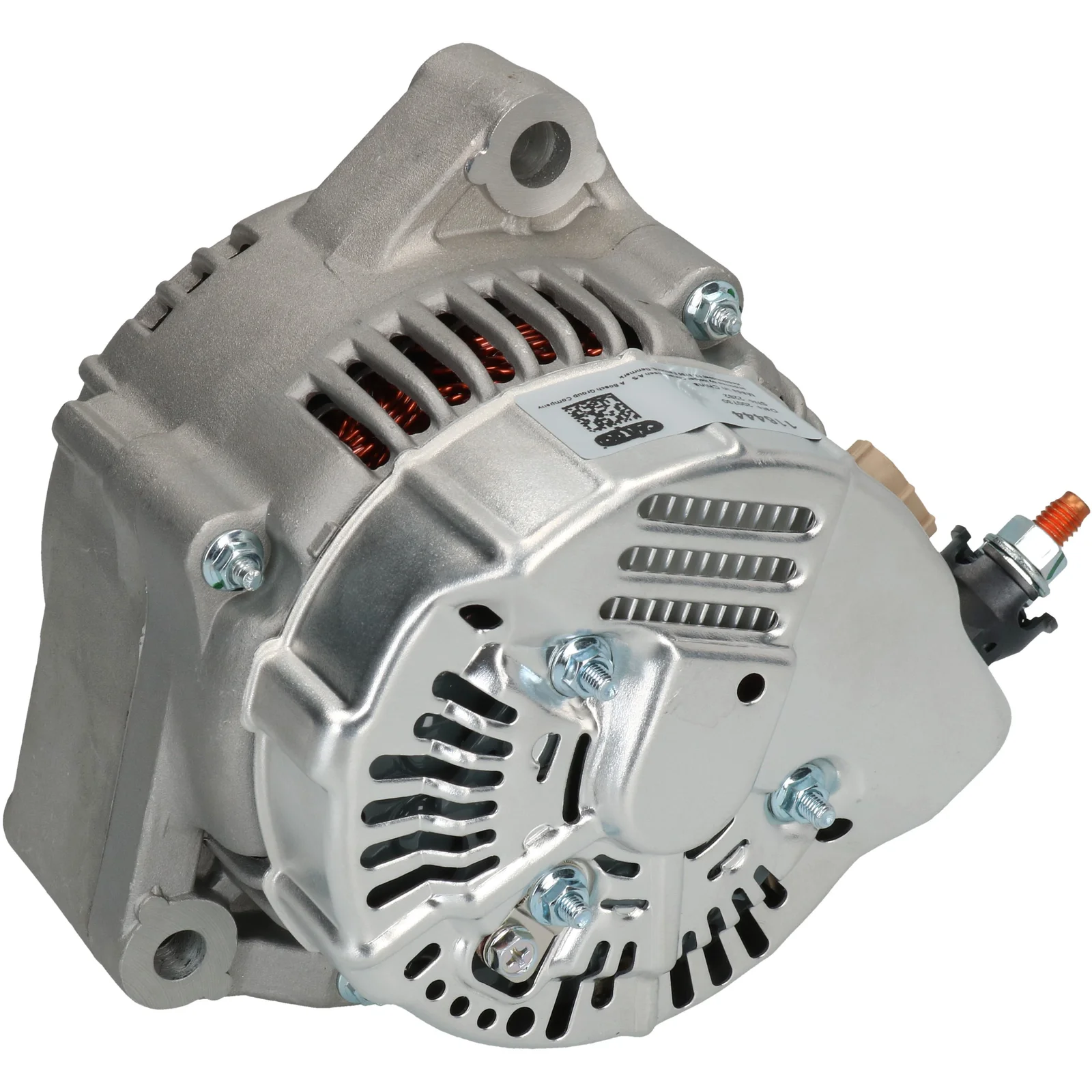

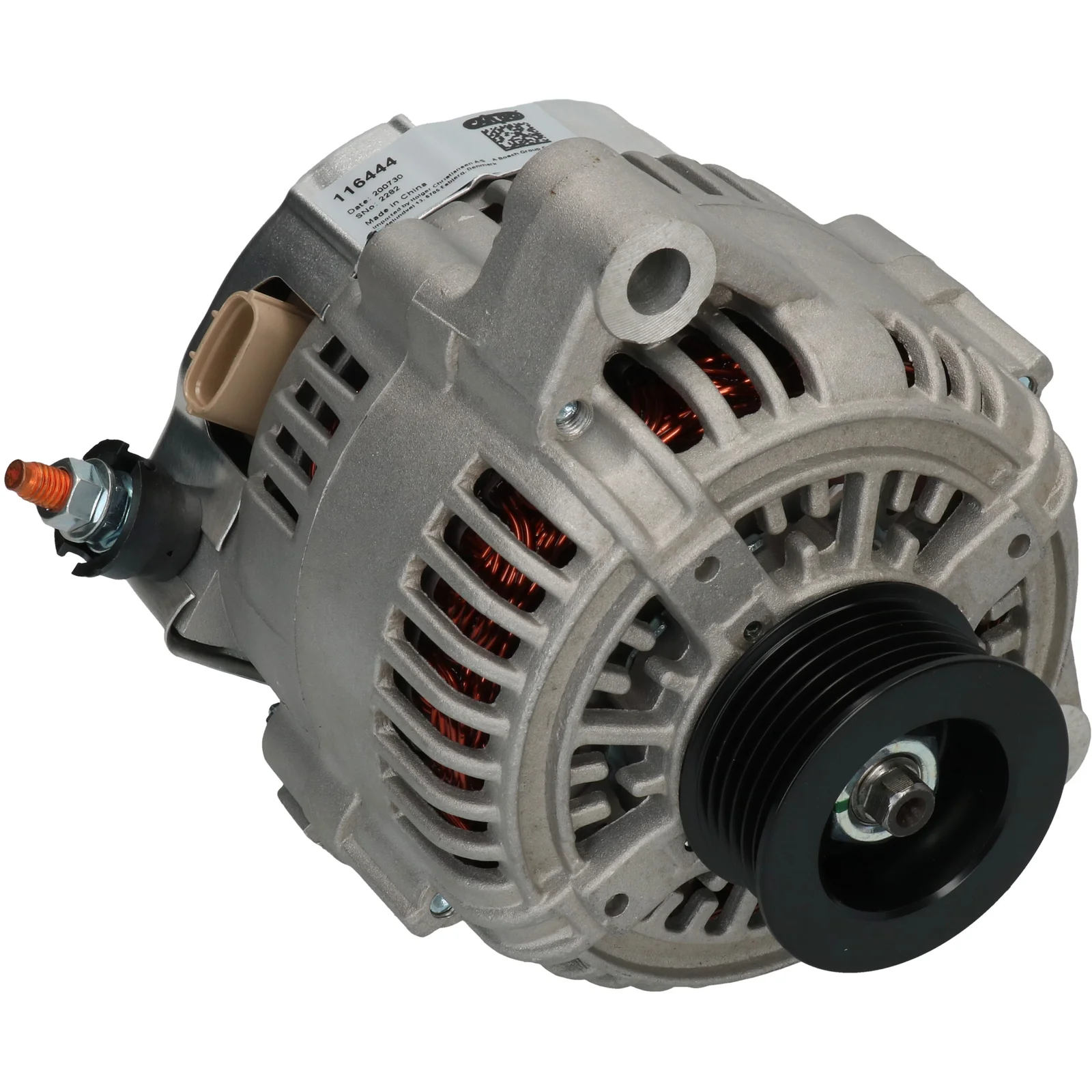

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116444

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Reimhjul diameter: 57.00, Radius: 85.00

Beskrivelse

Spenningsverdi: 14
Ampere: 100
Drevskive avstand: 88.00
Bredde/holderarm: 56.00
Utløp for brakett: 10.50
Beltjustering brakett hull pos.: 8
Beltjustering brakett hull 1: 12.00
Drevskivens diameter: 57.00
Riller/drevskive: 6
Radius: 85.00
Radius 2: 84.00
B+: M8
Posisjon/B+ i min.: 55
Kontakt nr.: PL42
Total lengde mm: 170.00
Terminaltype: L-IG-S
Lysstofftype: Inaktiv
Drevskive: SP
Vifte: IF

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 8
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 57.00
Pulley dist. 88.00
Radius 85.00
Radius 2 84.00
Fan IF
Grooves/pulley 6
Lamp type Inactive
Terminal type L-IG-S
Voltage 14
Total length 170.00 mm
Width/holder arm 56.00
Amp 100

  • OEM
    F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

  • Konkurrentreferens
    CAL40252, DRA0657, J5112107, LRA01927, 1-3791N, 28-3813, 195.561.100, 13715N, 13791N, 553725RI, 9062107, 12060746

  • NormaliseratArtNr
    cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300

  • Passar modeller
    Lexus Model: GS Model series: GS 300 Model type: T3 Size of motor: 3.0 Brand of engine: 2JZ-GE From date: 01-08-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
    Lexus Model: GS Model series: GS 300 Size of motor: 3.0 Brand of engine: 2JZ-GE Type description: JZS160 From date: 01-10-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Lexus Model: GS Model series: GS 430 Size of motor: 4.3 Brand of engine: 3UZ-FE Type description: JZS160 From date: 01-11-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Lexus Model: LS Model series: LS 400 Size of motor: 4.0 Brand of engine: 1UZ-FE From date: 01-09-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 100
    Drevskive avstand: 88.00
    Bredde/holderarm: 56.00
    Utløp for brakett: 10.50
    Beltjustering brakett hull pos.: 8
    Beltjustering brakett hull 1: 12.00
    Drevskivens diameter: 57.00
    Riller/drevskive: 6
    Radius: 85.00
    Radius 2: 84.00
    B+: M8
    Posisjon/B+ i min.: 55
    Kontakt nr.: PL42
    Total lengde mm: 170.00
    Terminaltype: L-IG-S
    Lysstofftype: Inaktiv
    Drevskive: SP
    Vifte: IF

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 8
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 88.00
    Radius 85.00
    Radius 2 84.00
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Terminal type L-IG-S
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 56.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

    • Konkurrentreferens
      CAL40252, DRA0657, J5112107, LRA01927, 1-3791N, 28-3813, 195.561.100, 13715N, 13791N, 553725RI, 9062107, 12060746

    • NormaliseratArtNr
      cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300

    • Passar modeller
      Lexus Model: GS Model series: GS 300 Model type: T3 Size of motor: 3.0 Brand of engine: 2JZ-GE From date: 01-08-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
      Lexus Model: GS Model series: GS 300 Size of motor: 3.0 Brand of engine: 2JZ-GE Type description: JZS160 From date: 01-10-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Lexus Model: GS Model series: GS 430 Size of motor: 4.3 Brand of engine: 3UZ-FE Type description: JZS160 From date: 01-11-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Lexus Model: LS Model series: LS 400 Size of motor: 4.0 Brand of engine: 1UZ-FE From date: 01-09-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
