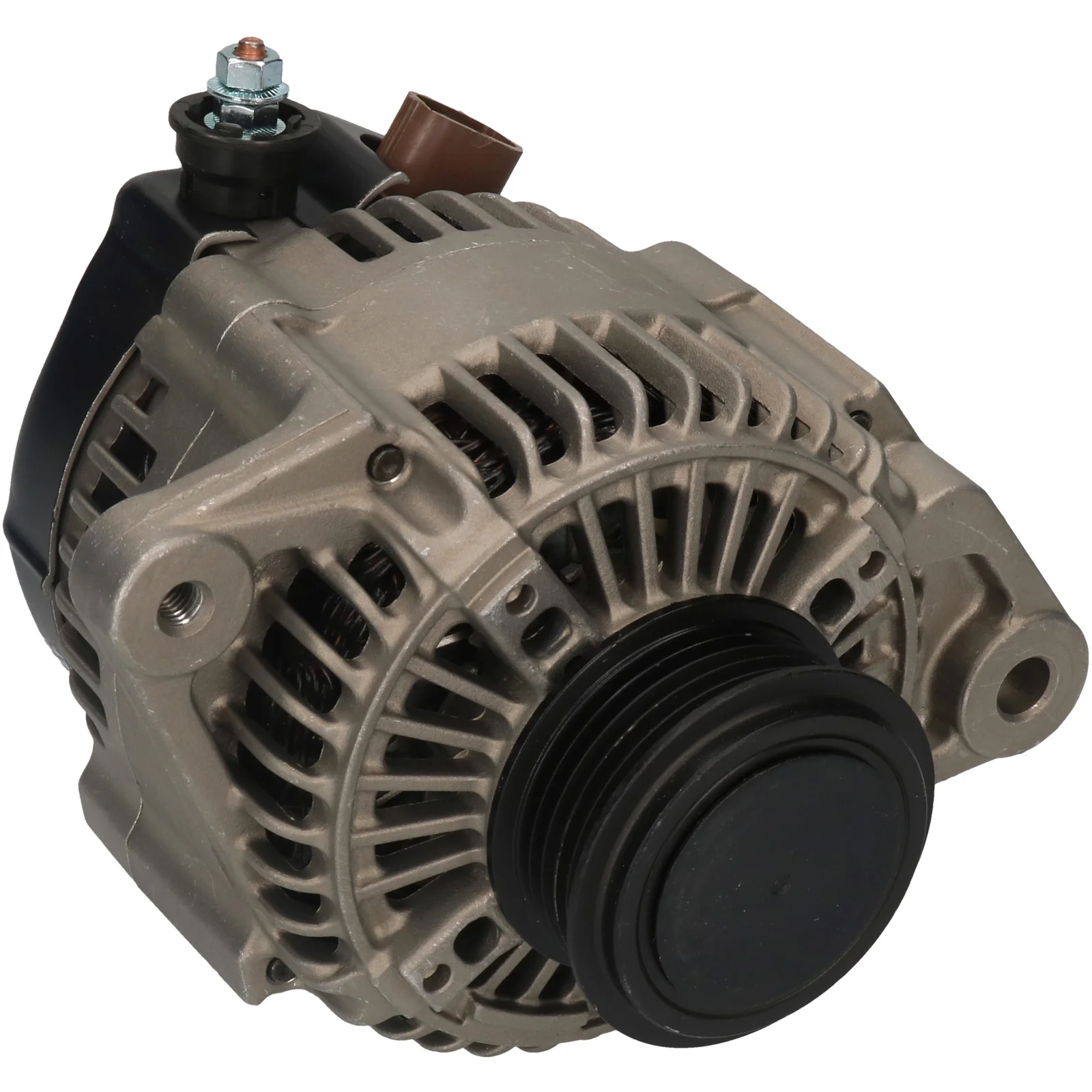

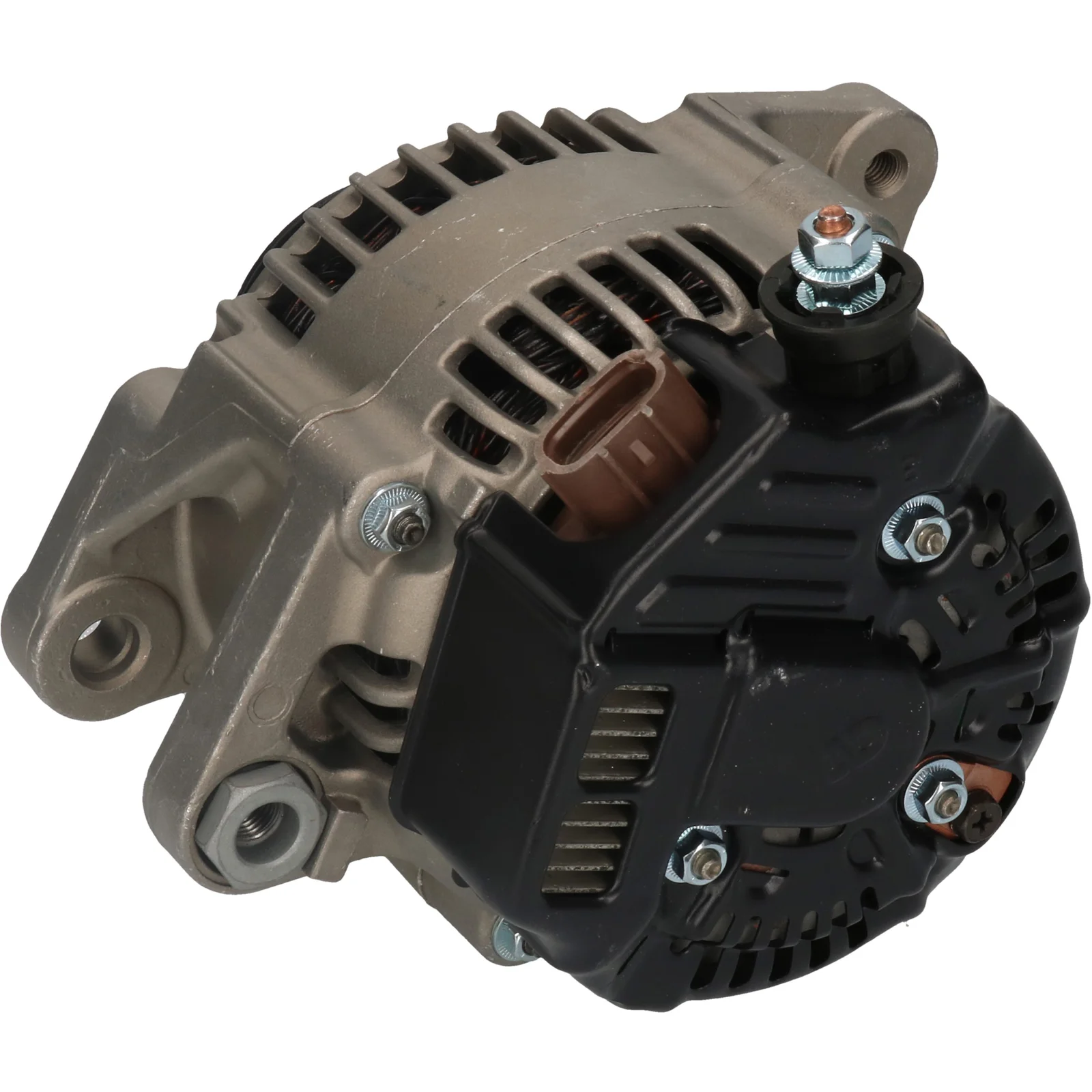

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114206

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett avstand: 42.00

Beskrivelse

Spenning: 14
Amp.: 90
Drevkugg dist.: 31,50
Bredde/holder arm: 18,00
Festebrakett dist.: 42,00
Brakett hull: 11,00
Brakett hull 2: M10
Beltesjustering brakkethull pos.: 3
Beltesjustering brakkethull 1: M8
Drevkugg dia.: 68,00
Grooves/drevkugg: 5
Radius: 81,00
Radius 2: 80,50
B+: M6
Posisjon/B+ i min.: 10
D+ størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL67
Total lengde mm: 159,00
Drevkugg: SP/FW
Service: Toyota

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL67
Bracket hole 11.00
Bracket hole 2 M10
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 68.00
Pulley dist. 31.50
Radius 81.00
D+ Size Plug
Radius 2 80.50
Rotation CW
Servicing Toyota
Grooves/pulley 5
Voltage 14
Total length 159.00 mm
Width/holder arm 18.00
Amp 90

  • OEM
    F032114206, ja1891ir, 27060-33040, 102211-2780

  • Konkurrentreferens
    A6015, CAL40158, DENDAN965, DRA0121, 8EL011711-361, 28-4922, 23859N, 23859R, 112610, 210677, 210677A, 401891RI, 440521, 9212696, 12060840, 0986082890, 063377505010

  • NormaliseratArtNr
    a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 14
    Amp.: 90
    Drevkugg dist.: 31,50
    Bredde/holder arm: 18,00
    Festebrakett dist.: 42,00
    Brakett hull: 11,00
    Brakett hull 2: M10
    Beltesjustering brakkethull pos.: 3
    Beltesjustering brakkethull 1: M8
    Drevkugg dia.: 68,00
    Grooves/drevkugg: 5
    Radius: 81,00
    Radius 2: 80,50
    B+: M6
    Posisjon/B+ i min.: 10
    D+ størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL67
    Total lengde mm: 159,00
    Drevkugg: SP/FW
    Service: Toyota

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL67
    Bracket hole 11.00
    Bracket hole 2 M10
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 68.00
    Pulley dist. 31.50
    Radius 81.00
    D+ Size Plug
    Radius 2 80.50
    Rotation CW
    Servicing Toyota
    Grooves/pulley 5
    Voltage 14
    Total length 159.00 mm
    Width/holder arm 18.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F032114206, ja1891ir, 27060-33040, 102211-2780

    • Konkurrentreferens
      A6015, CAL40158, DENDAN965, DRA0121, 8EL011711-361, 28-4922, 23859N, 23859R, 112610, 210677, 210677A, 401891RI, 440521, 9212696, 12060840, 0986082890, 063377505010

    • NormaliseratArtNr
      a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
