Varenr.: F032111831

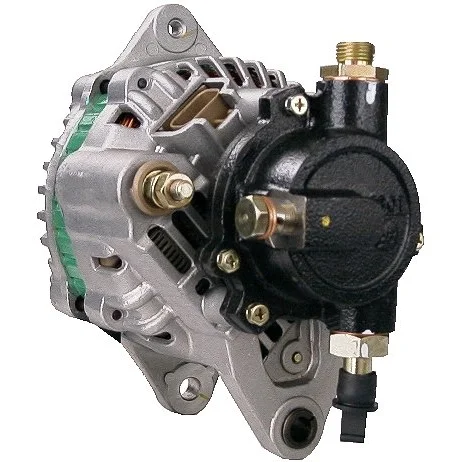

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: medur, Monteringsbøssing avstand: 77.00

Beskrivelse

Spenningsspenning: 14
Ampere: 100
Terminal: W
Drev: 42.00
Bredde/holderarm: 13.00
Monteringsbrakett avstand: 77.00
Brakettåpning: 10.50
Båndjustering avstand til brakettåpning: 60
Båndjustering brakettåpning 1: M8
Drev diameter: 80.50
Groper/drev: 1
Radius: 88.50
Radius 2: 84.00
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: med klokken
Plugg nr.: PL50
W-plug type: Plugg
Total lengde mm: 213.00
Drev: P
Regulator-type: IR
Vac. pumpe: Ja
Prod. info: BN
Service: Opel

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 77.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL50
Bracket hole 10.50
Position/B+ in min. 55
Prod. info BN
Pulley P
Pulley dia. 80.50
Pulley dist. 42.00
Radius 88.50
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Opel
Grooves/pulley 1
Terminal W
Vac. pump Yes
Voltage 14
W plug type Plug
Total length 213.00 mm
Width/holder arm 13.00
Amp 100

  • OEM
    F032111831, ja1370ir, lr1100-501, lr1100-501b, R1030094, 6204043, 6204047, 9512039, 90371768, 90371770, 97150201, 8971502010, 8971502011

  • Konkurrentreferens
    A2016, ALT-V002, ALT32043, ALT32088, ALTV002, CAL20107, DRA3789, DRA3789N, F042305029, F042A05029, lrb00299, MG727, 8EL011711-111, 8el737570-001, 28-2659, 228.131.1002, 6029, 21303N, 119661, 210103, 210103A, 401370RI, 437180, 12060702, 32043941, 0986043941, 0986043943, 944390900170

  • NormaliseratArtNr
    a2016, alt32043, alt32088, altv002, cal20107, dra3789, dra3789n, f032111831, f042305029, f042a05029, ja1370ir, lr1100501, lr1100501b, lrb00299, mg727, r1030094, 8el011711111, 8el737570001, 6029, 21303n, 119661, 210103, 210103a, 282659, 401370ri, 437180, 6204043, 6204047, 9512039, 12060702, 32043941, 90371768, 90371770, 97150201, 0986043941, 0986043943, 2281311002, 8971502010, 8971502011, 944390900170

  • Passar modeller
    Opel Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: X17DTL From date: 01-11-1994 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 100
    Terminal: W
    Drev: 42.00
    Bredde/holderarm: 13.00
    Monteringsbrakett avstand: 77.00
    Brakettåpning: 10.50
    Båndjustering avstand til brakettåpning: 60
    Båndjustering brakettåpning 1: M8
    Drev diameter: 80.50
    Groper/drev: 1
    Radius: 88.50
    Radius 2: 84.00
    B+: M8
    Posisjon/B+ i min.: 55
    Rotasjon: med klokken
    Plugg nr.: PL50
    W-plug type: Plugg
    Total lengde mm: 213.00
    Drev: P
    Regulator-type: IR
    Vac. pumpe: Ja
    Prod. info: BN
    Service: Opel

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 77.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL50
    Bracket hole 10.50
    Position/B+ in min. 55
    Prod. info BN
    Pulley P
    Pulley dia. 80.50
    Pulley dist. 42.00
    Radius 88.50
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Opel
    Grooves/pulley 1
    Terminal W
    Vac. pump Yes
    Voltage 14
    W plug type Plug
    Total length 213.00 mm
    Width/holder arm 13.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032111831, ja1370ir, lr1100-501, lr1100-501b, R1030094, 6204043, 6204047, 9512039, 90371768, 90371770, 97150201, 8971502010, 8971502011

    • Konkurrentreferens
      A2016, ALT-V002, ALT32043, ALT32088, ALTV002, CAL20107, DRA3789, DRA3789N, F042305029, F042A05029, lrb00299, MG727, 8EL011711-111, 8el737570-001, 28-2659, 228.131.1002, 6029, 21303N, 119661, 210103, 210103A, 401370RI, 437180, 12060702, 32043941, 0986043941, 0986043943, 944390900170

    • NormaliseratArtNr
      a2016, alt32043, alt32088, altv002, cal20107, dra3789, dra3789n, f032111831, f042305029, f042a05029, ja1370ir, lr1100501, lr1100501b, lrb00299, mg727, r1030094, 8el011711111, 8el737570001, 6029, 21303n, 119661, 210103, 210103a, 282659, 401370ri, 437180, 6204043, 6204047, 9512039, 12060702, 32043941, 90371768, 90371770, 97150201, 0986043941, 0986043943, 2281311002, 8971502010, 8971502011, 944390900170

    • Passar modeller
      Opel Model: Astra Model series: Astra F Type of engine: TD Size of motor: 1.7 Brand of engine: X17DTL From date: 01-11-1994 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Estate From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-12-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra F Type of engine: TDS Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-03-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
      Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) Body: Hatchback From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Opel Model: Vectra Model series: Vectra B Type of engine: TD Size of motor: 1.7 Brand of engine: X17DT (TC4EE1) From date: 01-10-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
