HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110385

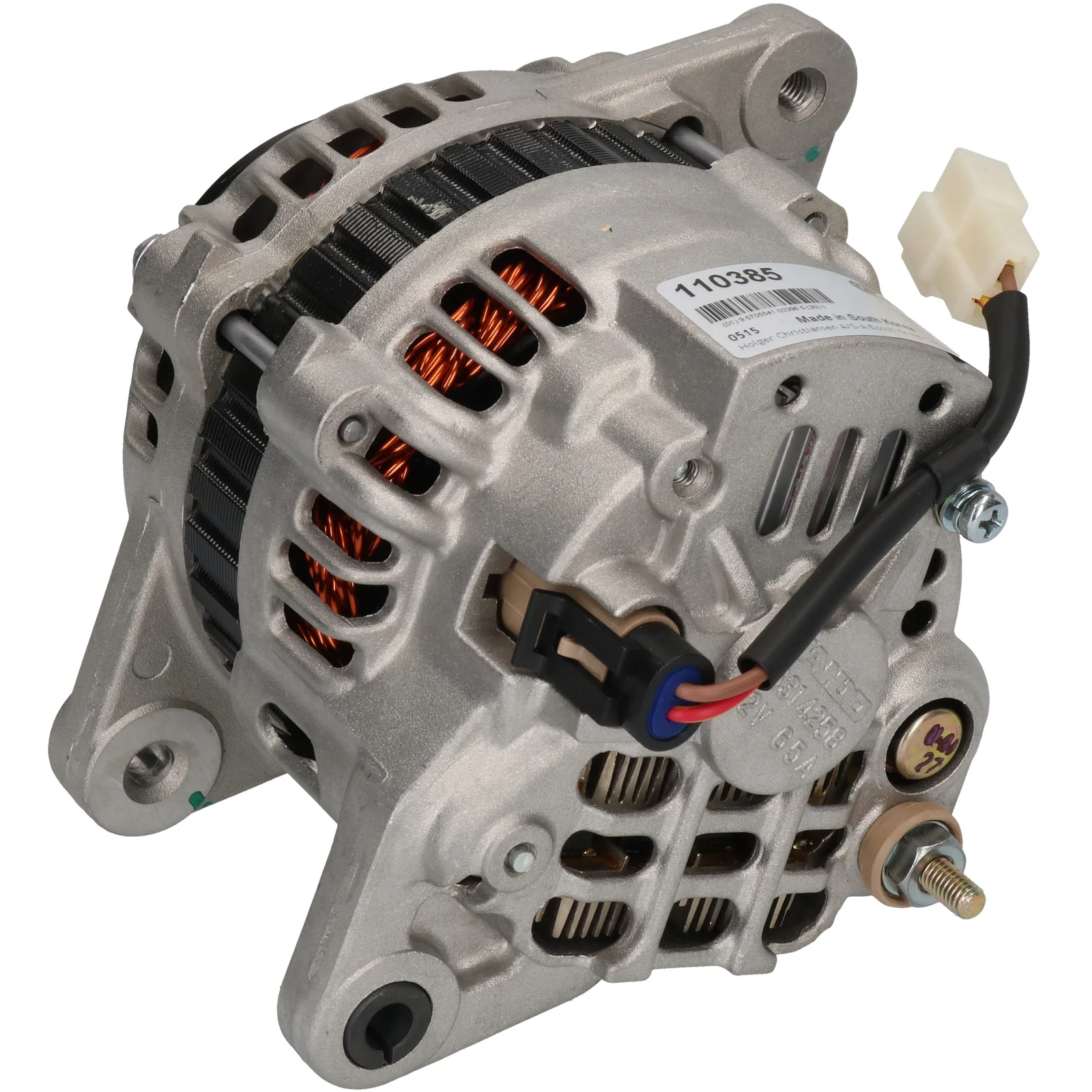

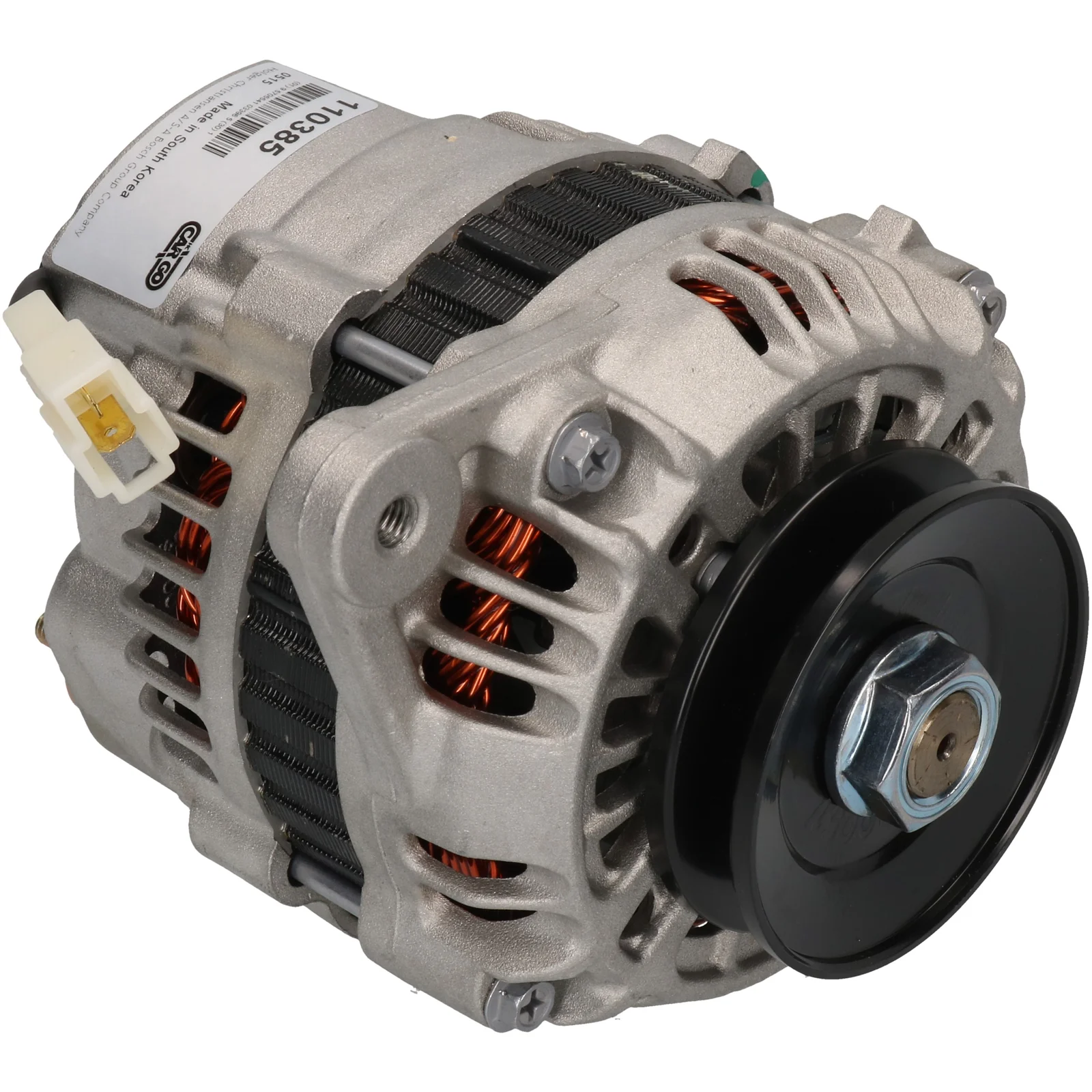

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 40, Rotasjon: CW, Monteringsbrakettavstand: 66,00

Beskrivelse

Subaru/Suzuki Dynamo 12V-40A 12V - 40A, 1V, (IG, L) For Yourex produkt bestilling 90-528-0171 Spenningssystem: 14 Ampere: 40 Pulleys avstand: 41.00 Bredde/holderarm: 15.00 Festebrakett avstand: 66.00 Brakett-hull: 8.50 Båndjustering brakett-hull posisjon: 60 Båndjustering brakett hull 1: M8 Pully diameter: 73.00 Groover/pulley: 1 Radius: 78.00 Radius 2: 78.00 B+: M6 Posisjon/B+ i min.: 2 Rotasjon: CW Stikkontakt nr.: PL10 Total lengde mm: 144.00 Drev: P Regulator type: IR Prod. info: BN Servise: Suzuki

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 8.50
Position/B+ in min. 2
Prod. info BN
Pulley P
Pulley dia. 73.00
Pulley dist. 41.00
Radius 78.00
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Suzuki
Grooves/pulley 1
Voltage 14
Total length 144.00 mm
Width/holder arm 15.00
Amp 40

  • OEM
    A001T33771, A1T-33771, a1t33771, E9SFBA, F032110385, ja171ir, LR140-128, lr140-128, LRA 536, LRA 950, 3C2411000AA, 3C2Z11002AA, 31400-80010, 31400-80011, 42990-5600, 110385, 1516881R

  • Konkurrentreferens
    A2075, A5028, A5250, ALT-H004, ALT31041, asa-395, aza-412, CAL20110, dra3217, DRA6501, F042A0H004, FRA655, J5118005, lra00536, lra00950, LRA02637, QA1405, va237, 8el726316-001, 28-1529, 28-1675, 36-51.701, 37-51.805, 233.101.402, 245.101.402, 2539, 3268N, 20536R, 40171RI, 56057, 118343, 210107, 210107A, 437162, 9051701, 12060310, 12060460, 0986036501, 0986036503, 943346067010, 944390518050

  • Bilmärken
    Bedford, Subaru, Suzuki

  • NormaliseratArtNr
    a001t33771, a1t33771, a2075, a5028, a5250, alt31041, alth004, asa395, aza412, cal20110, dra3217, dra6501, e9sfba, f032110385, f042a0h004, fra655, j5118005, ja171ir, lr140128, lra00536, lra00950, lra02637, lra536, lra950, qa1405, va237, 3c2411000aa, 3c2z11002aa, 8el726316001, 2539, 3268n, 20536r, 40171ri, 56057, 110385, 118343, 210107, 210107a, 281529, 281675, 437162, 1516881r, 3651701, 3751805, 9051701, 12060310, 12060460, 233101402, 245101402, 429905600, 0986036501, 0986036503, 3140080010, 3140080011, 943346067010, 944390518050

  • Passar modeller
    Bedford Series: Rascal Year: 00.86-
    Subaru Model: Rex Model series: Rex Model type: 550 4WD Size of motor: 0.5 Brand of engine: EK23 Body: Hatchback From date: 01-08-1983 To date: 01-06-1987 Fuel: Gasoline Approved: Yes
    Subaru Model: Rex Model series: Rex Model type: 550 Size of motor: 0.5 Brand of engine: EK23 Body: Hatchback From date: 01-08-1981 To date: 01-06-1987 Fuel: Gasoline Approved: Yes
    Subaru Model: Rex Model series: Rex Model type: 550 Type of engine: Turbo Size of motor: 0.5 Body: Hatchback From date: 01-07-1984 To date: 01-06-1987 Fuel: Gasoline Approved: Yes
    Subaru Model: Rex Model series: Rex Model type: 700 Size of motor: 0.7 Brand of engine: EK42 Body: Hatchback From date: 01-08-1982 To date: 01-06-1989 Fuel: Gasoline Approved: Yes
    Subaru Series: Rex II Model: 550 Engine volume: 0.5 Engine type: EK 23 Year: 08.81-10.85
    Subaru Series: Rex II Model: 700 Engine volume: 0.7 Engine type: EK 42 Year: 08.82-10.85
    Suzuki Model: Alto Model series: Alto Size of motor: 0.8 Brand of engine: F8B Type description: SB308,CA Body: Hatchback From date: 01-01-1986 To date: 01-12-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-11-1996 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-09-1994 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1985 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: ED Body: Bus From date: 01-10-1992 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Size of motor: 1.0 Brand of engine: F10A Type description: SK410 Body: Van From date: 01-07-1985 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: Carry Model series: Carry Van Size of motor: 1.0 Brand of engine: F10A Body: Van From date: 01-10-1995 To date: 01-03-1999 Fuel: Petrol Approved: Yes
    Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 Body: Convertible From date: 01-09-1981 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-09-1981 To date: 01-12-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Super Carry Model series: Super Carry Box Size of motor: 1.0 Brand of engine: F10A Type description: ED SK410 Body: Van From date: 01-04-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    Suzuki Series: Alto II (EC) Model: 0.8 Engine volume: 0.8 Engine type: F 8 B Year: 01.86-11.93
    Suzuki Series: Carry Model: 1.0 Engine volume: 1.0 Engine type: F 10 A Year: 10.85-01.88
    Suzuki Series: SJ 410 Model: 1.0 Engine volume: 1.0 Engine type: F 10 A Year: 03.87-12.88
    1 / 4
