HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110694

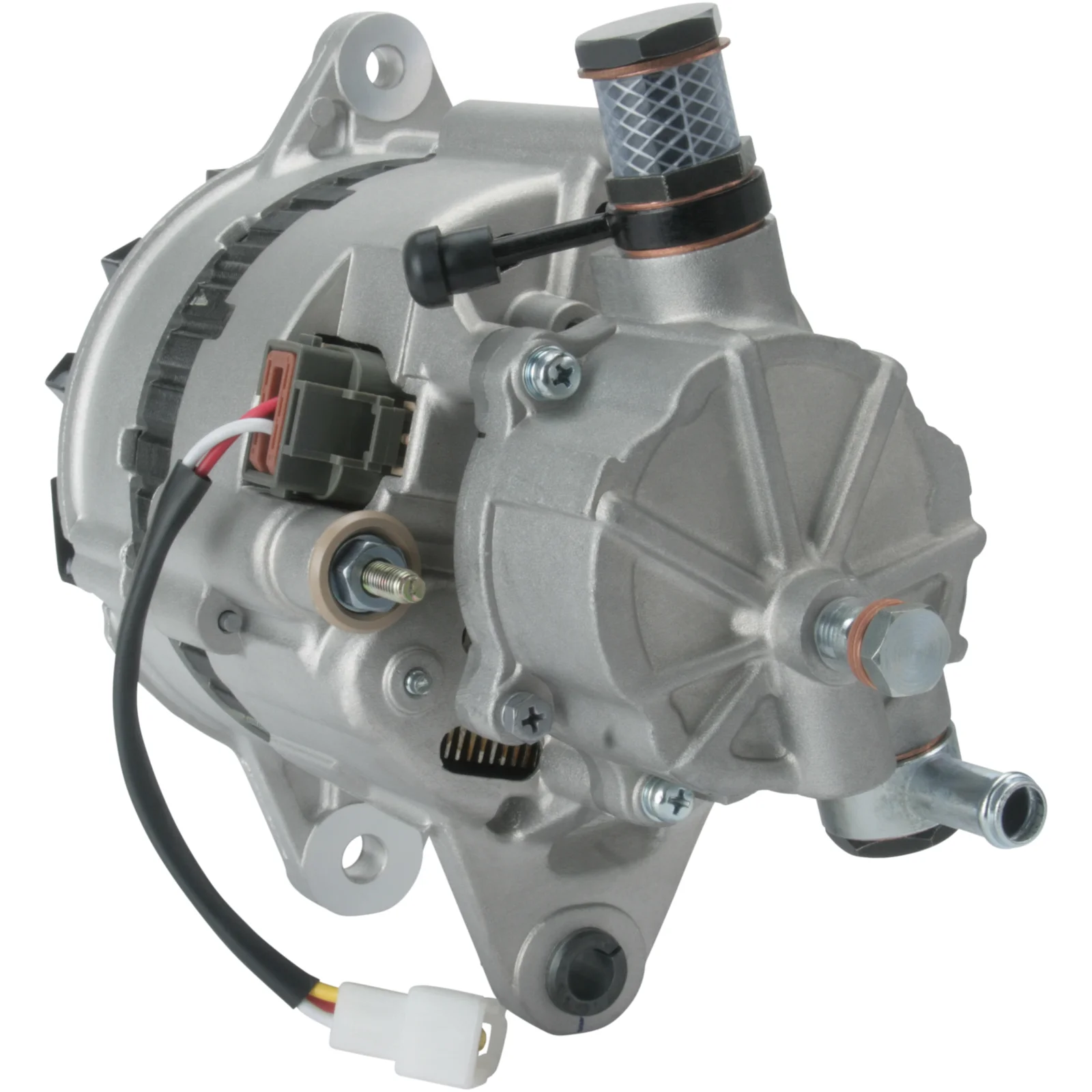

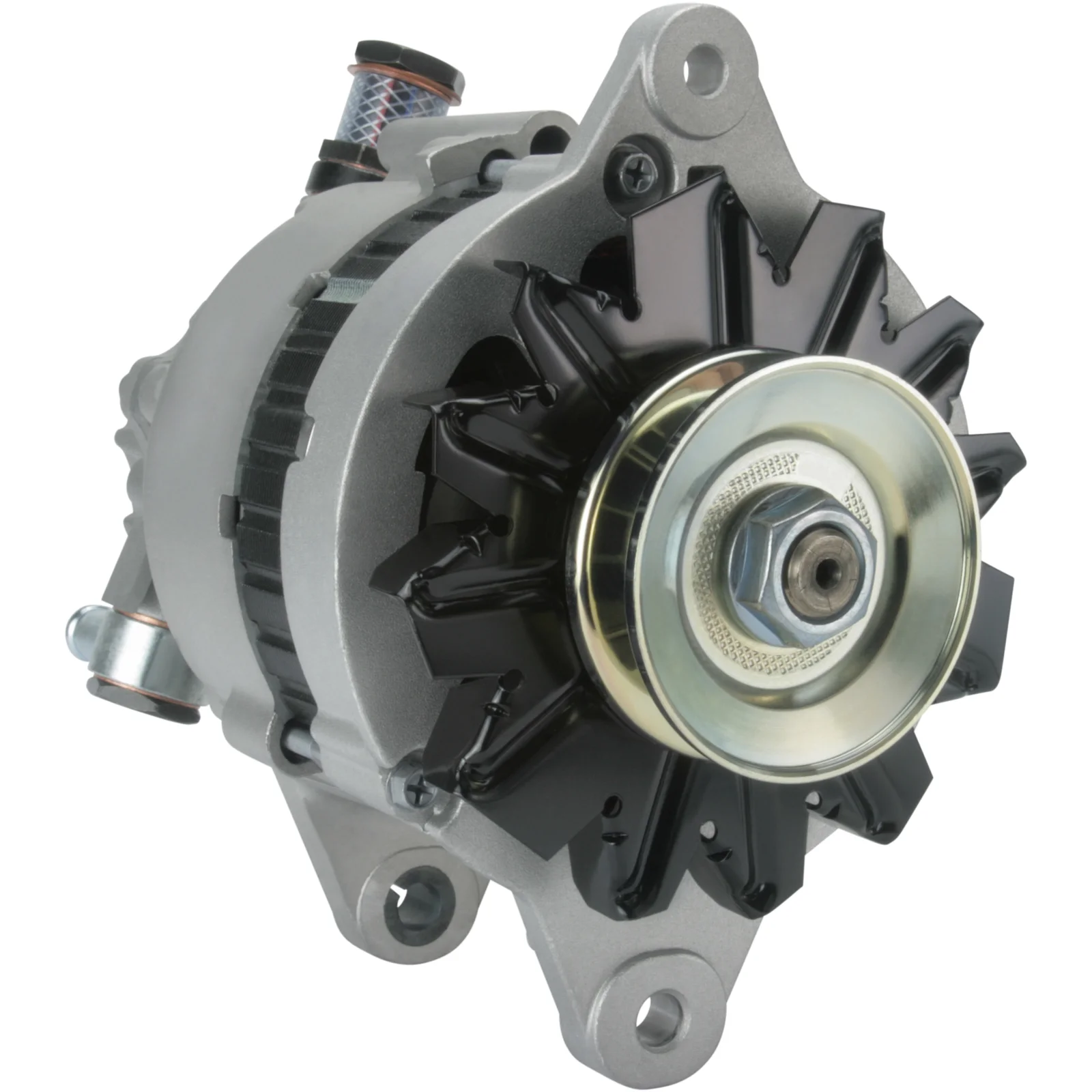

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 40, Rotasjon: CW, Montering. brakett avstand.: 80.50

Beskrivelse

Nissan King-K. Innslagsrelé 12V-40A 12V - 40A Alternativ 12V-60A = 90-400-0181 For Yourex produkt ordre 90-400-0402

Spenningsnivå: 14
Ampere: 40
Drevkugg avstand: 42,00
Bredde/holderarm: 13,00
Monteringsbeslag avstand: 80,50
Beslagshull: 10,30
Beltjustering beslagsposisjon: 60
Beltjusteringsbeslagshull 1: 8,50
Drev diameter: 74,00
Groover/drev: 1
Radius: 89,00
Radius 2: 84,00
B+: M6
Posisjon/B+ i min.: 43
Rotasjon: CW
Stift nr.: PL04
Total lengde mm: 226,00
Drev: P
Regulator type: IR
Kjølevifte: Ja
Prod. info: BN
Servicetjening: Nissan

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL04
Bracket hole 10.30
Position/B+ in min. 43
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 42.00
Radius 89.00
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 226.00 mm
Width/holder arm 13.00
Amp 40

  • OEM
    apr140aa, F032110694, ja565ir, LR 140-119, LR 140-130, lr140-119, LR140-119C, lr140-119c, lr140-130, LR140-130B, lr140-130b, LR140-130P, lr140-130p, LR140-402, lr140-402, LR140-408, lr140-408, LR150-401, m35529, 2ea0629, 23099-09W10, 23099-09w10, 23099-34w01, 23099-R8103, 23099-r8103, 23099-R8109, 23099-r8109, 23099-R8700, 23099-r8700, 23099-r9109, 23100-36W01, 110694

  • Konkurrentreferens
    ada-962, ada-964, ALT23005, ALT32072, CAL20169, dra3099, J5111039, LRA01215, 1-2481-01HI, 8el726356-001, 28-0798, 28-51.139, 227.106.402, 2511, 12118, 12118N, 40565RI, 55568, 119103, 437861, 9051139, 12060229, 0986037551

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    ada962, ada964, alt23005, alt32072, apr140aa, cal20169, dra3099, f032110694, j5111039, ja565ir, lr140119, lr140119c, lr140130, lr140130b, lr140130p, lr140402, lr140408, lr150401, lra01215, m35529, 2ea0629, 8el726356001, 2511, 12118, 12118n, 23099r8103, 23099r8109, 23099r8700, 23099r9109, 40565ri, 55568, 110694, 119103, 280798, 437861, 1248101hi, 2309909w10, 2309934w01, 2310036w01, 2851139, 9051139, 12060229, 227106402, 0986037551

  • Passar modeller
    Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.2 Brand of engine: SD22 Type description: 720 From date: 01-07-1979 To date: 01-08-1985 Fuel: Diesel Approved: Yes
    Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 From date: 01-01-1983 To date: 01-05-1985 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.2 Brand of engine: SD22 Type description: E23 Body: Van From date: 01-07-1981 To date: 01-11-1982 Fuel: Diesel Approved: Yes
    Nissan Series: Cherry (N12) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 10.82-12.86
    Nissan Series: PICK UP (720) Model: 2.2 D Engine volume: 2.2 Engine type: SD22 Year: 01.82-01.84
    Nissan Series: PICK UP (720) Model: 2.3 D Engine volume: 2.3 Engine type: SD23 Year: 04.83-03.86
    Nissan Series: PICK UP (720) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD25 Year: 04.83-03.86
    Nissan Series: Pick-Up (720) Model: 2.2 D Engine volume: 2.2 Engine type: SD 22 Year: 01.82-01.84
    Nissan Series: Pick-Up (720) Model: 2.3 D Engine volume: 2.3 Engine type: SD 23 Year: 04.83-03.86
    Nissan Series: Pick-Up (720) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 04.83-03.86
    1 / 3
  • Beskrivelse
    Nissan King-K. Innslagsrelé 12V-40A 12V - 40A Alternativ 12V-60A = 90-400-0181 For Yourex produkt ordre 90-400-0402

    Spenningsnivå: 14
    Ampere: 40
    Drevkugg avstand: 42,00
    Bredde/holderarm: 13,00
    Monteringsbeslag avstand: 80,50
    Beslagshull: 10,30
    Beltjustering beslagsposisjon: 60
    Beltjusteringsbeslagshull 1: 8,50
    Drev diameter: 74,00
    Groover/drev: 1
    Radius: 89,00
    Radius 2: 84,00
    B+: M6
    Posisjon/B+ i min.: 43
    Rotasjon: CW
    Stift nr.: PL04
    Total lengde mm: 226,00
    Drev: P
    Regulator type: IR
    Kjølevifte: Ja
    Prod. info: BN
    Servicetjening: Nissan

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL04
    Bracket hole 10.30
    Position/B+ in min. 43
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 42.00
    Radius 89.00
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 226.00 mm
    Width/holder arm 13.00
    Amp 40
  • Kjøretøymatching

    • OEM
      apr140aa, F032110694, ja565ir, LR 140-119, LR 140-130, lr140-119, LR140-119C, lr140-119c, lr140-130, LR140-130B, lr140-130b, LR140-130P, lr140-130p, LR140-402, lr140-402, LR140-408, lr140-408, LR150-401, m35529, 2ea0629, 23099-09W10, 23099-09w10, 23099-34w01, 23099-R8103, 23099-r8103, 23099-R8109, 23099-r8109, 23099-R8700, 23099-r8700, 23099-r9109, 23100-36W01, 110694

    • Konkurrentreferens
      ada-962, ada-964, ALT23005, ALT32072, CAL20169, dra3099, J5111039, LRA01215, 1-2481-01HI, 8el726356-001, 28-0798, 28-51.139, 227.106.402, 2511, 12118, 12118N, 40565RI, 55568, 119103, 437861, 9051139, 12060229, 0986037551

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      ada962, ada964, alt23005, alt32072, apr140aa, cal20169, dra3099, f032110694, j5111039, ja565ir, lr140119, lr140119c, lr140130, lr140130b, lr140130p, lr140402, lr140408, lr150401, lra01215, m35529, 2ea0629, 8el726356001, 2511, 12118, 12118n, 23099r8103, 23099r8109, 23099r8700, 23099r9109, 40565ri, 55568, 110694, 119103, 280798, 437861, 1248101hi, 2309909w10, 2309934w01, 2310036w01, 2851139, 9051139, 12060229, 227106402, 0986037551

    • Passar modeller
      Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.2 Brand of engine: SD22 Type description: 720 From date: 01-07-1979 To date: 01-08-1985 Fuel: Diesel Approved: Yes
      Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 From date: 01-01-1983 To date: 01-05-1985 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.2 Brand of engine: SD22 Type description: E23 Body: Van From date: 01-07-1981 To date: 01-11-1982 Fuel: Diesel Approved: Yes
      Nissan Series: Cherry (N12) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 10.82-12.86
      Nissan Series: PICK UP (720) Model: 2.2 D Engine volume: 2.2 Engine type: SD22 Year: 01.82-01.84
      Nissan Series: PICK UP (720) Model: 2.3 D Engine volume: 2.3 Engine type: SD23 Year: 04.83-03.86
      Nissan Series: PICK UP (720) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD25 Year: 04.83-03.86
      Nissan Series: Pick-Up (720) Model: 2.2 D Engine volume: 2.2 Engine type: SD 22 Year: 01.82-01.84
      Nissan Series: Pick-Up (720) Model: 2.3 D Engine volume: 2.3 Engine type: SD 23 Year: 04.83-03.86
      Nissan Series: Pick-Up (720) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 04.83-03.86
