HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116488

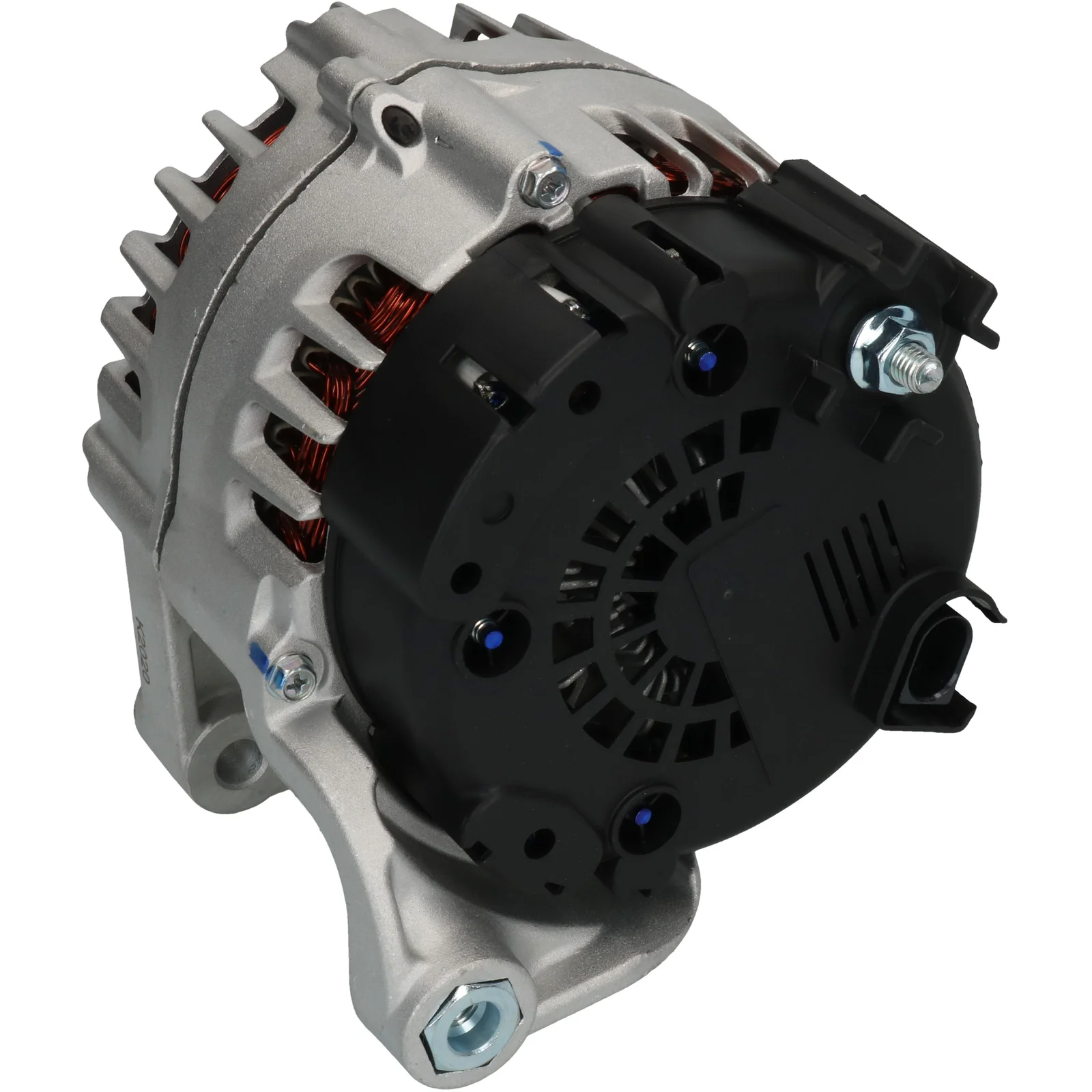

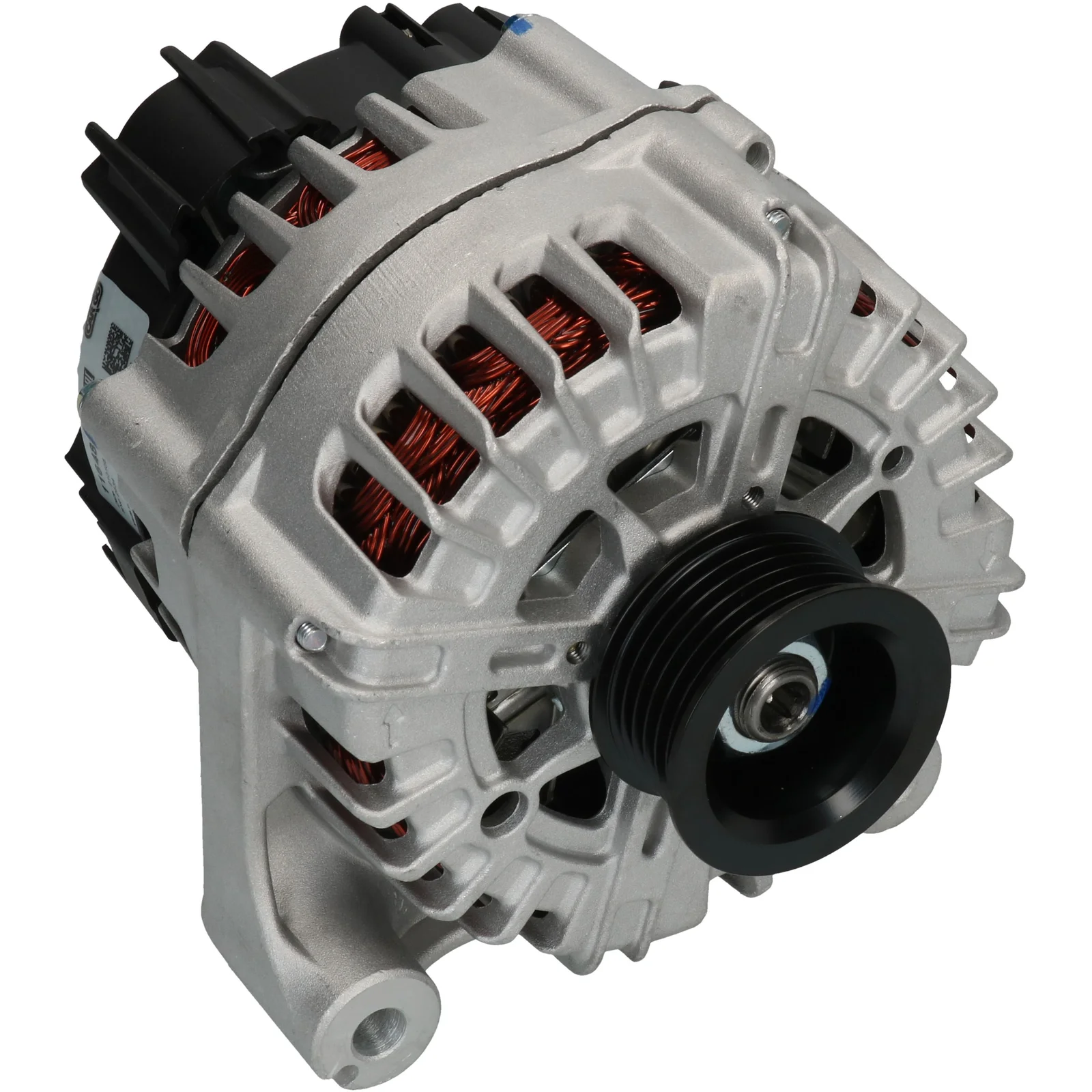

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 75,40

Beskrivelse

Spennings: 14
Ampere: 180
Drev: 60.00
Bredde/holderarm: 28.00
Festebrakett avstand: 75.40
Brakettets hull: 11.00
Båndjusteringsbrakettpos.: 44
Båndjusteringsbrakett hull 1: M10
Drev diameter: 52.00
Riller/drev: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Posisjon/B+ i min.: 59
Rotasjon: medur
Plugg nr.: PL125
Total lengde mm: 180.50
Klemme type: COM
ID-kode: 53
Kommunikasjon: BSS
Drev: SP
Vifte: IF
Regulator type: IR
Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 75.40
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 44
Plug no. PL125
Bracket hole 11.00
Position/B+ in min. 59
Pulley SP
Pulley dia. 52.00
Pulley dist. 60.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 53
Terminal type COM
Voltage 14
Total length 180.50 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

  • Konkurrentreferens
    A3438S, CAL15484, DRA0758, LRA03300, 28-5912, 215.190.1802, 215.541.180, 11450R, 209171, 209171A, 439675, 440252, 554216RI, 9090715, 12090456

  • NormaliseratArtNr
    a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656

  • Passar modeller
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E90 From date: 01-12-2007 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E93 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.4 Brand of engine: S65B44A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spennings: 14
    Ampere: 180
    Drev: 60.00
    Bredde/holderarm: 28.00
    Festebrakett avstand: 75.40
    Brakettets hull: 11.00
    Båndjusteringsbrakettpos.: 44
    Båndjusteringsbrakett hull 1: M10
    Drev diameter: 52.00
    Riller/drev: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Posisjon/B+ i min.: 59
    Rotasjon: medur
    Plugg nr.: PL125
    Total lengde mm: 180.50
    Klemme type: COM
    ID-kode: 53
    Kommunikasjon: BSS
    Drev: SP
    Vifte: IF
    Regulator type: IR
    Merknader: Denne generatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.40
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 44
    Plug no. PL125
    Bracket hole 11.00
    Position/B+ in min. 59
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 60.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 53
    Terminal type COM
    Voltage 14
    Total length 180.50 mm
    Width/holder arm 28.00
    Amp 180
  • Kjøretøymatching

    • OEM
      F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

    • Konkurrentreferens
      A3438S, CAL15484, DRA0758, LRA03300, 28-5912, 215.190.1802, 215.541.180, 11450R, 209171, 209171A, 439675, 440252, 554216RI, 9090715, 12090456

    • NormaliseratArtNr
      a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656

    • Passar modeller
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E90 From date: 01-12-2007 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E93 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.4 Brand of engine: S65B44A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
