HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110970

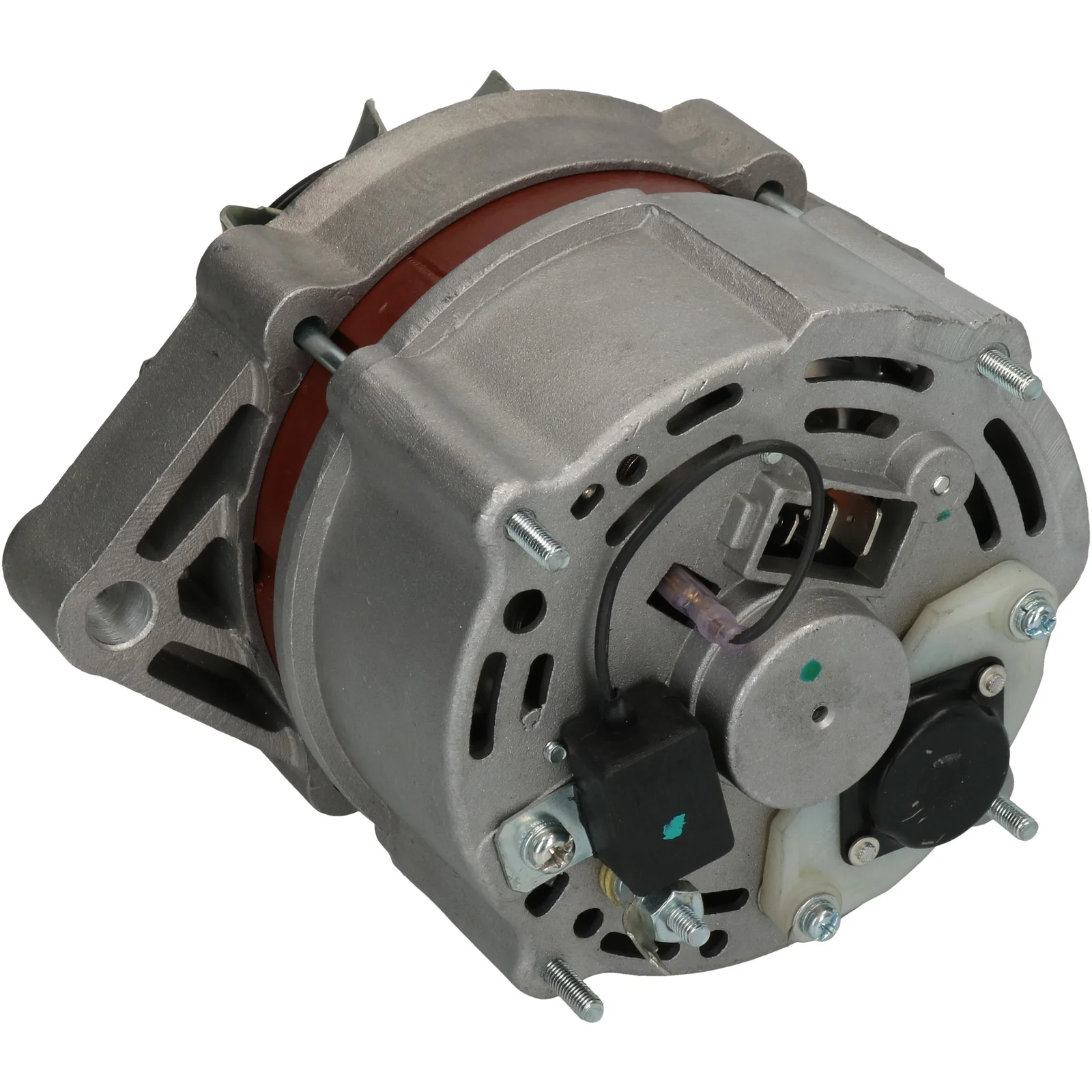

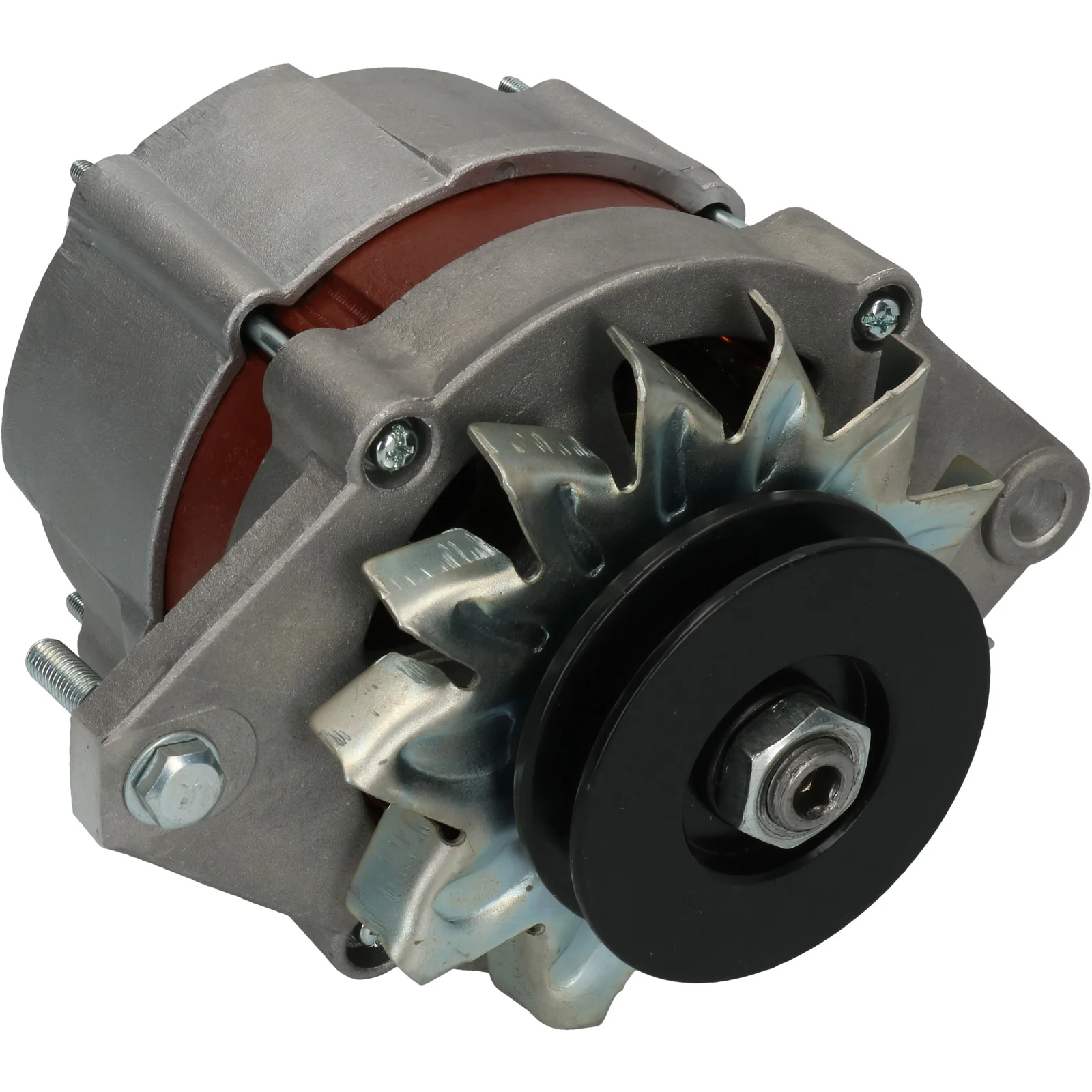

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 65, Rotasjon: CW, Topp diameter.: 80,00

Beskrivelse

Spenningsverdi: 14
Ampere: 65
Terminal: W
Bøssing dist.: 58.00
Bredde/holder arm: 27.00
Gavl hull: 10.00
Båndjustering gavl hull pos.: 60
Båndjustering gavl hull 1: 8.00
Drevdiameter: 80.00
Grooves/drev: 1
Radius: 83.00
Radius 2: 86.50
B+: M6
Posisjon/B+ i min.: 20
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL22
Drev: P
Regulator type: IR
Prod. info: BN
Service: Massey Ferguson

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 60
Plug no. PL22
Bracket hole 10.00
Position/B+ in min. 20
Prod. info BN
Pulley P
Pulley dia. 80.00
Pulley dist. 58.00
Radius 83.00
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing Massey Ferguson
Grooves/pulley 1
Terminal W
Voltage 14
Width/holder arm 27.00
Amp 65

  • OEM
    aag1310, C000900010040, CT6005701120, F032110970, nab302, 9ar2547, 9ar2547f, 9ar2548, 9ar2548k, 9ar2549, 9ar2549f, 9AR2566, 11.201.095, 510-38, 510-39, 510-56, 23865a, 24123a, 1618473M91, 1618474M91, 1618477M91, 1618478M91, 1691795R92, 1699871T, 1874681M91, 1874758M92, 1875955M1, 1875955M91, 1875958M92, 1895271M91, 1897264M91, 3637264R91, 6005701120

  • Konkurrentreferens
    A9087, ALT-4025, BAO3017, CAL21106, dra3458, F042306000, F042A06000, ia0095, MG462, 8EL015643-181, 8el737666-001, 28-0607, 244.101.282, 244.102.35a, 2043, 5768, 12038N, 12103N, 75615, 119423, 301461RI, 436263, 32510057

  • NormaliseratArtNr
    a9087, aag1310, alt4025, bao3017, c000900010040, cal21106, ct6005701120, dra3458, f032110970, f042306000, f042a06000, ia0095, mg462, nab302, 8el015643181, 8el737666001, 9ar2547, 9ar2547f, 9ar2548, 9ar2548k, 9ar2549, 9ar2549f, 9ar2566, 2043, 5768, 12038n, 12103n, 23865a, 24123a, 51038, 51039, 51056, 75615, 119423, 280607, 301461ri, 436263, 1618473m91, 1618474m91, 1618477m91, 1618478m91, 1691795r92, 1699871t, 1874681m91, 1874758m92, 1875955m1, 1875955m91, 1875958m92, 1895271m91, 1897264m91, 3637264r91, 11201095, 24410235a, 32510057, 244101282, 6005701120

  • Passar modeller
    Massey Ferguson Model: MF 200 Model series: 240 Size of motor: 2.5 From date: 01-01-1979 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 254 Size of motor: 2.5 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 260 Size of motor: 3.3 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 265 From date: 01-01-1981 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 274 Size of motor: 3.9 From date: 01-01-1983 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 275 From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 284 Size of motor: 3.9 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 285 From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 2000 Model series: 2640 From date: 01-01-1979 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: Various Models Model series: Various Models From date: 01-01-1951 Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 65
    Terminal: W
    Bøssing dist.: 58.00
    Bredde/holder arm: 27.00
    Gavl hull: 10.00
    Båndjustering gavl hull pos.: 60
    Båndjustering gavl hull 1: 8.00
    Drevdiameter: 80.00
    Grooves/drev: 1
    Radius: 83.00
    Radius 2: 86.50
    B+: M6
    Posisjon/B+ i min.: 20
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL22
    Drev: P
    Regulator type: IR
    Prod. info: BN
    Service: Massey Ferguson

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 60
    Plug no. PL22
    Bracket hole 10.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley P
    Pulley dia. 80.00
    Pulley dist. 58.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.50
    Regulator type IR
    Rotation CW
    Servicing Massey Ferguson
    Grooves/pulley 1
    Terminal W
    Voltage 14
    Width/holder arm 27.00
    Amp 65
  • Kjøretøymatching

    • OEM
      aag1310, C000900010040, CT6005701120, F032110970, nab302, 9ar2547, 9ar2547f, 9ar2548, 9ar2548k, 9ar2549, 9ar2549f, 9AR2566, 11.201.095, 510-38, 510-39, 510-56, 23865a, 24123a, 1618473M91, 1618474M91, 1618477M91, 1618478M91, 1691795R92, 1699871T, 1874681M91, 1874758M92, 1875955M1, 1875955M91, 1875958M92, 1895271M91, 1897264M91, 3637264R91, 6005701120

    • Konkurrentreferens
      A9087, ALT-4025, BAO3017, CAL21106, dra3458, F042306000, F042A06000, ia0095, MG462, 8EL015643-181, 8el737666-001, 28-0607, 244.101.282, 244.102.35a, 2043, 5768, 12038N, 12103N, 75615, 119423, 301461RI, 436263, 32510057

    • NormaliseratArtNr
      a9087, aag1310, alt4025, bao3017, c000900010040, cal21106, ct6005701120, dra3458, f032110970, f042306000, f042a06000, ia0095, mg462, nab302, 8el015643181, 8el737666001, 9ar2547, 9ar2547f, 9ar2548, 9ar2548k, 9ar2549, 9ar2549f, 9ar2566, 2043, 5768, 12038n, 12103n, 23865a, 24123a, 51038, 51039, 51056, 75615, 119423, 280607, 301461ri, 436263, 1618473m91, 1618474m91, 1618477m91, 1618478m91, 1691795r92, 1699871t, 1874681m91, 1874758m92, 1875955m1, 1875955m91, 1875958m92, 1895271m91, 1897264m91, 3637264r91, 11201095, 24410235a, 32510057, 244101282, 6005701120

    • Passar modeller
      Massey Ferguson Model: MF 200 Model series: 240 Size of motor: 2.5 From date: 01-01-1979 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 254 Size of motor: 2.5 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 260 Size of motor: 3.3 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 265 From date: 01-01-1981 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 274 Size of motor: 3.9 From date: 01-01-1983 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 275 From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 284 Size of motor: 3.9 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 285 From date: 01-01-1975 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 2000 Model series: 2640 From date: 01-01-1979 To date: 01-01-1985 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: Various Models Model series: Various Models From date: 01-01-1951 Approved: Yes
