Varenr.: F032113621

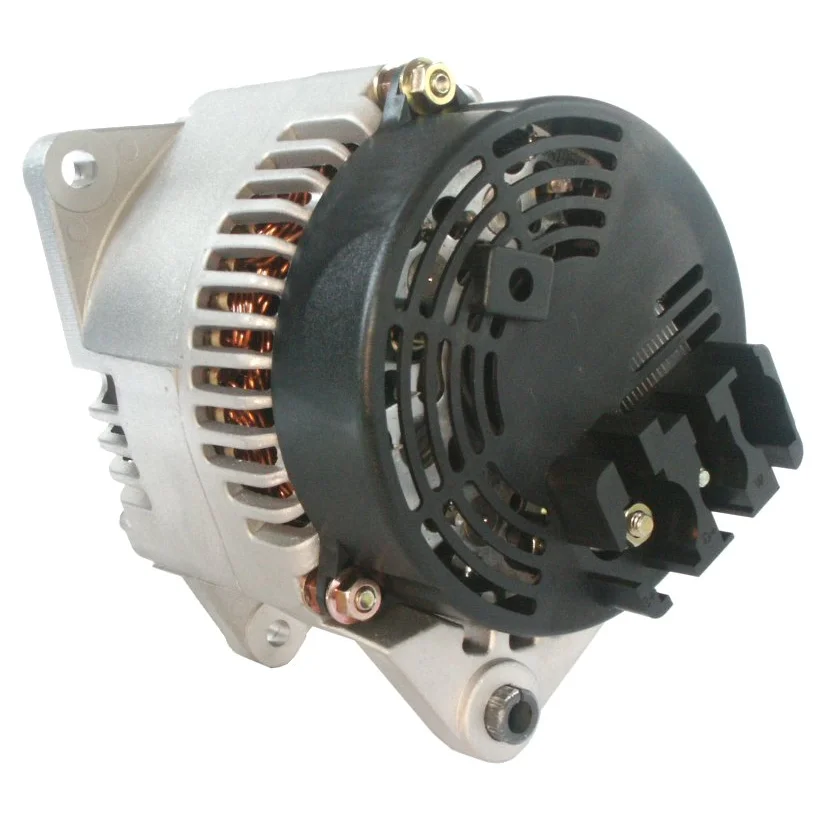

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 115, Roter.: CW, Monteringsfeste avstand: 83.30

Beskrivelse

Ford Transit 2.3 Gen. 115A 12V - 115A for Yourex produkt bestilling F032113621

Volts: 14
Ampere: 115
Drivskive avstand: 34.00
Bredde/holder arm: 14.00
Festebrakett avstand: 83.30
Hakeflate hull: 8.20
Belt. justering brakethole posisjon: 10
Belt. justering brakethole 1: 10.50
Drivskive diameter: 55.00
Spor / drivskive: 6
Radius: 85.00
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 25
D+ Størrelse: M5
Rotasjon: med urviseren
Total lengde mm: 186.00
Drivskive: SP
Regulator type: IR
Prod. info: BN
Service: Ford

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 83.30
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 10
Bracket hole 8.20
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 34.00
Radius 85.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 186.00 mm
Width/holder arm 14.00
Amp 115

  • OEM
    F032113621, 1C1T-10300BB, 1c1t10300bb, 4170444, 63321743, 63321817, 82020011

  • Konkurrentreferens
    ALT-4228, ALT12024, ALT4228, CAL30214, DRA0775, DRA0812, F042307018, F042307019, F042A07018, F042A07019, 12740R, 210407, 210407A, 12090239

  • Bilmärken
    Ford Europe Trucks & Vans

  • NormaliseratArtNr
    alt12024, alt4228, cal30214, dra0775, dra0812, f032113621, f042307018, f042307019, f042a07018, f042a07019, 1c1t10300bb, 12740r, 210407, 210407a, 4170444, 12090239, 63321743, 63321817, 82020011

  • Passar modeller
    Ford Europe Trucks & Vans Series: Transit (F__Y) Model: 2.3 Engine volume: 2.3 Year: 03.00-
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FA Type description: FAAY,FABY,FACY Body: Van From date: 01-04-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FA Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-08-2000 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FA Type description: F_AY,F_BY,F_CY Body: Platform / Chassis From date: 01-04-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FC Type description: FAAY,FABY,FACY Body: Van From date: 01-04-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FC Type description: FD_Y,FB_Y,FS_Y,FZ_Y,F_BY,F_CY Body: Bus From date: 01-08-2000 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: 16V Size of motor: 2.3 Brand of engine: E5FC Type description: F_AY,F_BY,F_CY Body: Platform / Chassis From date: 01-04-2001 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    New Holland Model: Various Models Model series: Various Models Approved: Yes
