HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116650

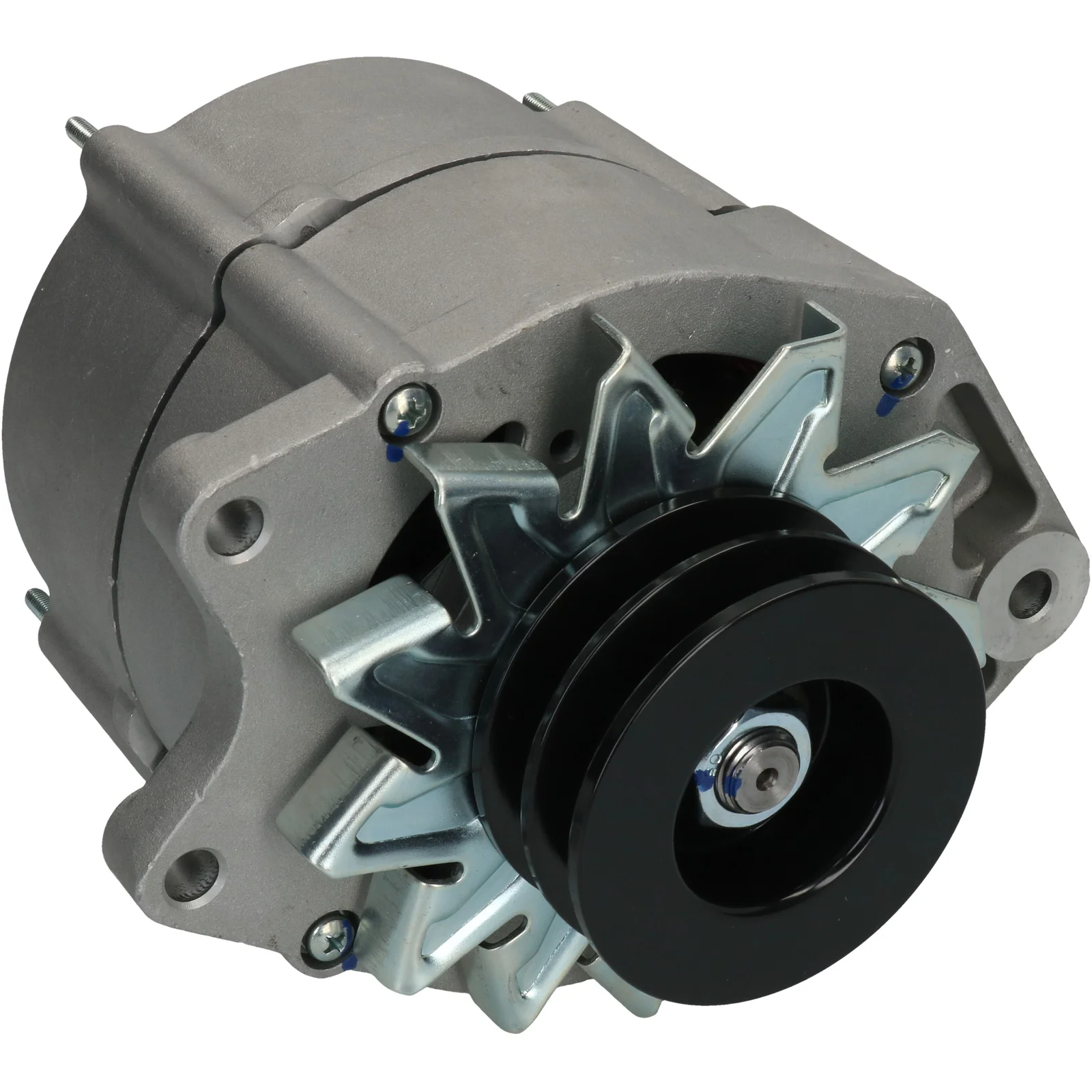

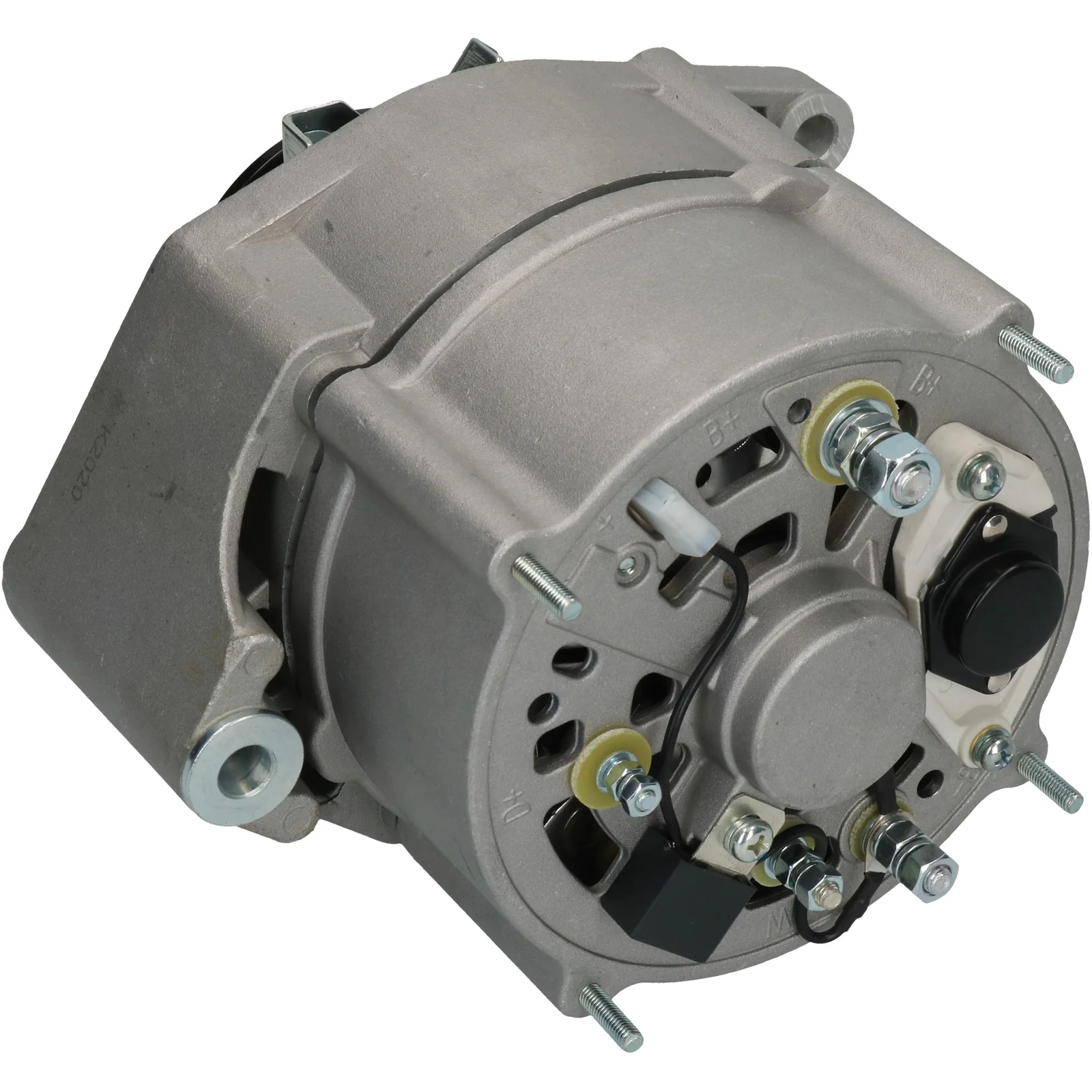

HC-Cargo Dynamo

Teknisk info:

Spenning: 28, Amp: 55, Rotasjon: CW, Monteringsfeste avstand: 59,50

Beskrivelse

HC-Cargo Dynamo 24V - 55A, 2-pol

Spenning: 28
Amp: 55
Isolert retur: Ja
Bøssingfordeling: 30.00
Bredde/bøssingholder: 80.00
Festebrakett avstand: 59.50
Brakettåpning: 10.30
Båndstramming justeringsposisjon: 45
Båndstramming justeringsbrakettåpning 1: 10.30
Båndstramming justeringsbrakettåpning 2: 10.30
Radius: 92.50
Radius 2: 86.00
Radius 3: 86.00
B+: M8
Posisjon/B+ i min.: 48
D+ Størrelse: M4
Rotasjon: Pirkes/med urviseren
W pluggtype: M5
Total lengde mm: 180.00
Viftesett: EF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 59.50
Belt. adj. bracket hole 1 10.30
Belt. adj. bracket hole 2 10.30
Belt. adj. brackethole pos. 45
Bracket hole 10.30
Position/B+ in min. 48
Pulley dist. 30.00
Radius 92.50
D+ Size M4
Radius 2 86.00
Radius 3 86.00
Regulator type IR
Rotation CW
Fan EF
Insulated return Yes
Voltage 28
W plug type M5
Total length 180.00 mm
Width/holder arm 80.00
Amp 55

  • OEM
    F032116650, 51.26101-7171, 51.26101-7205, 0120 469 024, 0120 469 983, 085341, 1297344, 5126101-7171, 5126101-7205, 0120469024, 0120469983

  • Konkurrentreferens
    A0087, CAL10637, CAL10696, dra3100, LEA0337, lra00978, LRA02754, 906.007.055, 30240RI, 432854, 436121, 0986032727

  • Bilmärken
    Daf, M.A.N.

  • NormaliseratArtNr
    a0087, cal10637, cal10696, dra3100, f032116650, lea0337, lra00978, lra02754, 30240ri, 085341, 432854, 436121, 1297344, 0120469024, 0120469983, 906007055, 0986032727, 51261017171, 51261017205

  • Passar modeller
    DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268 Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268G Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268L Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268M Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Concrete Mixer From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Platform / Chassis From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Semi-Trailer From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    HC-Cargo Dynamo 24V - 55A, 2-pol

    Spenning: 28
    Amp: 55
    Isolert retur: Ja
    Bøssingfordeling: 30.00
    Bredde/bøssingholder: 80.00
    Festebrakett avstand: 59.50
    Brakettåpning: 10.30
    Båndstramming justeringsposisjon: 45
    Båndstramming justeringsbrakettåpning 1: 10.30
    Båndstramming justeringsbrakettåpning 2: 10.30
    Radius: 92.50
    Radius 2: 86.00
    Radius 3: 86.00
    B+: M8
    Posisjon/B+ i min.: 48
    D+ Størrelse: M4
    Rotasjon: Pirkes/med urviseren
    W pluggtype: M5
    Total lengde mm: 180.00
    Viftesett: EF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 59.50
    Belt. adj. bracket hole 1 10.30
    Belt. adj. bracket hole 2 10.30
    Belt. adj. brackethole pos. 45
    Bracket hole 10.30
    Position/B+ in min. 48
    Pulley dist. 30.00
    Radius 92.50
    D+ Size M4
    Radius 2 86.00
    Radius 3 86.00
    Regulator type IR
    Rotation CW
    Fan EF
    Insulated return Yes
    Voltage 28
    W plug type M5
    Total length 180.00 mm
    Width/holder arm 80.00
    Amp 55
  • Kjøretøymatching

    • OEM
      F032116650, 51.26101-7171, 51.26101-7205, 0120 469 024, 0120 469 983, 085341, 1297344, 5126101-7171, 5126101-7205, 0120469024, 0120469983

    • Konkurrentreferens
      A0087, CAL10637, CAL10696, dra3100, LEA0337, lra00978, LRA02754, 906.007.055, 30240RI, 432854, 436121, 0986032727

    • Bilmärken
      Daf, M.A.N.

    • NormaliseratArtNr
      a0087, cal10637, cal10696, dra3100, f032116650, lea0337, lra00978, lra02754, 30240ri, 085341, 432854, 436121, 1297344, 0120469024, 0120469983, 906007055, 0986032727, 51261017171, 51261017205

    • Passar modeller
      DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268 Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268G Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268L Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      DAF Model: 95 Model series: 95.360 Size of motor: 11.6 Brand of engine: WS268M Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Concrete Mixer From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Platform / Chassis From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2700 Size of motor: 8.3 Brand of engine: HS825 Body: Semi-Trailer From date: 01-01-1990 To date: 01-10-1993 Fuel: Diesel Approved: Yes
