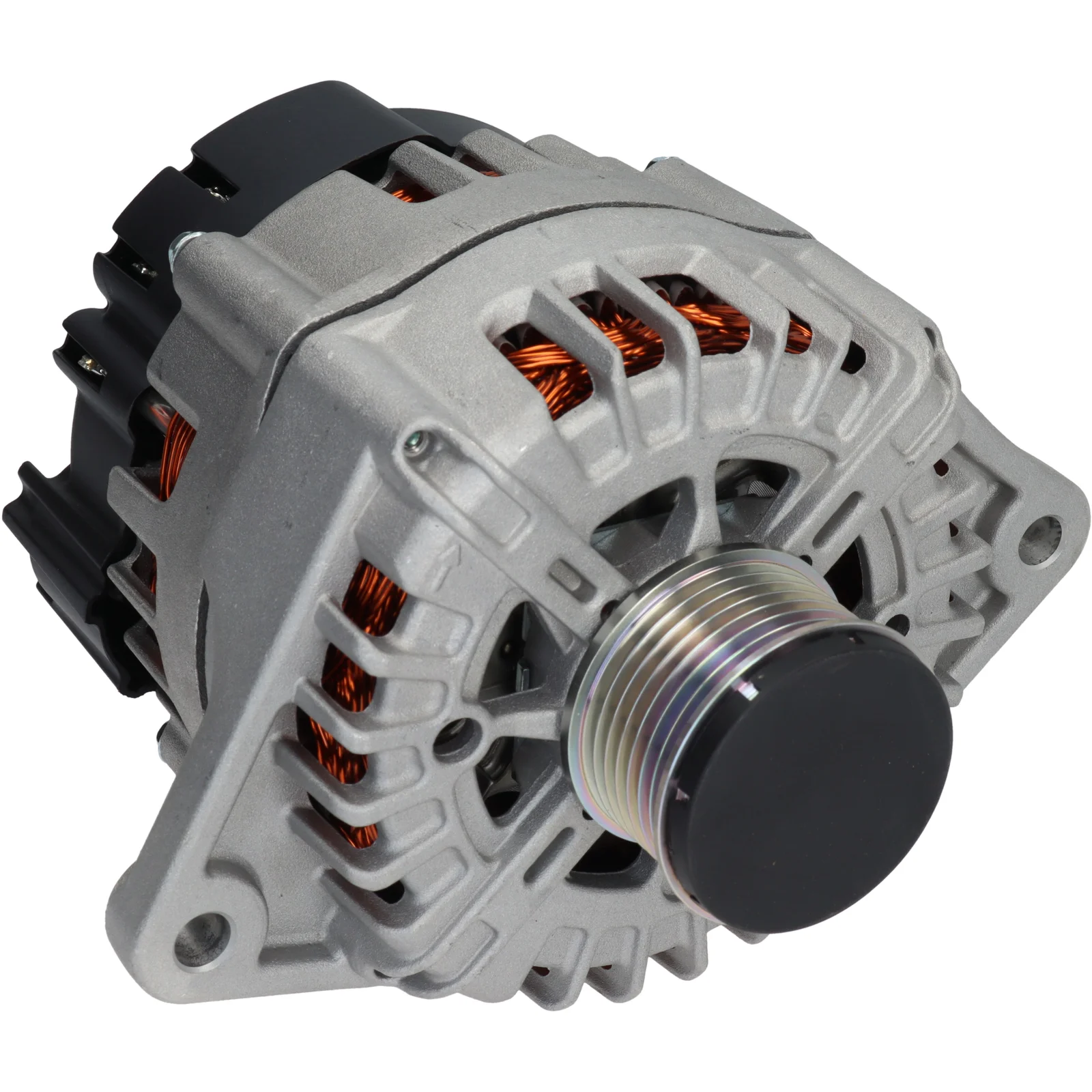

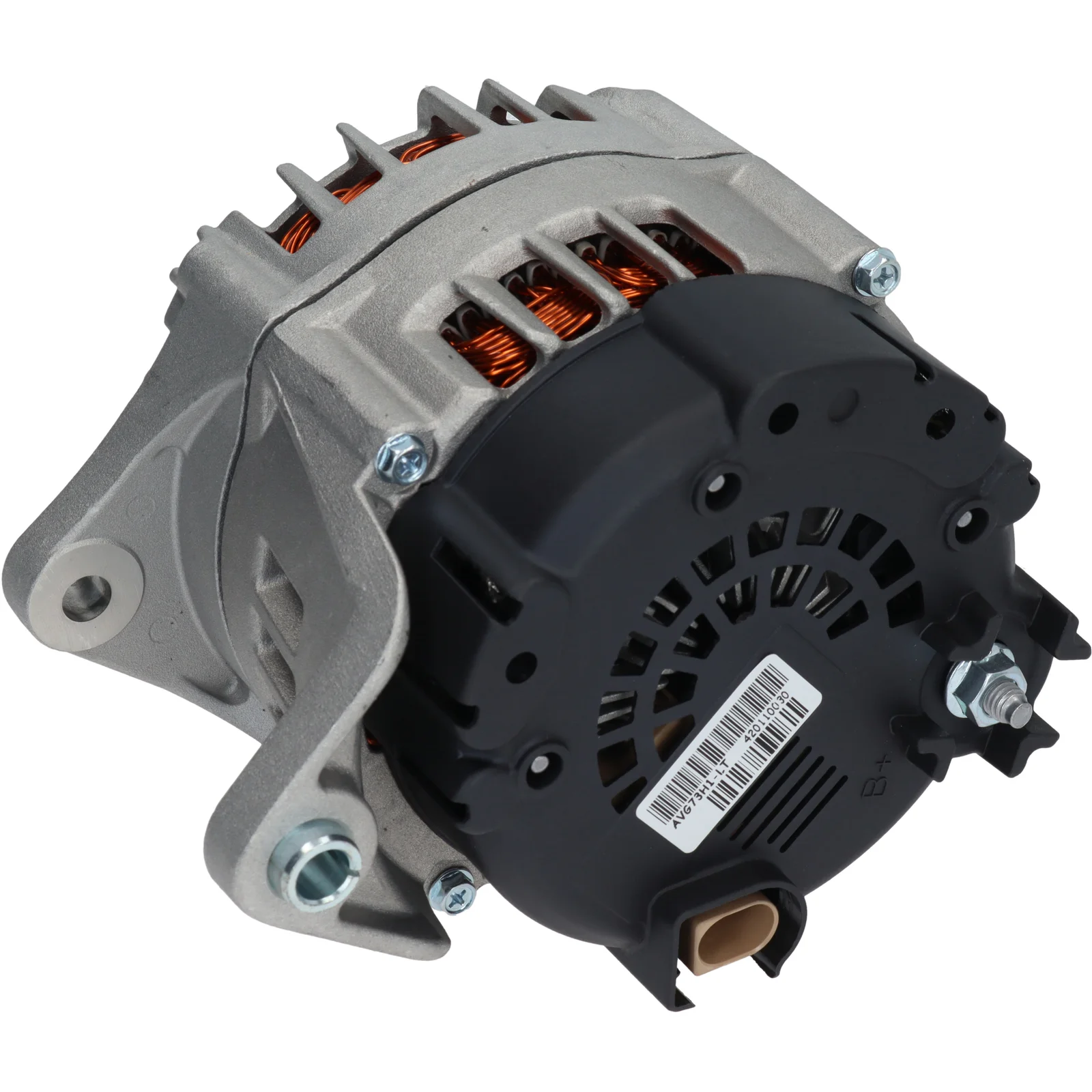

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116211

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsfeste avstand: 81.00

Beskrivelse

Spenningskilde: 14
Amp: 180
Remskive avstand: 40.50
Bredde/holderarm: 14.00
Festebrakett avstand: 81.00
Braftetthull: 10.50
Belt. justering braketthullposisjon: 56
Belt. justering braketthull 1: 11.00
Remskivens diameter: 55.00
Spor/remskive: 7
Radius: 94.00
Radius 2: 96.00
B+: M8
Posisjon/B+ i min.: 4
D+ Størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL61
Total lengde mm: 190.00
Terminaltype: L-DFM
Remskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 56
Plug no. PL61
Bracket hole 10.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 40.50
Radius 94.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-DFM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 180

  • OEM
    A3226, DRA1323, F032116211, FG18S 093, FG18S093, FGN18S093, K5801378902, 209183, 209183A, 2613227, 2613227B, 12090521, 32440437, 0986086780, 5801378902

  • Konkurrentreferens
    A3226, DRA1323, 209183, 209183A, 12090521, 32440437, 0986086780

  • Bilmärken
    FIAT, IVECO

  • NormaliseratArtNr
    a3226, dra1323, f032116211, fg18s093, fgn18s093, k5801378902, 209183, 209183a, 2613227, 2613227b, 12090521, 32440437, 0986086780, 5801378902

  • Passar modeller
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411M, F1AE3481D, F1AGL411D, F1AE0481N Year: 01.07-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Flak/chassi (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    FIAT DUCATO Flak/chassi (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL411B Year: 12.15-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL4115, F1AGL411B Year: 12.15-
    IVECO DAILY V Flak/chassi 26L11, 29L11, 29S11, 35C11D, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
    IVECO DAILY V Flak/chassi 29L15, 35S15, 35C15, 40C15, 50C15 Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
    IVECO DAILY V Flak/chassi 29S13, 29L13, 29L13D, 35S13, 35C13D, 40C13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
    IVECO DAILY V Skåp 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
    IVECO DAILY V Skåp 29S11, 29L11, 35C11, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
    IVECO DAILY V Skåp 29S13, 29L13, 35C13, 35S13, 40C13, 40S13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
