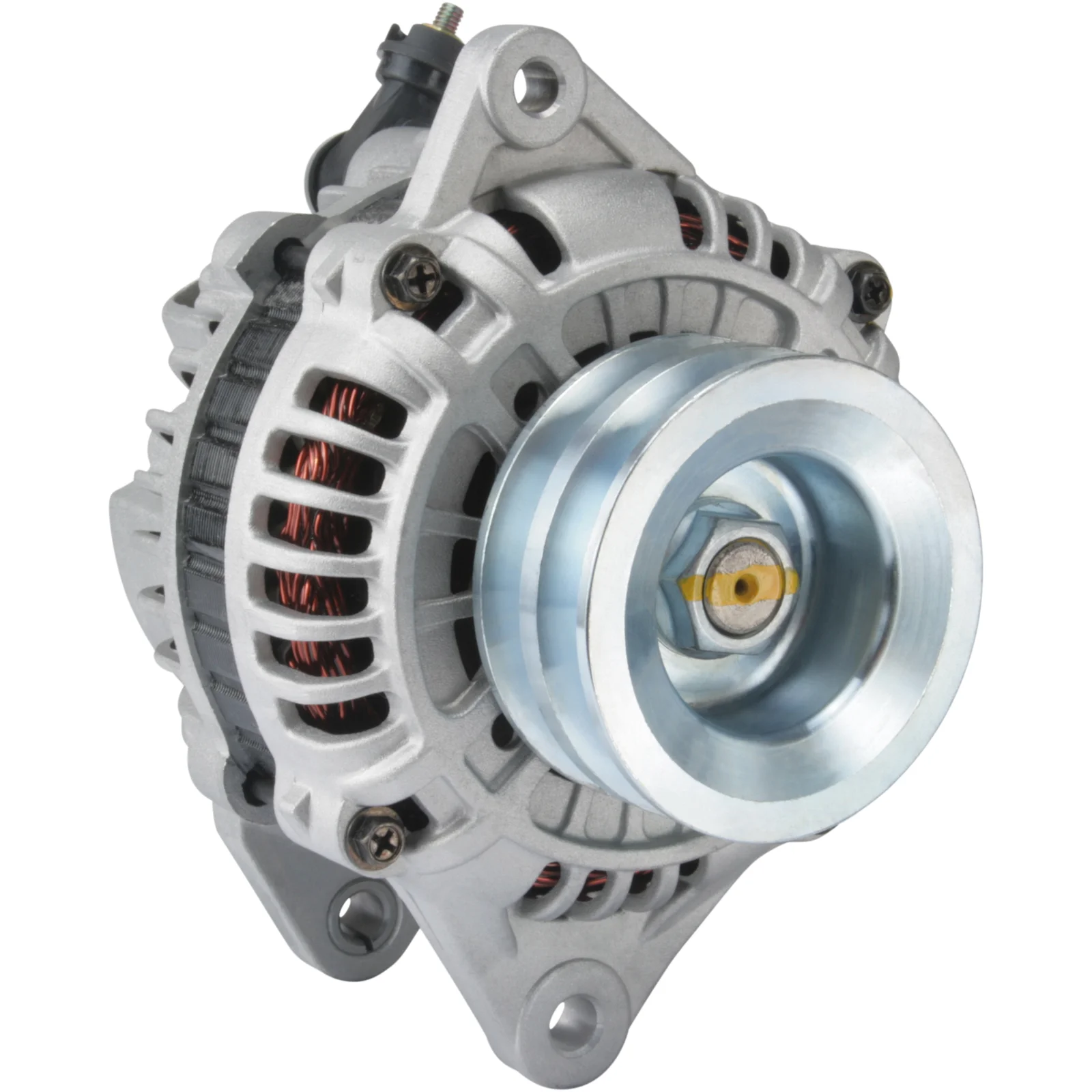

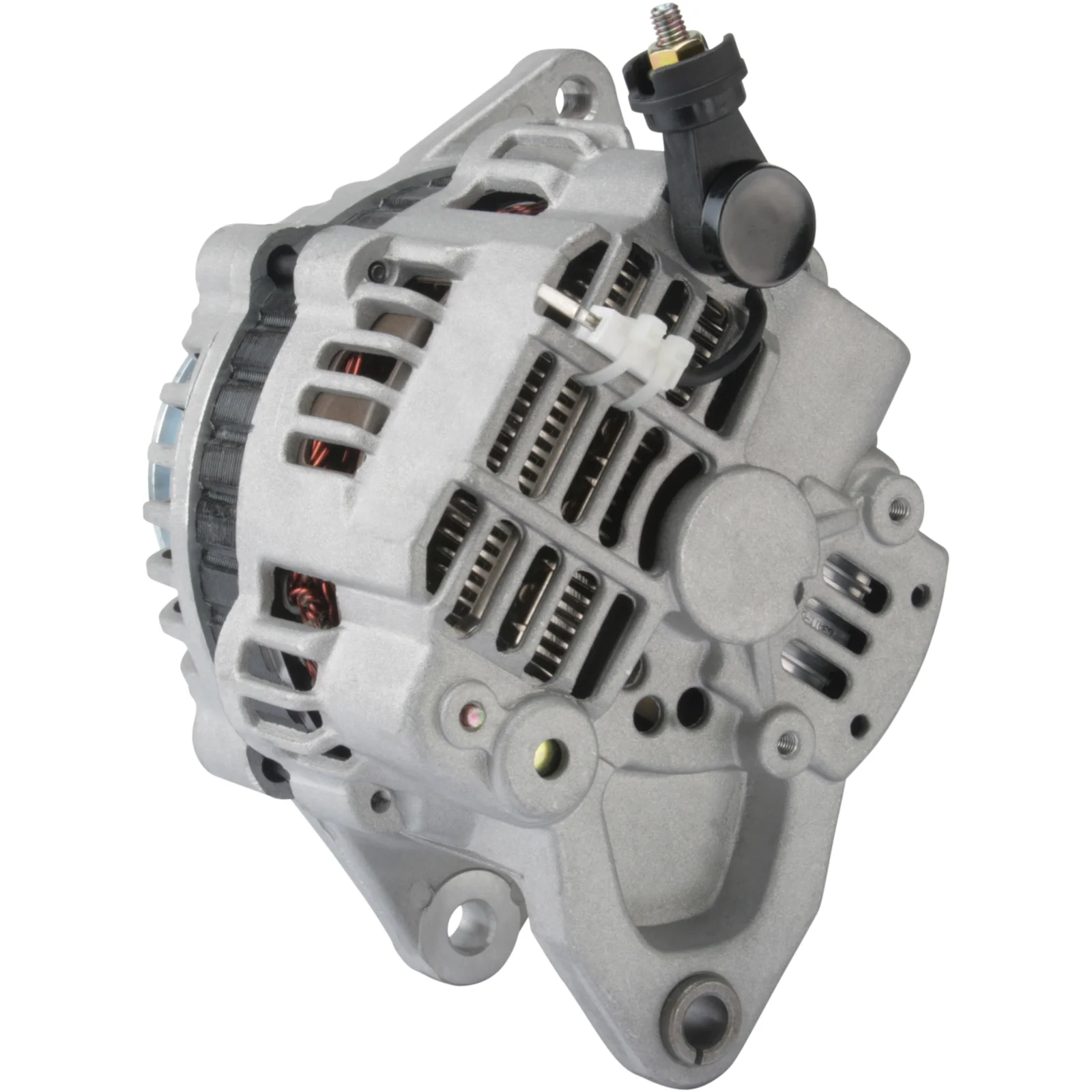

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114120

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 75, Rotasjon: CW, Monteringsfeste avstand.: 68.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 75
Terminal: W
Drevavstand: 41.50
Bredde/holderarm: 13.00
Festebrakett avstand: 68.00
Brakettåpnings hull: 10.50
Belt. justering brakettåpnings pos.: 57
Belt. justering brakett hull 1: 9.00
Drev diameter: 87.50
Riller/drev: 2
Radius: 91.00
Radius 2: 87.00
B+: M6
Posisjon/B+ i min.: 60
Rotasjon: med urviseren
Plugg nr.: PL49
W plugg type: 2.80
Drev: DP
Regulator type: IR

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 57
Plug no. PL49
Bracket hole 10.50
Position/B+ in min. 60
Pulley DP
Pulley dia. 87.50
Pulley dist. 41.50
Radius 91.00
Radius 2 87.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Terminal W
Voltage 14
W plug type 2.80
Width/holder arm 13.00
Amp 75

  • OEM
    F032114120, f8ru10300ba, WL81-18-300, 1839ir, 1986A01867

  • Konkurrentreferens
    A9346S, CAL14113, dra4233, F042205184, F042A04092, LRA02201, 8EL738211-341, 28-4665, 224.157.752, 23201R, 111348, 301839RI, 12090174, 0986080390

  • NormaliseratArtNr
    a9346s, cal14113, dra4233, f032114120, f042205184, f042a04092, f8ru10300ba, lra02201, wl8118300, 8el738211341, 1839ir, 1986a01867, 23201r, 111348, 284665, 301839ri, 12090174, 224157752, 0986080390

  • Passar modeller
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: MD25TI Body: Pick Up From date: 01-06-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Type description: UN Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
