HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110127

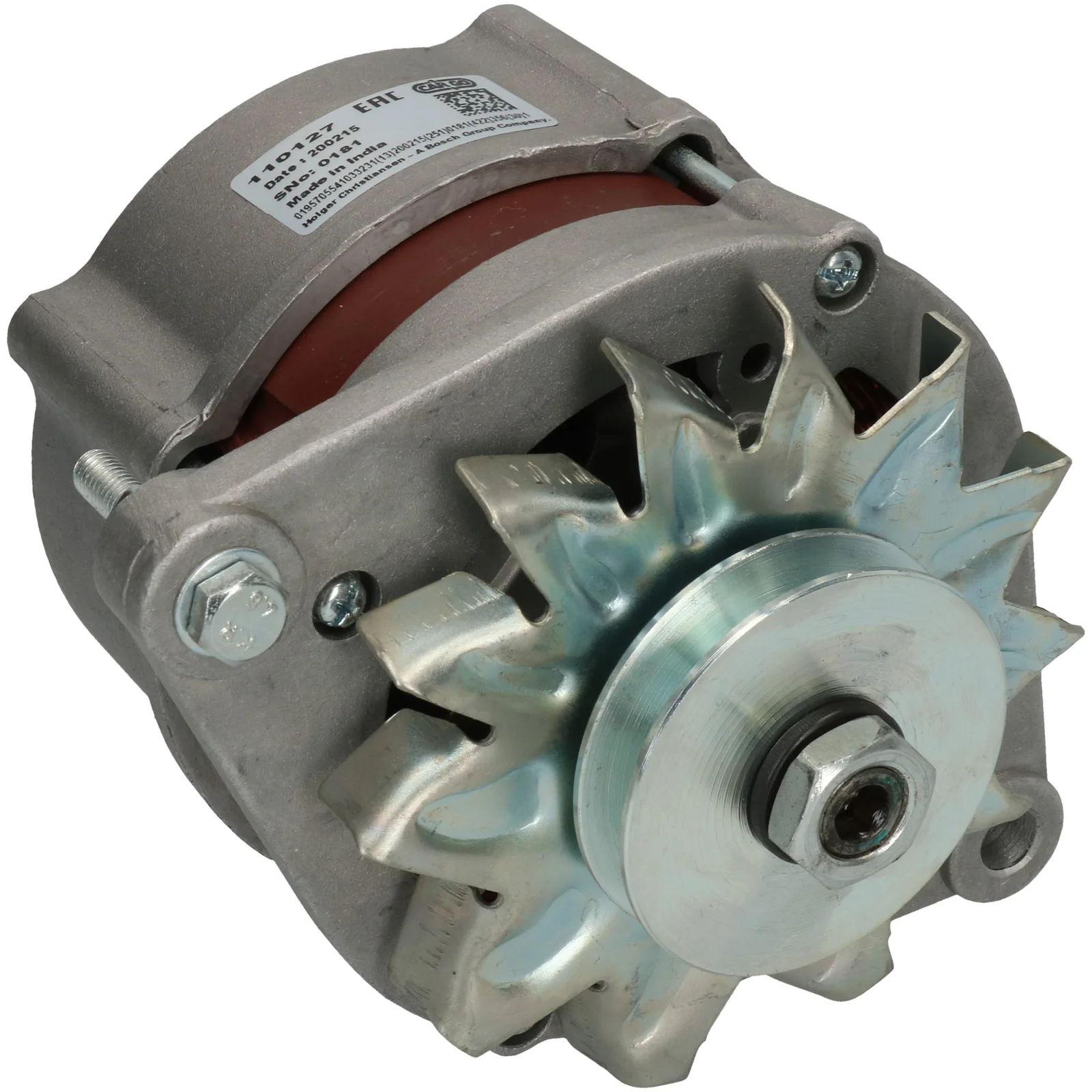

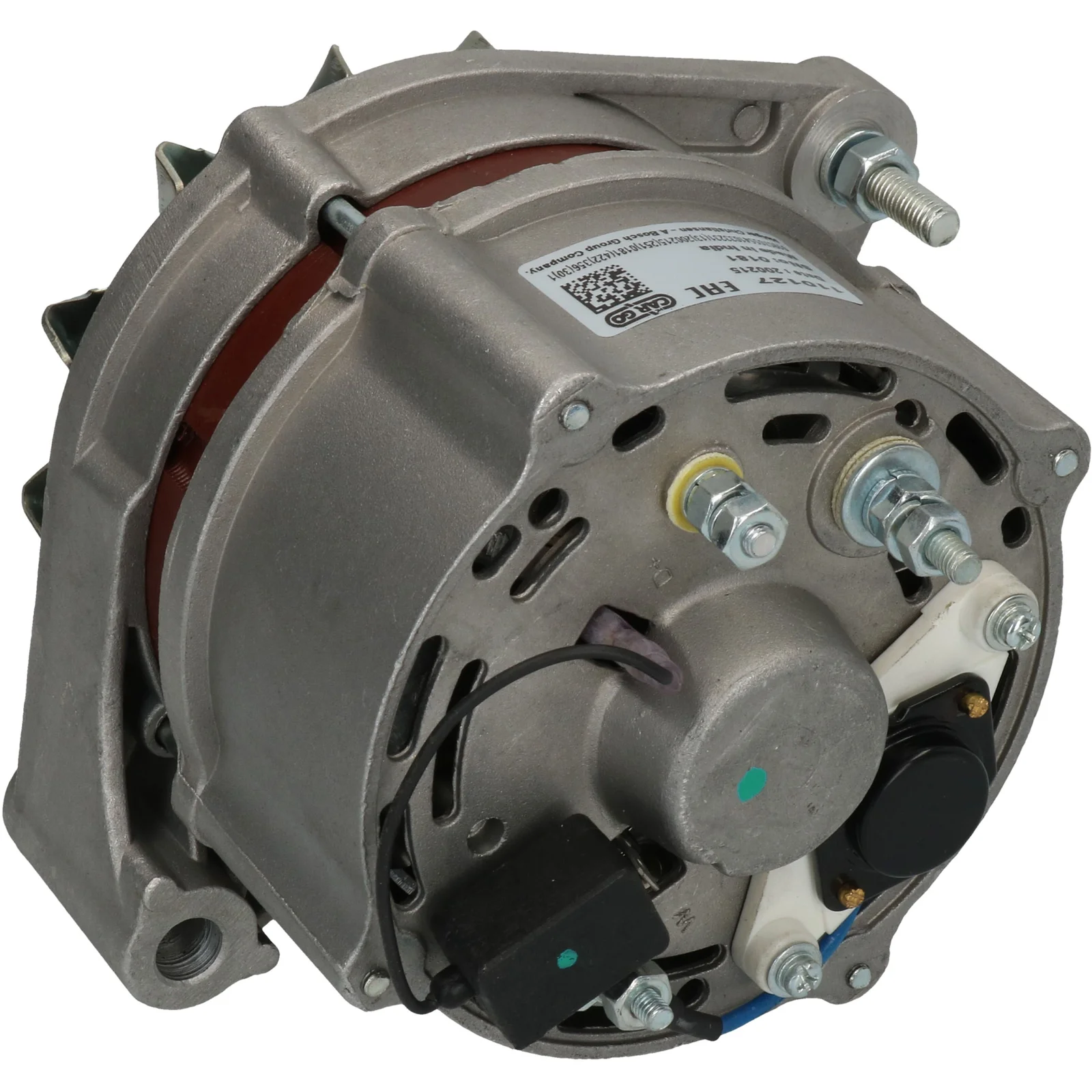

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: medurs, Reimskive diameter: 64,00

Beskrivelse

Spenning: 14
Ampere: 70
Isolert retur: Ja
Terminal: W
Skrueveske: 79,00
Bredde/holderarm: 51,00
Bukkhull: 11,00
Bånd. justering. festehull pos.: 57
Bånd. justering. festehull 1: 8,00
Skive dia.: 64,00
Riller/skive: 1
Radius: 85,00
Radius 2: 86,50
B+: M6
Posisjon/B+ i min.: 58
D+ Størrelse: M5
Rotasjon: med uret
W pluggtype: 6,30
Total lengde mm: 179,00
Skive: P
Vifte: EF
Regulator type: IR
Prod. info: BN
Service: Volvo Penta

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 57
Bracket hole 11.00
Position/B+ in min. 58
Prod. info BN
Pulley P
Pulley dia. 64.00
Pulley dist. 79.00
Radius 85.00
D+ Size M5
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing Volvo Penta
Fan EF
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type 6.30
Total length 179.00 mm
Width/holder arm 51.00
Amp 70

  • OEM
    aak1375, aak3333, aak3802, F032110127, 9ar2712p, 9ar2738p, 9ar2740p, 9AR2741F, 9ar2741p, 9ar2775, 9ar2775f, 11.201.723, 11.201.938, 11.203.998, 510-803, 510-816, 510-818, 510-819, 743ir, 2871A453, 510819, 2927120, 38032603, 70229702, 71420102, 71427052, 71427102, 71427302, 71429702, 71429802, 71430402, 71470302, 71470502, 71473602, 71523002, 71523102, 0120400778, 0120489779

  • Konkurrentreferens
    ALT33001, CAL21189, CAL21197, ia0723, LRA01056, LRA01442, lra04656, MG58, MG77, 8el730041-001, 27-0631, 27-0770, 28-0683, 28-1946, 28-1949, 28-1952, 238.010.552, 500.101.352, 500.109.352, 500.109.702, 538.002.352, 815.019.070, 815.029.070, 5226, 12125, 12407N, 20721N, 75767, 75769, 75772, 75779, 75780, 510803, 510816, 510834, 32510816, 66021151M

  • NormaliseratArtNr
    aak1375, aak3333, aak3802, alt33001, cal21189, cal21197, f032110127, ia0723, lra01056, lra01442, lra04656, mg58, mg77, 8el730041001, 9ar2712p, 9ar2738p, 9ar2740p, 9ar2741f, 9ar2741p, 9ar2775, 9ar2775f, 743ir, 2871a453, 5226, 12125, 12407n, 20721n, 75767, 75769, 75772, 75779, 75780, 270631, 270770, 280683, 281946, 281949, 281952, 510803, 510816, 510818, 510819, 510834, 2927120, 11201723, 11201938, 11203998, 32510816, 38032603, 66021151m, 70229702, 71420102, 71427052, 71427102, 71427302, 71429702, 71429802, 71430402, 71470302, 71470502, 71473602, 71523002, 71523102, 0120400778, 0120489779, 238010552, 500101352, 500109352, 500109702, 538002352, 815019070, 815029070

  • Passar modeller
    Farymann Model: Various Models Model series: Various Models Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: AQ120 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 0.7 Brand of engine: MD7B From date: 01-06-1981 To date: 01-07-1983 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 1.1 Brand of engine: MD11 From date: 01-07-1975 To date: 01-06-1983 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 1.7 Brand of engine: MD17 From date: 01-09-1975 To date: 01-06-1984 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.0 Brand of engine: AQ200 From date: 01-01-1970 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.0 Brand of engine: AQ225 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.1 Brand of engine: TMD50 From date: 01-10-1996 Fuel: Diesel Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: AQ290 From date: 01-01-1979 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Ampere: 70
    Isolert retur: Ja
    Terminal: W
    Skrueveske: 79,00
    Bredde/holderarm: 51,00
    Bukkhull: 11,00
    Bånd. justering. festehull pos.: 57
    Bånd. justering. festehull 1: 8,00
    Skive dia.: 64,00
    Riller/skive: 1
    Radius: 85,00
    Radius 2: 86,50
    B+: M6
    Posisjon/B+ i min.: 58
    D+ Størrelse: M5
    Rotasjon: med uret
    W pluggtype: 6,30
    Total lengde mm: 179,00
    Skive: P
    Vifte: EF
    Regulator type: IR
    Prod. info: BN
    Service: Volvo Penta

    Filer

  • Spesifikasjon
    B+ M6
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 57
    Bracket hole 11.00
    Position/B+ in min. 58
    Prod. info BN
    Pulley P
    Pulley dia. 64.00
    Pulley dist. 79.00
    Radius 85.00
    D+ Size M5
    Radius 2 86.50
    Regulator type IR
    Rotation CW
    Servicing Volvo Penta
    Fan EF
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type 6.30
    Total length 179.00 mm
    Width/holder arm 51.00
    Amp 70
  • Kjøretøymatching

    • OEM
      aak1375, aak3333, aak3802, F032110127, 9ar2712p, 9ar2738p, 9ar2740p, 9AR2741F, 9ar2741p, 9ar2775, 9ar2775f, 11.201.723, 11.201.938, 11.203.998, 510-803, 510-816, 510-818, 510-819, 743ir, 2871A453, 510819, 2927120, 38032603, 70229702, 71420102, 71427052, 71427102, 71427302, 71429702, 71429802, 71430402, 71470302, 71470502, 71473602, 71523002, 71523102, 0120400778, 0120489779

    • Konkurrentreferens
      ALT33001, CAL21189, CAL21197, ia0723, LRA01056, LRA01442, lra04656, MG58, MG77, 8el730041-001, 27-0631, 27-0770, 28-0683, 28-1946, 28-1949, 28-1952, 238.010.552, 500.101.352, 500.109.352, 500.109.702, 538.002.352, 815.019.070, 815.029.070, 5226, 12125, 12407N, 20721N, 75767, 75769, 75772, 75779, 75780, 510803, 510816, 510834, 32510816, 66021151M

    • NormaliseratArtNr
      aak1375, aak3333, aak3802, alt33001, cal21189, cal21197, f032110127, ia0723, lra01056, lra01442, lra04656, mg58, mg77, 8el730041001, 9ar2712p, 9ar2738p, 9ar2740p, 9ar2741f, 9ar2741p, 9ar2775, 9ar2775f, 743ir, 2871a453, 5226, 12125, 12407n, 20721n, 75767, 75769, 75772, 75779, 75780, 270631, 270770, 280683, 281946, 281949, 281952, 510803, 510816, 510818, 510819, 510834, 2927120, 11201723, 11201938, 11203998, 32510816, 38032603, 66021151m, 70229702, 71420102, 71427052, 71427102, 71427302, 71429702, 71429802, 71430402, 71470302, 71470502, 71473602, 71523002, 71523102, 0120400778, 0120489779, 238010552, 500101352, 500109352, 500109702, 538002352, 815019070, 815029070

    • Passar modeller
      Farymann Model: Various Models Model series: Various Models Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: AQ120 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 0.7 Brand of engine: MD7B From date: 01-06-1981 To date: 01-07-1983 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 1.1 Brand of engine: MD11 From date: 01-07-1975 To date: 01-06-1983 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 1.7 Brand of engine: MD17 From date: 01-09-1975 To date: 01-06-1984 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 5.0 Brand of engine: AQ200 From date: 01-01-1970 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 5.0 Brand of engine: AQ225 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 5.1 Brand of engine: TMD50 From date: 01-10-1996 Fuel: Diesel Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: AQ290 From date: 01-01-1979 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 6.7 Brand of engine: TMD70 From date: 01-12-1972 Fuel: Diesel Approved: Yes
