Varenr.: F032110350

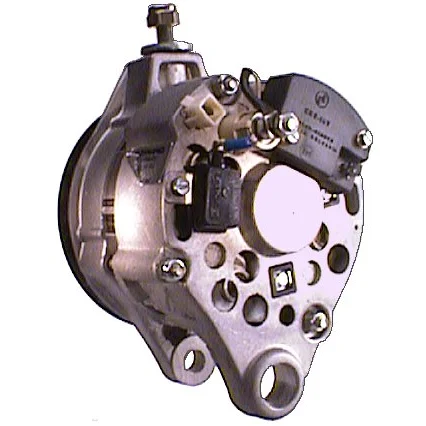

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 44, Rotasjon: CW, Monteringsbrakett avstand.: 60,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 14
Ampere: 44
Drevskive diameter: 46.50
Bredde/holderarm: 19.50
Monteringsbeslag avstand: 60.50
Festebolt for beslag: 12.00
Belt. justering av beslagposisjon: 60
Drevskivens diameter: 79.00
Rer i spor: 1
Radius: 85.00
B+: M6
Posisjon/B+ i min.: 55
D+ Størrelse: 6.30
Rotasjon: medurs
Total lengde mm: 166.00
Drevskive: P
Regulator type: IR
Produsentinformasjon: BN
Service: Lada

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 60.50
Belt. adj. brackethole pos. 60
Bracket hole 12.00
Position/B+ in min. 55
Prod. info BN
Pulley P
Pulley dia. 79.00
Pulley dist. 46.50
Radius 85.00
D+ Size 6.30
Regulator type IR
Rotation CW
Servicing Lada
Grooves/pulley 1
Voltage 14
Total length 166.00 mm
Width/holder arm 19.50
Amp 44

  • OEM
    a124-15, a124-44s, aak4128, als12-81, F032110350, kat3kt22214b, T2214B50A, T22214B50A, 11.201.294, 222-3701005, 222-3701010, 2105-3701005, 2105-3701010, 22214B50A, 19025772, 21053701010, 2105370101010

  • Konkurrentreferens
    ALT-L031, ALTL031, CAL49100, dra2781, F04230C001, F042A0C001, FRA112, ia0294, lra00589, lra00915, MG16, QA0263, va120, 8el725586-001, 22-32.781, 28-0560, 223.101.442, 3432, 30131RI, 118146, 443218, 943356380, 0986032781, 0986034390, 0986086990

  • NormaliseratArtNr
    a12415, a12444s, aak4128, als1281, altl031, cal49100, dra2781, f032110350, f04230c001, f042a0c001, fra112, ia0294, kat3kt22214b, lra00589, lra00915, mg16, qa0263, t2214b50a, t22214b50a, va120, 8el725586001, 3432, 22214b50a, 30131ri, 118146, 280560, 443218, 2232781, 11201294, 19025772, 223101442, 943356380, 0986032781, 0986034390, 0986086990, 2223701005, 2223701010, 21053701005, 21053701010, 2105370101010

  • Passar modeller
    Fiat Model: 131 Model series: 131 Model type: Mirafiori Size of motor: 1.3 Brand of engine: 131A.000 From date: 01-10-1974 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    Lada Model: 1200 Model series: 1200 Size of motor: 1.2 Brand of engine: BA32101 Type description: 2101 From date: 01-01-1970 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
    Lada Model: 1200 Model series: 1200 Size of motor: 1.2 Brand of engine: BA32101 Type description: 2102 Body: Estate From date: 01-09-1973 To date: 01-08-1984 Fuel: Gasoline Approved: Yes
    Lada Model: 1300 Model series: 1300 Size of motor: 1.3 Brand of engine: BA321011 Type description: 2101 From date: 01-05-1978 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Lada Model: 1300 Model series: 1300 Size of motor: 1.3 Brand of engine: BA32105 Type description: 2101 From date: 01-08-1974 To date: 01-08-1984 Fuel: Gasoline Approved: Yes
    Lada Model: 1500 Model series: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2102 Body: Estate From date: 01-09-1973 To date: 01-06-1985 Fuel: Gasoline Approved: Yes
    Lada Model: 1500 Model series: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2103 From date: 01-09-1972 To date: 01-08-1984 Fuel: Gasoline Approved: Yes
    Lada Model: 1500 Model series: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2103 From date: 01-11-1975 To date: 01-10-1986 Fuel: Gasoline Approved: Yes
    Lada Model: 1500 Model series: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2106 From date: 01-09-1972 To date: 01-08-1984 Fuel: Gasoline Approved: Yes
    Lada Model: 1600 Model series: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2103 From date: 01-03-1979 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Lada Model: 1600 Model series: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2106 From date: 01-09-1972 To date: 01-08-1984 Fuel: Gasoline Approved: Yes
    Lada Model: Niva Model series: Niva Model type: 1600 Size of motor: 1.6 Brand of engine: BA32121 Type description: 2121 From date: 01-01-1987 To date: 01-03-1995 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1200 Junior Size of motor: 1.2 Brand of engine: BA32101 Type description: 2105 From date: 01-09-1981 To date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1300 Size of motor: 1.3 Brand of engine: BA32105 Body: Estate From date: 01-09-1985 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1300 Spezial Size of motor: 1.3 Brand of engine: BA32105 Type description: 2105 From date: 01-05-1981 To date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Body: Estate From date: 01-09-1985 To date: 01-02-1993 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2105 From date: 01-03-1985 To date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1500 Size of motor: 1.5 Brand of engine: BA321083 Type description: WAS 21093 From date: 01-06-1989 To date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Lada Model: Nova Model series: Nova Model type: 1600 Size of motor: 1.6 Brand of engine: BA32106 Type description: 2105,2108,1209 From date: 01-01-1988 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Lada Model: Toscana Model series: Toscana Model type: 1500 Size of motor: 1.5 Brand of engine: BA32103 Type description: 2107 From date: 01-09-1983 To date: 01-02-1993 Fuel: Gasoline Approved: Yes
    Lada Model: Toscana Model series: Toscana Size of motor: 1.3 Brand of engine: BA32105 Type description: 2107 From date: 01-12-1985 To date: 01-05-2012 Fuel: Gasoline Approved: Yes
