HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110488

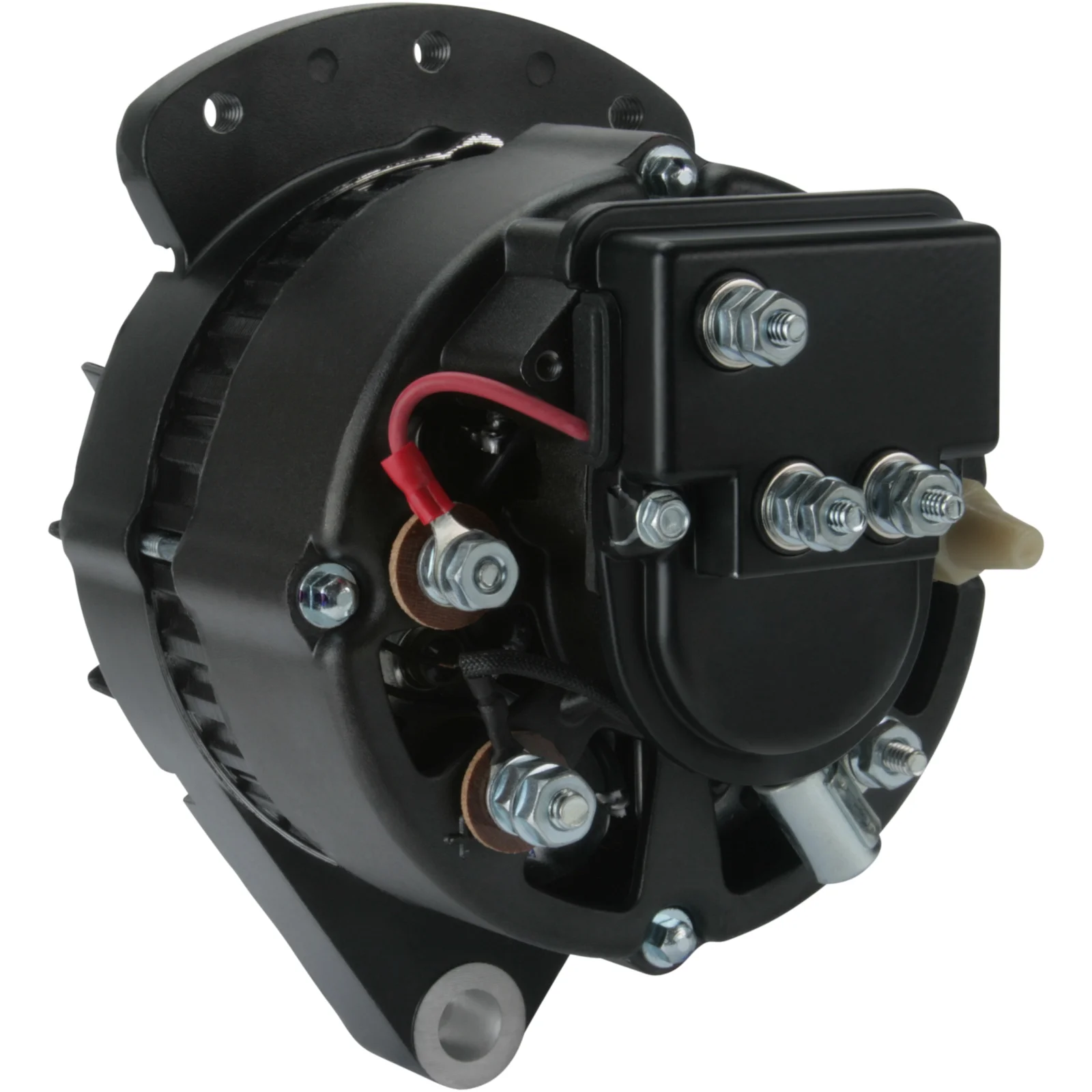

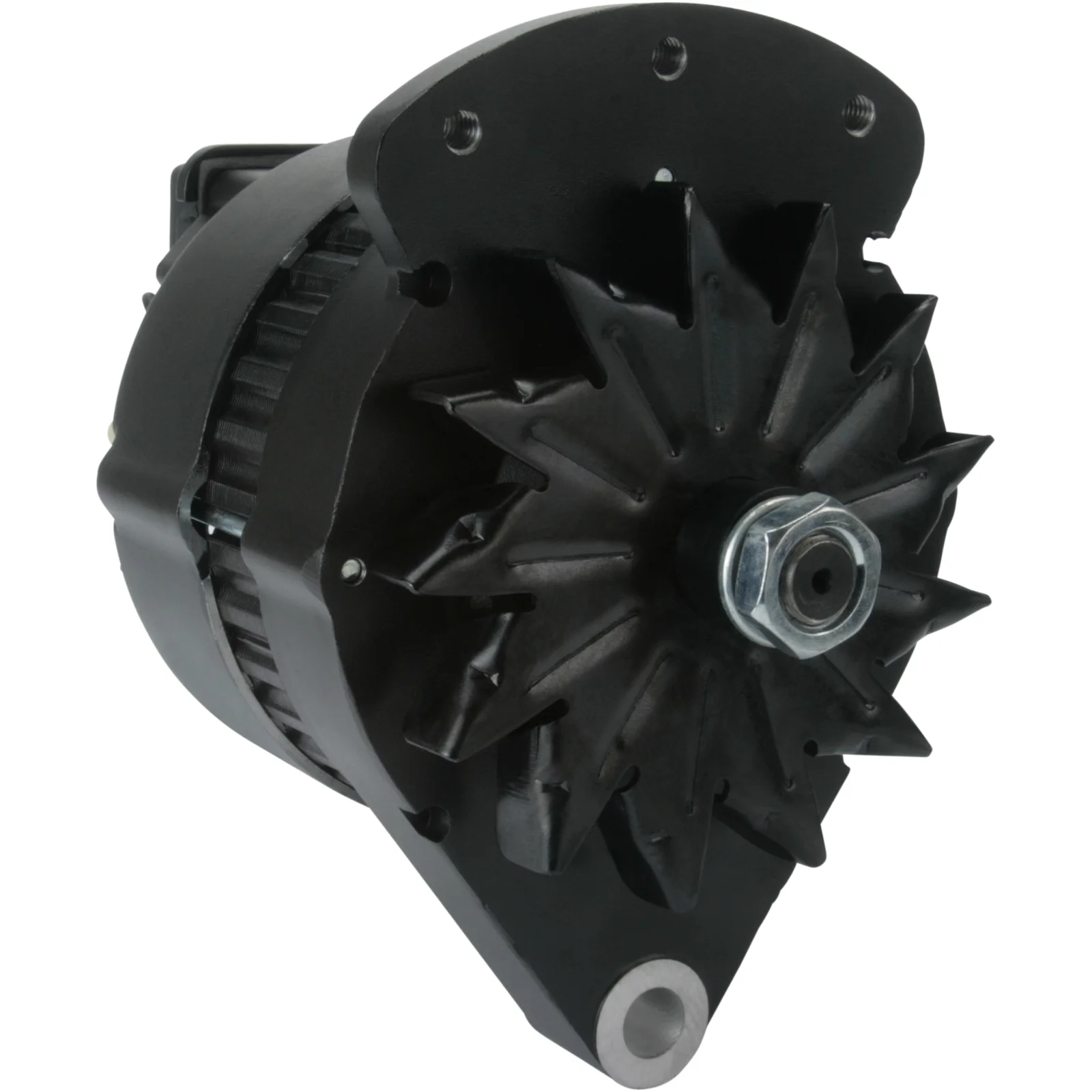

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 65, Rotasjon: CW, Radius: 80.50

Beskrivelse

Spenning: 14
Amp: 65
Bredde/holder arm: 27.00
Bøyletannt hull: 13.00
Beltejustering. bracketh Asset: 50
Beltejustering. bracketh Asset 3: 5
Beltejustering. bracketh Asset 2: 60
Beltejustering. bracketh hull 1: 5/16" UNC
Beltejustering. bracketh hull 2: 5/16" UNC
Beltejustering. bracketh hull 3: 5/16" UNC
Radius: 80.50
Radius 2: 80.50
Radius 3: 80.50
Radius 4: 90.00
B+: 1/4" UNF
Posisjon/B+ i min.: 40
D+ størrelse: 1/4" UNF
Rotasjon: med klokken
Total lengde mm: 178.00
Viftek to: uten
Regulator-type: IR
Prod. info: BN
Vedlikehold: Thermo King

Filer

Spesifikasjon

B+ 1/4" UNF
Belt. adj. bracket hole 1 5/16" UNC
Belt. adj. bracket hole 2 5/16" UNC
Belt. adj. bracket hole 3 5/16" UNC
Belt. adj. brackethole pos. 50
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 5
Bracket hole 13.00
Position/B+ in min. 40
Prod. info BN
Pulley w/o
Radius 80.50
D+ Size 1/4" UNF
Radius 2 80.50
Radius 3 80.50
Radius 4 90.00
Regulator type IR
Rotation CW
Servicing Thermo King
Voltage 14
Total length 178.00 mm
Width/holder arm 27.00
Amp 65

  • OEM
    F032110488, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5D44467G01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8EK2007ND, 8ek2010na, 8ek2010nb, 8EK2010NC, 8ek2012nb, 8mr2185l, 44-7156, 44-7927, 44-8904, 44-8940, 44-9753, 44-9755, 110-400, 110-600, 110633, 3675147rx

  • Konkurrentreferens
    a-9225, ALT32001, CAL11105, DRZ0121, LRA02111, 8el730151-001, 28-4551, 90-05-9149, 573.108.652, 995.001.065, 5507, 7480, 7481, 8428N, 50935RI, 53008, 32118708

  • NormaliseratArtNr
    a9225, alt32001, cal11105, drz0121, f032110488, lra02111, ua935ir, 2d72787g01, 2d72787g02, 3d97387g01, 3d97387g02, 5d35742g01, 5d35742g02, 5d35742g03, 5d44467g01, 8ek2005na, 8ek2005nb, 8ek2005nc, 8ek2005nd, 8ek2007na, 8ek2007nb, 8ek2007nc, 8ek2007nd, 8ek2010na, 8ek2010nb, 8ek2010nc, 8ek2012nb, 8el730151001, 8mr2185l, 5507, 7480, 7481, 8428n, 50935ri, 53008, 110400, 110600, 110633, 284551, 447156, 447927, 448904, 448940, 449753, 449755, 3675147rx, 32118708, 90059149, 573108652, 995001065

  • Passar modeller
    Thermo King Model: HK100 Model series: HK 100 Brand of engine: TK2.44 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: HK30 Model series: HK 30 Brand of engine: TK2.44 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: HK60 Model series: HK 60 Brand of engine: TK2.44 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: KD30 Model series: KD 30 Brand of engine: TK3.66 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: KD50 Model series: KD 50 Brand of engine: TK3.66 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: SB Model series: SB II 30 DI TC From date: 01-01-1979 Approved: Yes
    Thermo King Model: Sentry Model series: 30 DI TC From date: 01-01-1979 Approved: Yes
    Thermo King Model: Super II Model series: 30 MAX From date: 01-01-1979 Approved: Yes
    Thermo King Model: TD Model series: TD II 30 Brand of engine: TK3.88 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Thermo King Model: TD Model series: TD II 50 MAX Brand of engine: TK3.88 From date: 01-01-1989 Fuel: Diesel Approved: Yes
