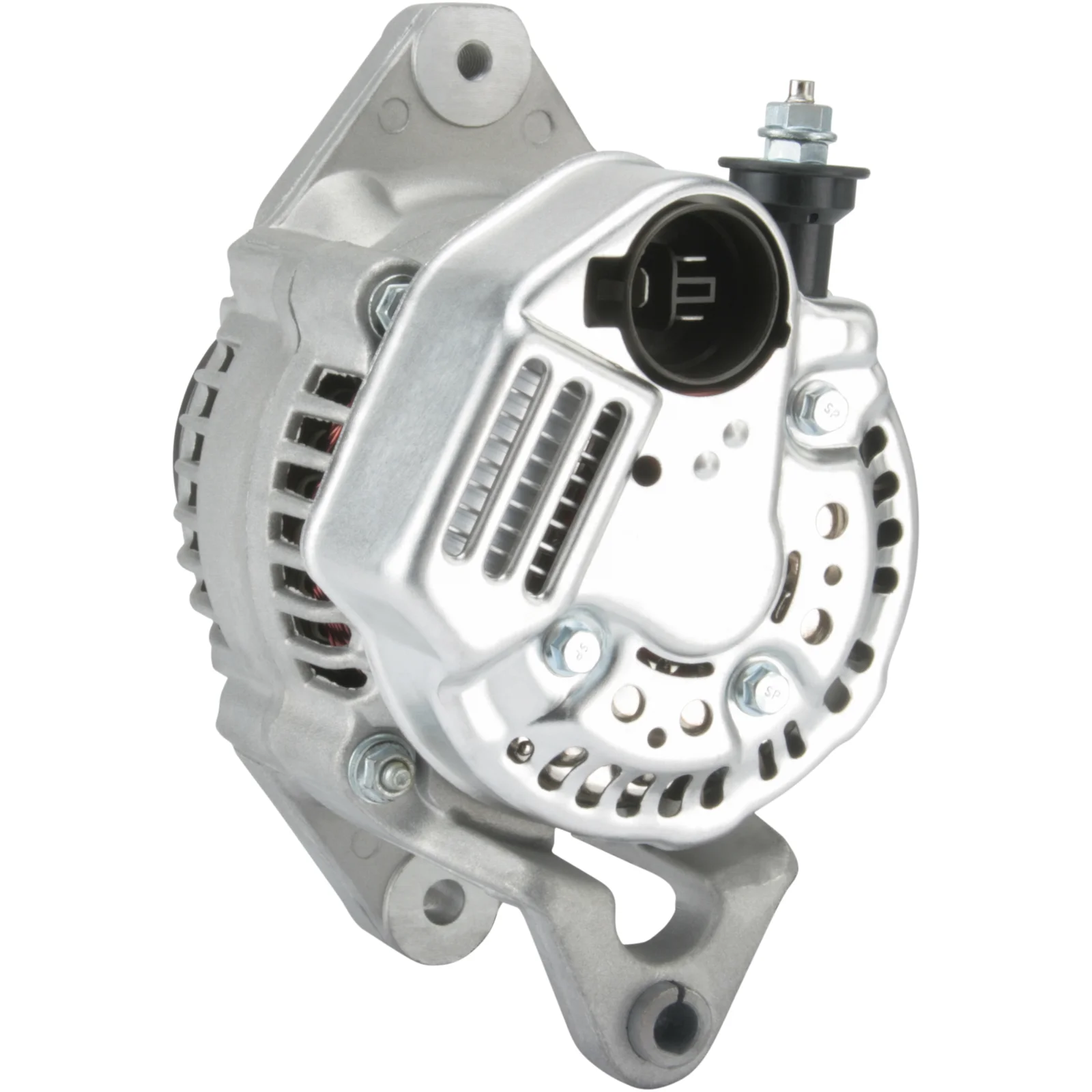

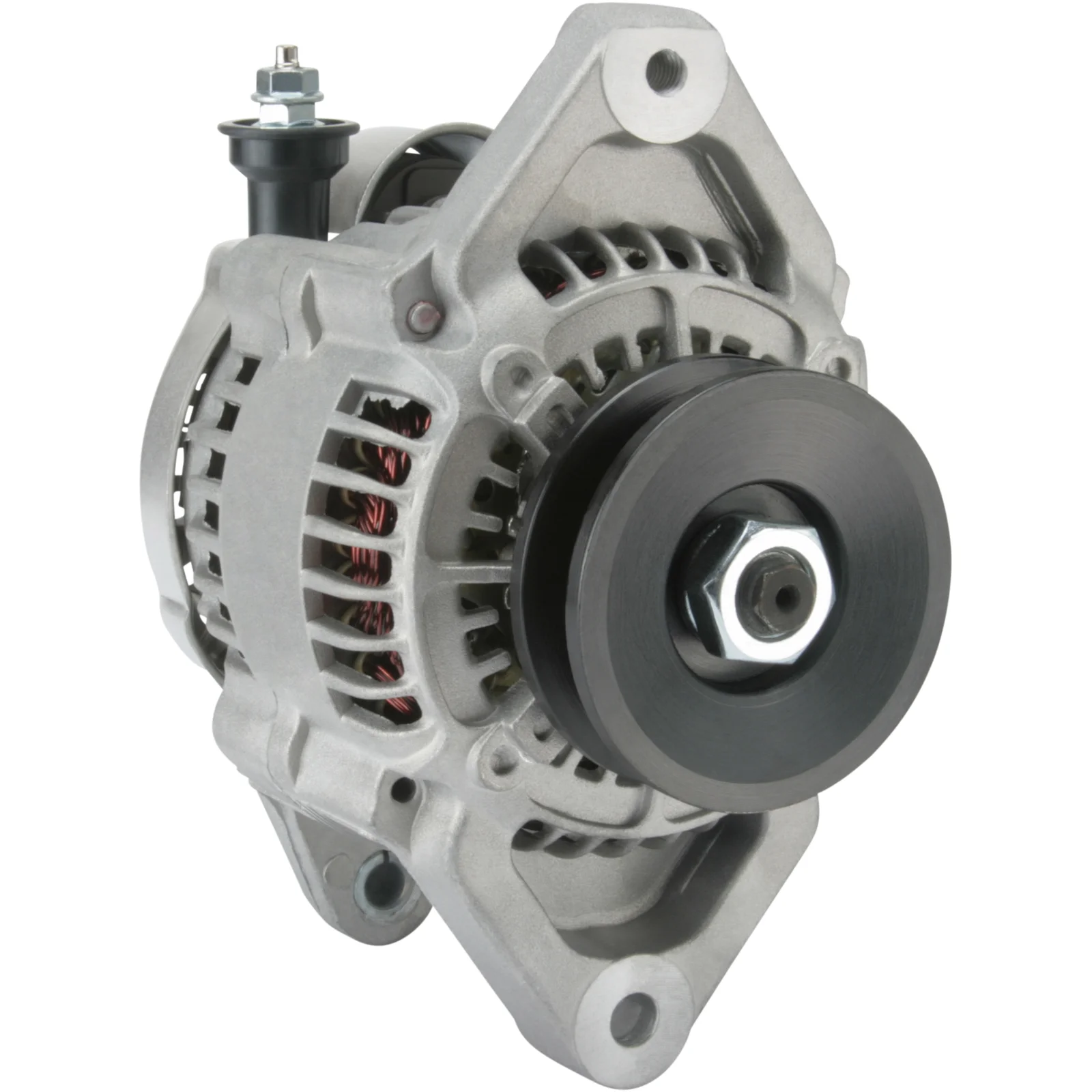

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032110965

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 50, Rotasjon: CW, Monteringsbeslag avstand: 67,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 50
Drevskive dist.: 42.00
Bredde/bøssing arm: 20.00
Monteringsbrakett dist.: 67.00
Brakettåpning: 8.80
Belt. justering brakettåpning pos.: 60
Belt. justering brakettåpning 1: M8
Drevskive dia.: 72.00
Groover/drevskive: 1
Radius: 78.00
Radius 2: 77.00
B+: M6
Posisjon/B+ i min.: 52
Rotasjon: med klokken
Stikker nr.: PL11
Total lengde mm: 156.00
Drevskive: P
Regulator type: IR
Prod. info: BN
Service: Suzuki

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL11
Bracket hole 8.80
Position/B+ in min. 52
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 42.00
Radius 78.00
Radius 2 77.00
Regulator type IR
Rotation CW
Servicing Suzuki
Grooves/pulley 1
Voltage 14
Total length 156.00 mm
Width/holder arm 20.00
Amp 50

  • OEM
    A003T34782, A7T01771, F032110965, ja188ir, 31400-60B1, 31400-82610, 31400-82611, 31400-83010, 31400-86010, 31400-B83010, 31400-M80030, 100211-1410, 100211-1411, 100211-1530, 100211-155, 100211-1550, 100211-1551, 100211-1552, 100211-4060, 100211-4070, 100211-4071, 100211-6270, 9120334328

  • Konkurrentreferens
    A6607S, AL430X, ALT-5021, ALT5021, aza-416, dra3119, F042302008, F042A02008, FRA701, lra00549, QA3199, 1-1228-01ND-1, 8EL015630-341, 8el726333-001, 28-0981, 28-1560, 37-51.802, 37-51.803, 37-51.804, 185.504.045, 245.102.452, 3131N, 3131R, 5328, 13214N, 13255, 13255N, 14684, 14684N, 40188RI, 56255, 118288, 210039, 210039A, 437163, 9213636, 12060461, 12060468, 12060626, 0986035461

  • NormaliseratArtNr
    a003t34782, a6607s, a7t01771, al430x, alt5021, aza416, dra3119, f032110965, f042302008, f042a02008, fra701, ja188ir, lra00549, qa3199, 8el015630341, 8el726333001, 3131n, 3131r, 5328, 13214n, 13255, 13255n, 14684, 14684n, 31400b83010, 31400m80030, 40188ri, 56255, 118288, 210039, 210039a, 280981, 281560, 437163, 1122801nd1, 3140060b1, 3751802, 3751803, 3751804, 9213636, 12060461, 12060468, 12060626, 100211155, 185504045, 245102452, 0986035461, 1002111410, 1002111411, 1002111530, 1002111550, 1002111551, 1002111552, 1002114060, 1002114070, 1002114071, 1002116270, 3140082610, 3140082611, 3140083010, 3140086010, 9120334328

  • Passar modeller
    Chevrolet Model: Sprint Model series: Sprint Model type: ER Size of motor: 1.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Sprint Model series: Sprint Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firefly Model series: Firefly Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firefly Model series: Firefly Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firefly Model series: Firefly Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firefly Model series: Firefly Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Model type: V Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Model type: V Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Suzuki Model: Forsa Model series: Forsa Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Model type: JA Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Model type: JL Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Model type: JS Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Open Off-Road Vehicle Size of motor: 1.3 Brand of engine: G13BA Type description: SJ_ Body: Open Off-Road Vehicle From date: 01-08-1992 To date: 01-08-1998 Fuel: Petrol Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13BA Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1986 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: Sidekick Model series: Sidekick Size of motor: 1.3 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-08-1986 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-09-1984 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 From date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.0 Brand of engine: G10 Type description: SA310,AA41,43 Body: Hatchback From date: 01-10-1983 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.0 Brand of engine: G10A Type description: SA310,AA41,43 Body: Hatchback From date: 01-10-1983 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA51 Body: Hatchback From date: 01-10-1984 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA51,AA53 Body: Hatchback From date: 01-10-1984 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA53 Body: Hatchback From date: 01-08-1986 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Type of engine: Turbo Size of motor: 1.0 Brand of engine: G10T Type description: SA310 Body: Hatchback From date: 01-02-1985 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivelse
    Spenning: 14
    Ampere: 50
    Drevskive dist.: 42.00
    Bredde/bøssing arm: 20.00
    Monteringsbrakett dist.: 67.00
    Brakettåpning: 8.80
    Belt. justering brakettåpning pos.: 60
    Belt. justering brakettåpning 1: M8
    Drevskive dia.: 72.00
    Groover/drevskive: 1
    Radius: 78.00
    Radius 2: 77.00
    B+: M6
    Posisjon/B+ i min.: 52
    Rotasjon: med klokken
    Stikker nr.: PL11
    Total lengde mm: 156.00
    Drevskive: P
    Regulator type: IR
    Prod. info: BN
    Service: Suzuki

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL11
    Bracket hole 8.80
    Position/B+ in min. 52
    Prod. info BN
    Pulley P
    Pulley dia. 72.00
    Pulley dist. 42.00
    Radius 78.00
    Radius 2 77.00
    Regulator type IR
    Rotation CW
    Servicing Suzuki
    Grooves/pulley 1
    Voltage 14
    Total length 156.00 mm
    Width/holder arm 20.00
    Amp 50
  • Kjøretøymatching

    • OEM
      A003T34782, A7T01771, F032110965, ja188ir, 31400-60B1, 31400-82610, 31400-82611, 31400-83010, 31400-86010, 31400-B83010, 31400-M80030, 100211-1410, 100211-1411, 100211-1530, 100211-155, 100211-1550, 100211-1551, 100211-1552, 100211-4060, 100211-4070, 100211-4071, 100211-6270, 9120334328

    • Konkurrentreferens
      A6607S, AL430X, ALT-5021, ALT5021, aza-416, dra3119, F042302008, F042A02008, FRA701, lra00549, QA3199, 1-1228-01ND-1, 8EL015630-341, 8el726333-001, 28-0981, 28-1560, 37-51.802, 37-51.803, 37-51.804, 185.504.045, 245.102.452, 3131N, 3131R, 5328, 13214N, 13255, 13255N, 14684, 14684N, 40188RI, 56255, 118288, 210039, 210039A, 437163, 9213636, 12060461, 12060468, 12060626, 0986035461

    • NormaliseratArtNr
      a003t34782, a6607s, a7t01771, al430x, alt5021, aza416, dra3119, f032110965, f042302008, f042a02008, fra701, ja188ir, lra00549, qa3199, 8el015630341, 8el726333001, 3131n, 3131r, 5328, 13214n, 13255, 13255n, 14684, 14684n, 31400b83010, 31400m80030, 40188ri, 56255, 118288, 210039, 210039a, 280981, 281560, 437163, 1122801nd1, 3140060b1, 3751802, 3751803, 3751804, 9213636, 12060461, 12060468, 12060626, 100211155, 185504045, 245102452, 0986035461, 1002111410, 1002111411, 1002111530, 1002111550, 1002111551, 1002111552, 1002114060, 1002114070, 1002114071, 1002116270, 3140082610, 3140082611, 3140083010, 3140086010, 9120334328

    • Passar modeller
      Chevrolet Model: Sprint Model series: Sprint Model type: ER Size of motor: 1.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Sprint Model series: Sprint Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firefly Model series: Firefly Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firefly Model series: Firefly Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firefly Model series: Firefly Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firefly Model series: Firefly Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Model type: V Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Model type: V Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Suzuki Model: Forsa Model series: Forsa Type of engine: Turbo Size of motor: 1.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Model type: JA Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Model type: JL Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Model type: JS Size of motor: 1.3 From date: 01-01-1991 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Open Off-Road Vehicle Size of motor: 1.3 Brand of engine: G13BA Type description: SJ_ Body: Open Off-Road Vehicle From date: 01-08-1992 To date: 01-08-1998 Fuel: Petrol Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13BA Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1985 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1986 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Suzuki Model: Sidekick Model series: Sidekick Size of motor: 1.3 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-08-1986 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
      Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-09-1984 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
      Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 From date: 01-01-1985 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.0 Brand of engine: G10 Type description: SA310,AA41,43 Body: Hatchback From date: 01-10-1983 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.0 Brand of engine: G10A Type description: SA310,AA41,43 Body: Hatchback From date: 01-10-1983 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA51 Body: Hatchback From date: 01-10-1984 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA51,AA53 Body: Hatchback From date: 01-10-1984 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13A Type description: SA413,AA53 Body: Hatchback From date: 01-08-1986 To date: 01-03-1989 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Type of engine: Turbo Size of motor: 1.0 Brand of engine: G10T Type description: SA310 Body: Hatchback From date: 01-02-1985 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
      1 / 7
