Varenr.: F032110986

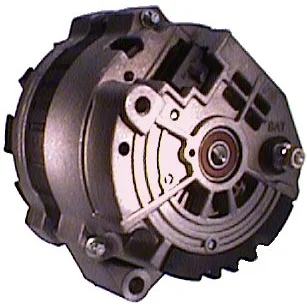

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amper: 100/105, Rotasjon: medur, Remskive diam.: 55,70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 100/105
Drevkugg dist.: 73,00
Bredde/holderarm: 50,80
Gavl hull: 10,20
Bånd. just.: Bånd. justeringsgavlpos.: 50
Bånd. justeringsgavl hull 1: 8,00
Drevkugg dia.: 55,70
Groover/drevkugg: 6
Radius: 78,00
Radius 2: 78,00
B+: M6
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Roteringsretning: Drev (CW)
Plugg nr.: PL24
Total lengde mm: 174,00
Drevkugg: SP
Regulatorsort: IR
Prod. info: BN
Service: Jeep
Anmerkninger: Utskifting: CS130.

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 50
Plug no. PL24
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 55.70
Pulley dist. 73.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Remarks Replacing: CS130.
Rotation CW
Servicing Jeep
Grooves/pulley 6
Voltage 14
Total length 174.00 mm
Width/holder arm 50.80
Amp 100/105

  • OEM
    F032110986, JR775126, ua923ir, 1101167, 1101170, 10463035, 10463036, 10463037, 10463041, 53002898

  • Konkurrentreferens
    AL653X, ALT-1315C, ALT1315C, ALT40020, CAL60100, drz0109, F042300105, F042A00105, LRA01525, LRA02090, 1-1645-31DR, 1-1646-31DR, 8el730139-001, 20-170-30, 20-170-31, 20-170-31-1, 28-2604, 28-4530, 570.002.1002, 570.102.1002, 570.102.852, 835.049.100, 5495, 7873, 7897-11, 7902-11, 7902N, 7902R, 56257, 56356, 9090036, 12090014, 32118508

  • NormaliseratArtNr
    al653x, alt1315c, alt40020, cal60100, drz0109, f032110986, f042300105, f042a00105, jr775126, lra01525, lra02090, ua923ir, 8el730139001, 5495, 7873, 7902n, 7902r, 56257, 56356, 282604, 284530, 789711, 790211, 1101167, 1101170, 1164531dr, 1164631dr, 2017030, 2017031, 9090036, 10463035, 10463036, 10463037, 10463041, 12090014, 20170311, 32118508, 53002898, 570102852, 835049100, 5700021002, 5701021002

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Sport Size of motor: 4.0 From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 Type description: XJ From date: 01-10-1986 To date: 01-09-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 4.0 Brand of engine: ERH Type description: XJ From date: 01-01-1988 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
