Varenr.: F032111018

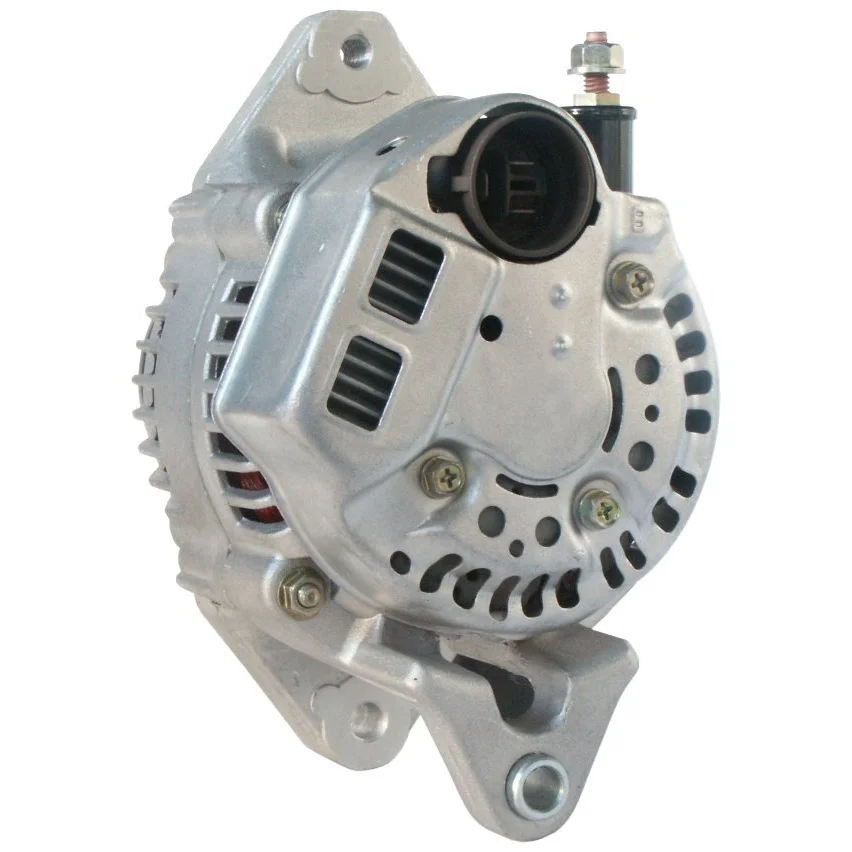

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 50, Rotasjon: CW, Monteringsbeslag avstand: 67,00

Beskrivelse

Spenning: 14
Amp: 50
Drevavstand: 44.00
Bredde/holderarm: 20.00
Festevinkelavstand: 67.00
Festehull: 8.50
Vevremjusteringsholdeposisjon: 60
Vevremjusteringshull M8: 1
Drev diameter: 74.20
Riller/drev: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Posisjon/B+ i min.: 3
D+ Størrelse: Pluggen
Rotasjon: medur
Pluggenr.: PL12
Total lengde mm: 156.50
Drev: P
Vifte: IF
Regulator type: IR
Prod. info: BN
Servis: Toyota

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL12
Bracket hole 8.50
Position/B+ in min. 3
Prod. info BN
Pulley P
Pulley dia. 74.20
Pulley dist. 44.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Toyota
Fan IF
Grooves/pulley 1
Voltage 14
Total length 156.50 mm
Width/holder arm 20.00
Amp 50

  • OEM
    F032111018, ja1170ir, 27060-76305, 27060-78305, 27060-78305-71, 27070-23001-71, 100211-6930, 100211-6931, 100211-6960, 100211-6961, 100211-6970, 100211-6971

  • Konkurrentreferens
    A6648S, ALT-5094, ALT5094, aza-416, CAL40202, CAL40203, F042302068, F042A02068, LRA01697, LRA01934, 1-2439-01ND, 8el737225-001, 28-2939, 28-3824, 535.110.402, 535.110.502, 5642, 12183, 12184, 12184N, 12185, 12185N, 56255, 401170RI, 12060575

  • NormaliseratArtNr
    a6648s, alt5094, aza416, cal40202, cal40203, f032111018, f042302068, f042a02068, ja1170ir, lra01697, lra01934, 8el737225001, 5642, 12183, 12184, 12184n, 12185, 12185n, 56255, 282939, 283824, 401170ri, 1243901nd, 12060575, 535110402, 535110502, 1002116930, 1002116931, 1002116960, 1002116961, 1002116970, 1002116971, 2706076305, 2706078305, 270607830571, 270702300171

  • Passar modeller
    Toyota Model: 5FD Model series: 5FD40 From date: 01-01-1988 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG35 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG38 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG40 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG45 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FG Model series: 5FG60 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
