HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111042

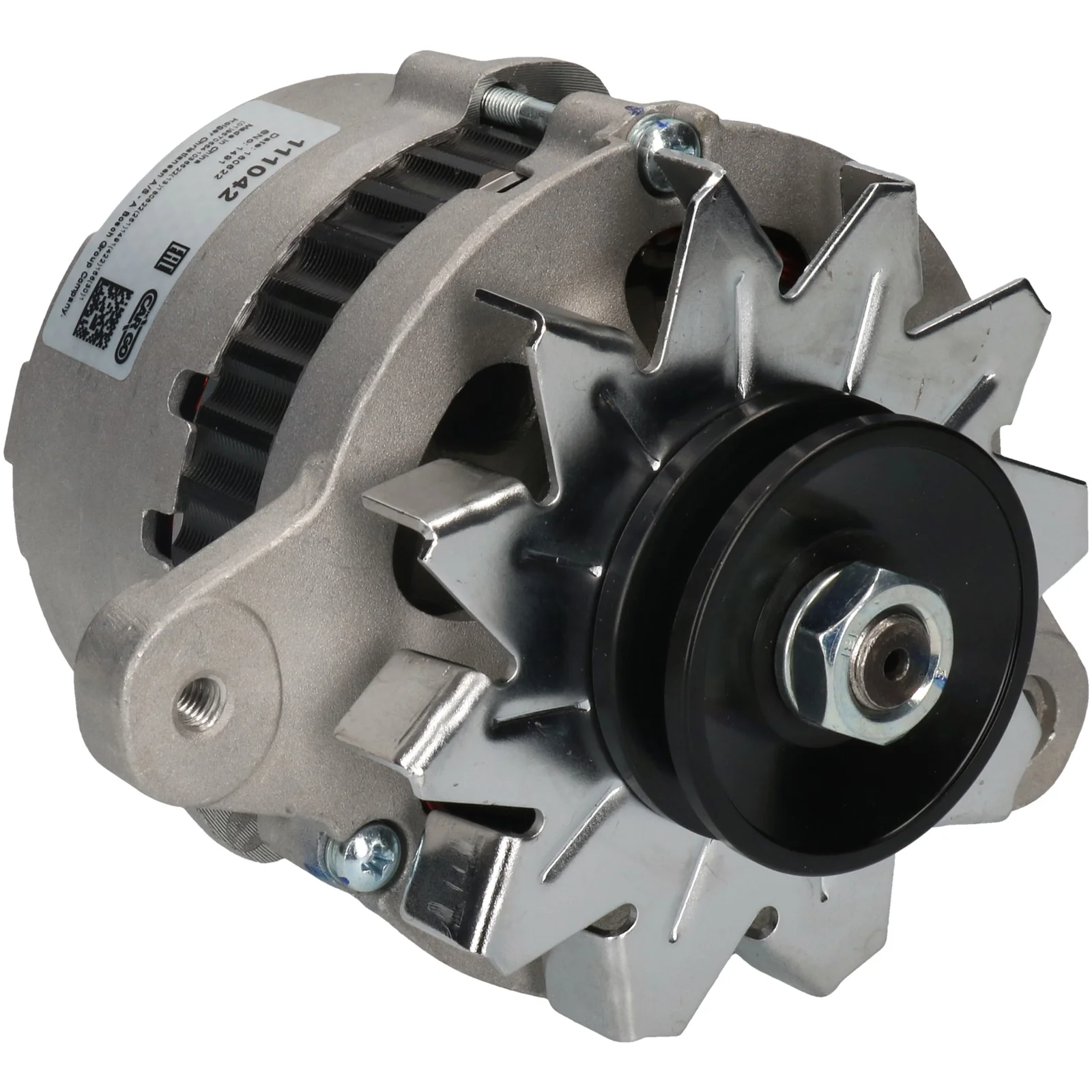

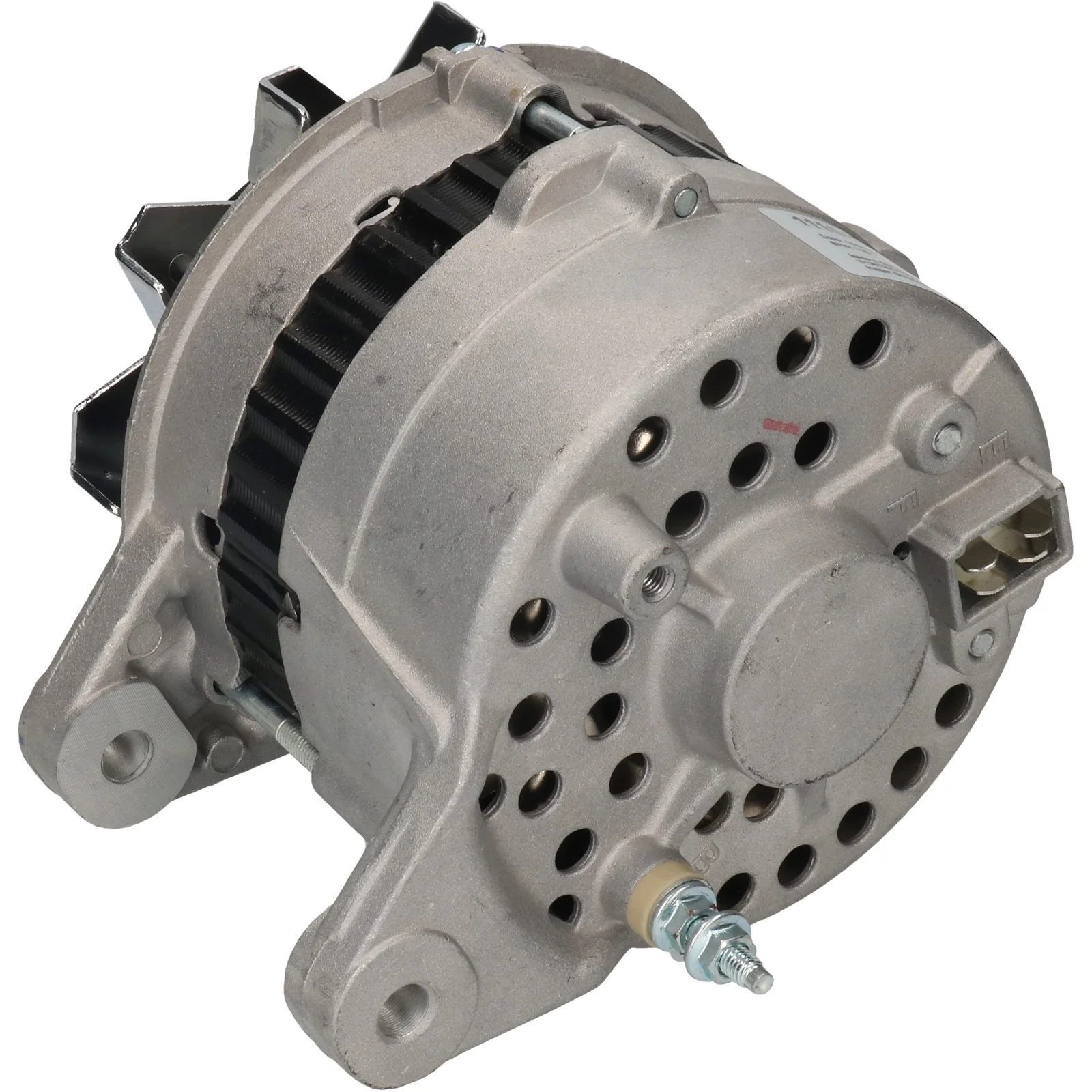

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 35, Rotasjon: CW, Monteringsbrakett avstand.: 65,00

Beskrivelse

Spenningsverdi: 14
Ampere: 35
Reimgjenget dist.: 42,00
Bredde/holderarm: 13,00
Monteringsbrakettavstand: 65,00
Brakettåpning: 8,50
Båndjusteringsbrakettåpning pos.: 55
Båndjusteringsbrakettåpning 1: M8
Reimgjenget dia.: 62,00
Groover/reim: 1
Radius: 78,00
Radius 2: 78,00
B+: M5
Posisjon/B+ i min.: 25
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL02
Total lengde mm: 162,00
Reim: P
Spenningsregulator: uten
Prod. info: BN
Service: Iseki

Filer

Spesifikasjon

B+ M5
Mount. bracket dist. 65.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL02
Bracket hole 8.50
Position/B+ in min. 25
Prod. info BN
Pulley P
Pulley dia. 62.00
Pulley dist. 42.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator w/o
Rotation CW
Servicing Iseki
Grooves/pulley 1
Voltage 14
Total length 162.00 mm
Width/holder arm 13.00
Amp 35

  • OEM
    A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

  • Konkurrentreferens
    aca-322, CAL40133, dra3443, LRA01091, 8el732718-001, 27-1618, 90-27-3081, 526.002.352, 5446, 12132, 12132N, 40872, 119148, 12060487

  • NormaliseratArtNr
    a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352

  • Passar modeller
    Iseki Model: 200 Model series: 234 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 235 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 244 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 245 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 254 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 255 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 265 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 275 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 2100 Model series: 2140 Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 35
    Reimgjenget dist.: 42,00
    Bredde/holderarm: 13,00
    Monteringsbrakettavstand: 65,00
    Brakettåpning: 8,50
    Båndjusteringsbrakettåpning pos.: 55
    Båndjusteringsbrakettåpning 1: M8
    Reimgjenget dia.: 62,00
    Groover/reim: 1
    Radius: 78,00
    Radius 2: 78,00
    B+: M5
    Posisjon/B+ i min.: 25
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL02
    Total lengde mm: 162,00
    Reim: P
    Spenningsregulator: uten
    Prod. info: BN
    Service: Iseki

    Filer

  • Spesifikasjon
    B+ M5
    Mount. bracket dist. 65.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL02
    Bracket hole 8.50
    Position/B+ in min. 25
    Prod. info BN
    Pulley P
    Pulley dia. 62.00
    Pulley dist. 42.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator w/o
    Rotation CW
    Servicing Iseki
    Grooves/pulley 1
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 13.00
    Amp 35
  • Kjøretøymatching

    • OEM
      A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

    • Konkurrentreferens
      aca-322, CAL40133, dra3443, LRA01091, 8el732718-001, 27-1618, 90-27-3081, 526.002.352, 5446, 12132, 12132N, 40872, 119148, 12060487

    • NormaliseratArtNr
      a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352

    • Passar modeller
      Iseki Model: 200 Model series: 234 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 235 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 244 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 245 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 254 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 255 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 265 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 275 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 2100 Model series: 2140 Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
