Varenr.: F032111232

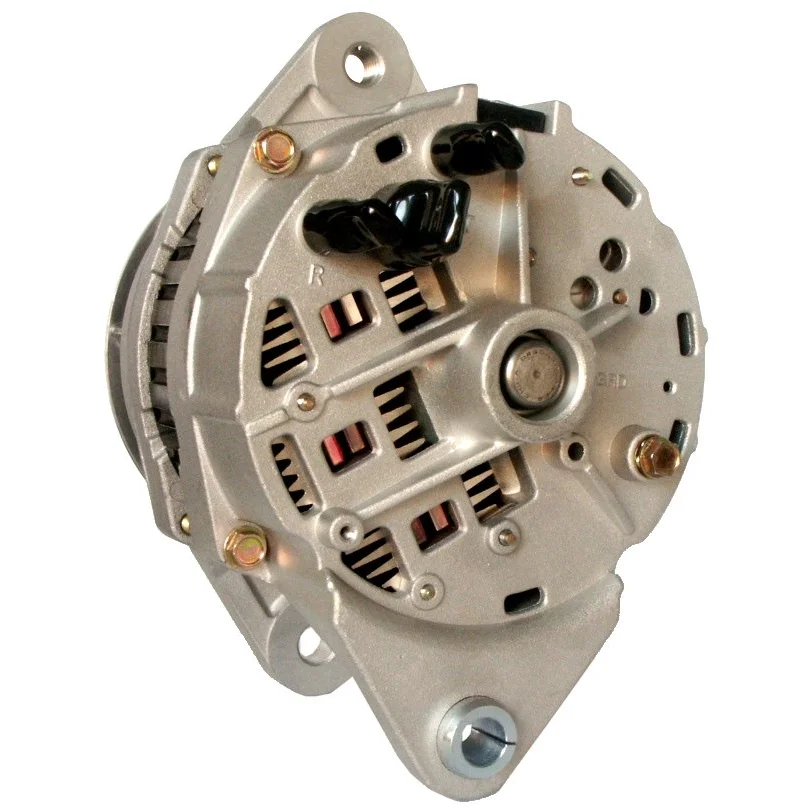

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 115, Revolusjon: CW, Monteringsbrakett avstand: 101,80

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 115
Terminal: W
Bredde/holdearm: 14,30
Festebraktdist.: 101,80
Brakthull: 13,00
Beltek. justeringsbrakkeballongpos.: 60
Beltek. justeringsbrakkeballonghull 1: 1/2" UNC
Radius: 99,00
Radius 2: 99,00
B+: 1/4" UNF
Posisjon/B+ i min.: 52
D+ Størrelse: 10-24 UNC
Rotasjon: Med urviseren
W-kontakttype: 10-24 UNC
Total lengde mm: 215,00
Drevskive: uten
Vifte: EF
Regulator type: IR
Prod. info: BN
Service: Volvo
Merknader: Erstatter: 21SI. Ett ledningssystem. B+: 1/4".

Spesifikasjon

B+ 1/4" UNF
Mount. bracket dist. 101.80
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 52
Prod. info BN
Pulley w/o
Radius 99.00
D+ Size 10-24 UNC
Radius 2 99.00
Regulator type IR
Remarks Replacing: 21SI. One-wire system. B+: 1/4".
Rotation CW
Servicing Volvo
Fan EF
Terminal W
Voltage 14
W plug type 10-24 UNC
Total length 215.00 mm
Width/holder arm 14.30
Amp 115
  • OEM

    0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902
  • Konkurrentreferens

    A1017, A1066S, AL9937X, BAO3130, CAL60102, CAL60126, da07644, drz0191, 1-1915-01DR, 1-1915-02DR, 1-1915-03DR, 1-1915-04DR, 1-1915-05DR, 8el737232-001, 28-2881, 645.052.051, 5619, 7669, 7670, 7671, 7673, 7679, 7681N, 7681R, 7685N, 7685R, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049N, 8077N, 220307, 220307A, 501115RI, 553311RI, 553360RI, 553805RI
  • NormaliseratArtNr

    0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
  • Passar modeller

    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 115
    Terminal: W
    Bredde/holdearm: 14,30
    Festebraktdist.: 101,80
    Brakthull: 13,00
    Beltek. justeringsbrakkeballongpos.: 60
    Beltek. justeringsbrakkeballonghull 1: 1/2" UNC
    Radius: 99,00
    Radius 2: 99,00
    B+: 1/4" UNF
    Posisjon/B+ i min.: 52
    D+ Størrelse: 10-24 UNC
    Rotasjon: Med urviseren
    W-kontakttype: 10-24 UNC
    Total lengde mm: 215,00
    Drevskive: uten
    Vifte: EF
    Regulator type: IR
    Prod. info: BN
    Service: Volvo
    Merknader: Erstatter: 21SI. Ett ledningssystem. B+: 1/4".
  • Spesifikasjon
    B+ 1/4" UNF
    Mount. bracket dist. 101.80
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 52
    Prod. info BN
    Pulley w/o
    Radius 99.00
    D+ Size 10-24 UNC
    Radius 2 99.00
    Regulator type IR
    Remarks Replacing: 21SI. One-wire system. B+: 1/4".
    Rotation CW
    Servicing Volvo
    Fan EF
    Terminal W
    Voltage 14
    W plug type 10-24 UNC
    Total length 215.00 mm
    Width/holder arm 14.30
    Amp 115
  • Kjøretøymatching
    • OEM

      0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902
    • Konkurrentreferens

      A1017, A1066S, AL9937X, BAO3130, CAL60102, CAL60126, da07644, drz0191, 1-1915-01DR, 1-1915-02DR, 1-1915-03DR, 1-1915-04DR, 1-1915-05DR, 8el737232-001, 28-2881, 645.052.051, 5619, 7669, 7670, 7671, 7673, 7679, 7681N, 7681R, 7685N, 7685R, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049N, 8077N, 220307, 220307A, 501115RI, 553311RI, 553360RI, 553805RI
    • NormaliseratArtNr

      0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
    • Passar modeller

      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
