Varenr.: F032111287

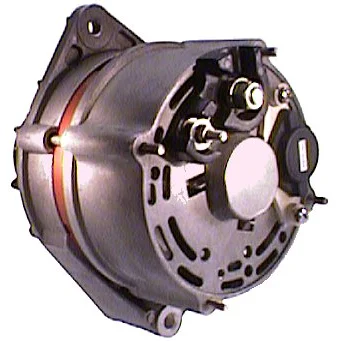

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Reimhjul diameter: 68,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 70
Terminal: W
Drev: 109,50
Bredde/holder arm: 56,00
Bøssinghull: 8,20
Belt. justering. bøssinghull pos.: 2
Belt. justering. bøssinghull 1: 8,20
Drevskive diameter: 68,50
Groove/rille: 1
Radius: 87,00
Radius 2: 81,00
B+: M8
Posisjon/B+ i min.: 57
D+: Størrelse: M5
Rotasjon: DOKKE
W kontakt type: 6,30
Total lengde mm: 190,00
Drevskive: P
Regulator type: IR
Prod. info: BN
Servicering: VW

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 2
Bracket hole 8.20
Position/B+ in min. 57
Prod. info BN
Pulley P
Pulley dia. 68.50
Pulley dist. 109.50
Radius 87.00
D+ Size M5
Radius 2 81.00
Regulator type IR
Rotation CW
Servicing VW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type 6.30
Total length 190.00 mm
Width/holder arm 56.00
Amp 70
  • OEM

    aak1178, aak1179, aak3510, AAK3588, F032111287, 11.201.210, 11.201.211, 11.201.529, 11.201.611, 319ir, 036903017g, 036903017GX, 068903017m, 068903017MX, 068903031c, 068903031d, 068903031l, 068903031S, 068903031SX, 068903315, 0120489425, 0120489427, 0120489432, 0120489433, 0120489495, 0120489496
  • Konkurrentreferens

    A0086, A0141, A0477, ALT-H032, ALT10122, ALT10174, CAL10579, dra0610, dra4550, dra4560, dra6510, F042A0H032, FRA664, ia0145, ia0211, ia0529, ia0611, lra00774, lra00890, LRA02587, lrb00129, MG375, MG401, QA2036, va123, va195, 1-1469-01BO, 8el725902-001, 28-0647, 28-0757, 28-0950, 28-0956, 28-2660, 28-2961, 41-30.610, 41-34.550, 41-34.560, 41-36.510, 211.116.452, 211.116.652, 211.118.552, 211.133.652, 4374, 5178, 23588R, 23595R, 30619RI, 55968, 56012, 56136, 118234, 118344, 210108, 210108A, 436215, 436225, 436296, 443194, 9030610, 9034550, 9034560, 9036510, 12034550, 12034560, 12036510, 32034560, 943356257, 943356676, 943356682, 943356739, 0986034558, 0986034560, 0986036510
  • NormaliseratArtNr

    a0086, a0141, a0477, aak1178, aak1179, aak3510, aak3588, alt10122, alt10174, alth032, cal10579, dra0610, dra4550, dra4560, dra6510, f032111287, f042a0h032, fra664, ia0145, ia0211, ia0529, ia0611, lra00774, lra00890, lra02587, lrb00129, mg375, mg401, qa2036, va123, va195, 8el725902001, 319ir, 4374, 5178, 23588r, 23595r, 30619ri, 55968, 56012, 56136, 118234, 118344, 210108, 210108a, 280647, 280757, 280950, 280956, 282660, 282961, 436215, 436225, 436296, 443194, 1146901bo, 4130610, 4134550, 4134560, 4136510, 9030610, 9034550, 9034560, 9036510, 11201210, 11201211, 11201529, 11201611, 12034550, 12034560, 12036510, 32034560, 036903017g, 036903017gx, 068903017m, 068903017mx, 068903031c, 068903031d, 068903031l, 068903031s, 068903031sx, 068903315, 0120489425, 0120489427, 0120489432, 0120489433, 0120489495, 0120489496, 211116452, 211116652, 211118552, 211133652, 943356257, 943356676, 943356682, 943356739, 0986034558, 0986034560, 0986036510
  • Passar modeller

    VW Model: Caddy Model series: Caddy Type of engine: Diesel Size of motor: 1.6 Brand of engine: JK Body: Pick Up From date: 01-08-1982 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Bus From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Platform / Chassis From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.6 Brand of engine: CS Body: Van From date: 01-01-1981 To date: 01-07-1987 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Platform / Chassis From date: 01-07-1989 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: Diesel Size of motor: 1.7 Brand of engine: KY Body: Van From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Platform / Chassis From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: TD Size of motor: 1.6 Brand of engine: JX Body: Van From date: 01-10-1984 To date: 01-07-1992 Fuel: Diesel Approved: Yes
