Varenr.: F032111342

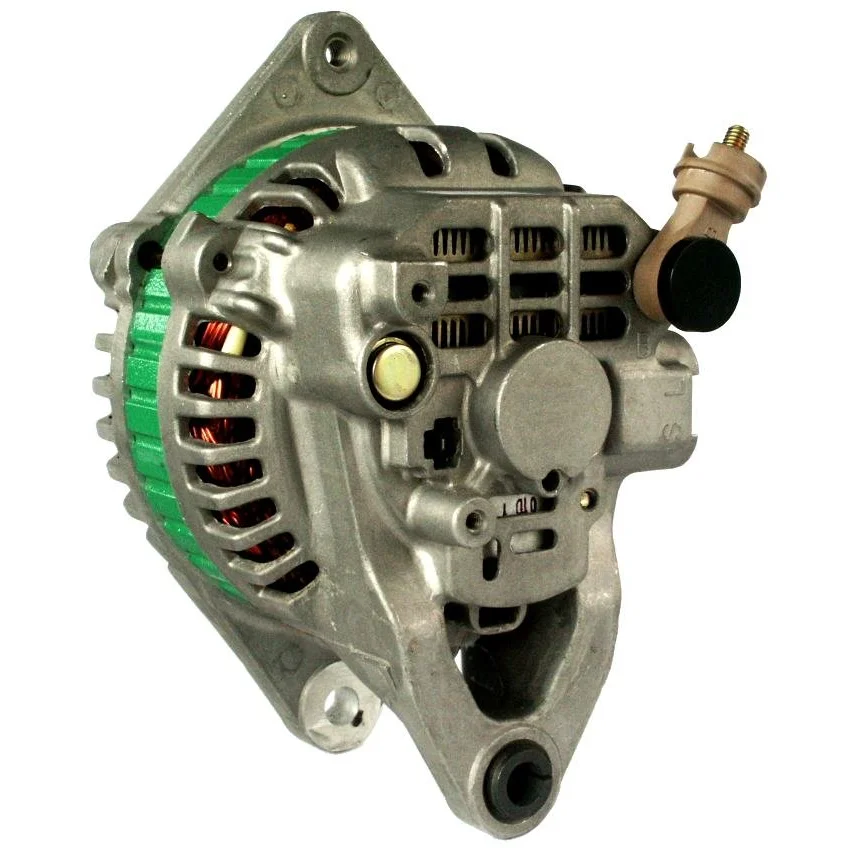

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 60, Rotasjon: CW, Monteringsbrakett avstand: 66,00

Beskrivelse

Spenning: 14
Ampere: 60
Drevskive. dist.: 43.00
Bredde/holder arm: 13.00
Monteringsbeslag dist.: 66.00
Beslaghull: 10.50
Bælte. justering beslaghul pos.: 60
Bælte. justering beslaghul 1: M8
Drevskive dia.: 74.00
Guider/drevskive: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Posisjon/B+ i min.: 8
D+ størrelse: Kontakt
Rotasjon: CW
Kontakt nr.: PL07
Total lengde mm: 156.00
Terminaltype: L-S
Drevskive: P
Kjølevifte: IF
Regulator type: IR
Prod. info: BN
Service: Mazda

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 43.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mazda
Fan IF
Grooves/pulley 1
Terminal type L-S
Voltage 14
Total length 156.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

  • Konkurrentreferens
    A5265, AL4207X, ALT-H038, ALT31008, ama-386, CAL35148, dra3167, dra3306, DRA4139, F042A0H038, LRA02654, lrb00157, QA4086, 1-1160-01MI, 1-1428-01MI, 8EL011712-071, 8el731746-001, 24-51.312, 24-51.332, 28-1788, 224.121.602, 5434, 13227, 13432, 40805RI, 56364, 119269, 437681, 12060106, 12060107, 0986045501

  • NormaliseratArtNr
    a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501

  • Passar modeller
    Mazda Model: Miata Model series: Miata Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B6 Type description: NA Body: Convertible From date: 01-01-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B64F Type description: NA Body: Convertible From date: 01-05-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 14
    Ampere: 60
    Drevskive. dist.: 43.00
    Bredde/holder arm: 13.00
    Monteringsbeslag dist.: 66.00
    Beslaghull: 10.50
    Bælte. justering beslaghul pos.: 60
    Bælte. justering beslaghul 1: M8
    Drevskive dia.: 74.00
    Guider/drevskive: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Posisjon/B+ i min.: 8
    D+ størrelse: Kontakt
    Rotasjon: CW
    Kontakt nr.: PL07
    Total lengde mm: 156.00
    Terminaltype: L-S
    Drevskive: P
    Kjølevifte: IF
    Regulator type: IR
    Prod. info: BN
    Service: Mazda

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 8
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 43.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mazda
    Fan IF
    Grooves/pulley 1
    Terminal type L-S
    Voltage 14
    Total length 156.00 mm
    Width/holder arm 13.00
    Amp 60
  • Kjøretøymatching

    • OEM
      A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

    • Konkurrentreferens
      A5265, AL4207X, ALT-H038, ALT31008, ama-386, CAL35148, dra3167, dra3306, DRA4139, F042A0H038, LRA02654, lrb00157, QA4086, 1-1160-01MI, 1-1428-01MI, 8EL011712-071, 8el731746-001, 24-51.312, 24-51.332, 28-1788, 224.121.602, 5434, 13227, 13432, 40805RI, 56364, 119269, 437681, 12060106, 12060107, 0986045501

    • NormaliseratArtNr
      a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501

    • Passar modeller
      Mazda Model: Miata Model series: Miata Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B6 Type description: NA Body: Convertible From date: 01-01-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B64F Type description: NA Body: Convertible From date: 01-05-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
